Scaled Composites Model 151 ARES

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

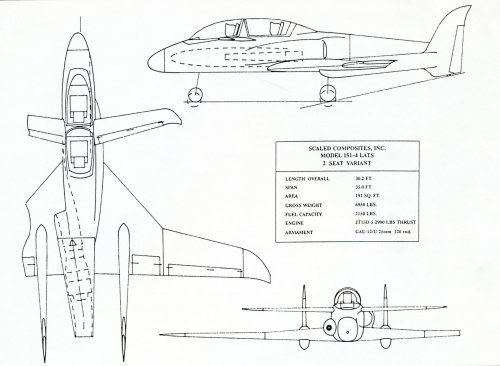

One of most aesthetically appealing and meantime strangest Rutan's design - rarely seen two-seat version of it (Model 151-4). Drawings (c) Scaled Composites


Attachments

  • ARES2SEAT.jpg
    174.3 KB · Views: 1,182

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
Thanks flateric,

I have always wondered if there had been consideration of a two seat version of the ARES. I have pondered of late, with all the discussion ongoing over a COIN aircraft how the design would have done to meet the emerging requirement. If memory serves it had a decent payload for its size and it was highly maneuverable as well. I would assume it would have had a relatively low maintenance requirement as well.


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Too bad ARES won't be in consideration for the new CAS aircraft for the Iraqi Air Force.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
flateric said:
One of most aesthetically appealing and meantime strangest Rutan's design - rarely seen two-seat version of it (Model 151-4).

As I recollect, only the single ARES prototype was ever built?

I do find it interesting that the two seater would have retained the assymetrical intake - and possibly even GAU-12 gun?

It is worth pondering whether this ARES derivative would been a serious JPATS contender if the off-the-shelf requirement had been relaxed?


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
I am speculating somewhat here, but I think that the program was started as a US Army project and the USAF had nothing to do with it. The USAF having a slight phobia at Army projects (especially fixed wing projects) (not speculation), doomed it to a one aircraft demonstration. I would be interested to have more than something of 'urban legend' on the program, is there a site or another thread with more information?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
688
Model 151 called Agile Responsive Effective Support or short ARES

1981 the United States Army requested that a study be undertaken for a LCBAA or low cost battlefield attack aircraft.

with other word ARES is low cost A-10 Thunderbolt II !

can it be that Two Seat ARES is a Counter-insurgency (COIN) Aircraft ?
http://en.wikipedia.org/wiki/Counter-insurgency#COIN_Aircraft
2 men crew, pilot and observer

other COIN Aircraft
OV-10 Bronco
O-2 Skymaster ( Cessna 337 Super Skymaster)
FMA IA 58 Pucará
A-37 Dragonfly
have two men Crew.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
What a Sad history my friends, I like very much this design, I think it´s a wonderful solution for the increasing cost of the combat aircraft.

But the rivalry between the US ARMY and USAF and US NAVY is a very old history.

Saludos

A

avatar

Guest

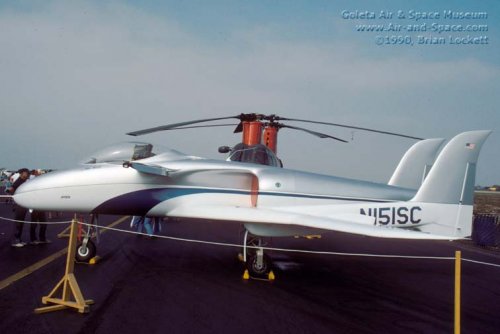

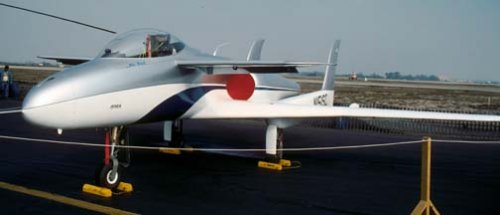

Here is the one seat version anyway ... may help in comparison

These images are from www.Air-and-Space.com
by Brian Lockett


Attachments

  • 901741 Ares N151SC left side l.jpg
    901741 Ares N151SC left side l.jpg
    38 KB · Views: 725
  • 901745 Ares N151SC left front m.jpg
    901745 Ares N151SC left front m.jpg
    19.1 KB · Views: 718
  • 901747 Ares N151SC right front m.jpg
    901747 Ares N151SC right front m.jpg
    16.2 KB · Views: 707

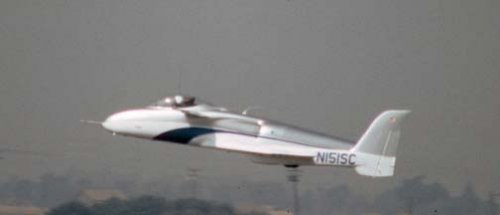

  • 901775 Ares N151SC left side take-off m.jpg
    901775 Ares N151SC left side take-off m.jpg
    11 KB · Views: 695

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
I know the Army's been asking for additional air support options, maybe someone decided the ARES concept was worth investigating again.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875
Just call me Ray said:
I know the Army's been asking for additional air support options, maybe someone decided the ARES concept was worth investigating again.

seems that you just haven't read the article)))


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
I did. It doesn't say anything about B-2 testing specifically, or about any specific program. Either that, or I guess the B-2 has a much smaller radar than I thought.

EDIT: Unless it's in the box structure under the wing. Still seems kinda small, but the planform seems to closely match a B-2's nose. Still, I have to wonder why did they drag the ARES out for this then.


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
Just call me Ray said:
I know the Army's been asking for additional air support options, maybe someone decided the ARES concept was worth investigating again.

Nope


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
163
Just call me Ray said:
I did. It doesn't say anything about B-2 testing specifically, or about any specific program. Either that, or I guess the B-2 has a much smaller radar than I thought.

EDIT: Unless it's in the box structure under the wing. Still seems kinda small, but the planform seems to closely match a B-2's nose. Still, I have to wonder why did they drag the ARES out for this then.

Dimensions on the downward facing panels are about right for the B-2 radar antennas


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875
Actually, why we'd think that these are new B-2 radar tests?


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Perhaps...just perhaps, could it be that maybe they want to test a battlefield radar? Maybe using adapted B-2 gear. It's just my two cents worth, here. Hey, BAe had a mini-AWACS version of it's proposed SABA battlefield jet as seen in BRITISH SECRET PROJECTS: HYPERSONICS.

Maybe the Army over here is thinking the same thing.

Then again, maybe it's just a simple testbed for radars.

Moonbat


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688

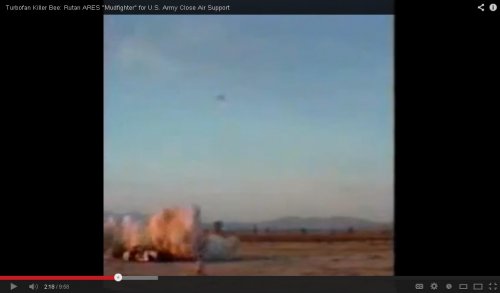

Turbofan Killer Bee: Rutan ARES "Mudfighter" for U.S. Army Close Air Support B)
Video: http://www.youtube.com/watch?v=zG9LlHcX8lg


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
161
Awesome video. Is that me or does the aircraft's nose get thrown around a bit from the recoil? You'd think you'd be limited to short bursts if that were the case. Does anyone have any more info on this?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
688
Its sad they U.S. Army has not taken ARES

it had be nasty littel devil on battlefields ;D


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,896
Reaction score
233
Its sad they U.S. Army has not taken ARES

problem is the USAF won't let them take the mission, but USAF don't want the mission themselves...

cheers,
Robin.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,023
Reaction score
106
AeroFranz said:
Awesome video. Is that me or does the aircraft's nose get thrown around a bit from the recoil? You'd think you'd be limited to short bursts if that were the case. Does anyone have any more info on this?

Obviously too much recoil, not enough thrust and definitely not enough weight. Rutan has obviously made a compromise and the result is a weapon system which might not be quite what its proponents claim.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
fightingirish said:

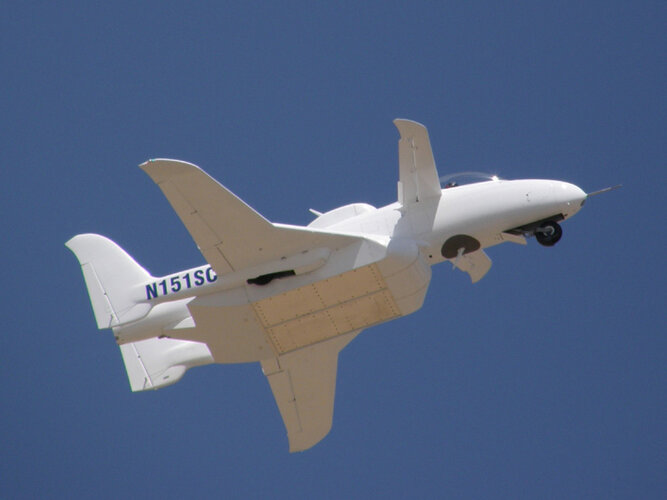

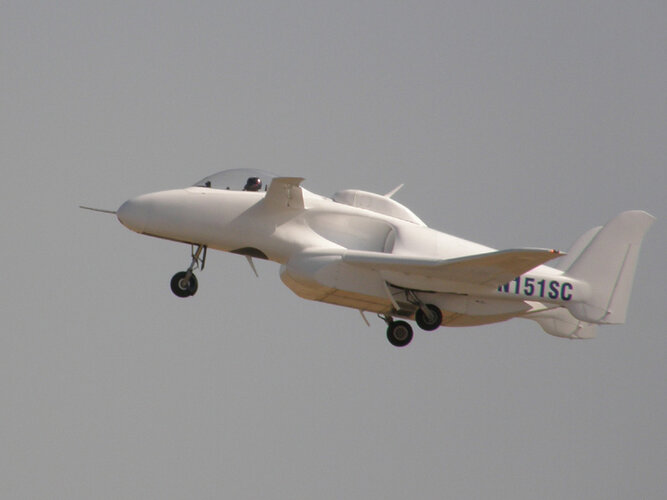

Scaled Composites ARES 151 jet in a new low-vis flat grey paint job, slightly modified (more rounded) lines and and a few more (new?) antennae.
Link: http://deepbluehorizon.blogspot.com/2011/12/rare-scaled-composites-ares-151-jet.html

Um... the same US Navy that tested the Turcano? ARES is probably fairly easy to build, uses a widely available engine and does not have any of those sooo 20th Century props. Wonder if there is any interest in the concept again.

Well it makes me smile at least.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Could this "resurrection" of the ARES have anything to do with the following?
http://www.secretprojects.co.uk/forum/index.php/topic,7555.msg134847.html#msg134847


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,389
Reaction score
540
A less exciting but more probable course of action if it is indeed going to Pax River is that the Navy Test Pilot School may be renting the aircraft to allow students and instructors to try out an aircraft with some very nice flying qualities. It is my understanding they do barrow varied aircraft now and again to make things a bit more interesting.

Update: Super Turcano won the USAF competition so unless the USN has continued its own effort, my hypothesis above seems on firmer ground.


Walker

ACCESS: Restricted
Joined
Oct 30, 2010
Messages
10
Reaction score
15
Website
propjet.ucoz.ru
Thank you!
Yes it is the master model for casting. Long been in unfinished form. I try to understand, it makes sense to finish and cast kit? What do you think?
The quality of castings will be something like:


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Walker said:
Yes it is the master model for casting. Long been in unfinished form. I try to understand, it makes sense to finish and cast kit? What do you think?

I'm not the best person to judge since I never worked on resin models before, only plastic... But for such a beautiful Rutan-related model such as this ARES, I'd be willing to have a go. Any idea of the unit price, even approximative?


topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com
Kadija_Man said:
AeroFranz said:
Awesome video. Is that me or does the aircraft's nose get thrown around a bit from the recoil? You'd think you'd be limited to short bursts if that were the case. Does anyone have any more info on this?

Obviously too much recoil, not enough thrust and definitely not enough weight. Rutan has obviously made a compromise and the result is a weapon system which might not be quite what its proponents claim.
They put the nose gear assymetrically in A-10 to avoid these problems ARES experienced and rotary cannon in the middle.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
163
topspeed3 said:
Kadija_Man said:
Obviously too much recoil, not enough thrust and definitely not enough weight. Rutan has obviously made a compromise and the result is a weapon system which might not be quite what its proponents claim.
They put the nose gear assymetrically in A-10 to avoid these problems ARES experienceda and rotary cannon in the middle.

ARES was designed with asymmetry as well to offset recoil. Engine thrust and gun gas were both intended to provide recoil compensation, and the engine was mounted on the opposite side of the fuselage from the gun to prevent gun gas ingestion.


topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com
fightingirish said:
Turbofan Killer Bee: Rutan ARES "Mudfighter" for U.S. Army Close Air Support B)
Video:

quellish said:
topspeed3 said:
Kadija_Man said:
Obviously too much recoil, not enough thrust and definitely not enough weight. Rutan has obviously made a compromise and the result is a weapon system which might not be quite what its proponents claim.
They put the nose gear assymetrically in A-10 to avoid these problems ARES experienceda and rotary cannon in the middle.

ARES was designed with asymmetry as well to offset recoil. Engine thrust and gun gas were both intended to provide recoil compensation, and the engine was mounted on the opposite side of the fuselage from the gun to prevent gun gas ingestion.

That is correct, but when you see this video closely it was not enuf..plane goes like crazy bronco once they start firing ( at 07:55 of the video ).



http://www.youtube.com/watch?feature=player_embedded&v=zG9LlHcX8lg


perttime

I really did change my personal text
Joined
Mar 30, 2013
Messages
108
Reaction score
5
Better hang some small missiles on it, and leave the gun for a backup only. Brimstone?


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
163
topspeed3 said:
That is correct, but when you see this video closely it was not enuf..plane goes like crazy bronco once they start firing ( at 07:55 of the video ).

Yet all the rounds land on target. Engineers: 1, Internet: 0.
