SIAI SM-88
Twin engine triplace light bomber and combat for export. The war vanished exportation. Development continued for Regia Aeronautica. Similary at SM-91 the costruction of prototype ceased december 1942.
Year: 1939
Engine: 2 Daimler Benz DB.601 - 1.000 hp. Post DB.605
Span: 14,50 m.; lenght 12,10 m.; height 3,50 m.; wing area 32,5 mq.
Total weight 7.000 kg.
Vel max. 560 km/h. a 5.000 m.
Armament: 2 mt. x 12,7 mm. + 1 mt. x 12,7 dorsal + 600 kg. bomb.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,297
Reaction score
97

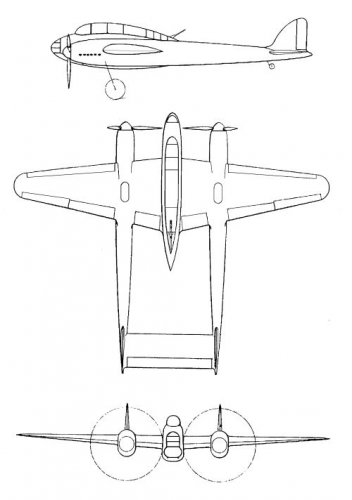

You'll read it more extensively in our (Pelzig's and myself) Italian Secret Projects: actually the SM-88 was completed and flew for a couple of months. Simply, it was named SM-88 no more. And, the art come from Flight and depicts the Gnome-Rhone-powered export version, while the 3-views depict the in-line-powered version (DB-601s).


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,610
Reaction score
160
Skybolt said:
You'll read it more extensively in our (Pelzig's and myself) Italian Secret Projects: actually the SM-88 was completed and flew for a couple of months.
Really??!!
This is a in important update, I always belived that protitype never made it to became airborne.
There is any photo of the finished prototype or of the first flights?


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,297
Reaction score
97
There are photos of the crashed prototype after the landing accident that interupted the test program after a few flights. But you'll have to wait... sorry. BTW, it is not a "real" news, just read well my posting in the link below... ::)
Ciao paisà...


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,610
Reaction score
160
Skybolt said:
There are photos of the crashed prototype after the landing accident that interupted the test program after a few flights. But you'll have to wait... sorry. BTW, it is not a "real" news, just read well my posting in the link below... ::)
Ciao paisà...
Grazie assai!! (Many Thanks!!)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,685
Reaction score
2,644

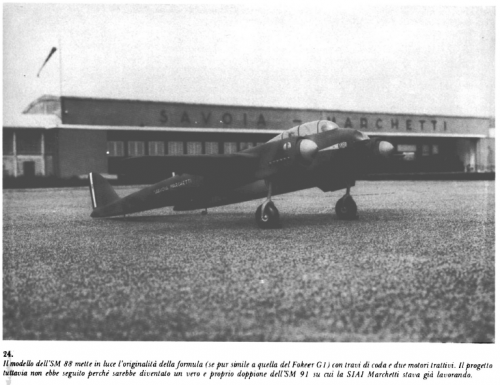

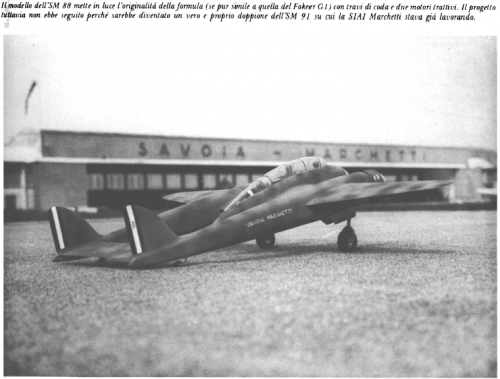

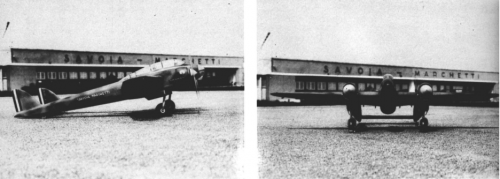

And a Model for it.


Attachments

theponja

CLEARANCE: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
10
Thanks hesham for the pictures. Very nice plane to me. Can I ask the source?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,685
Reaction score
2,644
Alcides said:
Thanks hesham for the pictures. Very nice plane to me. Can I ask the source?

My dear Alcides,


it's Aerofan 3/1980.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,886
Reaction score
1,859
Hi!

http://alternathistory.com/italyanskie-bumazhnye-proekty-dvukhmotornik-dlya-eksporta-siai-marchetti-sm88


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,886
Reaction score
1,859

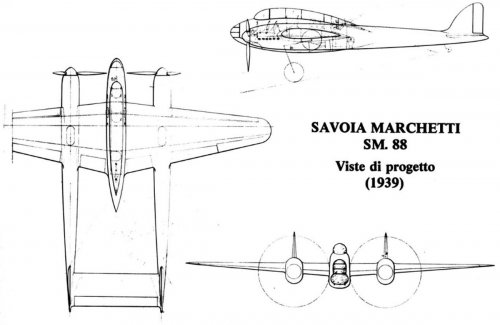

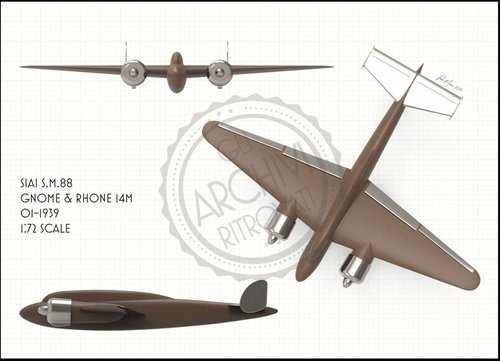

How about this three side view drawing compared with real aircraft pictures?


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
591
Reaction score
99
How about this three side view drawing compared with real aircraft pictures?

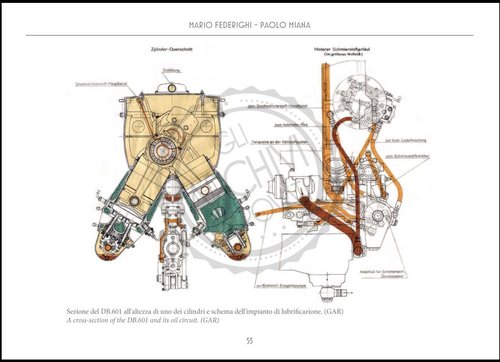

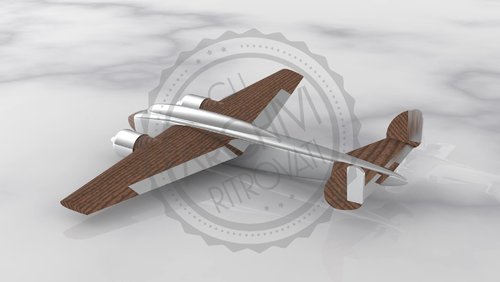

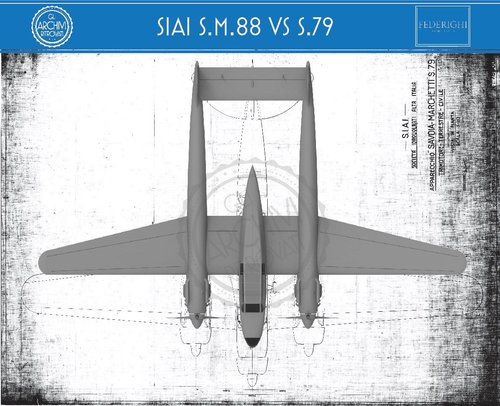

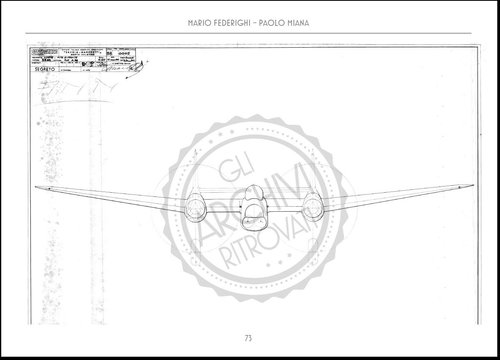

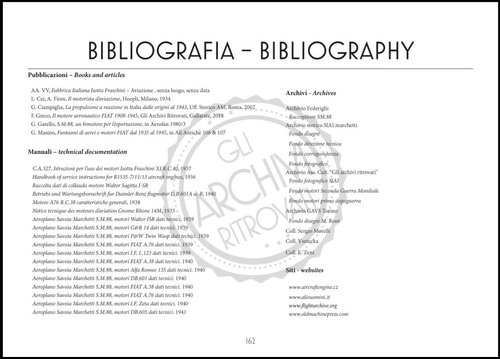

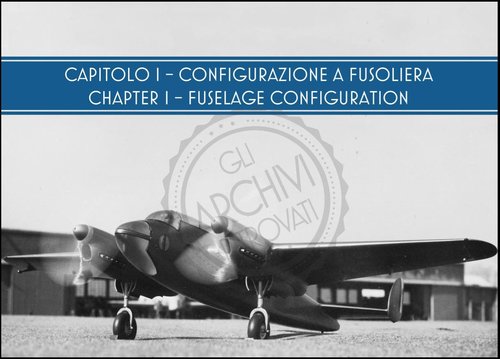

I'm just made few screenshots from editorial house' page, don't own this book. At least comparison with S.79 demonstrate size of certain SM.88 configuration.


Hawker Nut

CLEARANCE: Restricted
Joined
Nov 14, 2008
Messages
37
Reaction score
4
Interestingly, the blurb on the book - at the publishing house website - claims that a single prototype was actually built and flown!
Edit: Skybolt already mentioned this fact in this very same thread.

Last edited:

paolomiana

I really should change my personal text
Joined
Oct 27, 2018
Messages
2
Reaction score
2
Website
www.gliarchiviritrovati.it
How about this three side view drawing compared with real aircraft pictures?

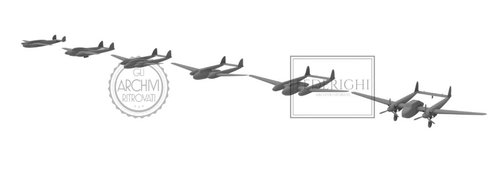

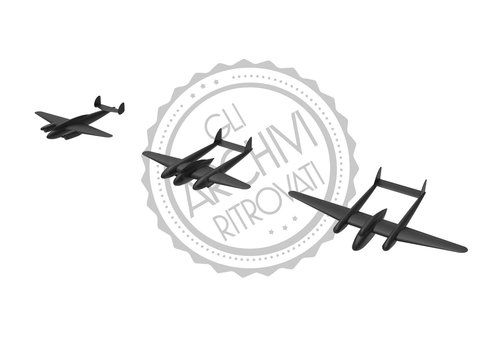

Hallo, the 3 views shown in the previous post are referring to the initial fuselage configuration (1939); project 88 was continuously developed from 1939 to 1943, when the prototype was finally tested. By then both the role and layout were the same as the S.M.91, so the final configuration (as you can see in the comparison with SM.79) was actually an 88/91 hybrid.
