A bunch of interesting stuff posted recently by the San Diego Air & Space Museum (SDASM) Archives on the Flickr Commons.

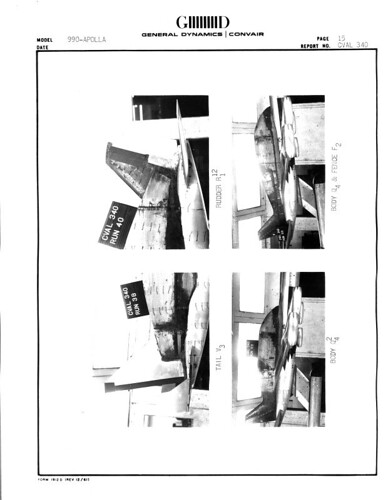

What appears to be a windtunnel model of a swing-tail CV-880/990 variant modified into a "Guppy" transporter, presumably for Project Apollo hardware.
https://www.flickr.com/photos/sdasmarchives/46806271764/


https://www.flickr.com/photos/sdasmarchives/46806262514/


A purpose-built six-engined tail-sitter transport for the Saturn S-II stage for the Saturn V rocket.
https://www.flickr.com/photos/sdasmarchives/46614588765/

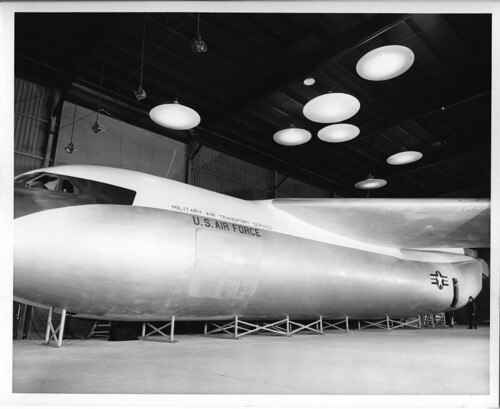

More Convair / General Dynamics (GD) System 476L (C-141) illustrations and mock-up photos.
https://www.flickr.com/photos/sdasmarchives/46614590185/


https://www.flickr.com/photos/sdasmarchives/46614588285/

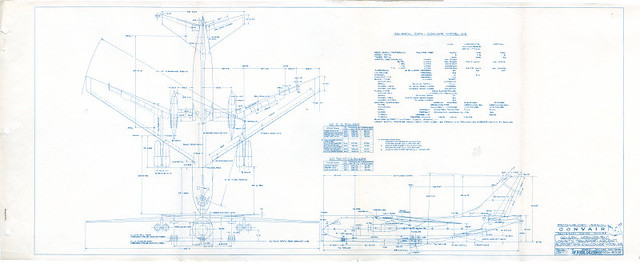

What appears to be illustrations of the Convair / GD CX-HLS (C-5) proposal.
https://www.flickr.com/photos/sdasmarchives/32587583147/


What might be a Convair / General Dynamics Advanced Medium STOL Transport (AMST) proposal (?), powered by four (4) high-bypass turbofans.
https://www.flickr.com/photos/sdasmarchives/47477227802


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,862
Reaction score
918
Great find dear Boxman,

but I can't read the designation or drawing number on a rival to C-141 ?.
