SAI 404

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,301
Reaction score
153
Website
zeef.com

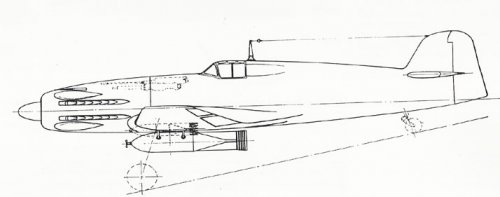

an other never build aircraft with Isotta Fraschini Zeta was Sai 404


Attachments

  • sai404.jpg
    46.7 KB · Views: 912

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
212
Sure, but please start a new topic on this. BTW, there was a 404a and a 504, too. But for those you'll have to wait Italian Secret Projects.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
Skybolt said:
Sure, but please start a new topic on this. BTW, there was a 404a and a 504, too. But for those you'll have to wait Italian Secret Projects.

May by you are right my dear Skybolt,there was Ambrosini SAI-503,an improved version
of the SAI-403, as single seat fighter,and may be the design was SAI-504.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
212
I'm surely right, since I' reading the original report .... The 504 was an evolution of the 404a, which was an evolution ot the 404. They all were at least 5 years too late.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,301
Reaction score
153
Website
zeef.com
Well, Sai 404 was designed in august 1942, for engine Isotta-Fraschini with Hp 1200 -1400 . It was excepted for a speed of 670 km/h , two gun Safat of 12,7 mm and two Mauser of 20 mm .Abandoned for situation political-military of country !
( i hope to had translated good from italian ) - the magazine of this information is AEREI of Delta Editrice , n.11 - novembre 1995
In future book about Italian Secret Projects i hope to find more about this !


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
212
SAi-404 was a sound design by Ing. Rossi, a very humble and serious designer. BUT: 1) The design was inspired by the Bf-109, down to the methods of construction, six years later; 2) The max speed was only calculated speed (there aren't clues of any serious wind tunnel test on models), and 3) the power rating of the Zeta engine and its real behavious in real operation conditions were very wishful thinking. Starting the development of just another single engine fighter in late 1942 in a very peripheral company would have been an unmindful waste of resources. Italy had already three flying fighters in the same class, even well varied (C.205 better at mid to low alttudes; G.55 and Re.2005 better at high altitudes). We needed numbers by the end of 1942.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
Hi,

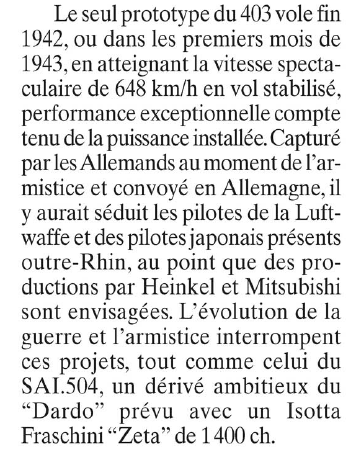

in Le FANA December 2013 issue,they spoke about SAI-504 as a single seat
fighter project developed from SAI-403,with 1400 hp Isotta Fraschini Zeta
engine,also SAI-403 A,B & C unbuilt projects,Type A interceptor with two 12,7 mm
cannon,Type B multi-role fighter two 20 mm cannon and Type C long range fighter.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
hesham said:
Hi,


in Le FANA December 2013 issue,they spoke about SAI-504 as a single seat
fighter project developed from SAI-403,with 1400 hp Isotta Fraschini Zeta
engine,also SAI-403 A,B & C unbuilt projects,Type A interceptor with two 12,7 mm
cannon,Type B multi-role fighter two 20 mm cannon and Type C long range fighter.

The text.


Attachments

  • 1.png
    110.5 KB · Views: 380

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
Hi,

https://forum.warthunder.com/index.php?/topic/197858-progetto-tech-tree-aerei-italiani/&


Attachments

  • f.jpg
    77 KB · Views: 235

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,997
Reaction score
1,047
Hasan, your link is not complete. With the link you gave, I need to search 216 separate pages.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
Arjen said:
Hasan, your link is not complete. With the link you gave, I need to search 216 separate pages.

https://forum.warthunder.com/index.php?/topic/197858-progetto-tech-tree-aerei-italiani/&page=161


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,289
From Aerei Nella Storia 63,

here is a small Info about SA-404,SAI-504 and SAI-307 Fighter
Projects.


Attachments

  • 4-63.png
    171.7 KB · Views: 32
  • 5-63.png
    68.6 KB · Views: 23
  • 6-63.png
    72.8 KB · Views: 22
  • 7-63.png
    62.9 KB · Views: 25
  • 8-63.png
    67.6 KB · Views: 24
  • 9-63.png
    226.8 KB · Views: 32

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,892
Reaction score
1,567
here is a small Info about SA-404,SAI-504 and SAI-307 Fighter Projects.

Should be SAI-Ambrosini S.404, S.504, and S.307 projects ;)

Rough translation with a bit of editing:

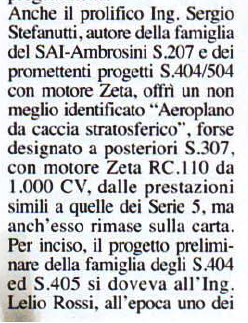

Even the prolific Ing. Sergio Stefanutti, designer of the SAI-Ambrosini S.207 family and of the promising S.404/504 projects with Zeta engine, offered an unidentified "Aeroplano da caccia stratosferico". That 'stratospheric fighter' was possibly later designated S.307. With a 1,000 hp Zeta RC.110 engine, this fighter would have had similar performance to the Serie 5. However, the Stefanutti design would remain on paper. Incidentally, the preliminary projects of the S.404 and S.405 family was the result of work by Ing. Lelio Rossi - at that time, one of the managers of SAI-Ambrosini's technical office.

Speaking of the S.404 and S.405 family, it should be remembered that these would have been Series 4 fighters, since they would be powered by the Isotta-Fraschini Zeta engine.

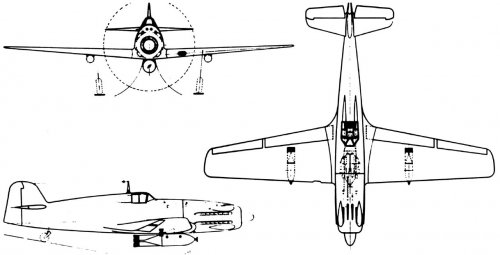

These projects, of which drawings dated 14 August 1942 are found, aimed at solutions for simplifying construction and reducing costs. There were to be three different configurations: S.404 with a 10.80 m wingspan, S.404A with 11.40 m span, and S.504 with 11.80 m wings. The program was carried out with a low profile, since the company was meant to be mainly engaged with the S.207 and S.403. In any case, the IF Zeta was never actually available. With the amistice, further development was suspended. [...]

Ing. Lelio Rossie (already mentioned with regard to the SAI-Ambrosini S.404 and S.405), went on to the technical office of Caproni in Taliedo (we do not know if that was in an official capacity or as an external consultant). In the company's documentation there is reference to his study of a jet fighter "with a Jumo 004 engine; in reality, the project seems to be the R.105, dated January 9, 1945, for which the R.2000 turboprop was considered. Rossi was killed on April 27, 1945 for political reasons and, as a result, there was no way to continue his projects.
