Sagem looks to arm French C-130s with AASM

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Sagem looks to arm French C-130s with AASM
Frédéric Lert, Bordeaux - IHS Jane's Defence Weekly
22 April 2015

Source:
http://www.janes.com/article/50876/sagem-looks-to-arm-french-c-130s-with-aasm


Sagem is preparing to offer an armed upgrade package for the French Air Force's Lockheed Martin C-130 Hercules transport aircraft, company officials told IHS Jane's .

The upgrade would include arming the Hercules with the SSA-1101 Gerfaut system, allowing the C-130 to carry and deploy as many as eight Sagem AASM (Armement Air-Sol Modulaire) precision guided munitions (PGMs). The SSA-1101 Gerfaut has been under development since 2012 by Sagem, Rafaut, and AA/ROK.

"We can guarantee a range of 30 km for an AASM dropped at 25,000 ft and 190 kt," a Sagem official told IHS Jane's . The company will soon make an unsolicited bid to the French defence procurement agency, the DGA, outlining its armed-Hercules proposal.

Computer simulations conducted in 2014 confirmed the aerodynamic loading and the possibility to drop 250 kg bombs from the cargo aircraft, Sagem said. Four PGMs could be carried under each wing in place of the external fuel tank.

The aircraft would use the Rafaut AUF-2 adaptor - already used on the Mirage 2000Ds - allowing two bombs to be carried. A 5.8 m support structure, which has yet to be developed by Rafaut, would provide the interface between both AUF-2 and the C-130 wing pylon.

Rafaut plans to integrate all the electronics necessary to fire the AASM and even a Rover trans-receiver in this support. Meanwhile, Sagem has already developed the necessary hardware for the Moroccan Mirage F1 modernisation package, which included AASM capabilities. "Using them on the C-130 wouldn't be a problem," said the Sagem official.

The SSA-1101's mission system interface would be fitted in the cargo hold or in the cockpit of the C-130, with a direct link to the AUF-2 adaptor and the AASMs. This mission system would be totally independent from the C-130 own avionics, meaning integration work would be reduced to the minimum and the aircraft would retain its cargo capacity.

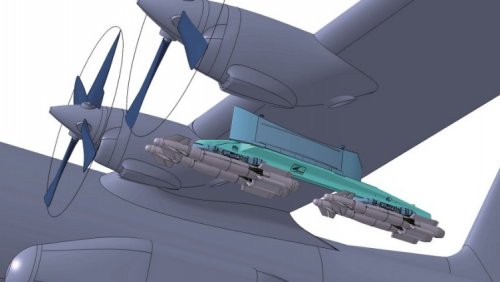

Concept image of a four weapon pylon armed with Sagem AASM 'Hammer' smart munitions for the Lockheed Martin C-130 Hercules transport aircraft. Source: Sagem

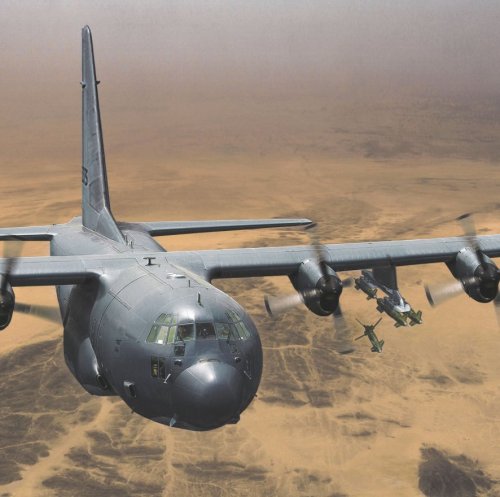

Sagem is looking to pitch the AASM-armed Hercules concept to the French DGA soon. (Sagem)



Attachments

FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,070
Reaction score
34
Wow! thanks for sharing Triton. I wonder why the RAF has never thought of doing the same to it's C-130s or A400Ms. Something that could be possible in the future?


SpudmanWP

CLEARANCE: Top Secret
Senior Member
Joined
Nov 10, 2008
Messages
1,078
Reaction score
22
I have never understood why nobody has done a palatalized and modular way to drop bombs and missiles from a C-130.


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,070
Reaction score
34
SpudmanWP said:
I have never understood why nobody has done a palatalized and modular way to drop bombs and missiles from a C-130.
What about the US Marine Corp Harvest Hawk system? That launches missiles ina palatalized way out the back of a modified C-130.


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
561
Reaction score
16
FighterJock said:
Wow! thanks for sharing Triton. I wonder why the RAF has never thought of doing the same to it's C-130s or A400Ms. Something that could be possible in the future?
Because the few transport aircraft available are busy carrying people and equipment around...


SpudmanWP

CLEARANCE: Top Secret
Senior Member
Joined
Nov 10, 2008
Messages
1,078
Reaction score
22
What about the US Marine Corp Harvest Hawk system? That launches missiles ina palatalized way out the back of a modified C-130.



The palatalized Harvest Hawk weapon is a relatively small one and nowhere near a Hellfire, SDB, or AASM.


ouroboros

CLEARANCE: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
0
So it looks like they are using the wing hardpoint normally occupied by a large semi-permanent auxiliary fuel tank for their weapons pylon. Have there ever been weapons hardpoints built onto semi-permanent aux fuel tanks for C-130's, or is that pushing the weight up too much?


alspug

CLEARANCE: Restricted
Joined
Oct 24, 2009
Messages
11
Reaction score
0
Not sure if it's already been posted but the Argentinian's used C-130 as bombers with the wing pylons being used .below is a letter about it .

http://fc95d419f4478b3b6e5f-3f71d0fe2b653c4f00f32175760e96e7.r87.cf1.rackcdn.com/0199C0B9FAE341AF8439C51CDEE1CB51.pdf

the page below is very good , it details the attacks and shows photo's of the pylons .

http://www.foromilitar.com.ar/foro/index.php?threads/8-de-junio-ataque-al-hercules.776/
