Russian fighter "104" (1939)

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116

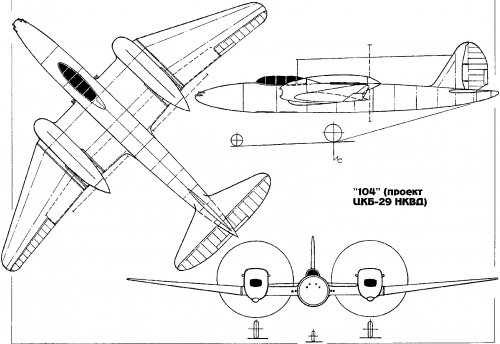

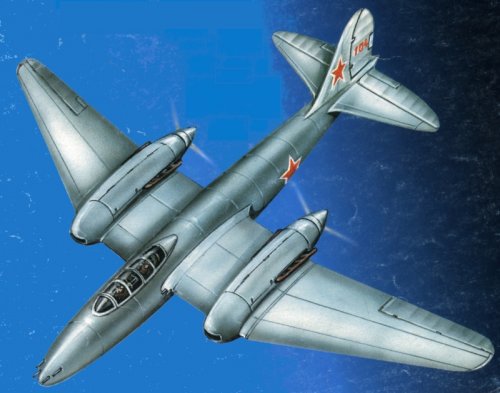

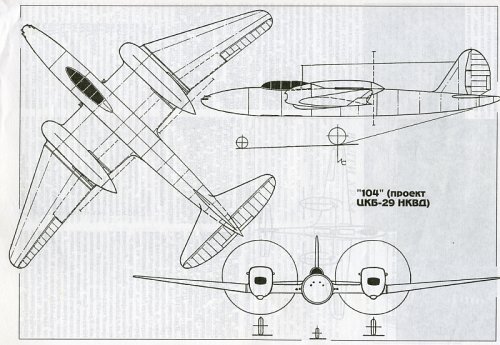

"104" experimental fighter, 1939. Designer - A.M. Izaxon
Engines = 2xM-107, 3-blade props, 2x1650 HP
Max. speed 650 km/h
Span=15 m
length=12.25 m
MTOW=5300 kg
Fuel tank=800 kg

There are more specifications, I just couldn't translate them correctly right now :)

Stated as it is designed by people collected from GULAG in TsKB-29 NKVD.

Source: "Aviatsia & Cosmonavtica" magazine, #4-98


Attachments

  • 104-1.jpg
    315.9 KB · Views: 1,174
  • 104-2.jpg
    368.7 KB · Views: 1,170

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Excellent.A complete unknown design...
Thanks.

p.s. Is the name written "Izaxon" as you mention it? It reminds me a
Swedish designer with the name Isacson ...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,585
Reaction score
3,884
Изаксон or Izakson is a fairly common (presumably Jewish) name in Russia, so not necessarily connected.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116
overscan said:
Изаксон or Izakson is a fairly common (presumably Jewish) name in Russia, so not necessarily connected.

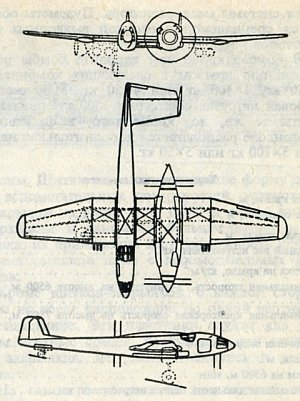

Yes, you are right, thanks. Should be Alexander M. Izakson. Swedish is Sigurd Izacson. His aircraft's model
was manufactured by Unicraft Models as Blohm & Voss.
http://www.geocities.com/unicraftmodels/germ/bvzerst/bvzerst.htm


Attachments

  • Izacson's.jpg
    108.8 KB · Views: 875

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,988
Reaction score
1,392
I guess there was a large pool of talent in the Gulags to choose from, most designers who failed seemed to be under the watch of the NKVD. I hope the lack of a production model doesn't indicate the fate of TsKB-29!

Did they produce any other designs or were they a one project team?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116
overscan said:
He was one of the Pe-2 designers.
Oh, yes but a little bit later. In TzKB-29 (Central Design Bureau) that NKVD formed, they've used the designations
starting with number '100'.
So V.M. Petlyakov began to design high-altitude fighter "100". He worked hard it and his work ended
in construction of Pe-2.
V.M.Myasishchyev began to work at the plane "102". Which later came out as long-range high-altitude
bomber DVB-102
A.N.Tupolev has designed the plane "103" which later is know diver Tu-2
A.M.Isakson has designed number "104" But due to a member of reasons /overmodernality of design and
overloading of it, it ended with nothing.
Later all these designers including S.P. Korolyev worked the Pe-2 and Pe-3 aircrafts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,082
Reaction score
3,760
Hi,

And at the end the aircraft 104 was going to Tu-2 as all
weather fighter.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
hesham said:
Hi,

And at the end the aircraft 104 was going to Tu-2 as all
weather fighter.

Pardon me? Hesham, please read last Borovik's post.

Regarding those number designations - sharashka prisoners were working in so-called STOs (spetzial'ny technichesky otdel - special technical department, in fact, each being separate design bureau). "Sto" also means figure '100' in Russian. Later, for security reasons, word 'Sto' was changed with number 100. Petlyakov's STO was first, so his bureau got number 100, Myasichev's was second so he got '102', Tupolev got 103, Tomashevich -110. While one can try to trace STO designation numbers to aircrafts designation they designed, there's in fact no direct connection.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116
And so much for this.So to wind up the information on this topic some more facts...

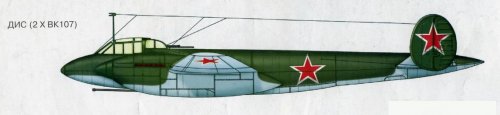

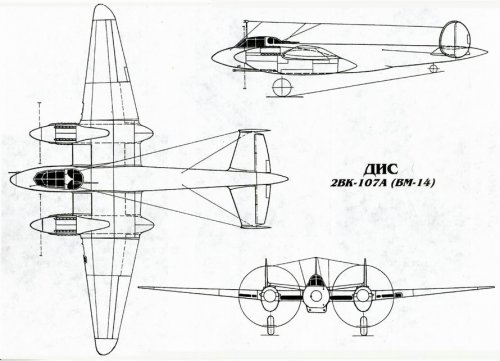

DIS - 2 (VK-107) Dalnyi Istrebitel Soprovozhdeniya (long-range fighter escort) is a
profound modification of Pe-2 I. (Пе-2 И). It was created just as an attampt to reach
the level of russian analogue "Mosquito" after Petlyakov was perished IZAKSON was
those who became the chief designer. Under his leadership this model of plane has
begun to be built Myasishchyev finished this model at the end of 1945.
Engine: 2VK-107A
Span m. : 18,110
Lenght m. :13,795
Max speed km/h :627
Range km. :1700 (max.4000)
Armament : 2 x B-20
1 x BT-20
2 x 37 mm (250 rds) or 2 x 45mm (200rds) or 2 x 57mm (175 rds)

Source: Aviatsiya i kosmonavtica #8.1998


Attachments

  • DIS (3 views).jpg
    DIS (3 views).jpg
    70.5 KB · Views: 369
  • DIS   k..jpg
    DIS k..jpg
    28.4 KB · Views: 822
  • DIS    c..jpg
    DIS c..jpg
    38.4 KB · Views: 818

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
363
Reaction score
22
I knew that the Russians could build advanced designs,but they were more progressive than I allways thought!
My respect to the Russian aviation specialists,they re not copy cats makers.


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
544
Reaction score
164
Thank you Borovick for posting the information on the DIS-2. The engine exhaust configuration shown in the three view drawing seems unusual and quite unlike other installations of the VK-107. It looks almost like a double V type such as the Allison V-3420?


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
88
Website
www.avicopress.ru
Hi all!
Some additional info to Borovik's post about DIS-2:

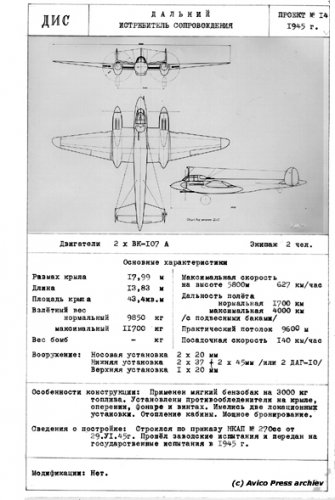

1. Cover and first page of DIS-2 technical descriprion

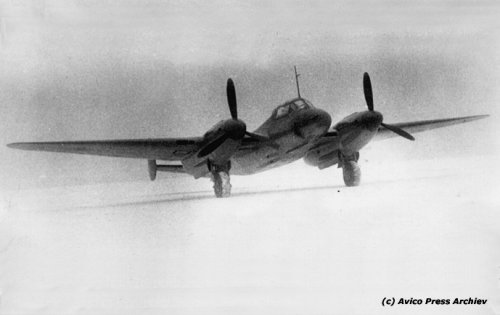

2. 3/4 front view.

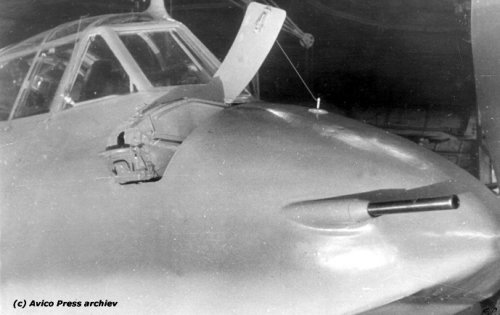

3. Pilot's cabin and gun.

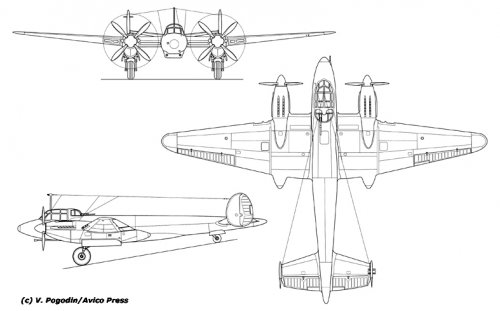

4. Drawings of DIS-2 but with four-blade propellers.
5. Myasishchev's personal album with DIS-2 description

Source: Illustrated Encyclopedia Mysishchev's aircraft, vol. 2 (OKB-22), Avico Press. 2003


Attachments

  • DIS-02.jpg
    144.6 KB · Views: 145
  • DIS-03.jpg
    165.1 KB · Views: 138
  • DIS-04.jpg
    97.1 KB · Views: 225
  • DIS-05.jpg
    136.5 KB · Views: 232

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,082
Reaction score
3,760
Hi,

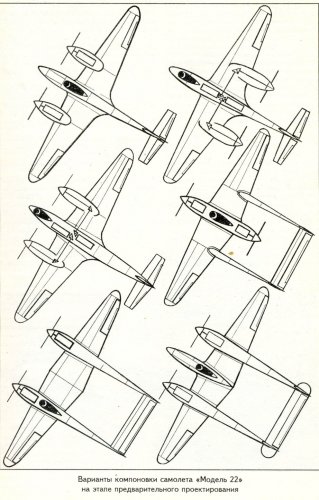

in the same article about this Project,I found this drawing,what was it ?.


Attachments

  • 2.png
    109.5 KB · Views: 53

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116

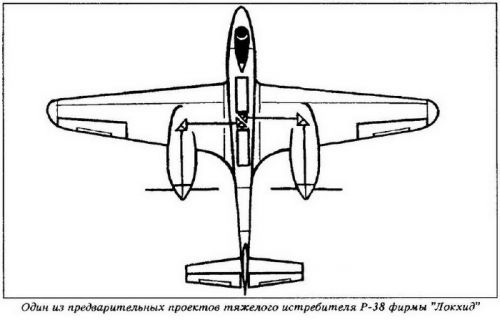

One embodiment of preliminary design of P-38


Attachments

  • Resize of P C549.jpg
    Resize of P C549.jpg
    211.8 KB · Views: 603

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,082
Reaction score
3,760

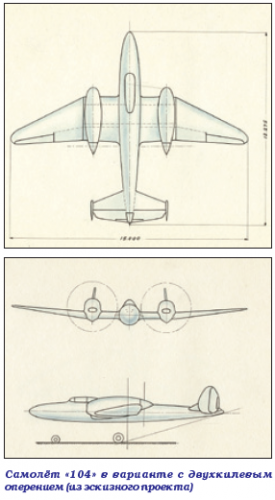

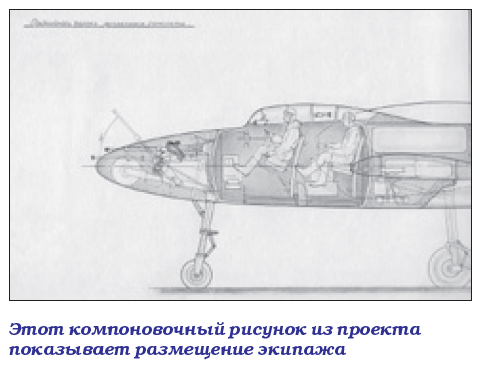

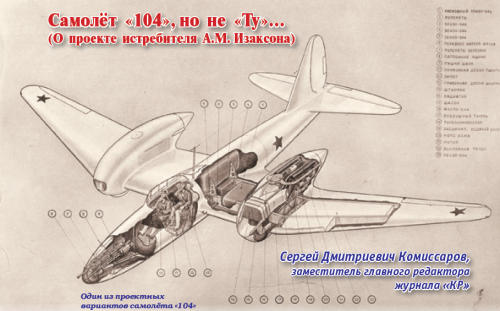

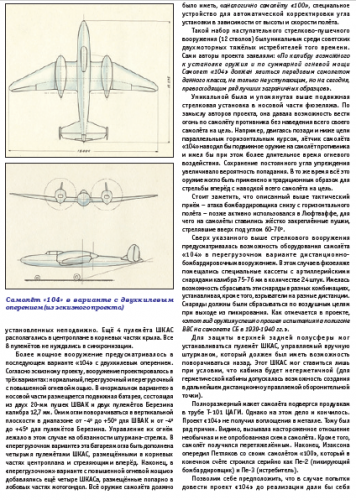

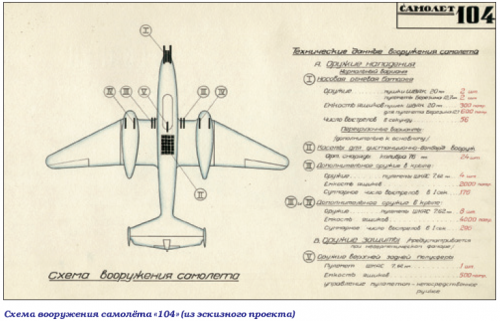

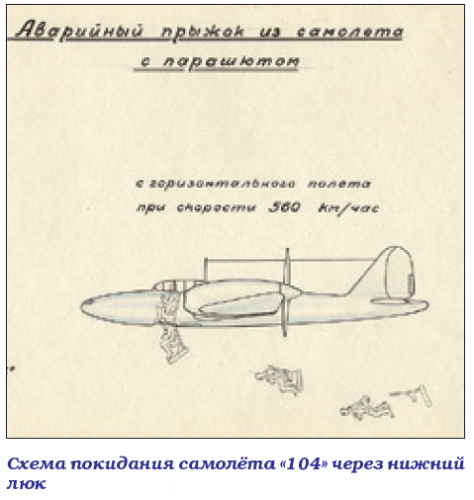

From Kryl'ya Rodine 5/2016.


Attachments

  • 1.png
    696.3 KB · Views: 541
  • 2.png
    178.2 KB · Views: 429
  • 3.png
    94.4 KB · Views: 383
  • 4.png
    550.4 KB · Views: 370
  • 5.png
    261.1 KB · Views: 114

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
I can't make out the words for weapon system II... is that supposed to be the mounting for a 76mm or is it something else?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,082
Reaction score
3,760
Avimimus said:
I can't make out the words for weapon system II... is that supposed to be the mounting for a 76mm or is it something else?

Yes.


Attachments

  • b.png
    158.9 KB · Views: 92
  • a.png
    251.1 KB · Views: 70

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
116
Avimimus said:
I can't make out the words for weapon system II... is that supposed to be the mounting for a 76mm or is it something else?

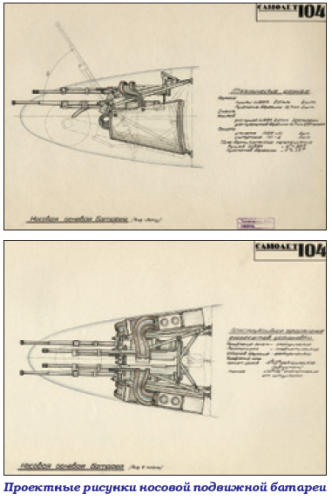

It provided for the possibility of the aircraft "104" equipment
in the distance-accelerated version
bomber weapons. In this case, in the fuselage
placed special cassettes with artillery
75-76 mm caliber shells in the amount of 24 pieces. There was
the ability to reset these shells in different combinations,
establishing further fuzes at different distances.
Shells were dropped against air targets
when exiting a dive.


Attachments

  • Resize of '104'.jpg
    Resize of '104'.jpg
    77.4 KB · Views: 120

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
Aha! Thanks Borovik!

So it was for air-to-air bombing? (if I understand correctly)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,494
Reaction score
2,790

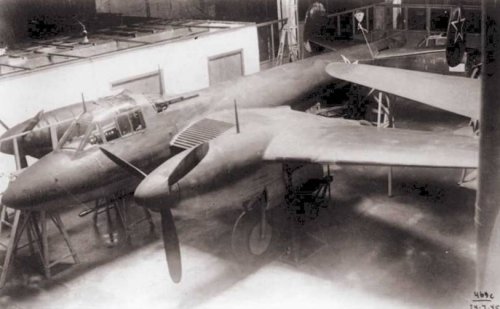

Hi! Wing root upper shape is interesting.

http://coollib.com/b/302301/read


Attachments

  • Mock-up DIS 2VK-107a.jpg
    Mock-up DIS 2VK-107a.jpg
    44.9 KB · Views: 104

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,082
Reaction score
3,760
blackkite said:
Hi! Wing root upper shape is interesting.

http://coollib.com/b/302301/read

My dear Blackkite,

please check for your info,it was not Aircraft-104,it was Myasishchev DIS,which developed
from Petlyakov Pe.2 ?!.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,494
Reaction score
2,790
Hi! I followed borovik-san's post. ;)
http://www.secretprojects.co.uk/forum/index.php/topic,1975.0.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,494
Reaction score
2,790

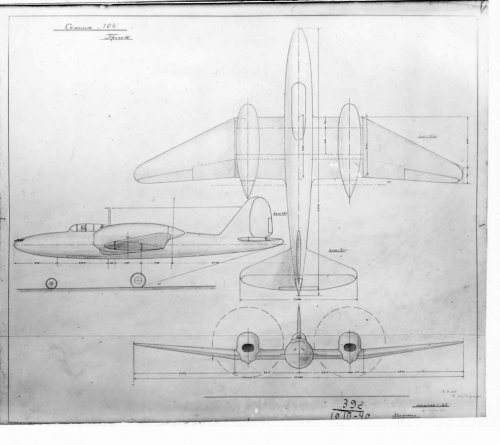

Hi! Izaxon 104 larger three side view drawing.
http://aviadejavu.ru/Site/Crafts/Craft30969.htm

http://alternathistory.com/eksperimentalnyi-istrebitel-104-sssr


Attachments

  • 104.jpg
    361.3 KB · Views: 49
