Hi,


before my computer crashed,I had a drawings to S.E.6 and S.E.7,but loss them,has
anyone a drawings for them ?.

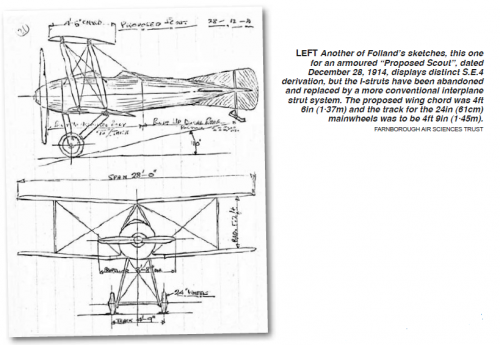

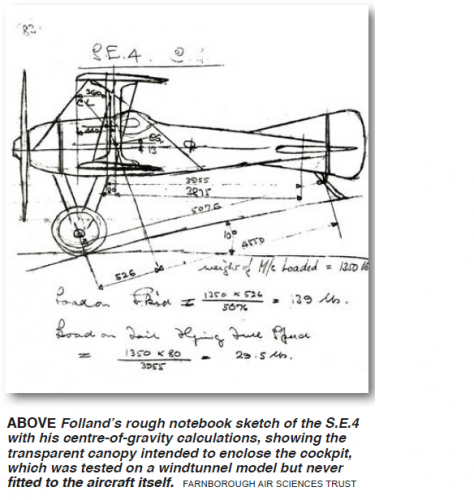

Here is early sketches for S.E.4 single seat fighter.


The Aviation Historian 05


Attachments

  • 1.png
    179.9 KB · Views: 484
  • 2.png
    202 KB · Views: 440

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

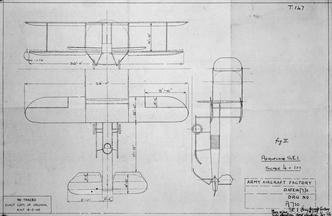

here is some Aerial Targets to R.A.F.

http://www.iwm.org.uk/collections/item/object/205315380


Attachments

  • 5.jpg
    17.2 KB · Views: 293
  • 4.jpg
    13.1 KB · Views: 332
  • 3.jpg
    12.7 KB · Views: 331
  • 2.jpg
    17.1 KB · Views: 332
  • 1.jpg
    17 KB · Views: 335

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

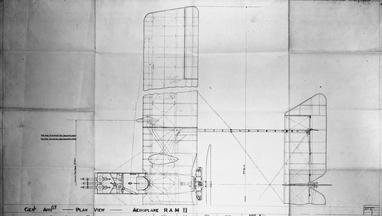

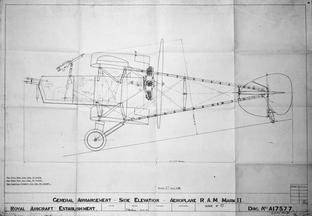

there is also the RAM.II,what was it ?.

http://www.iwm.org.uk/collections/item/object/205315373


Attachments

  • RAM.II.jpg
    17 KB · Views: 283
  • RAM.II.jpg
    16.9 KB · Views: 278

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,806
Reaction score
677
The 'Farnborough Ram'.
https://en.wikipedia.org/wiki/Royal_Aircraft_Factory_A.E.3

The Royal Aircraft Factory A.E.3 (Armed or Armoured Experimental), also known as the Farnborough Ram, was a prototype British armoured ground attack aircraft of the First World War. The A.E.3, which was a development of the Royal Aircraft Factory's N.E.1 night fighter, was a two-seat single-engined pusher biplane. Three were built in 1918, but the type was unsuccessful, with no further production ensuing.

[...]

The first A.E.1 flew during April 1918, with the second prototype following on 1 June 1918, while the third prototype, which was powered by an Arab engine, and fitted with face-hardened armour, was finished later that month. By this time the Royal Aircraft Factory had been renamed the Royal Aircraft Establishment, and the A.E.1 was given the name Farnborough Ram, the only Royal Aircraft Factory designed aircraft to be given an official name, with the Arab powered aircraft being named Ram I and the Bentley powered aircraft Ram II.
More at the link.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
And a 3-view;

http://geographicalimaginations.com/tag/thomas-raymond-phillips/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

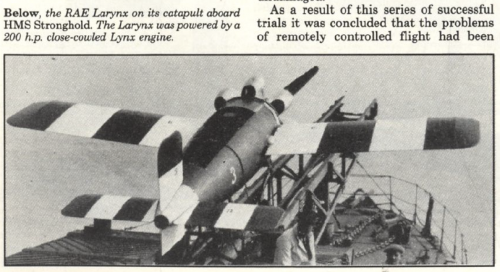

From Aeroplane Monthly,here is the RAE Larynx.


Attachments

  • 116.png
    628.9 KB · Views: 83

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,806
Reaction score
677
With its slab-sided fuselage, it looks most like the inline-powered S.E.5. As the caption says, the cowling was meant for a radial engine. Curious.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,703
Reaction score
1,120
This snippet - "... the tunnel at the R.A.E. on a body with fixed radial engine in 1917." - suggests that this 'shape' was a portion of existing S.E.5A wind tunnel model modified to test a radial engine cowling concept.

From: The Cowling of Air‐Cooled Engines: A Summary of Wind Tunnel Tests of the Effect on Performance of Various Types, WGA Perring, RNC, AFRAeS, Aircraft Engineering and Aerospace Technology, 01 May 1932. The author was an Assistant Superintendent (Research) at the R.A.E.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
My dears,

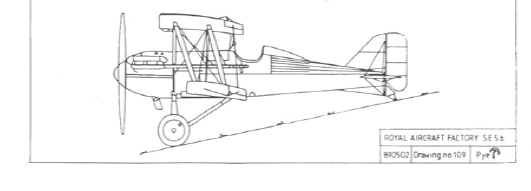

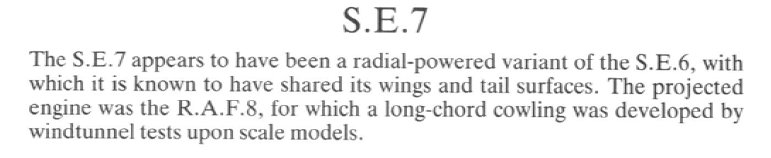

can we just imagine if it was S.E.7,because the drawing for S.E.5
with radial engine differs a little ?.


Attachments

  • 14.png
    51.8 KB · Views: 27
  • 16.png
    32 KB · Views: 26

Sherman Tank

I don't want to change my personal text
Joined
Oct 15, 2016
Messages
195
Reaction score
109
We can imagine it, sure. That doesn't make it more than speculation.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,492
Reaction score
598
We can imagine it, sure. That doesn't make it more than speculation.

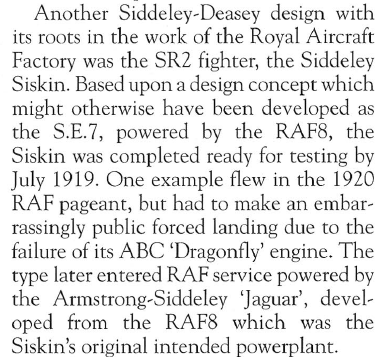

True. My view is that any design features of a speculative SE7 would more than likely have been taken forward by the ex-RAF designers Folland, Lloyd and Green and appear in their Siddeley S.R.2 and Nieuport Nighthawk fighters.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,492
Reaction score
598

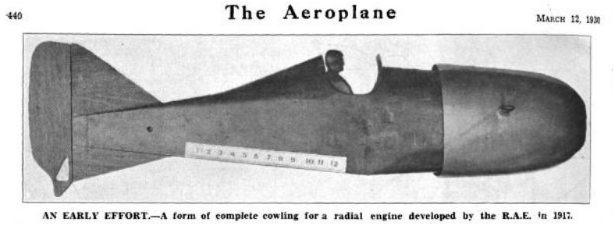

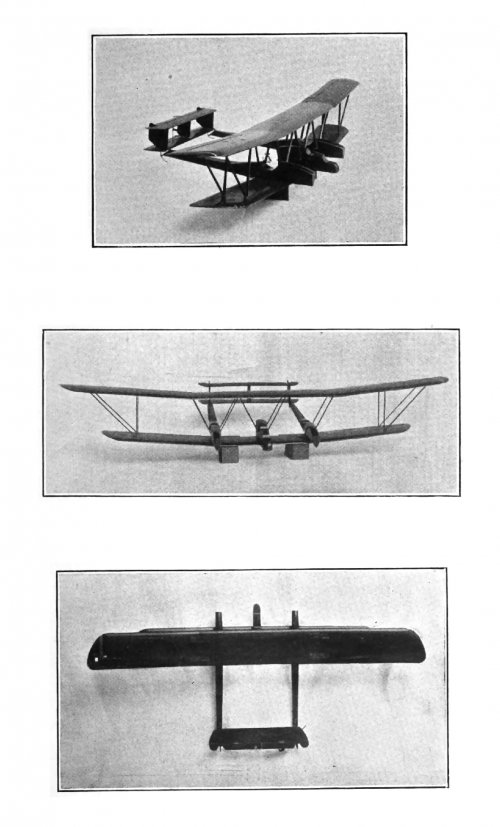

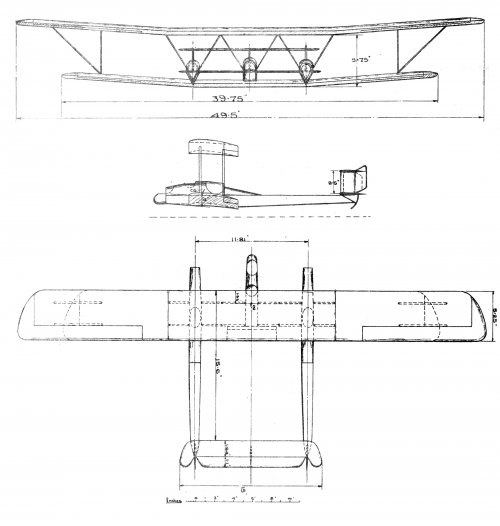

From Aeroplane magazine 1930,

what was this ?.
Aeroplane March 12th 1930 reporting on lectures given at the Royal Aeronautical Society by Townend and Green.
The caption of the photograph appears to be a mistake, the text refers to the wind tunnel tests having been carried out in 1919. Probably part of the series of tests at the RAE to determine the main components of drag using modified models of the SE5, and others.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
If it was not S.E.7 (although different front part of fuselage between it and
S.E.5 ?),how to obtain a drawings to S.E.6 & S.E.7 ?.


Sherman Tank

I don't want to change my personal text
Joined
Oct 15, 2016
Messages
195
Reaction score
109
You read through the secondary literature to find them, or you go to consult the Royal Aircraft Factory's surviving papers.
