Rolls-Royce Griffith Supersonic VTO Airliner

McTodd

ACCESS: Confidential
Joined
Jul 21, 2007
Messages
69
Reaction score
11
I'm new here, so forgive me if this is in the wrong place or anything, or if I transgress any rules!

A few weeks ago, I bought a secondhand book called 'Rolls Royce Leader of the Skies' by Michael Donne. I bought it mainly for one illustration in the last chapter, of an extraordinary dart-like aircraft designed by A A Griffith for R-R in the late 1950s, a Supersonic VTO Airliner.

Below is attached a low-res scan of the illustration.



I had never heard of this or seen anything about it, and a search on t'internet yielded nothing - until a few days ago, when I learned that FLIGHT magazine are creating an online archive of all their issues dating back to 1909! So far, it's free (amazingly!), with individual pages downloadable as PDFs:

http://www.flightglobal.com/PDFArchive/

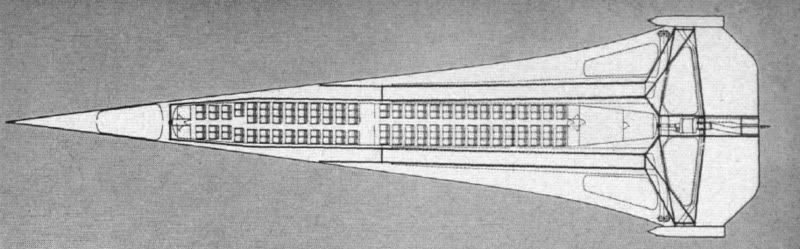

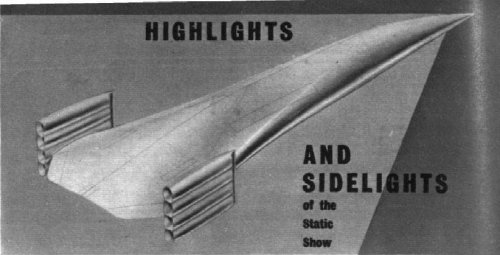

To my delight, there are a couple of articles from 1958 and 1960 on this very design! If you type 'Griffith VTO' in the search box, you can find the pages. Below are some of the illustrations from the FLIGHT back-issues.







overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,682
Reaction score
7,966
Its not a million miles away from the AW 171;

http://www.secretprojects.co.uk/forum/index.php/topic,269.0.html


McTodd

ACCESS: Confidential
Joined
Jul 21, 2007
Messages
69
Reaction score
11
I'd never heard of that, amazing, thanks! The design presented to the SST Committee certainly seems very similar.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599

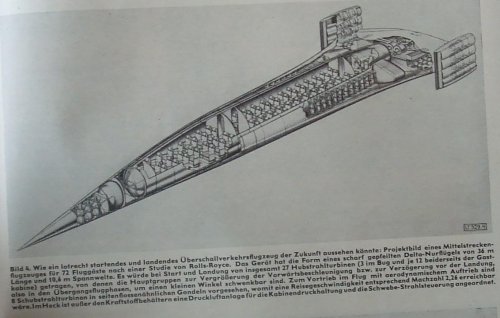

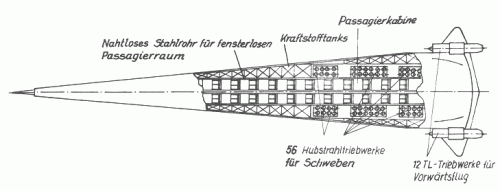

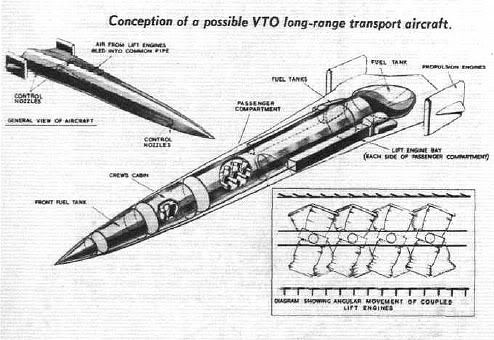

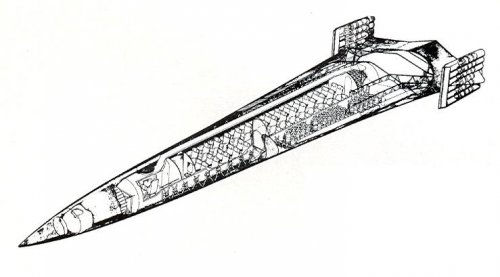

Here the installation of the engines is recognisable, only 56
lift engines and 12 engines for cruising flight ! A dream for
every aircraft mechanic !
(from Flugwelt 1961)


Attachments

  • RR-VTOL.gif
    40.5 KB · Views: 954

McTodd

ACCESS: Confidential
Joined
Jul 21, 2007
Messages
69
Reaction score
11
Nice image, Jemiba, thanks for posting it! A few weeks ago, this design was completely new to me, and a complete mystery too.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,104
Reaction score
240
Jemiba said:
Here the installation of the engines is recognisable, only 56
lift engines and 12 engines for cruising flight ! A dream for
every aircraft mechanic !
(from Flugwelt 1961)

Well, it was being proposed by an engine manufacturer, so what else would you expect? They have rather a vested interest in selling as many of their wares as they could, don't you think? :D


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,593
Reaction score
1,061
From an old Flight:

The Chairman of Rolls-Royce was asked why he always flew the Atlantic in
four-engined aircraft. His reply: "Because there are no five-engined
aircraft."

KB


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,290
Hi,

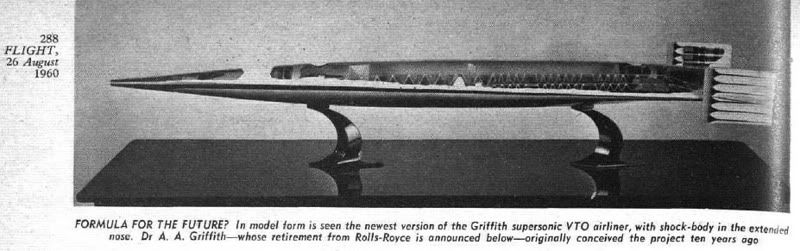

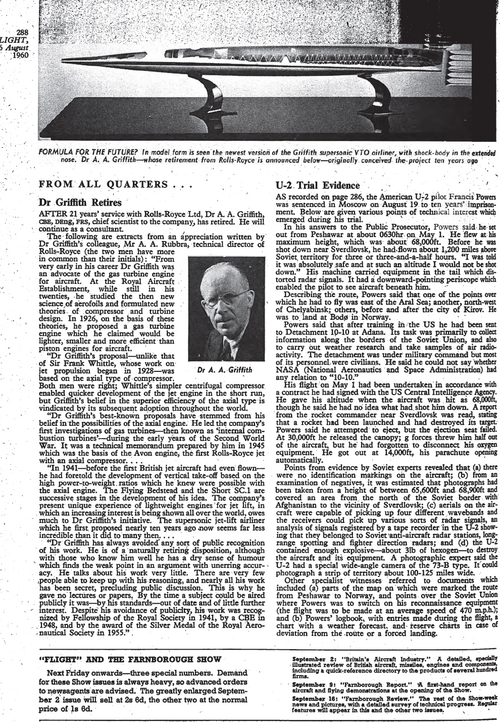

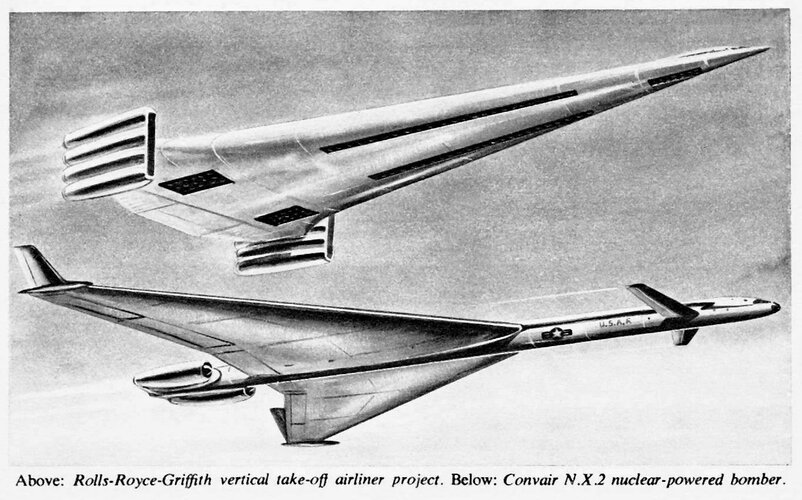

Anther Rolls Royce project for Griffith supersonic transport.


http://www.flightglobal.com/FlightPDFArchive/1960/1960%20-%201842.pdf


Attachments

  • untitled.JPG
    52.2 KB · Views: 285

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599

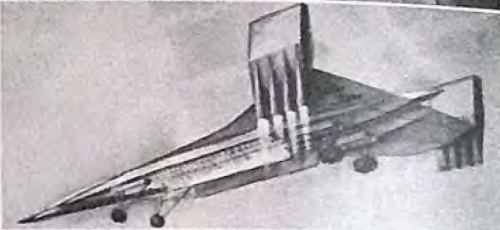

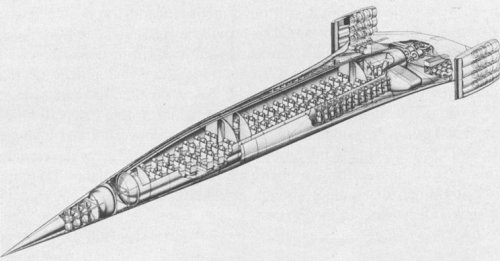

Looks identical to this one, which I found years ago in, I think
an issue of the german Flugwelt magazines from the early sixties :


Attachments

  • Rolls-Royce.jpg
    49.7 KB · Views: 464

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,682
Reaction score
7,966

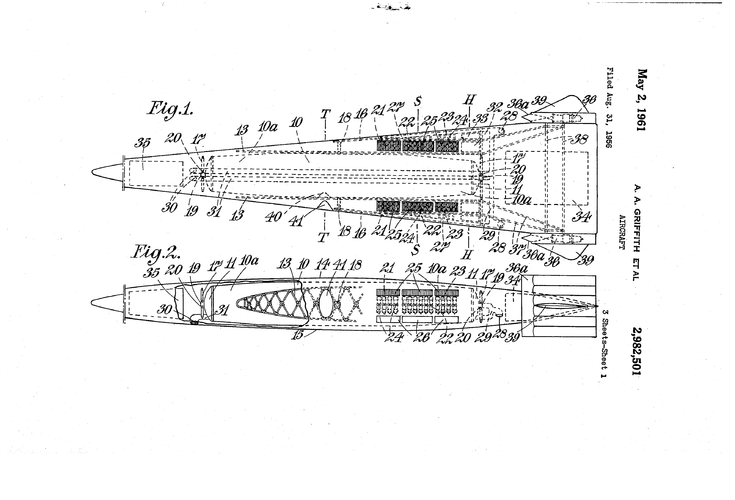

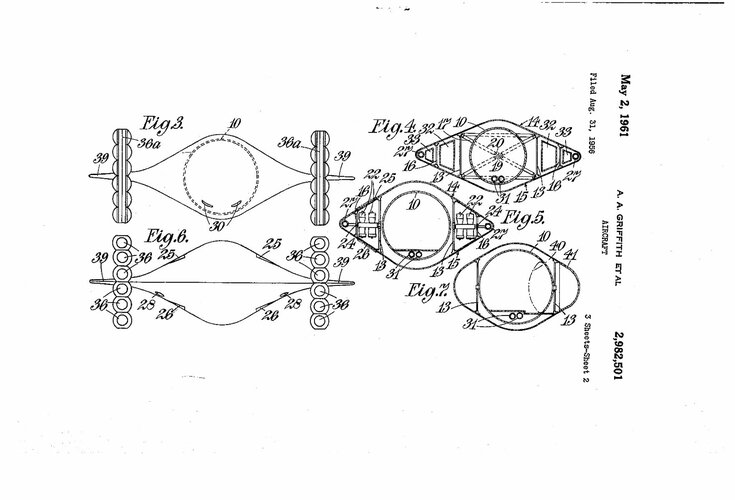

Griffiths Supersonic Airliner patents

http://www.google.com/patents?id=0rNZAAAAEBAJ&printsec=abstract&zoom=4
http://www.google.com/patents?id=OlRvAAAAEBAJ&pg=PP1&dq=2982501


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
938
Reaction score
182
And another two

http://www.google.com/patents?id=4qBkAAAAEBAJ&pg=PP1#PPP1,M1

http://www.google.com/patents?id=tWZyAAAAEBAJ&pg=PA2&dq=aa+griffith#PPA2,M1



Regards,
Barry


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,819
Reaction score
2,864
This project captured the imagination of British comic artists. It features in an old Eagle supplement from the 60s in BEA colours and also in BOAC colours.

UK 75

W

Wingknut

Guest
Hi Justo,
Check out this thread here: 'Rolls-Royce Griffith Supersonic VTO Airliner':

http://www.secretprojects.co.uk/forum/index.php/topic,2172.0/highlight,griffith.html

All best,
Wingknut


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,290
Hi,

http://www.flightglobal.com/PDFArchive/View/1958/1958%20-%200579.html


Attachments

  • untitled.JPG
    48.8 KB · Views: 182

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
938
Reaction score
182

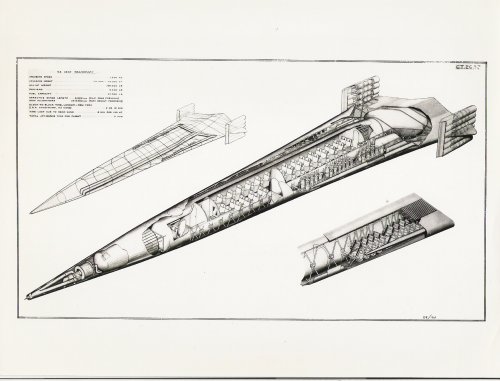

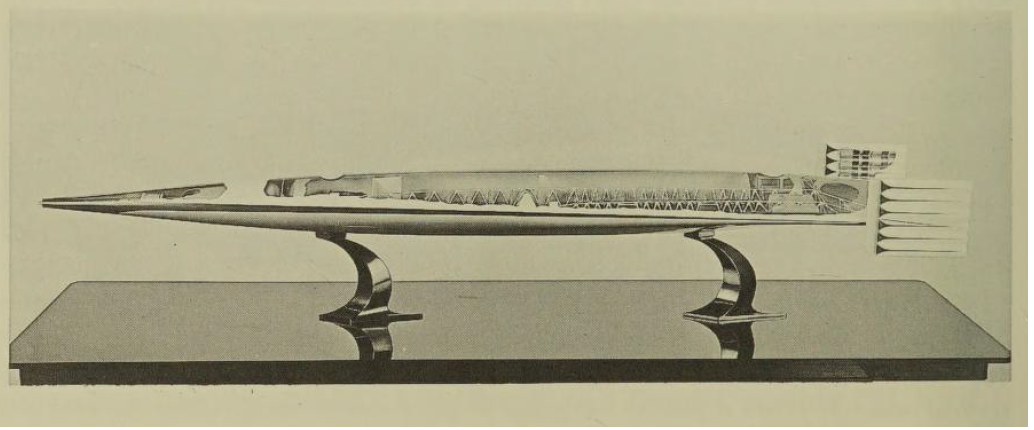

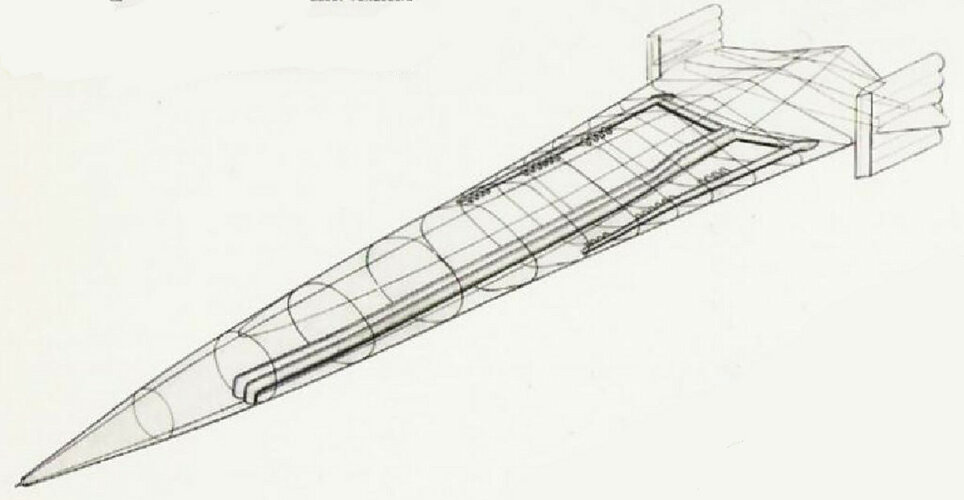

Came across this in a Rolls Royce company magazine.


Attachments

  • scan0074a.JPG
    220.6 KB · Views: 550

tartle

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 12, 2009
Messages
557
Reaction score
32
Barrington Bond,

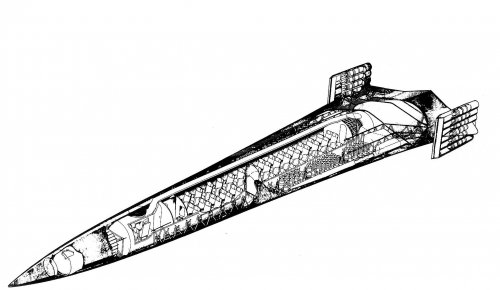

I know it's an old thread but as I am reminiscing about A A Griffith's inspiring thinking and small, light ,powerful engines I would like to draw attention to the fact that all the time AAG was at RR he had an inspired draughtsman with him to translate the maths into pictures. The picture you have posted above is an example of Donald Eyre's work. I knew him as I spent a year or two stressing out the ideas from Geoff Wilde's Preliminary Design team where Don worked after AAG's departure. He was a quiet guy who chatted of his experiences. He wrote of them down in 50 Years with Rolls-Royce: My Reminiscences published by the RRHT.
I have added one of Don's illustrations to the post...


Attachments

  • SST-Griffith-Eyre.jpg
    671 KB · Views: 439

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,290
Barrington Bond said:

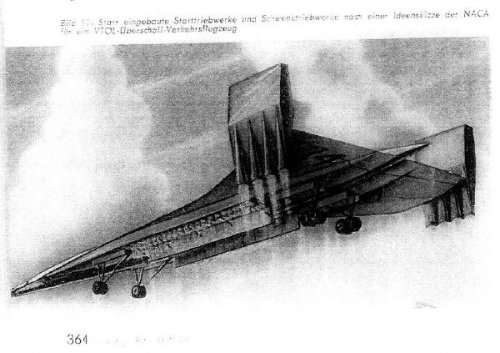

Says NACA but reckon it's a Griffith.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Alata/Alata%201959%2001.pdf


Attachments

  • 5.png
    373.4 KB · Views: 324

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

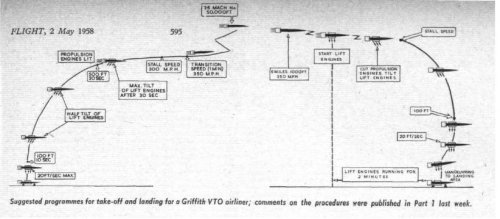

Hi!


Attachments

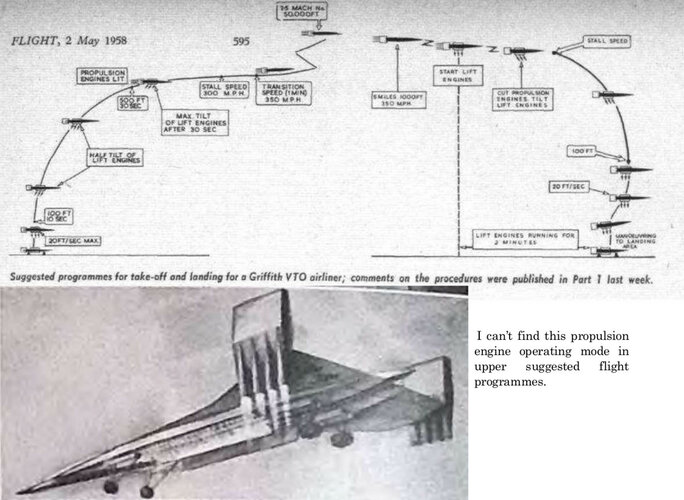

  • flight programmes.jpg
    flight programmes.jpg
    185.8 KB · Views: 52

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

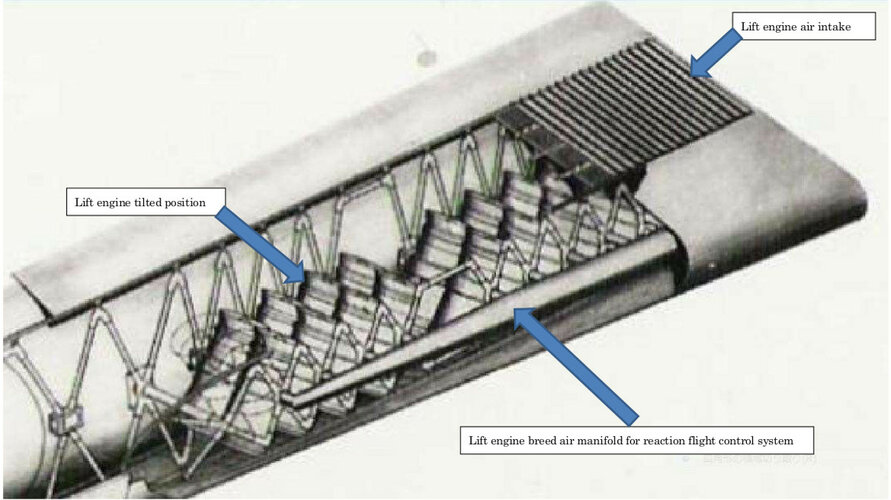

Hi! My understanding and question.


Attachments

  • Reaction flight control system.JPG
    Reaction flight control system.JPG
    81.4 KB · Views: 58
  • Lift engines.jpg
    Lift engines.jpg
    156.4 KB · Views: 66
  • what is this system.JPG
    what is this system.JPG
    89.9 KB · Views: 67
Last edited:

Viper2000

I really should change my personal text
Joined
Jun 8, 2018
Messages
26
Reaction score
39

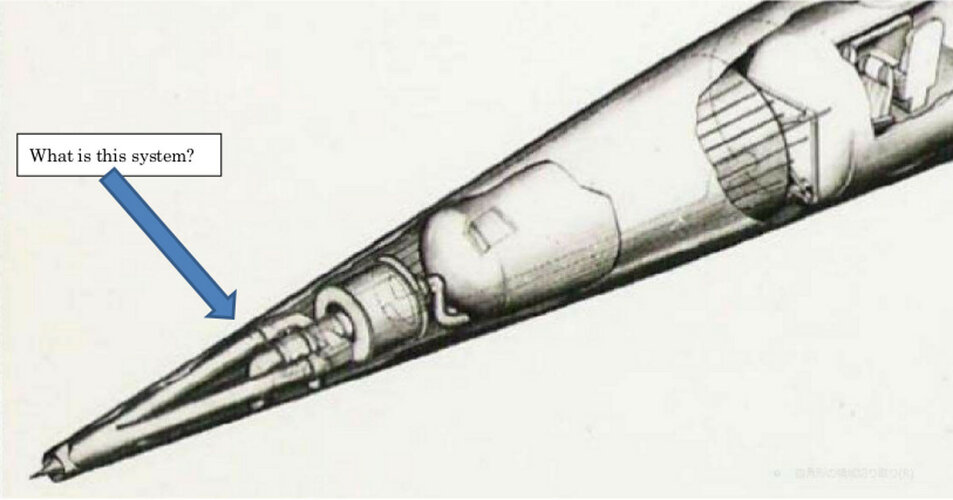

What is this system?
I think it's another engine for pitch control, though I don't understand the layout of the ducting, as it seems needlessly complex. It might be that this front engine is also used as an APU, and the system behind it is the ECS, perhaps with the intent that fuel from the front tank is used a a heat sink in cruise. In this arrangement, there would presumably be a valve to bypass the APU / pitch control engine during cruise, and this would explain why the engine flowpath is reversed, as this allows a straighter flowpath during cruise, when the losses have a more significant impact upon total fuel requirement & therefore sizing. However, this is just a guess.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Thanks a lot. Very complicated system.
I can see shock cone, small gas turbine engine and two vertical ducts.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,797
Reaction score
4,312
It's a blown bow Shockwave system coupled with a pitch actuator (Vtol). You can see it has the same configuration as an Harrier engine but with two hot nozzles pointed downward and two HP exaust angled forward with the nozzle end at the nose tip for some kind of after burning or aerospike external combustion.
By blowing away the Shockwave, you are building space b/w the the transition layer and your vehicle without having the drag effect of a blunt nose (the shock waves would be angled like if they had initiated from the surface of the vehicle leading to less non-isentropic shock losses).

The other particular aspect of the system is that the "turbine engine" Harrier like in the front looks to be fed by a tank (LO2 + propellant? ) and not by an outside source. You can see in front of the engine inlet an expension chamber certainly to slow down and increase the static pressure of the injected gas.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

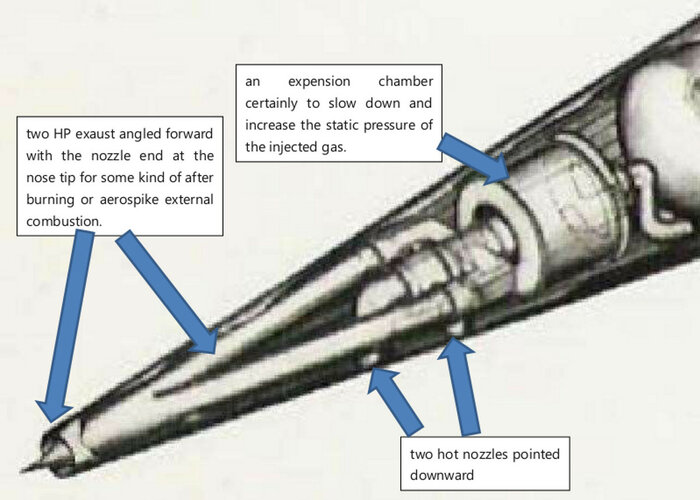

It's a blown bow Shockwave system coupled with a pitch actuator (Vtol). You can see it has the same configuration as an Harrier engine but with two hot nozzles pointed downward and two HP exaust angled forward with the nozzle end at the nose tip for some kind of after burning or aerospike external combustion.
By blowing away the Shockwave, you are building space b/w the the transition layer and your vehicle without having the drag effect of a blunt nose (the shock waves would be angled like if they had initiated from the surface of the vehicle leading to less non-isentropic shock losses).

The other particular aspect of the system is that the "turbine engine" Harrier like in the front looks to be fed by a tank (LO2 + propellant? ) and not by an outside source. You can see in front of the engine inlet an expension chamber certainly to slow down and increase the static pressure of the injected gas.
Attached picture shows what you explained?


Attachments

  • explanation.jpg
    155.9 KB · Views: 50

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Thanks amazing TomcatViP-san❗️

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

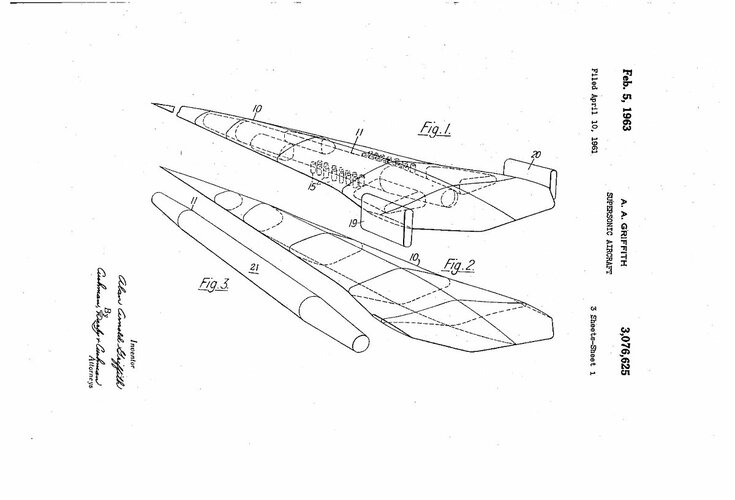

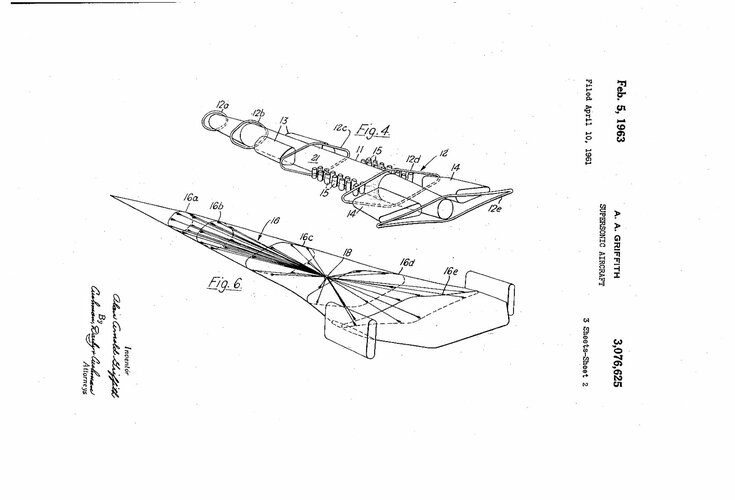

Hi!


Attachments

  • US3076625.pdf
    409.3 KB · Views: 5
  • a52866ee.jpg
    68.8 KB · Views: 28
  • 48695790.jpg
    119 KB · Views: 28

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

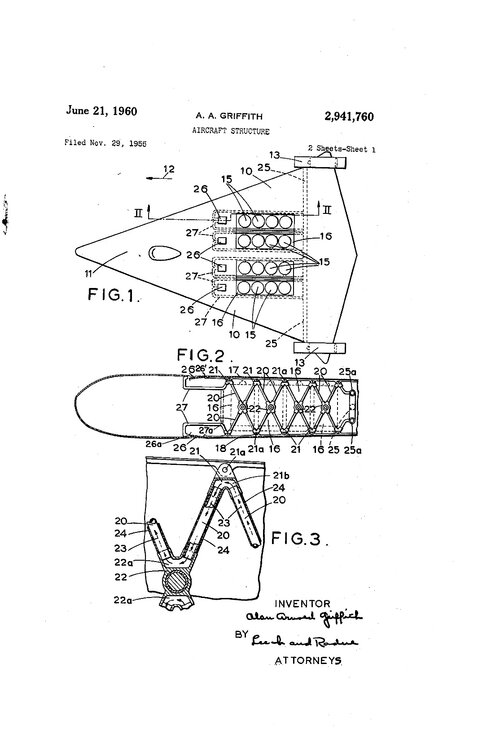

Hi!


Attachments

  • US2941760.pdf
    374.5 KB · Views: 6
  • b0e37c08.jpg
    269.9 KB · Views: 39

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi! Enlarged RAP-san's contribution.


Attachments

  • UK SST a.jpg
    UK SST a.jpg
    824 KB · Views: 46
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

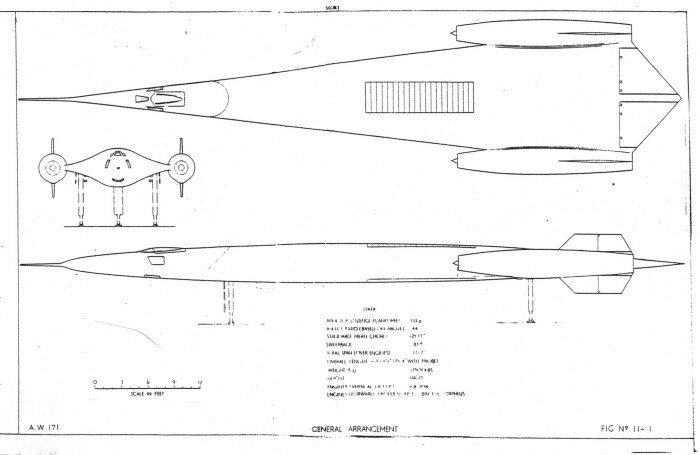

What is the relation between these two projects?


Attachments

  • AWA171_1.jpg
    41.1 KB · Views: 36
