Hi all,

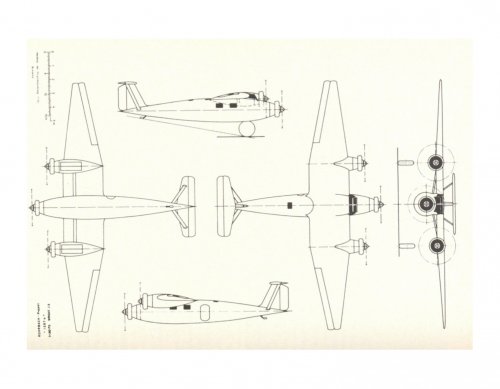

the german Adolf Rohrbach projected his new passenger aircraft in 1930/31.
The first design of the Typ 1087a with 3*Wright J.6 ( 240PS ).

Servus Maveric


Attachments

  • rohrbach1.jpg
    229.6 KB · Views: 882

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,026
Reaction score
430
Re: Rohrbach projects

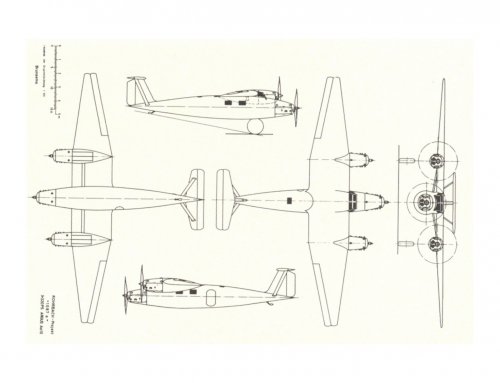

...the second design of the Typ 1087a with 3*Argus As.10 ( 220PS ), also in 1930/31.

Source: Luftfahrt international


Attachments

  • rohrbach2.jpg
    221.9 KB · Views: 712

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,026
Reaction score
430
Re: Rohrbach projects

...some technical data for the Typ 1087a with Wright
span 18,20m; L 12,00; aera 37,5m²; weight 1910kg; MTO 3100kg; Vcruise 230-240Km/h; range 730km

Luftfahrt international says: the Typ 1087a is the forrunner of the Letov S.32 build in 1932 and for the unbuild Avia Av.50.

Anybody of you have drawings and technical data for the Avia Av.50?

An other Rohrbach 8seat passenger aircraft (Type 1100) was projected in this time, any drawings and technical data?

Servus Maveric


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Re: Rohrbach projects

Hi everyone,

Adolf Rohrbach had other interesting projects, e.g. the Roska, a four engined bomber from the late 1920`s. I do not know if it had follow-ups. A wind tunnel model exists, showing what could be BMW VI engines. It was included in the "Gronabo" ( Gross Nacht Bomber ) program. Also Manfred Griehl refers in "Luftwaffe Over America" that Rohrbach was approached to sport projects against Dornier and Junkers in the future "Ural Bomber" competition.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Re: Rohrbach projects

Hi,

the Rohrbach had a designation system from Ro.1 to Ro.12
and it also designed a Cyclogyro paddle wing aircraft,for Roska
please see;
http://www.secretprojects.co.uk/forum/index.php/topic,1197.0.html


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Re: Rohrbach projects

Hello,

I don`t think the Ro XII Roska stemmed from the Ro VIII. It is utterly diferent ( wings, fuselage, tail ), and it was a Gro Na Bo, meaning big night bomber, and not Ro Na Bo. Also, Rohrbach designed the "Roterra", a three engined bomber from 1930, wingspan 30m, lenght 20m, wing area 110m2, speed 250kms, fielding Bristol 450Hp Aquilas. Range would be 1000kms. Rohrbach failed to atract the Reichswehr and sold the licence to Avia, where it was developed into the Avia 46. This data comes from the german edition of "Secret Projects of the Luftwaffe-Strategic Bombers". You may also find some patents presented by Adolf Rohrbach on GooglePatents.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Re: Rohrbach projects

I read somewhere that the Rohrbach Ro XII Roska or Ro Na Bo (Rohrbach Nacht Bomber ) was a land version of the Ro X Romar
It had the same wing and similar tail surfaces & fuselage


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Re: Rohrbach projects

Looking after a picture of the Avia 50 ,I find only the Avia 51 ,having some ressemblance with type 1087 .
Who could show us pictures of the Avia 46 ; Avia 50 ;Letov S 32 ,all more or less related to Rohrbach ?
Thanks
Richard

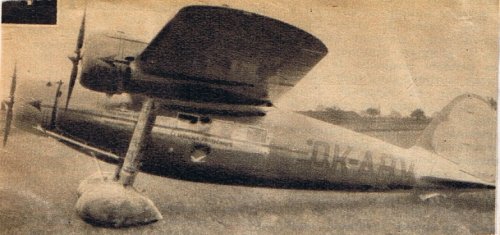

Avia 51 from Aviation Magazine of the 50" :


Attachments

  • Avia 51.jpg
    Avia 51.jpg
    182.6 KB · Views: 520

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
Re: Rohrbach projects

richard said:
Who could show us pictures of the Avia 46 ; Avia 50 ;Letov S 32 ,all more or less related to Rohrbach ?

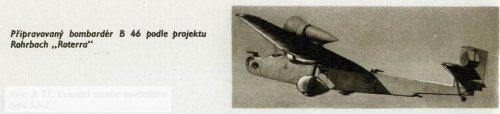

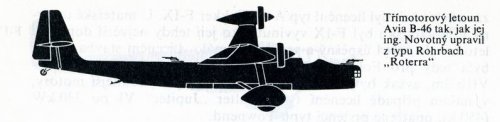

1)-2) Avia B 46
3) Avia 50

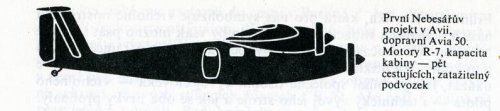

4) Letov S 32
from: Vaclav Nemecek "Ceskoslovenska letadla 1918-1945"


Attachments

  • Letov Sh-32.jpg
    Letov Sh-32.jpg
    152.7 KB · Views: 292
  • Avia 50.jpg
    Avia 50.jpg
    26.1 KB · Views: 239
  • Avia B-46.jpg
    Avia B-46.jpg
    23.3 KB · Views: 539
  • B-46.jpg
    26.1 KB · Views: 521

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Re: Rohrbach projects

Hello again !
Is there a picture of the two motors only Avia 46 ,the Avia 546 ?


burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
85
Reaction score
46
Re: Rohrbach projects

borovik, thank you for pictures of B-46. It's strange that the fin shape in the photo and in the Nemecek's drawing is quite different (square on the photo and trapezoid on the drawing). Is there a mistake on the drawing or there were more than one B-46 prototypes with differend fin shapes?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Re: Rohrbach projects

richard said:
Hello again !
Is there a picture of the two motors only Avia 46 ,the Avia 546 ?


My dear Richard,


what was this aircraft ?, (Avia 546),I never heard about the designation.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Hello


My source is " Der Flieger " 1971/2 which told the Rohrbach's story (28 pp) .


The Ro XII Roka was the designation for the military version of the civil Ro VIII Roland

Avia bought the three engined Roterra design , but Ing. Novotny was not completely pleased with it , and modified it a little ; This gave the Avia B 46 .

The three radial Avia engined were not available , and Novotny modified again the design for two Avia HS-12Yb . (Avia B-546) .

It seems that all was stopped before the B-546 was finished


Cheers

Richard


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Excellent my dear Richard,thank you,


and we can ask if Avia company used the series B.146,B.246,B.346 and B.446
or not ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
My dear Richard,


do you know the Rohrbach Project A ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022

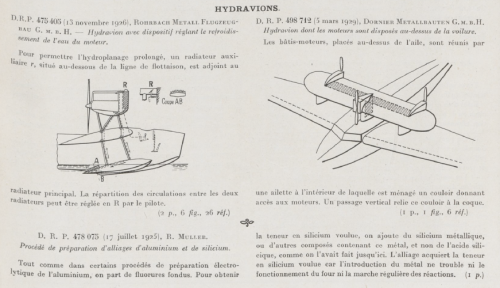

From l'Aeronautique journal of 1931,

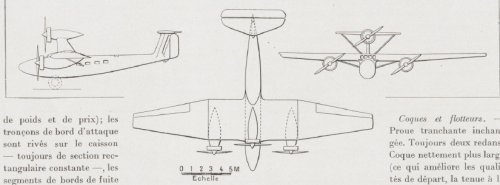

here is a patent for Rohrbach,and is there any drawing survivor to Ro.I twin engined
flying boat project ?.


Attachments

  • 1.png
    574.5 KB · Views: 237

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
37
I think it's only a generic hydroplane drawing, the patent text is about engine.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Bonjour


The Projekt A was the well known Rohrbach Schaufelradflugzeug .

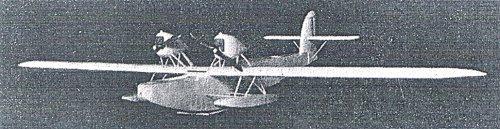

Here a bad photo of the Ro.1 model (but I don't have anything more …)


Attachments

  • Numériser.jpeg
    213.1 KB · Views: 192

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022

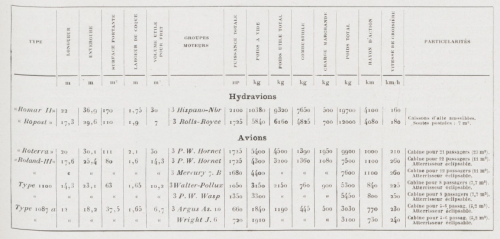

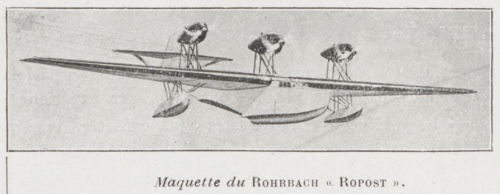

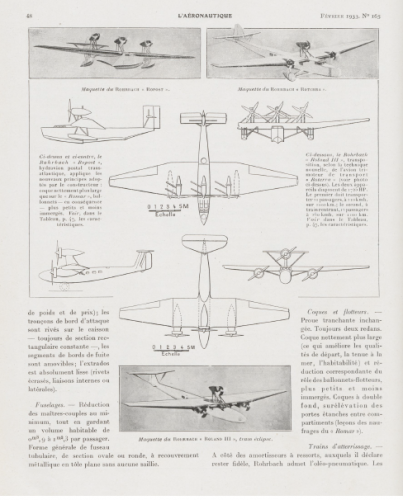

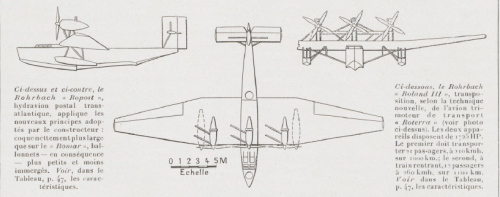

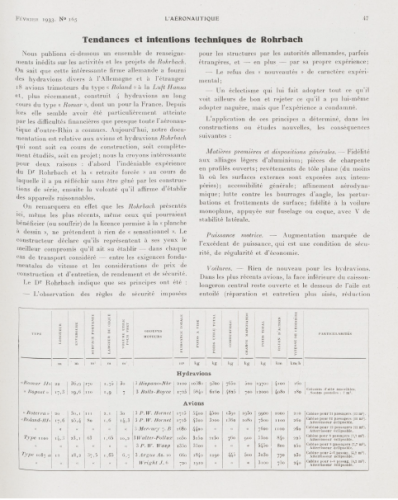

From l'Aeronautique 1933,

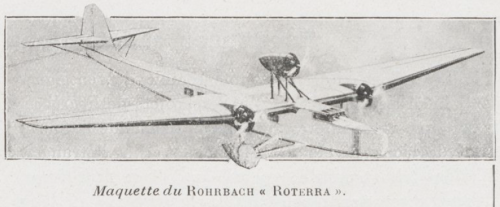

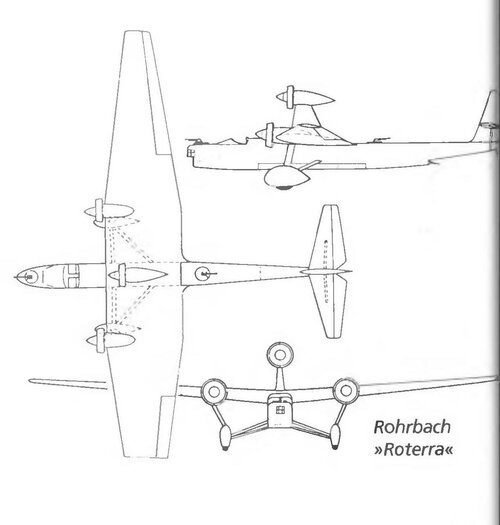

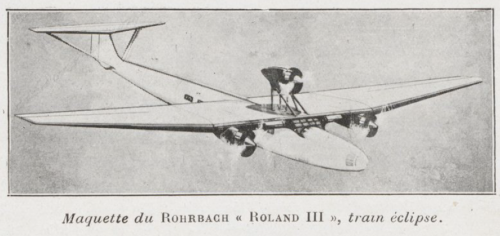

here is two completely unknown projects,the Rohrbach Ropost and Roland III (we know only
Roland I & II) also a Model for Roterra.


Attachments

  • Ro.png
    444.2 KB · Views: 81
  • Ro-2.png
    384.1 KB · Views: 89
  • Ro-1.png
    387.5 KB · Views: 75
  • Roland III  3-view.png
    Roland III 3-view.png
    314.6 KB · Views: 80
  • Ropost 3-view.png
    Ropost 3-view.png
    349.2 KB · Views: 84
  • Roterra.png
    404.1 KB · Views: 150
  • Roland III.png
    Roland III.png
    500.6 KB · Views: 157
  • Ropost.png
    415.2 KB · Views: 168

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Also from the same source,

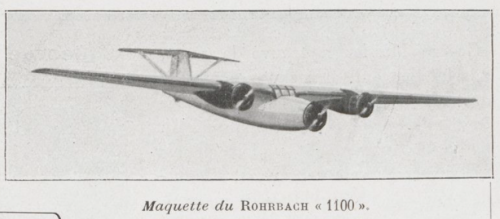

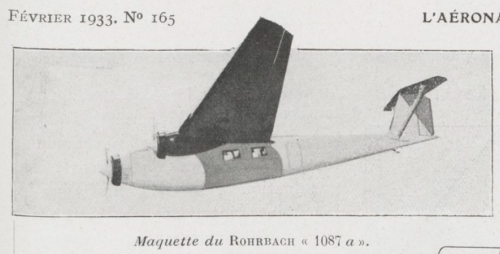

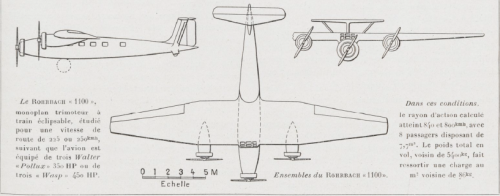

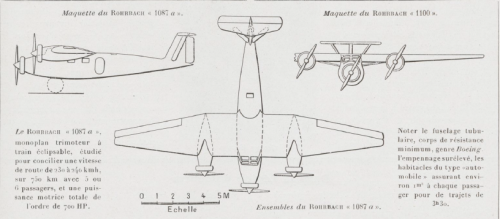

the Model-1087a and Model-1100,we don't have any drawings or Maquette to Rohrbach 1100.


Attachments

  • Ro-3.png
    366.5 KB · Views: 98
  • 1100  3-view.png
    1100 3-view.png
    321.5 KB · Views: 89
  • 1087a 3-view.png
    1087a 3-view.png
    359.4 KB · Views: 87
  • 1100.png
    398.5 KB · Views: 76
  • 1087a.png
    475.3 KB · Views: 77

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Excellent source, my dear Hesham. Keep on digging such interesting pieces of aviation history!


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
314
Reaction score
161
British Pathe footage of the Rohrbach Ro X Romar (Rohrbach Romar).

Here is a newsreel featuring the prototype Romar I (D-1693 ; c/n 29) destined for Lufthansa as "Hamburg," being prepped on land and rolled into the water on its beaching gear (note the "Werk number" on the starboard float - "ROMAR 29"):
YouTube- British Pathé: "Plane That Carries 18 Tons (1928)"
https://www.youtube.com/watch?v=ecT8jXI3nyI
The second newsreel is a sound newsreel is of the Romar II being constructed for France (F-AKEM ; c/n 62) as part of Great War reparations:
YouTube- British Pathé: "Under The Reparations Act Aka Under Preparations Act (1931)"
https://www.youtube.com/watch?v=6HbQ6jBbpX8


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Hi,

also the Rohrbach Model-1090 was a three engined transport Project,I think there
