Republic XF-12 Rainbow

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
21
Website
www.io.com
Sundog said:
Are you using the airliner version of the flying wing for it? It would be cool to see it with that cockpit from the airliner variant and the "glass" deck tail.

...Obviously the airliner version. I had in mind that the glass deck tail would be one of two meeting rooms. One inside that's shielded with no windows, the other one for more "diplomatic" missions where the President is showing off and using the grand wide view of the ground below and sky above to impress foreign dignitaries. ISTR there was a proposal to add such a large glass rear window on the current AF1 747 VIP deck, but nothing ever came of it.


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Let's talk a little about true history, not "what if".
Anybody knows, where both prototypes equipped with photo lab or only the second?


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Dear zbrubaker
It will be very nice. It's always nice to add some pics/infos to collection.

Here is the picture from "Flying American Combat Aircraft: The Cold War":


Attachments

  • page_004.jpg
    71.8 KB · Views: 236

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
996

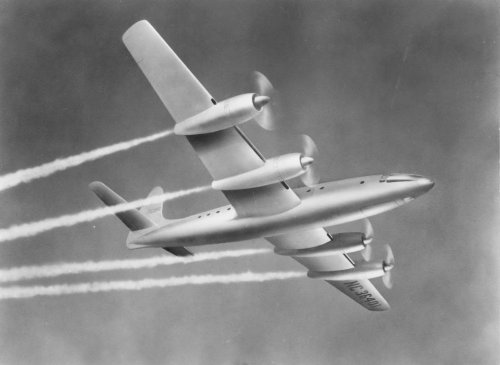

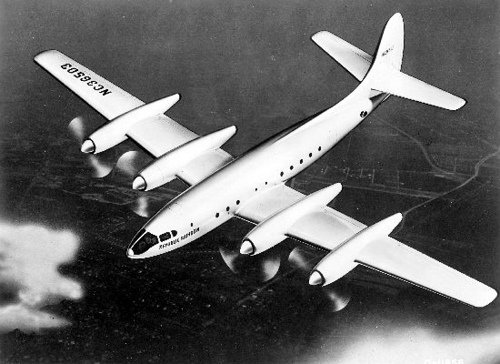

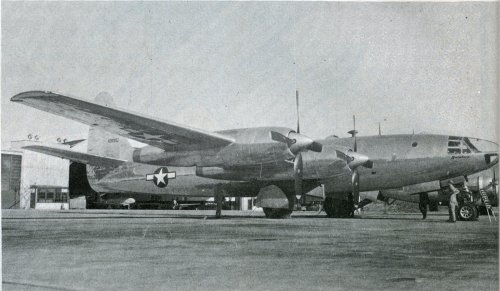

Here the pictures at the SDASM Archives.
Link: http://www.flickr.com/search/?ss=2&w=49487266%40N07&q=XF-12&m=text


Attachments

  • XF-12_Rainbow_SDASM_Archives.jpg
    82.1 KB · Views: 217

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

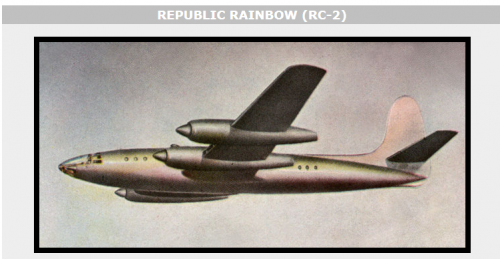

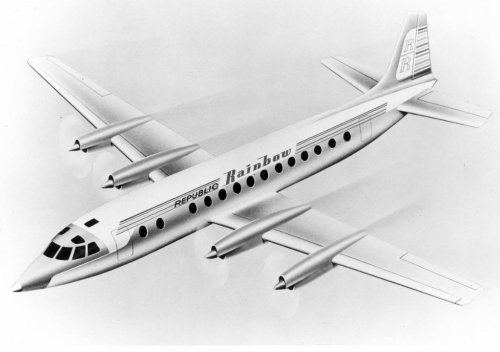

Well quite obviously, Republic revived the name a few of years later for a totally different airliner project. I also was shocked to discover that picture!


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12

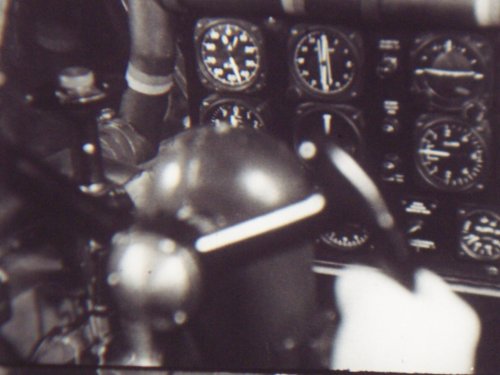

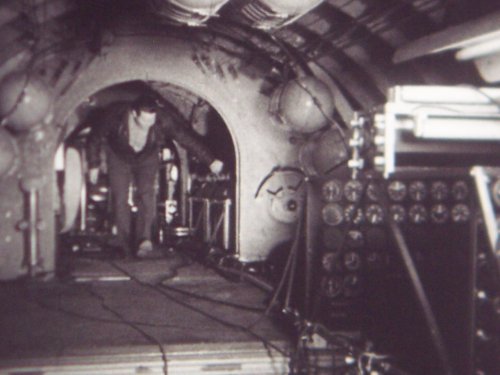

Hello friends!
Here are some more pictures, that i have find somewhere.

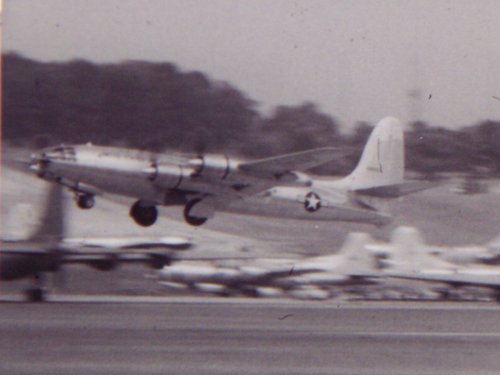

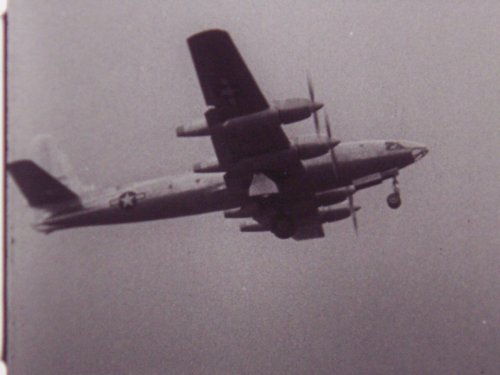

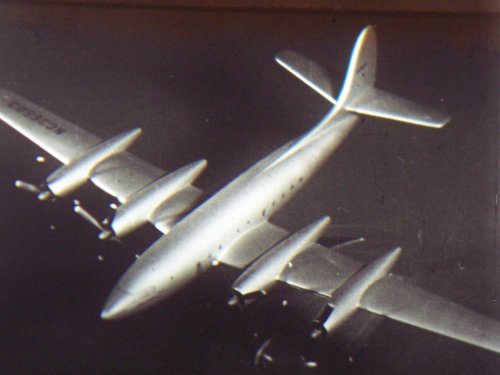

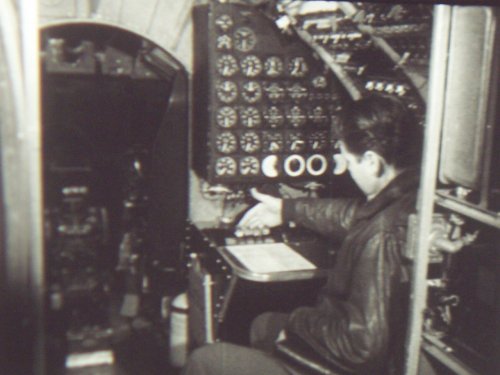

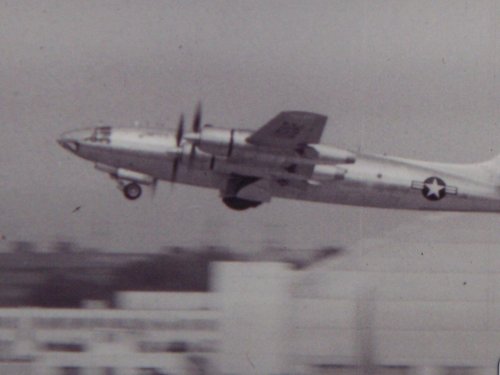

They are from Republic 16-mm film.


Attachments

  • 398528362_o.jpg
    180.4 KB · Views: 97
  • 398528300_o.jpg
    172.5 KB · Views: 74
  • 398528233_o.jpg
    150.2 KB · Views: 64
  • 398528103_o.jpg
    205 KB · Views: 75
  • 398528003_o.jpg
    206.1 KB · Views: 72
  • 398527745_o.jpg
    195.8 KB · Views: 82
  • 398527346_o.jpg
    191 KB · Views: 98
  • 398527171_o.jpg
    179.8 KB · Views: 82

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,878
Reaction score
368
Thanks Flying-Finn, those are definitely pictures I've never seen before. It's too bad the video isn't on YouTube.


gatoraptor

ACCESS: Secret
Senior Member
Joined
Aug 29, 2010
Messages
481
Reaction score
80
Boy, am I ever glad that I found this forum! I have always considered the Rainbow to be the most beautiful aircraft ever flown, and I thought that I had seen all the published photos of it -- until this thread. Thank you all!


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
One more update on this topic! The beauty of the XF-12 is undoubted!


Attachments

  • 413535117_o.jpg
    151 KB · Views: 716

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
Here's a little sumthin-sumthin on the Rainbow. It's an 8-page article, also suitable for either print or download

Courtesy of War Eagles Air Museum, out in my neck of the woods (more or less):

http://www.war-eagles-air-museum.com/newsletters/weam_newsletter_2010-4.pdf


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Let's try to keep here as much information about Rainbow as we can.

Here are two pictures from Le fana de l'Aviation:


Attachments

  • XF-12_p002.jpg
    391.7 KB · Views: 576
  • XF-12_p001.jpg
    231.3 KB · Views: 625

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
Has anything ever come to light about the the AP-60 bomber variant of the Rainbow, or the jet-powered follow-on variant?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
XP67_Moonbat said:
Has anything ever come to light about the the AP-60 bomber variant of the Rainbow, or the jet-powered follow-on variant?

I haven't seen anything on this yet, but I'm sure one of our amazing researchers such as Mark, Scott or Jared will come up with something some day soon...

Do you know if the AP-60 bomber was meant for the Parasite/Missile carrier competition? Also, do you know if there was also a military transport version planned?


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82
I don't. I'm reading my copy American Secret Projects and all it has a very general description.


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
5
As for the Rainbow being the fastest US piston-engine powered plane (with more than 1 mill)
-to go with the Republic claim of '500+mph' for its Thunderbolt prototypes..

..Just how does its actual test performance match-up with the competing Hughes machine?

Or the F7F & F-82?

That 'Betty Jo' Twin-Mustang record flight from Hawaii-to-NY was pretty impressive.
( I'd reckon those pilots would've failed a WADA banned substance test)..


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
936
Reaction score
142
Is there mention of the jet and bomber versions in this book "World's Fastest Multi-Engine Piston Aircraft: Republic's XR-12 Rainbow & the Hughes XF-11" by Mike Machat? One reviewer on Amazon seems to hint that there is...

Regards,
Barry


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
5
'Worlds fastest'... that is a big claim..

Multi being more than one..

Or, even - if counting more than two,
just how fast was that Dornier high altitude triple-engined Do 217P prototype flown?


patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org
Under Mark Nankivil photos, what are numbers 208, 252, 253...? Picture number or Republic project reference numbers. I never see such numbers for Republic planes.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
J.A.W. said:
'Worlds fastest'... that is a big claim..

That's not what was in J.A.W.'s post. He says Republic claimed it to be "the fastest US piston-engine powered plane" which is markedly different.


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
5
Actually S-G, they were both my posts, & I have doubts about both Republic based 'fastest' claims..


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
354
Barrington Bond said:
Is there mention of the jet and bomber versions in this book "World's Fastest Multi-Engine Piston Aircraft: Republic's XR-12 Rainbow & the Hughes XF-11" by Mike Machat? One reviewer on Amazon seems to hint that there is...

Regards,
Barry

Not sure what the book mentions but there is a bit on jet powered variants in this thread;
http://www.secretprojects.co.uk/forum/index.php/topic,561.0/nowap.html


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
689
Reaction score
354

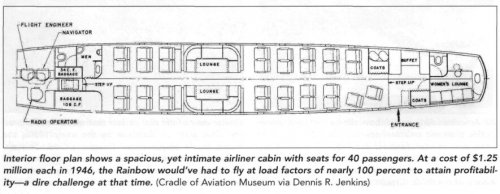

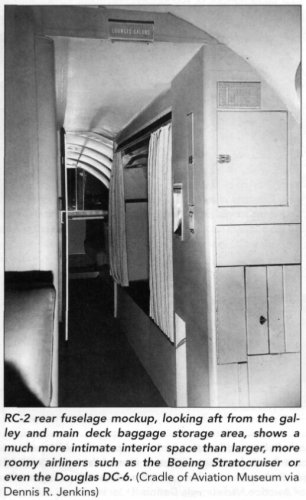

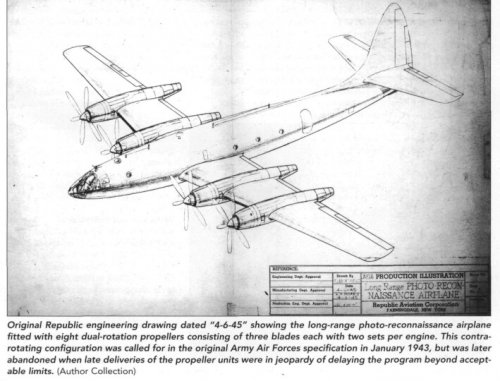

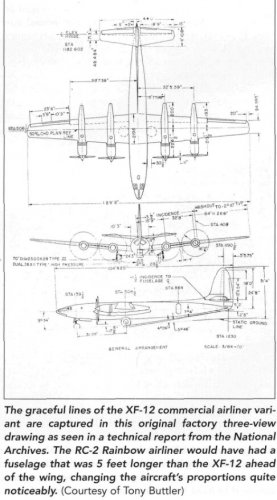

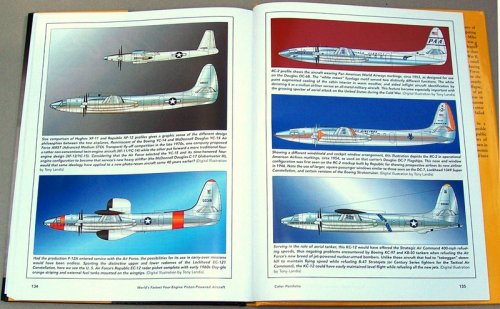

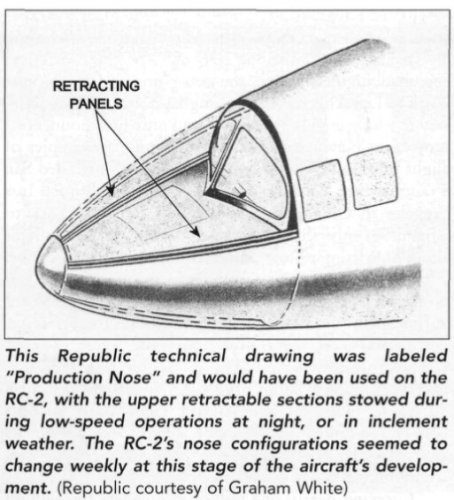

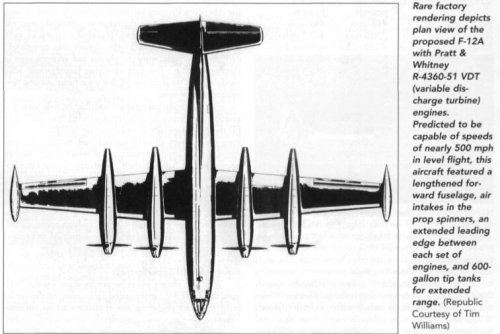

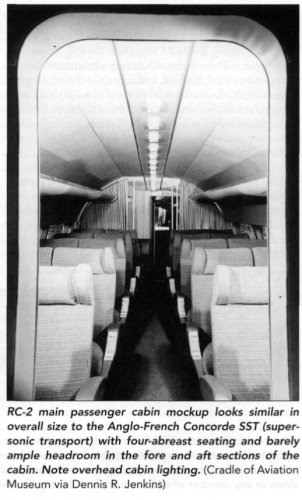

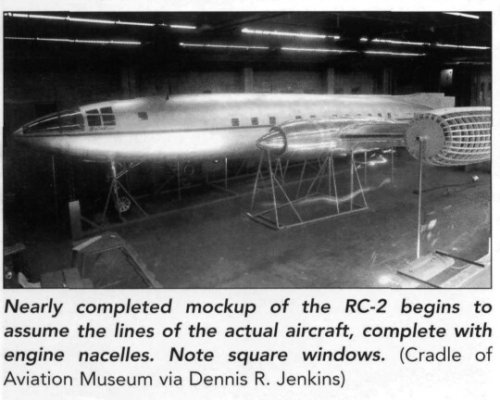

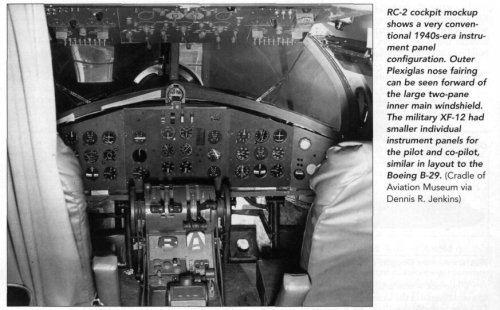

All pics from "World's Fastest Multi-Engine Piston Aircraft: Republic's XR-12 Rainbow & the Hughes XF-11" by Mike Machat


Attachments

  • tmp_21333-IMG_20150930_202144-1787463222.jpg
    101.9 KB · Views: 177
  • tmp_21333-IMG_20150930_202127-1809728501.jpg
    102 KB · Views: 186
  • tmp_21333-IMG_20150930_2021081055140596.jpg
    63.2 KB · Views: 160
  • tmp_21333-IMG_20150930_202050271784380.jpg
    88 KB · Views: 126
  • tmp_21333-IMG_20150930_2020271467161334.jpg
    80.5 KB · Views: 980
  • tmp_21333-IMG_20150930_2019331373645465.jpg
    104.8 KB · Views: 1,004
  • tmp_21333-IMG_20150930_202004-612367211.jpg
    101.1 KB · Views: 1,028
  • tmp_21333-IMG_20150930_201855-741600489.jpg
    134.9 KB · Views: 1,071
  • tmp_21333-IMG_20150930_201835450680292.jpg
    80.7 KB · Views: 1,088

GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
712
Reaction score
73
Excellent book by Mike Machat, with the added bonus of a lot of XF-11 info as well.


CAIR67

ACCESS: Restricted
Joined
Nov 30, 2009
Messages
45
Reaction score
9

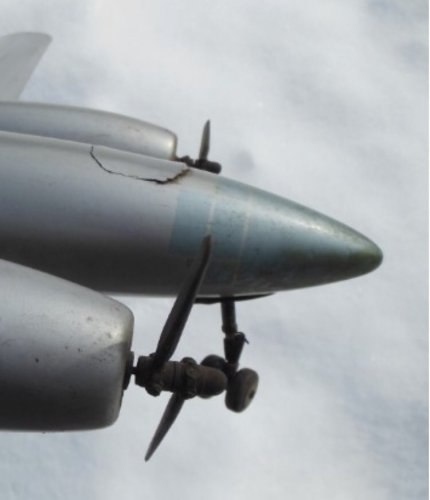

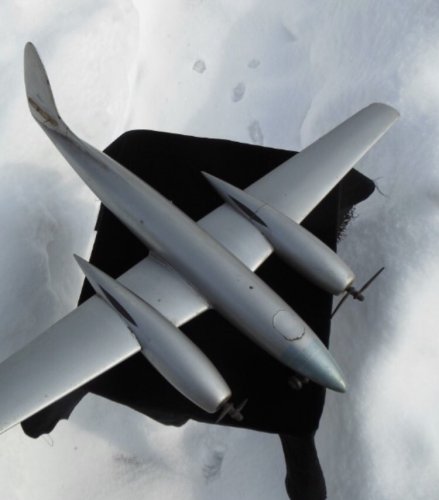

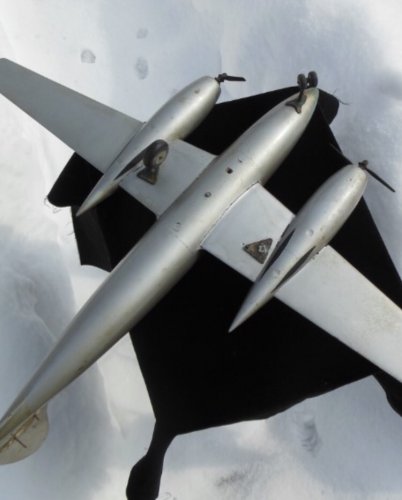

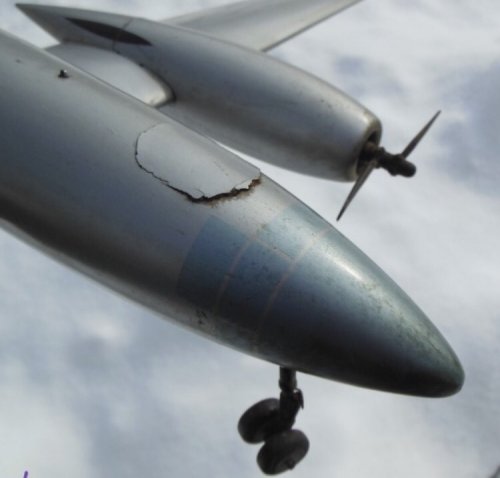

Found this model listed on eBay. Two engined Republic Rainbow? Was this an early proposal of the Republic Rainbow? Or different Republic project aircraft all together.


Attachments

  • IMG_0280.jpg
    63.5 KB · Views: 82
  • IMG_0284.jpg
    63.4 KB · Views: 85
  • IMG_0286.jpg
    88.3 KB · Views: 97
  • IMG_0276.jpg
    81.4 KB · Views: 104

RyanCrierie

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
850
Reaction score
152
Website
www.alternatewars.com
The specifications for the RAINBOW/XF-11 competition were quite demanding.

The AAF demanded in 1943:

Service Ceiling: 50,000 to 60,000 ft.

Speed: 400 to 500 MPH at 40,000 ft.

Range: Sufficient fuel for 1000 miles at most economical cruising speed, plus 1000 miles at 400 mph at 40,000 feet, plus 1000 miles at most economical cruising speed, plus 25 per cent of the fuel required above as reserve. This fuel to be carried in self-sealing tanks. Provision shall be made for droppable tanks to increase the range given above. (This requirement is equivalent to a range of approximately 6000 miles at economical cruising speed.)

Special Design Note: It is desired that the airplane be designed to operate at 40,000 feet with one engine dead. This is another way of stating that the airplane must be a 4-engine aircraft.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,210
Reaction score
174
50-60000 feet?

Makes you wonder what the **** kind of air defense threat they were thinking about.


RyanCrierie

Crazy Researcher
Top Contributor
Senior Member
Joined
Dec 19, 2006
Messages
850
Reaction score
152
Website
www.alternatewars.com
Well, altitude is it's own defense.

The British, when they investigated the XB-32 Dominator mockup in 1940 or 1941 (forget which) made the comment that they desired a pressurized bomber with a 40 to 45,000 ft capability, as unpressurized fighters could get up to 25-35,000 ft range, but if you went to 40,000+ feet, you automatically forced a pressurized cabin onto fighters, thus inflicting virtual attrition on the defender.
