Questions about two Germany competitions and projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Hi,

the first competition, which led to developed Messerschmitt Bf.110 heavy fighter,
and the contenders were;Focke Wulf FW-57,Henschel Hs.124,Bf.110,Junkers Ju-85
and Dornier Do.29.

The Dornier Do.29 was a project of twin engined heavy fighter and medium bomber,
and I am asking,did any other projects involve in this competition ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Hi,

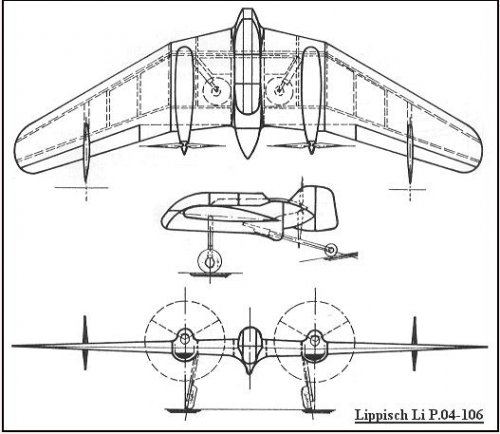

also the DFS/Lippisch P.04-106 was intended to compete the BF.110.
http://www.luft46.com/lippisch/lip04106.html


Attachments

  • P.04-106.JPG
    40.3 KB · Views: 894

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,501
I'm not sure about the Junker Ju 85, which I thought was a parallel development
to the Ju 88 bomber ?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
500
You're right about the Ju-85 Jemiba. We already talk about that design in the forum:

http://www.secretprojects.co.uk/forum/index.php/topic,5027.0/highlight,ju-85.html


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
162
Concept :the Kampfzerstorer. - Twin-engined heavy fighter(1935-1939)
The specification was issued to AGO, Dornier, Focke-Wulf, Heinkel, Henschel, the Gothaer Waggonfabrik and somewhat surprisingly, to the Bayerische Flugzeugwerke.
Except above-mentioned
Arado Flugzeugwerke – Ar E-500 (1936)
-Ar E-561 (1937)
AGO Flugzeugwerke - AO 225 (1937)

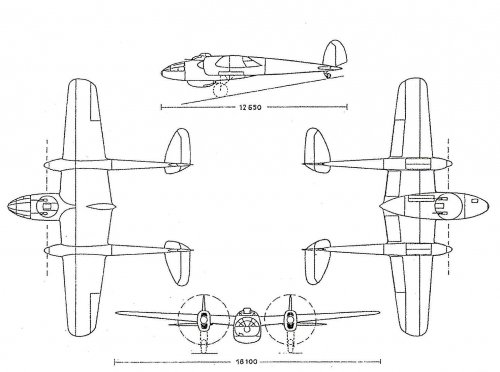

Gothaer Waggonfabrik – Gotha P. 3 01 – 02 (twin-boom plane with 2x950 hp DB600, both engines disposed in centre of the fuselage, like Ar E-561)
Gotha P 8 01,
Gotha P 14 02
Gotha P 20 (all with As 410 engine)

My opinion: project Ju-85 did not participate in this competitions.
In more detail in chapter 4, page 73 “Luftwaffe secret project ground attack…” by D.Herwig & H.Rode.
“Die Deutsche Luftrustung 1933-45” Band 2 by Heinz J.Nowarra p.146


Attachments

  • Go P.- 3. 02.jpg
    Go P.- 3. 02.jpg
    29 KB · Views: 864

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
The Dornier Do 29 was a competitor of the Hs 124 and the Ju 85.
(mittleren Bomber und Zerstörer) medium bomber and destroyer

The machine resembled the twin fin Ju 85 but with the same enigine arrangement with annular cooling
of the Do 17. Also the dimesions were close to the Do 17.
No illustration.

source : Die Deutschen Flugzeuge 1933-1945 - Kens /Nowarra-J.F.Lehmans Verlag .München 1972.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Thank you my dears,

and for the Junkers Ju-85 was involved in this competition as my source,


for the second competition which led to Ju-88,the contenders were;
Ju-88,Hs.127,Do.29,Bf.162 and Gotha P.3,and I am asking was there
any other project submitt to this contest ?.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,297
Reaction score
145
Website
zeef.com
about do-29, remember do-17Z some years later


Attachments

  • dornier29.pdf
    592.9 KB · Views: 116

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Please mind page 14:


http://www.deutscheluftwaffe.de/archiv/Dokumente/ABC/m/Messerschmitt/Diverses/Schnellflug%20Messerschmitt.pdf

Messerschmitt mentions multiple cylinder boxer engines from Kamm (Wunibald Kamm of FKFS) and Benzinger (Wolf-Dieter Bensinger of DVL). I didn`t know any engine developments from this engineers with that configuration (although FKFS developed Wilhelm Krautters`s lovely flat-fours). Bensinger was a gifted engineer at DVL but I only know about his work on rotary valves and the DVL`s H-16/32 engines.
Does anyone knows more?


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
209

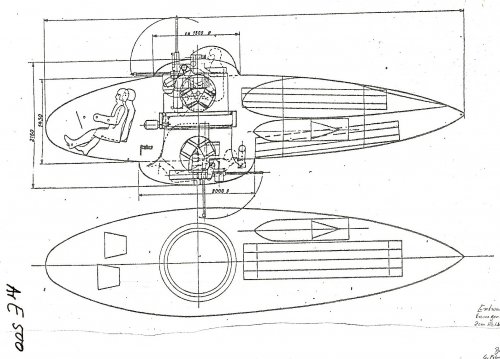

The Arado Ar 500 Zerstorer project. A four man aircraft to carry out a similar role to the Me 110. It was to have had two turrets with 360 deg rotation and field of fire and the guns in the upper turret could be raised a full 90 deg to fire vertically. It could carry a bomb load behind the turrets. The project originates from 1935 and got to the full scale mock up stage. Interestingly the last 3 drawings are dated 1942 and show 2 distinctly different layouts. ar-500 (2).jpg ar-500+ (2).jpg


iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
502
Reaction score
411
Daimler-Benz D.B.603
Hmmm. I asked because of the large air inlets above and below the propeller spinners. The installation looks like rather like that of the Napier-Halford Dagger air-cooled engine.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137

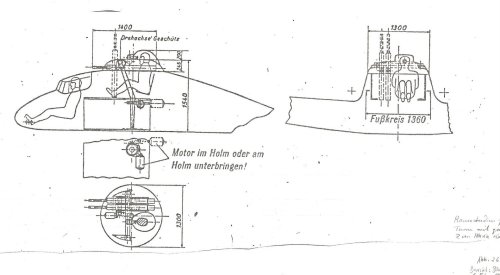

Johnbr wrote:

Interestingly the last 3 drawings are dated 1942 and show 2 distinctly different layouts.

John, which last 3 drawings were you refering exactly?


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,141
Reaction score
895

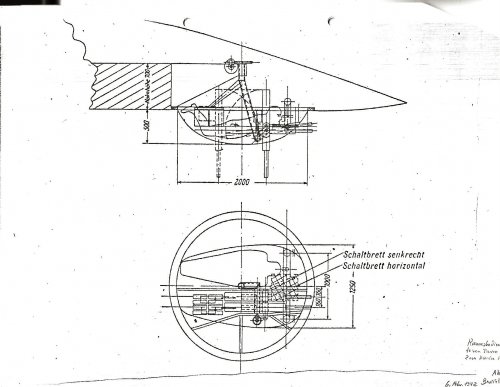

Although the drawings come from a 1942 report, the report itself is a retrospective about Arado's work on turrets over the preceding decade. The report begins with drawings from the early 1930s and progresses through to the present day (Feb '42) with the most 'recent' drawings showing the remote-controlled turrets of the Ar 240.
