Delanne 360 :was a tandem delta wing interceptor project of 1950s,with
a new design ,twin tail fins ,and a bubble canopy.it had a single
jet engine, 2.5 mach speed and 15000 m altitude.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
3
Hi Hesham and Jemiba
If I may ask please...have you any pics or 3-view drawings?

Many thanks
Peter
;D


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172

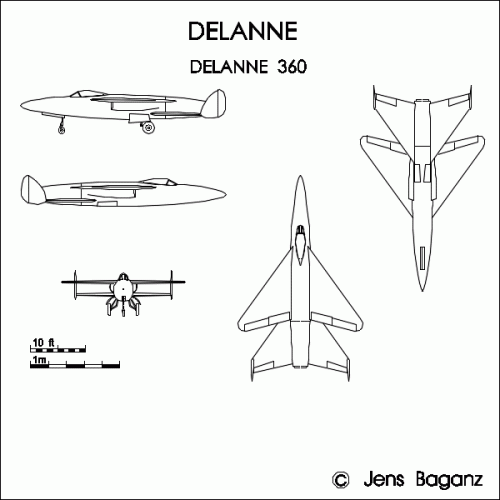

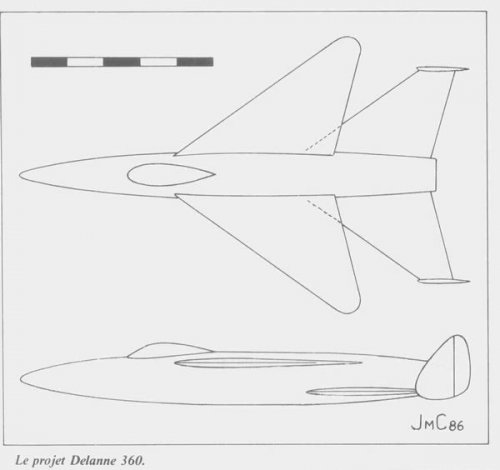

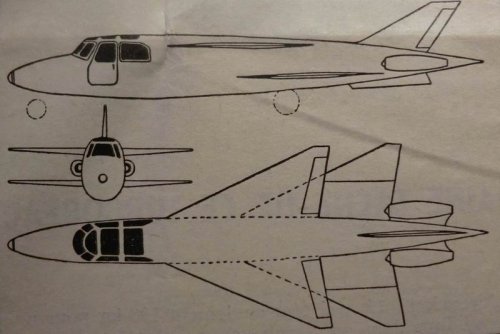

Here's the Cuny drawing, which I used as basis for my drawing.
Sorry, for me a drawing is complete only with at least the
landing gear and some other details, but I must admit, that's
again a case, where it's quite speculative, although I tried
hard for at least some plausibility


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

When Delanne returned to France from USA,he designed DL-1200 & DL-1300
jet projects,does anyone know them ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
We already had a thread about Henri Delanne here in the forum , in the end,
we all knew, that we don't know much about his designs ... ::)
Perhaps, the types you asked for, are shown in model form in this
photo from an article in Airtrails, that I've got from boxkite, perhaps not ... :D


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Yes my dear Jemiba,

And the picture showed the DL-240 jet fighter project to
USA.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
What is your source for the so called DL-240 jet fighter Hesham.

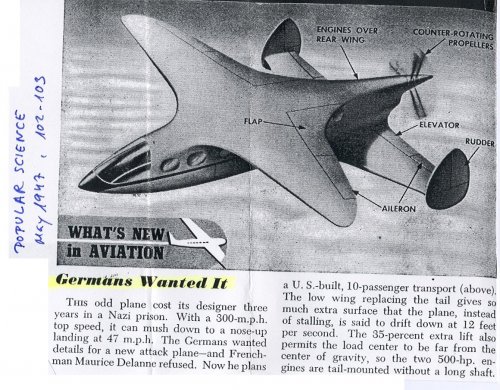

After Mr.Delanne left France in 1946 he founded the Delanne Aircraft Corporation
in the U.S.
Returned to Europe beginning of the sixties he designed
the DL 1200 and 1300.
Two light two-engined jet transportaircraft.
So far Le Trait d'Union Nr.186
No illustrations of the above mentioned designs.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
Had to kill some time today, so I visited the State's Library Berlin.
In the an issue of Flieger , 1950 I found a picture of a Delanne design,
described as a fighter, but that's probably not true and not mentioned
in the (english) escriptions in the picture itself either. Nevertheless, it's
one of the quite rare mentioning of Delanne designs, so I'll post it here.
And as it's more than 50 years old and the publishing magazine isn't any
more, I won't expect copyright problems.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
My dear Jemiba,

May be the Picture was for the unknown Delanne designs,,from
DL-200 to DL-230.


raravia

CLEARANCE: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
2
Hi Jemiba

Without doubt Delanne was one of the most amazing aircraft designer. They are very futuristic shape. For sure it is not a fighter, but Thanks anyway for posting it.

Raravia


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
The plane depicted in Jemiba's illustration is an artist impression
of the model shown in the heading photo to an article in
Air Trails , October 1950.

'Delanne and his Duo-Monoplanes' by William S. Friedman.page 22.

(photo posted here May 12 ,2007)

Plane looks like a corporate or small passenger aircraft.No designation
given in the article...


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,527
Reaction score
128
Jemiba, what issue of Air Trails is that article in? I'd like to find that article and make a copy.

Thanks! Mark


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Helpin' hand for Jemiba..

Air Trails - October 1950

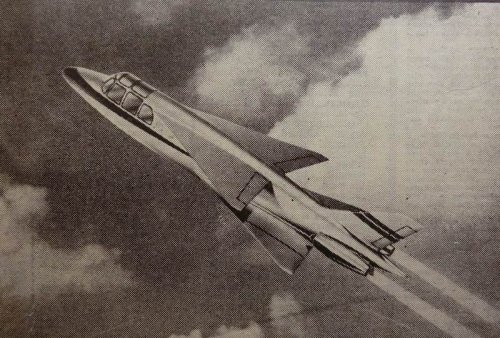

caption with the jetfighter illustration:

"Delanne jet fighter as visualized by our artist.Top speed should be 700 mph"

No more illustrations of the jetfighter in the article.


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,323
Reaction score
12
Website
cluttonfred.info
I found this in the Smithsonian database:

Designer - Manufacturer Name: Delanne Aircraft Corp

: Maurice Henry Delanne

Manufacturer Location: New York -- New York

Historical Notes: Maurice Henry Delanne developed a series of tandem-wing aircraft in pre-World War II France. Following the end of the war, he emigrated to the United States, where he continued his work, establishing the Delanne Aircraft Corp of New York. For all aircraft designed by Delanne in pre-War France, see Delanne. For all aircraft designed by Delanne Aircraft Corp, see Delanne Aircraft.

Produced Models: Delanne Aircraft DL-240
Delanne Aircraft DL-250

Cited from: The Smithsonian National Air and Space Museum Directory of Airplanes: Their Designers and Manufacturers
The Smithsonian National Air and Space Museum Archives Division, Delanne Aircraft Corp Document and Photograph Files.
Does anyone have any info, photos or drawings of the DL-240 and DL-250, the American Delannes?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

I think here is a Delanne DL-240,from my dear Jemiba.
http://www.secretprojects.co.uk/forum/index.php/topic,441.120.html


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
It would be good to know that for sure, but still yet I couldn't find
a clue ! And as the caption of this fancy drawing (the "FH-227") says,
it's a visualization of a Delanne jet fighter by AirTrails artist and maybe
not more. :-\


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
5
Jemiba said:
It would be good to know that for sure, but still yet I couldn't find
a clue ! And as the caption of this fancy drawing (the "FH-227") says,
it's a visualization of a Delanne jet fighter by AirTrails artist and maybe
not more. :-\

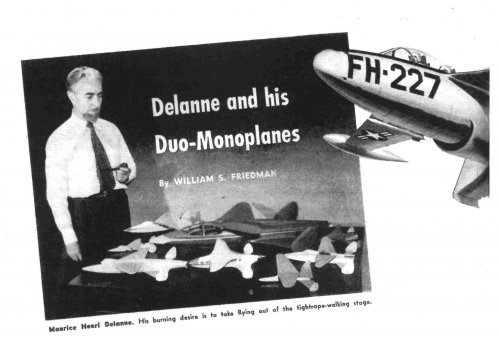

This "FH-227" aircraft (and the small model on the lower left corner of the page) looks quite similar to the Delanne 360, a jet-fighter project designed in France.
A 1/100eme scale-model, built by Arsenal, was wind-tested in 1951.

Specs of the project:
Span: 7,50m to 8,84m.
Lenght: 11,50m
Max. estimated speed: Mach 2,5!!
Engine: Unk but said to deliver 3850kgp.

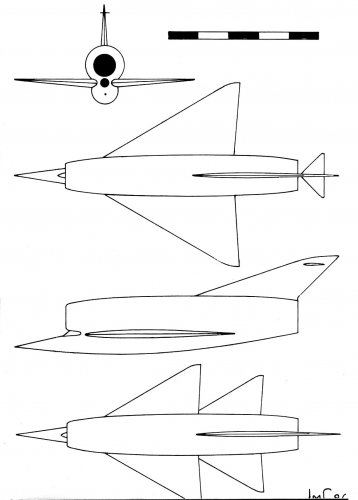

Drawing from Jean Cuny's book "Les avions de combat français, vol.1- Chasse-assault".

Cheers,


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
.. and it looks quite similar to the Westland design B to F.124T
/OR.301, too. Seems, there weren't many variations in fighter
designs, which used the Delanne concept, apart fom the type
of the intake, something, that isn't shown at all in Cunys drawing.


Attachments

cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,323
Reaction score
12
Website
cluttonfred.info
It's too bad nothing seems to have come of any of these designs. A subsonic, turbofan-powered Delanne-style attack jet, something the size of a Folland Gnat, would have made a great little attack aircraft with good low-speed handling for STOL and/or carrier operations.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,872
Reaction score
922
Hi,

the Delanne DL-240 was twin jet aircraft,but I can't find a twin jet project
in the picture from my dear Jemiba,and the may be the main aircraft was
DL-250 fighter.


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
781
Reaction score
17

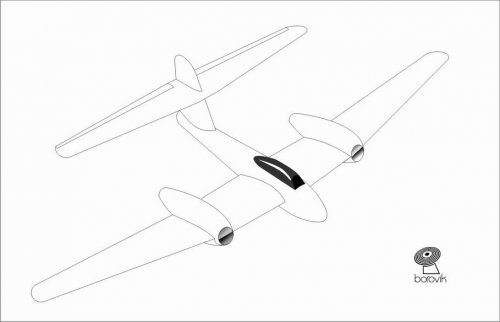

Project high-altitude fighter Delanne J.8 for Westland.
Collectively image of Westland Welkin and the Gloster Meteor, of course with the characteristically of Delanne tandem wing.
More information in the article Tony Buttler's "UK jet pioneers development of first British jet-powered aircraft ..." Air Enthusiast 2003. # 105, 106.
See please also post Maveric - Westland J.14 / Delanne
http://www.secretprojects.co.uk/forum/index.php/topic,2806.0/


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
Justo,

Would you by chance have anything on Delanne's US fighter project of the early 1950s? I have searched the web and my books in vain... Pictures are attached, they are all I've seen about it. Thanks!


Attachments

CAO 700

CLEARANCE: Confidential
Joined
Nov 22, 2009
Messages
90
Reaction score
0
I don't know these projects but I love them. They look so french! ;D


Nik

CLEARANCE: Secret
Joined
Jul 15, 2009
Messages
382
Reaction score
0
Other than they look 'wrong' and, IIRC, are firmly sub-sonic configurations, was the lack of DeLannes purely because he was a one-man-band, without support ??


simmie

CLEARANCE: Restricted
Joined
May 10, 2008
Messages
25
Reaction score
0
Post war, westland got in to the layout in a big way.

See BSP: jet bombers.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172

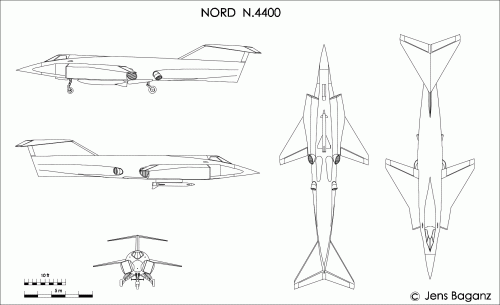

It would be interesting, I think, if Nord Aviation would have had to pay
license fees to Delanne, if their N.4400 supersonic VSTOL design would have been
realised. Still yet, I never saw it this way, but the tailplane certainly acts as
a tandem wing.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
What a beautiful design! The inventivity of French engineers in the late 1940s and early 1950s is always a source of amazement to me, because they had an original approach that was not the British one nor the American one.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
simmie said:
Post war, westland got in to the layout in a big way.

See BSP: jet bombers.
What do you mean? That the US Delannes were designed by Westland??? Can you clarify this point for us, please?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
"..because they had an original approach that was not the British"
At least the engine would have been british (Bristol BS.100, IIRC), although the basis
for this engine was french ( best source for this probably Andrew Dows book ;) ).

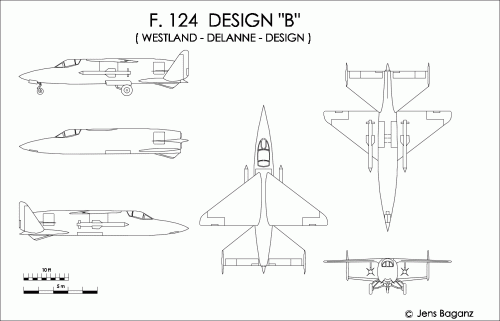

Westland for example proposed a lightweight fighter for F.124T/OR.301 using the Delanne
configuration (http://www.secretprojects.co.uk/forum/index.php/topic,6430.0/highlight,delanne.html).
But the US markings on those models are just an attempt to prepare the market, IMHO.


c460

CLEARANCE: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
6
There is a Delanne 360 supersonic fighter in Jean Cuny's Les Avions de Combat Français vol.1. The text says that a small mock-up (1/100 scale) was wind-tested in 1951 with various wing configurations. The two-view drawing by the author (see attachment) shows no air intake, surely because not enough data was available. The VMax was announced at Mach 2.5, very optimistic in my opinion.
Maybe the "FH-227" shown by Stargazer was a contemporary project. Same as Jemiba, I think that Delanne just had paintings made with US markings, for show to potential customers.
The air intake on the "FH-227" looks the same as the Arsenal VG70. There were connections between Arsenal and Delanne before 1945, and Cuny further mentions a variant of the Arsenal 1910 interceptor project with "Delanne wings" (bottom Arsenal drawing).


Attachments

J

joncarrfarrelly

Guest
The Westland P.12 Lysander-Delanne beach-strafer is one of the better known examples and was actually the inspiration
for Miles Libellula series.

Jon


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
43
Post 1945 Delanne topics merged


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
Concerning Delanne's US Navy design proposal, it seems it is circumstanciated by the Spangenberg Index:

The Pardel Development Corp. submitted a "Delanne Model 16 J-A" (perhaps for jet aircraft?) for a research program that resulted in wind model testing of an ASW configuration in 1956.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,002
Reaction score
172
In the June issue 1961 of the Les Ailes magazine, I've found the Delanne D.1300,
a businees jet/light transport. Powered by two Turbomeca Marboré II engines,
it should have been able to reach a speed of up to 850 km/h, a service ceiling
of 12.000 km and a range of 1000 km.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
Brilliant find and such an original design! I wasn't even aware Delanne was still busy designing stuff into the sixties...


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,758
Reaction score
26
Great find Jemiba. Thanks for posting. (And thanks for your other work, you know) ::)


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Many thanks Jens.. a wonderfull design.

Top
