Polish Tilt-Wing Projects

Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
536
Reaction score
76
In the late 1950s an attempt to build a tilt-wing transport aircraft was undertaken in Poland. Its designation was the PS-3 (for "Pionowy Start" in Polish, which means Vertical Take-Off). Of course the project never went off the drawing board.

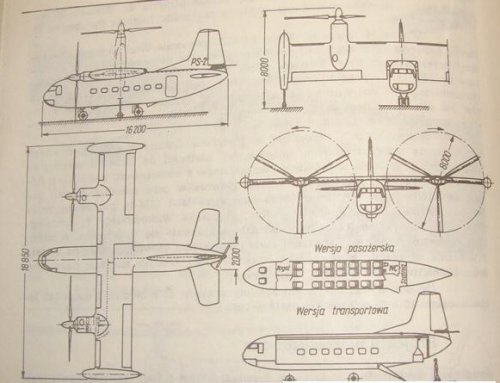

Here is its drawing, in which you may see the airplane's dimensions. The PS-2 was to be propelled by two indigenous Tur 1000-hp turbo-prop engines (the engines were never built as well).

Best regards,
Piotr


Attachments

Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
536
Reaction score
76
The drawing comes from a book "Wiropłaty w Polsce" by Ryszard Witkowski, published in the early 1980s.

And I owe you a correction. The PS-2 was to have FOUR engines, not two as I have written. Each of its rotors was to be propelled by a pair of the Tur engines.

Piotr


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,883
Reaction score
1,672
Hi,

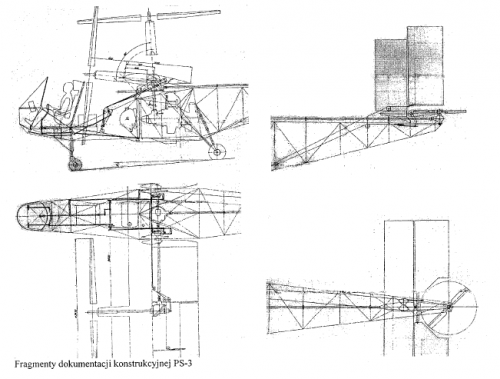

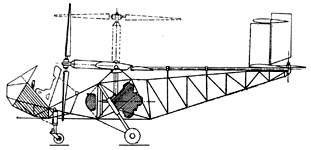

also the PZL S-3 tilt wing experimental aircraft.
http://www.powiat.mielec.pl/poser/samoloty/pzl_s-x/s3.htm


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,883
Reaction score
1,672

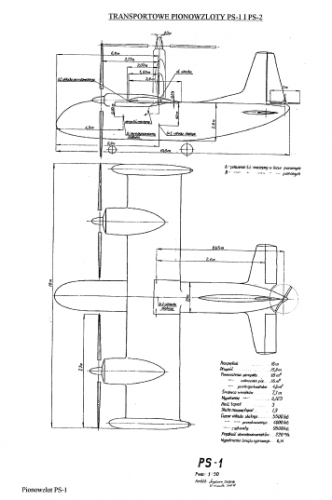

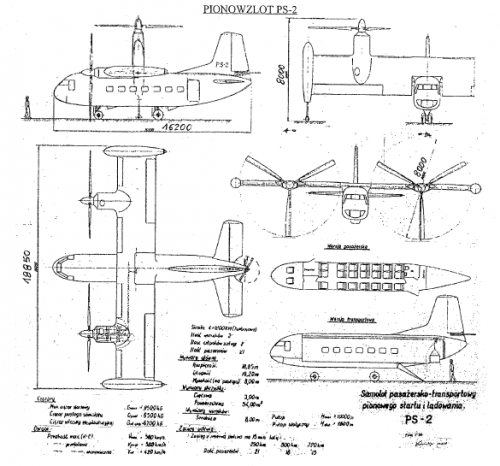

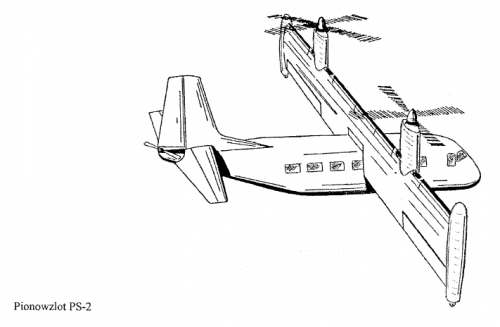

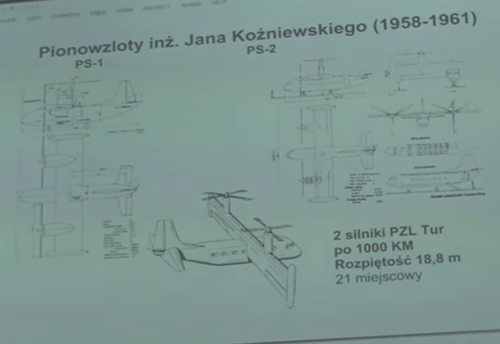

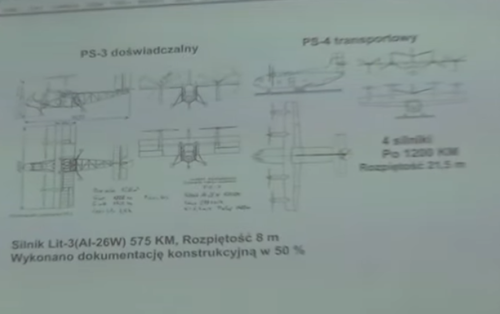

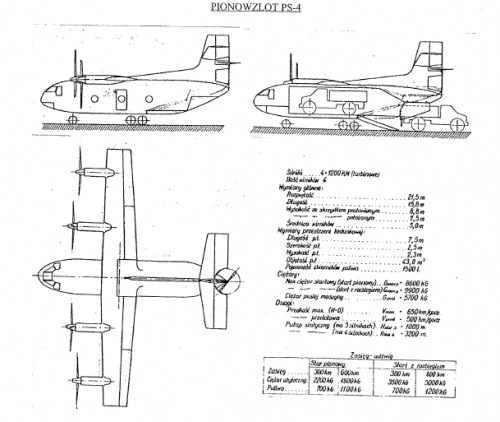

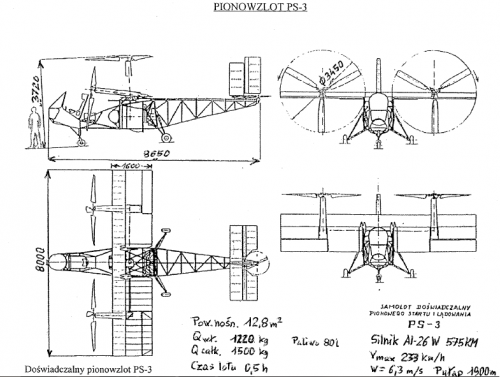

Here is a Poland tilt-wing Project Drawings,PS-1,PS-2,PS-3 & PS-4.

http://www.smil.org.pl/ptl/wyklady/33_Pionowzloty_Kozniewskiego.pdf


Attachments
