Hi all,

I search for drawings and technical data for the swiss Pilatus projects P.1 training 1940 / P.5 utility 19?? / P.C.9 transport (not the trainer) 195? and the P.C.10 Twin Porter 19??.
I know there was an article in FliegerRevue Extra No.1, but I have´nt this magacine.

Thanks for your help.

Servus Maveric :D


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
68
Re: Pilatus projects

Hello

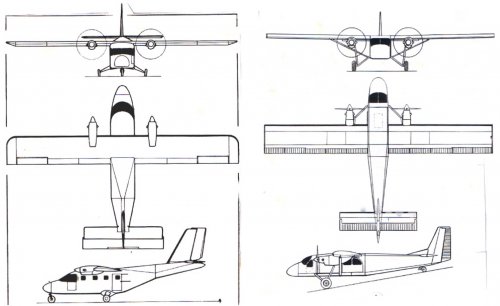

I know two "Twin Porter" ,1974 (on the left ) and 1966 (right )


Attachments

  • r.jpg
    399.1 KB · Views: 909

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,078
Reaction score
481
Re: Pilatus projects

Hi richard,

on the right I believe this is a early version of the P.C.8D "Twin Porter" build in 1967.
Please see: http://images.google.de/imgres?imgurl=http://www.pc-6.com/history/625-hbkoa2.jpg&imgrefurl=http://www.pc-6.com/history/625.htm&usg=___Vl538aqdZpe7lx95klwtYhclRc=&h=160&w=240&sz=15&hl=de&start=9&um=1&tbnid=ED59VqedSr6BSM:&tbnh=73&tbnw=110&prev=/images%3Fq%3DPilatus%2BTwin%2BPorter%26hl%3Dde%26sa%3DN%26um%3D1

Servus Maveric


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,412
Reaction score
1,817
Re: Pilatus projects

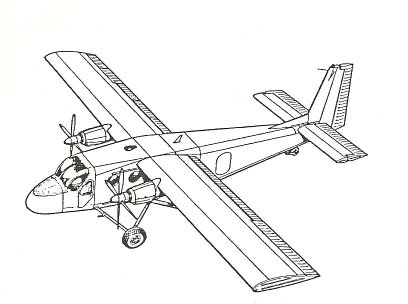

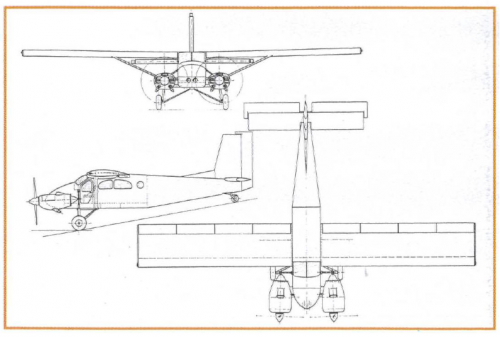

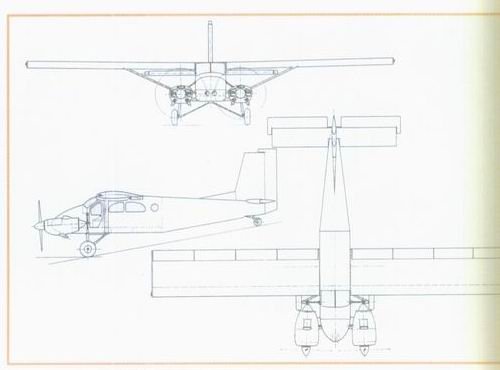

The mentioned FliegerRevue article shows another configuration, similar to the
Do 28, with the engines on stub wings at the nose, but that was an earlier design.


Attachments

  • PC-8D.jpg
    15.5 KB · Views: 804

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,992
Reaction score
6,887
Re: Pilatus projects

Hi,

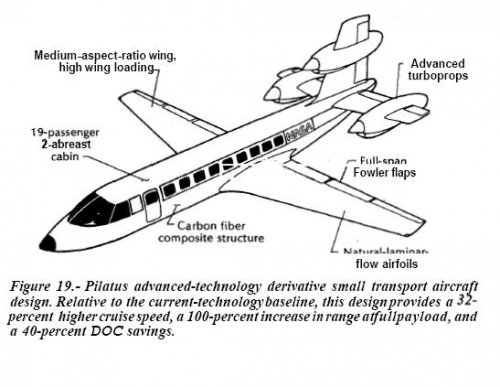

I suggest that the Pilatus PC.9 transport was this project.

http://www.secretprojects.co.uk/forum/index.php/topic,7057.0/highlight,small+transport.html


Attachments

  • Pilatus.JPG
    40 KB · Views: 725

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,078
Reaction score
481
Re: Pilatus projects

Sorry hesham, but the PC.9 was a one engined steched modification of the PC.8D, I think.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,046
Reaction score
271
Re: Pilatus Twin Porter from 1966......

Dear Boys and Girls, here are details in French of a Pilatus Twin-Porter that I've found in 1966 issues of Aviation Magazine International. The design isn't "secret" and I don't believe it is a "project" as this aircraft was flown in 1967......

Terry (Caravellarella)


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
166
Re: Pilatus projects

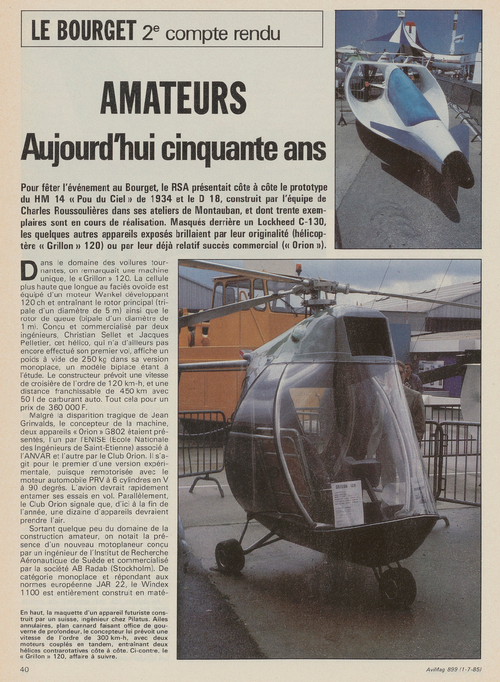

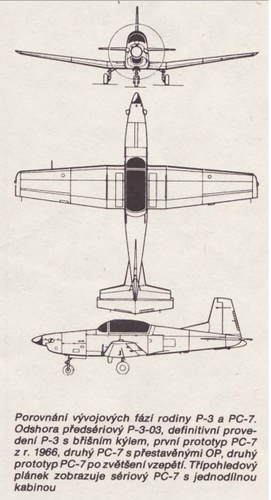

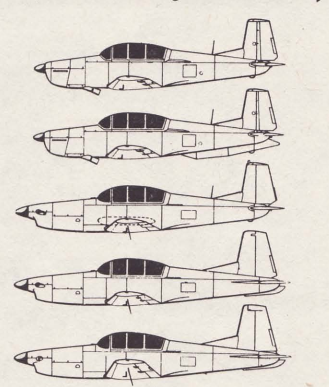

two more .......


Attachments

  • Scan.jpg
    267.2 KB · Views: 165

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
166
Re: Pilatus projects

one more


Attachments

  • Scan.jpg
    493.4 KB · Views: 169

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,046
Reaction score
271
Thank you Jemiba; I thought it was in the wrong place......

Terry (Caravellarella)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,046
Reaction score
271
Re: Pilatus PC-8 Twin Porter prototype......

Dear Boys and Girls, here is a little picture with a caption in French of the Pilatus PC-8 Twin Porter prototype. The picture was in a much larger article about general aviation trends......

The picture comes from the 15th May 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
268
Reaction score
43
Hi all:
in my list I have also the following designations, but unfortunately for the main part without and indication abouet the project nature:
P.2
P.3 (trainer basis for PC-7)
P.4
PC-6 Porter (the well-known STOL)
PC-6A Turbo-Porter (the turboprop version)
PC-7 Turbo-Trainer (the turboprop derivative of PC-6)
PC-8 Twin Porter
Pilatus/Poligrat Module Porter
Pilatus/Pograt PD-01 Master Porter (project only; perhaps is Module Porter)
PC-9 (various designes, included the well-know PC-7 derivative)
PC-11? No info
PC-12 or PC-XII single turboprop utility
PC-21
in fact, perhaps my post could find a better place in designations column...
Nico


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
166

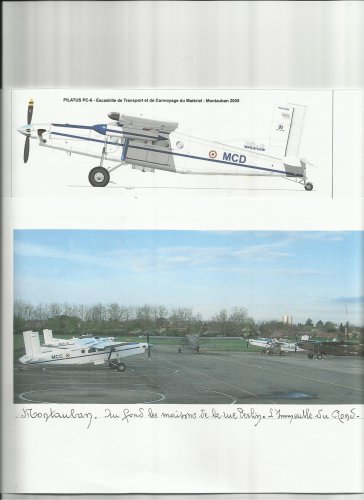

HI ALL
The Pilatus I see each days !


Attachments

  • Scan.jpg
    406.3 KB · Views: 761

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,078
Reaction score
481
Nico said:
Hi all:
in my list I have also the following designations, but unfortunately for the main part without and indication abouet the project nature:
P.2
P.3 (trainer basis for PC-7)
P.4
PC-6 Porter (the well-known STOL)
PC-6A Turbo-Porter (the turboprop version)
PC-7 Turbo-Trainer (the turboprop derivative of PC-6)
PC-8 Twin Porter
Pilatus/Poligrat Module Porter
Pilatus/Pograt PD-01 Master Porter (project only; perhaps is Module Porter)
PC-9 (various designes, included the well-know PC-7 derivative)
PC-11? No info
PC-12 or PC-XII single turboprop utility
PC-21
in fact, perhaps my post could find a better place in designations column...
Nico

Hi all,

the missing PC.11 is the production of the sailplane Basten B.4.

Why the jump from PC.12 to PC.21? Are the others projects... ??? ??? ???

Servus Maveric


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
4,507
Reaction score
3,579
Website
beyondthesprues.com
Maveric said:
Why the jump from PC.12 to PC.21? Are the others projects... ??? ??? ???

Marketing purposes I suspect: PC-21 = Pilatus Trainer for the 21st Century!

Regards,

Greg


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Translated from a really great blog on Pilatus, the Unofficial Blog of Pilatus Aircraft:

http://pilatus-history-and-news.blogspot.fr/

Since its inception the Pilatus Aircraft company has studied various projects which were not proceeded with for technical or economic reasons.

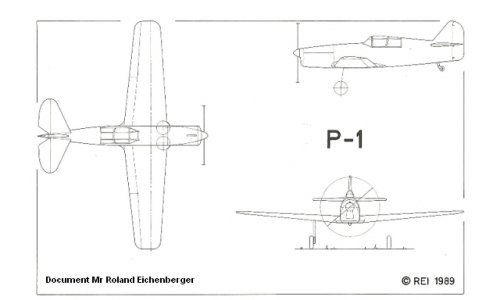

P-1

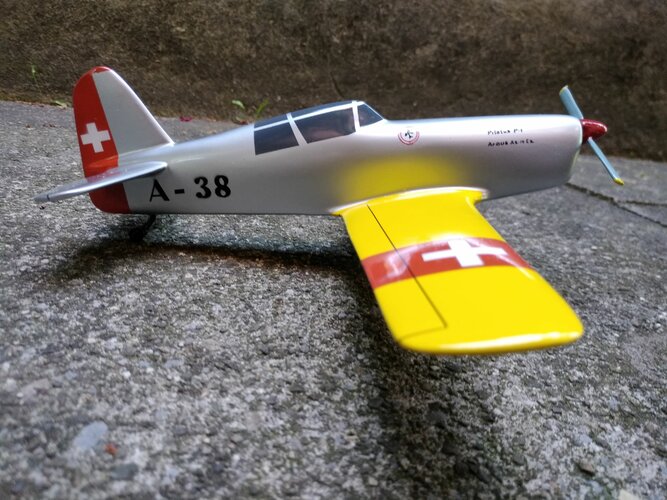

In 1940 was revealed a project for a low-wing single-seat trainer. It had no designation at the time but later received the designation P-1. It was to be fitted with a 240 hp Argus engine.
Wingspan: 9.20 m - Length: 6.90 m - Height: 2.10 m - Maximum take-off weight: 1150 kg - Speed: 280 km/h.

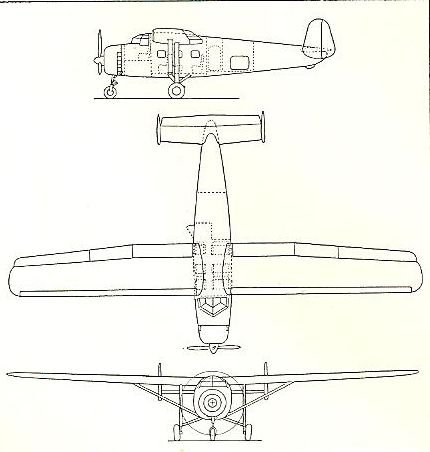

SB-5
In 1944 an aircraft project designated SB-5 for a 5-ton, 9-passenger transport fitted with a 1000 hp engine, directly derived from the SB-2 Pelikan.

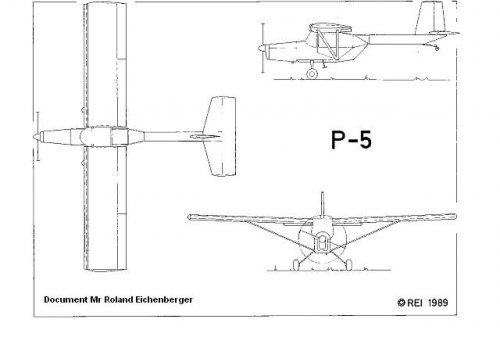

P-5
In 1951 Pilatus offers the Swiss military an artillery observation type, the P-5. This high wing monoplane with struts was to provide an excellent visibility to the crew and was to be powered by a 160 hp engine.
Wingspan: 12.00 m - Length: 9.20 m - Height: 2.50 m - Speed: 190 km/h.

Project 26025 Twin Porter
This was to be a 15-passenger derivative of the Pilatus PC-8 powered by two Turboméca "Astazou" XII, Pratt & Whitney PT6-A20 or Garrett TPE-331 turbines.
Wingspan: 20.0 m - Length: 14.40 m - Height: 3.65 m - Payload: 1320 kg - Overall weight: 4300 kg

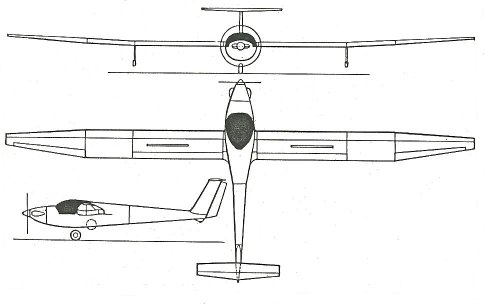

PC-XM
An all-metal motor-glider derived from the Pilatus B4 with a 65 hp Limbach-Volkswagen engine.
Wingspan: 18.0 m - Length: 7.77 m - Height: 1.60 m - Overall weight: 700 kg

PC-9B Module Porter
This was to be a successor to the famous Turbo Porter with a PT6A-27 engine.
Wingspan: 15,87 m - Length: 11,62 m - Height: 3.39 m - Empty weight: 1338 kg - Maximum take-off weight: 2800 kg - Speed: 275 km/h - Ceiling: 8200 m - Range: 1580 km

PC-10B Twin Porter
This planned 15-passenger aircraft was to be powered by two Pratt & Whitney PT6A-27 or Garrett AiResearch TPE-331-1-101 turbines.
Wingspan: 19.00 m - Length: 13.50 m - Height: 6.08 m - Empty weight: 2446 kg - Maximum take-off weight: 4700 kg - Ceiling: 8500 m - Range: 2100 km - Speed: 300 km/h

PD-01 Master Porter
The first flight of this type was planned for 1976. It was to be equipped with 1120 hp Pratt & Whitney PT6A-45 engines and could carry either 24 passengers or 3200 kg of freight.
Wingspan: 17.40 m - Length: 13.79 m - Height: 6.30 m - Maximum take-off weight : 6500 kg

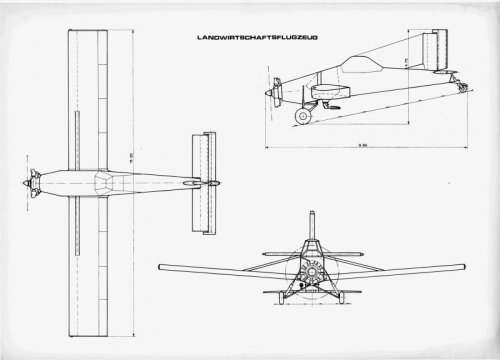

Agricultural aircraft
This 1972 low-wing project reused many elements from the PC-6 Porter, allowing for shorter development and reduced manufacturing costs. It was to be fitted with a radial engine.

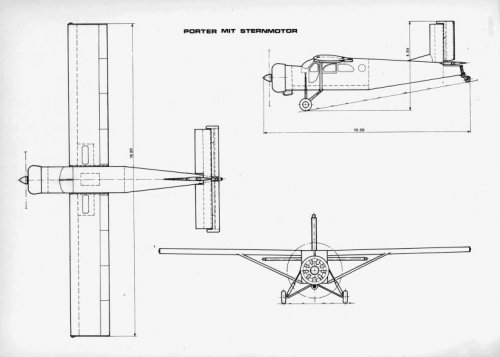

Porter with radial engine
In 1972, Pilatus also considered fitting the Porter with a radial engine but did not proceed with it.


Attachments

  • SB-5.jpg
    31.3 KB · Views: 208
  • Porter with radial-engine.jpg
    Porter with radial-engine.jpg
    42 KB · Views: 179
  • agricultural aircraft.jpg
    agricultural aircraft.jpg
    35.3 KB · Views: 198

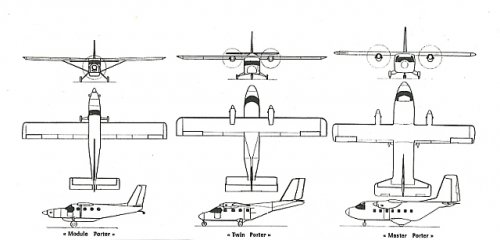

  • Module, Twin and Master Porter.jpg
    Module, Twin and Master Porter.jpg
    65.5 KB · Views: 429
  • PC-XM.jpg
    44.9 KB · Views: 771
  • 26025.jpg
    40.5 KB · Views: 801
  • P-5.jpg
    26.1 KB · Views: 821
  • P-1.jpg
    48.6 KB · Views: 839

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Three more projects for 1972:

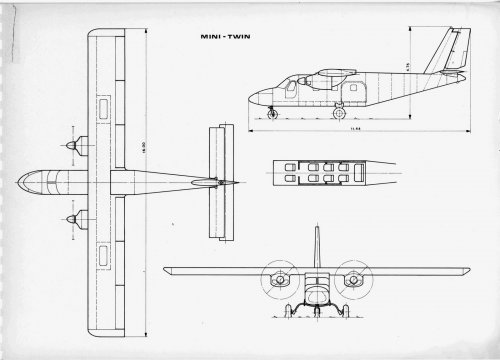

Mini-Twin
A twin-engine aircraft for 8 passengers with fixed gear, fitted with a large cargo door on the left side of the fuselage.

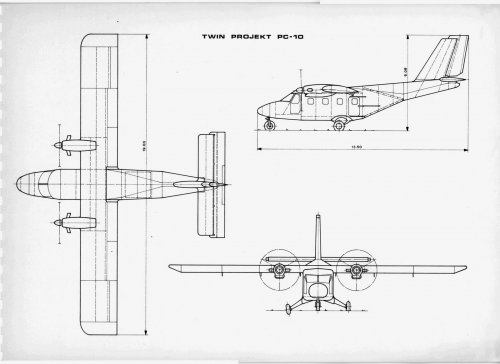

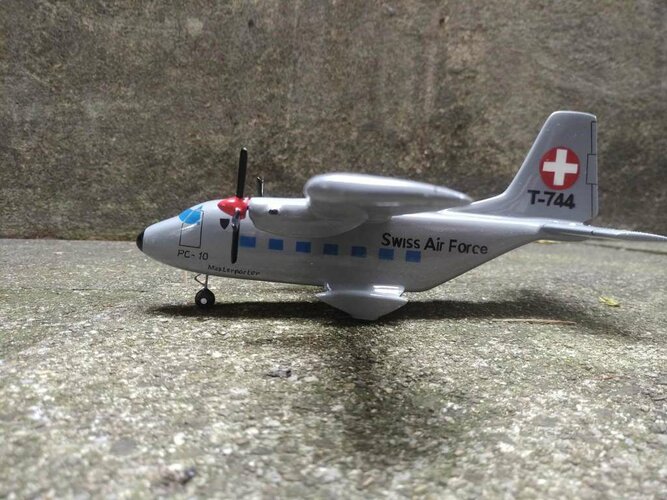

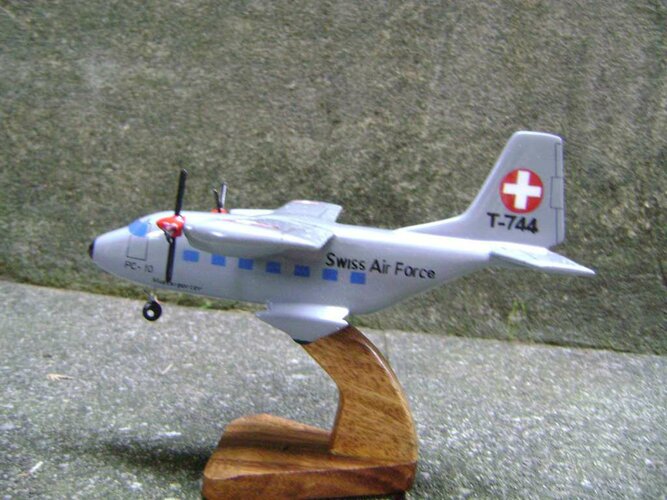

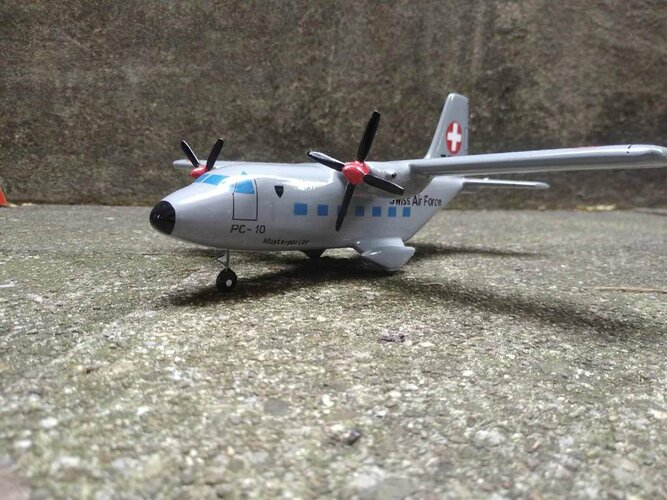

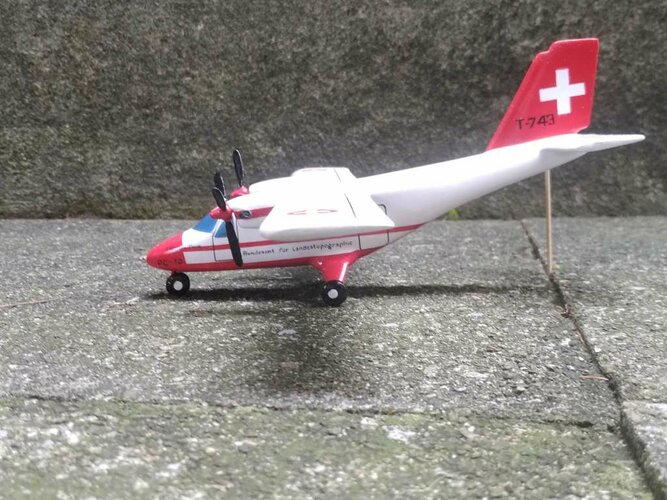

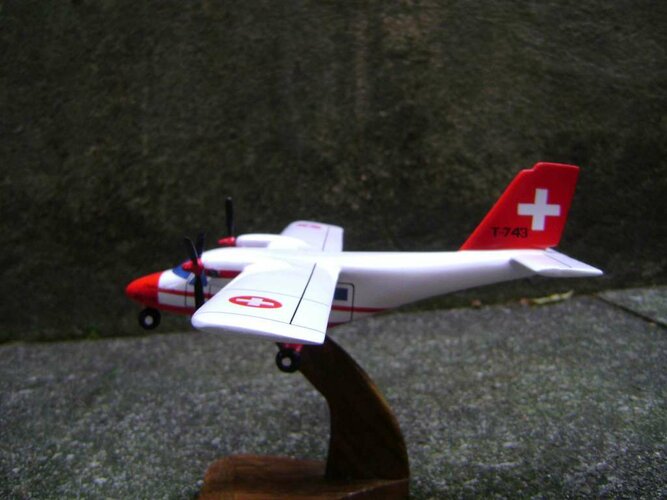

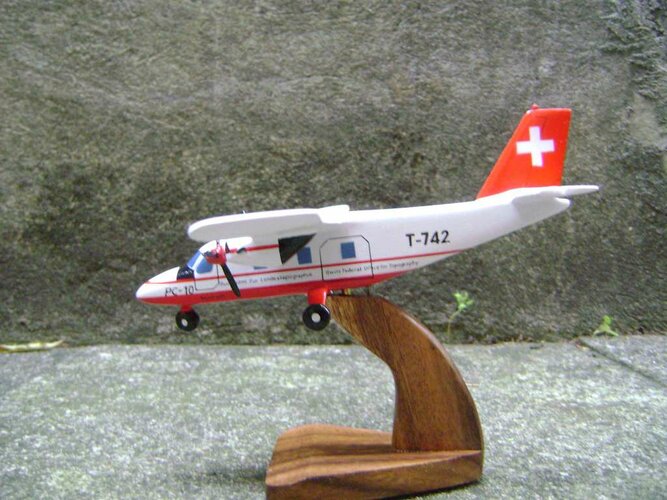

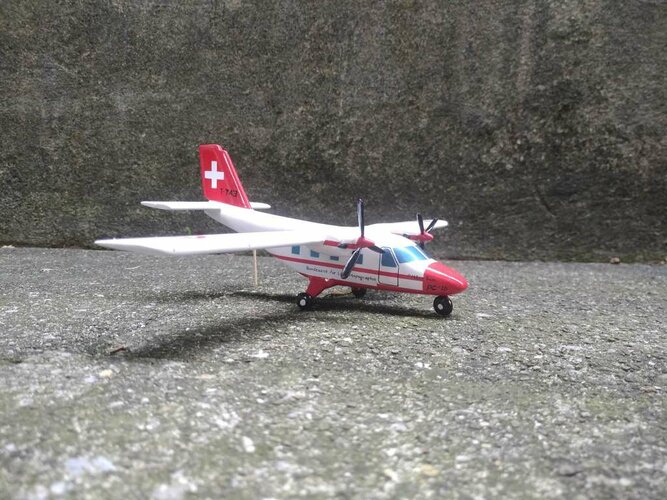

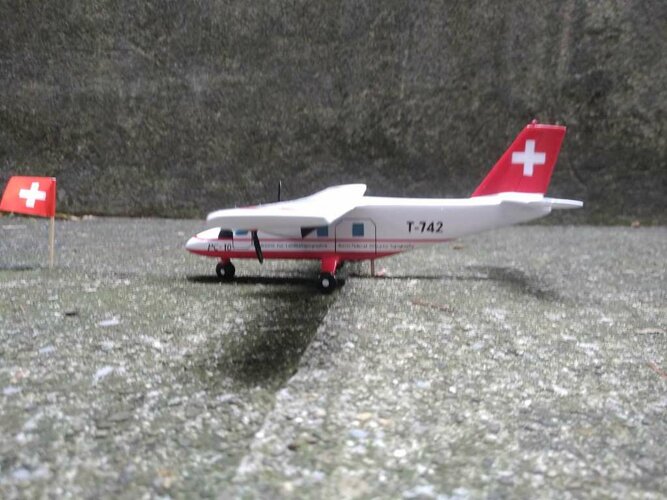

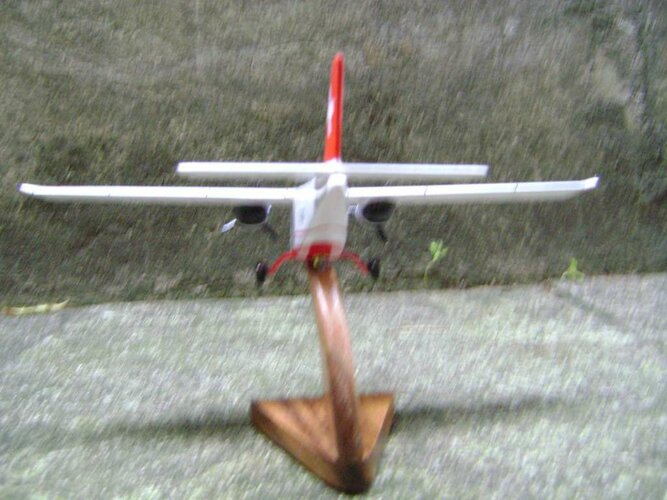

PC-10
Another twin-engined transport with fixed gear for both freight and passengers, but turbine-powered et with an access ramp aft of the fuselage.

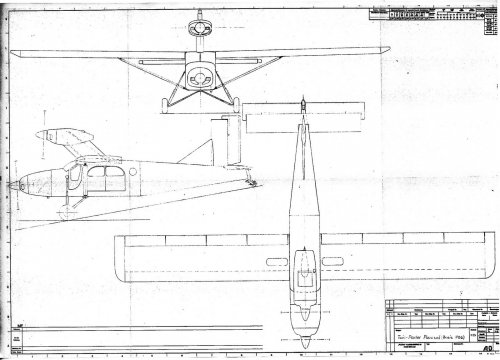

Twin Porter Parasol
The most astonishing project was based on a PC-6 Porter which was fitted with a second engine on top of the fuselage.


Attachments

  • Mini-Twin.jpg
    135.8 KB · Views: 186
  • PC-10.jpg
    142.9 KB · Views: 206
  • Twin Porter Parasol.jpg
    Twin Porter Parasol.jpg
    301.1 KB · Views: 236

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Sorry about posting the PC-10 picture in place of the SB-5. The correct SB-5 picture now appears at the very bottom of the post.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,197
Website
deeptowild.blogspot.com

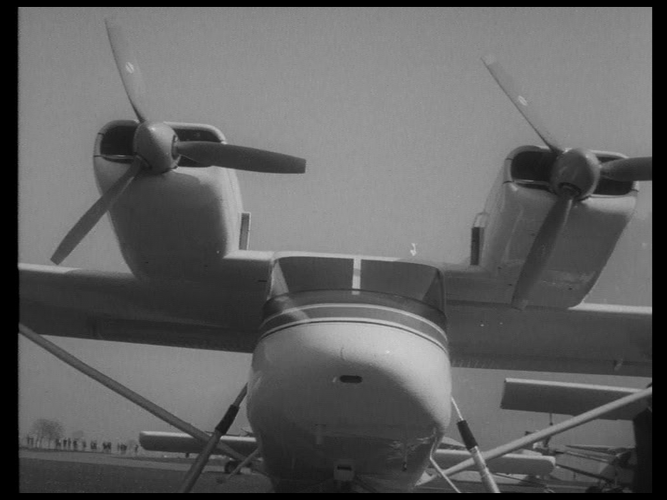

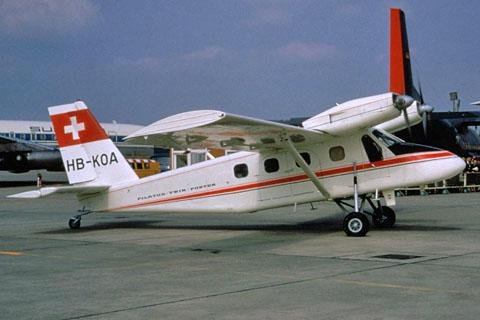

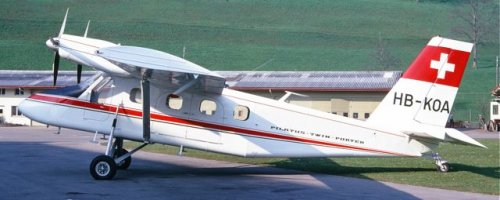

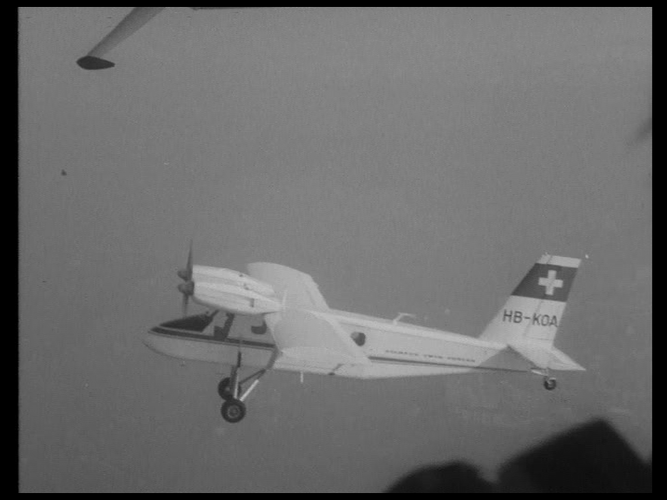

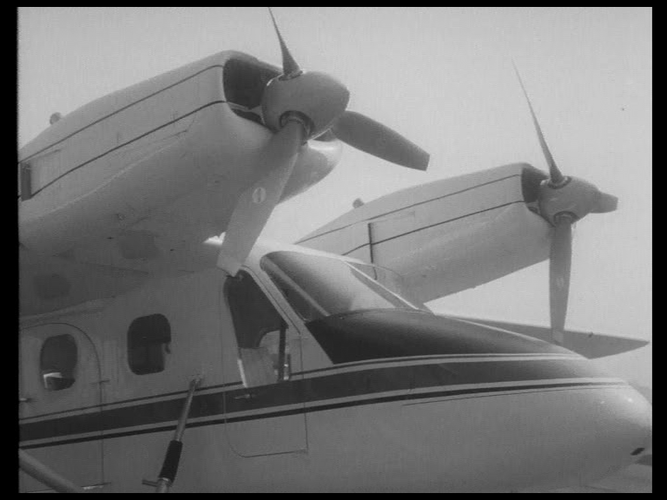

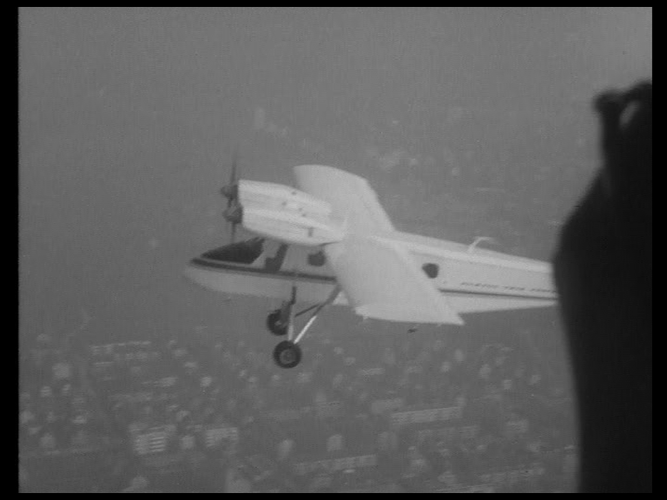

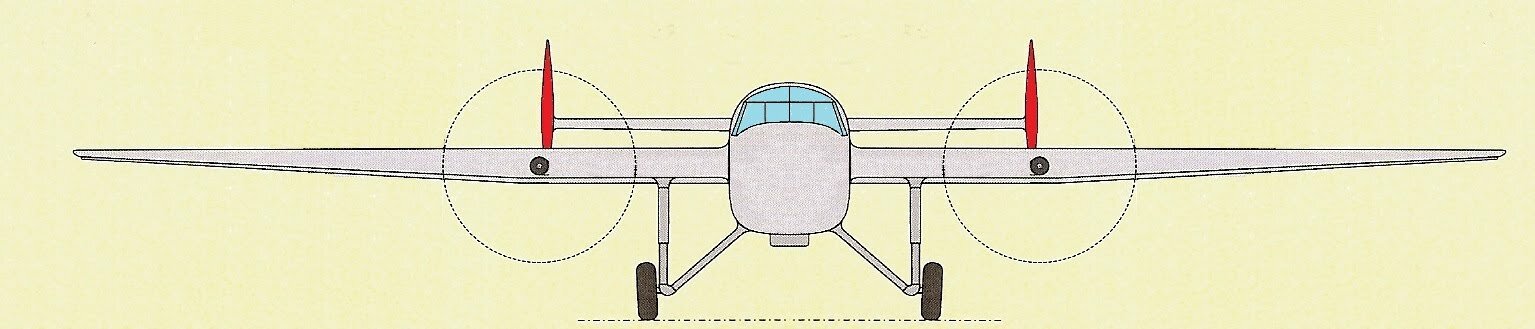

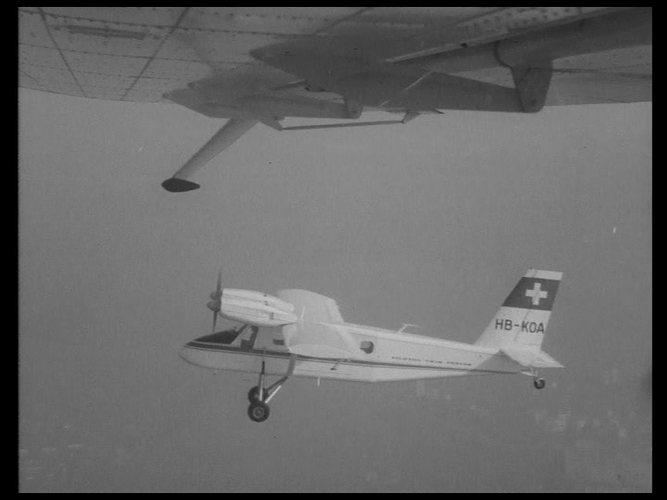

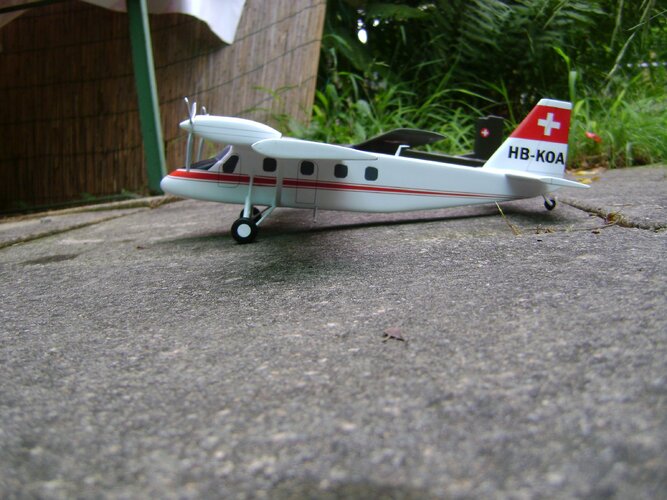

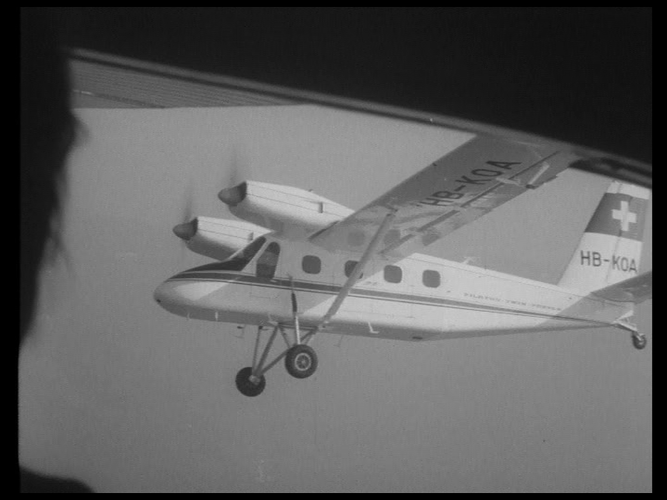

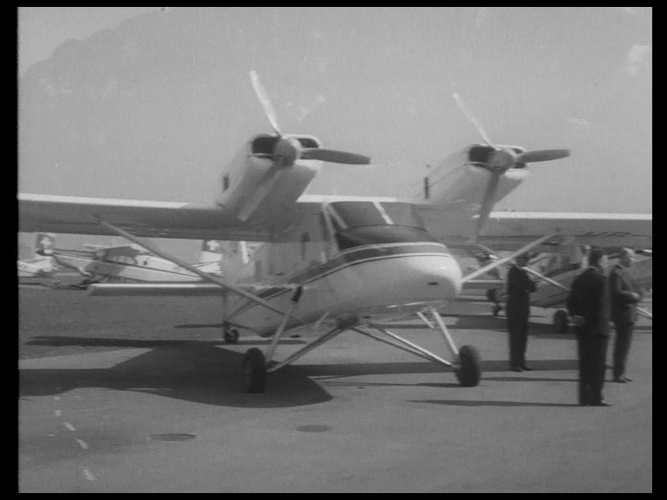

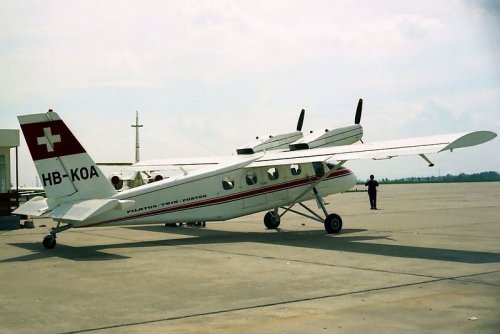

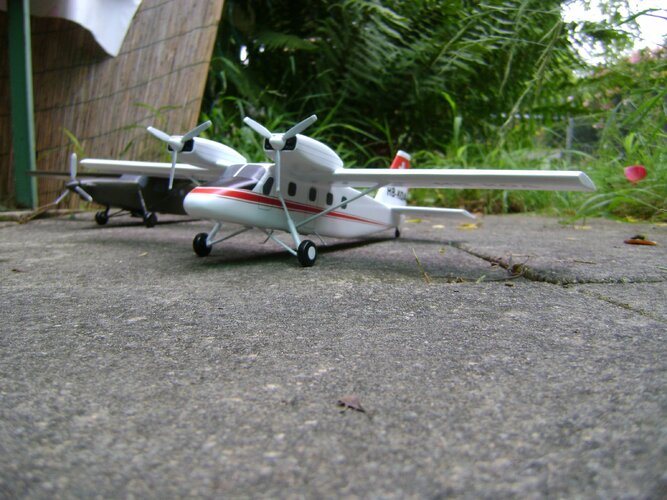

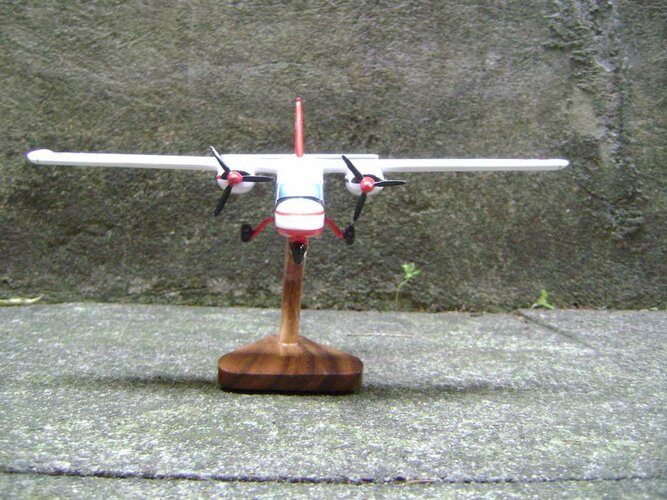

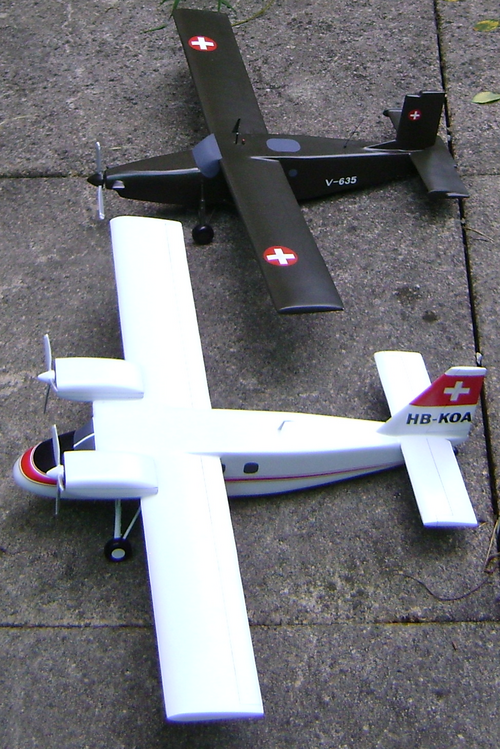

Pilatus PC-8D Twin Porter

Source:
http://pilatus-history-and-news.blogspot.com/2013_07_01_archive.html
http://aeropics.ca/articles/2012/04/all-pilatus-production-aircraft/
http://www.pc-6.com/history/625.htm#


Attachments

  • 800px-PC-8D_seite.jpg
    53.4 KB · Views: 112
  • 625-hbkoa01.jpg
    23.5 KB · Views: 108
  • 0007__2.jpg
    37.9 KB · Views: 124
  • img410.jpg
    102.9 KB · Views: 136

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,992
Reaction score
6,887

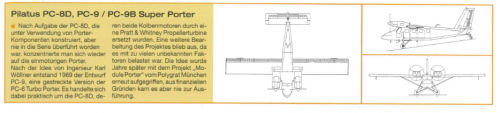

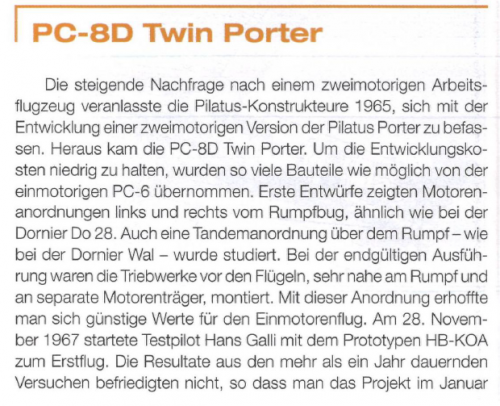

And from Flieger Revue Extra 01,


here is the Pilatus PC-8D and a small info about PC-9/PC-9B Super Porter.


Attachments

  • PC-8D.png
    236.3 KB · Views: 145
  • Twin Porter.png
    Twin Porter.png
    330.1 KB · Views: 130
  • 2.png
    243.5 KB · Views: 133

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

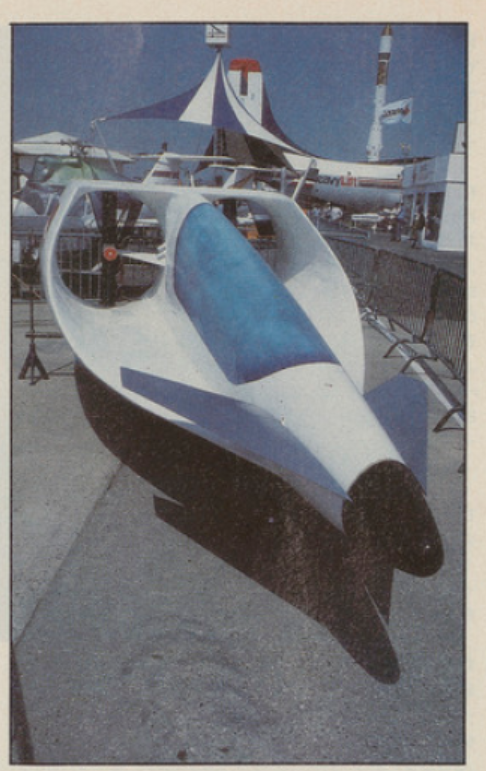

A Pilatus project that is new to me, a COIN aircraft named the Mosquito:

« The basic concept of a twin turboprop close support aircraft was tested by Argentina's Pucara in the Falklands with only limited success. Pilatus later considered developing something similar, called the Mosquito, but (probably correctly) spent its money on the PC-9 instead. »

Source: Asia-Pacific Defence Reporter, Volume 18, 1991


Attachments

  • Mosquito.jpg
    22.1 KB · Views: 94

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
611
Reaction score
347

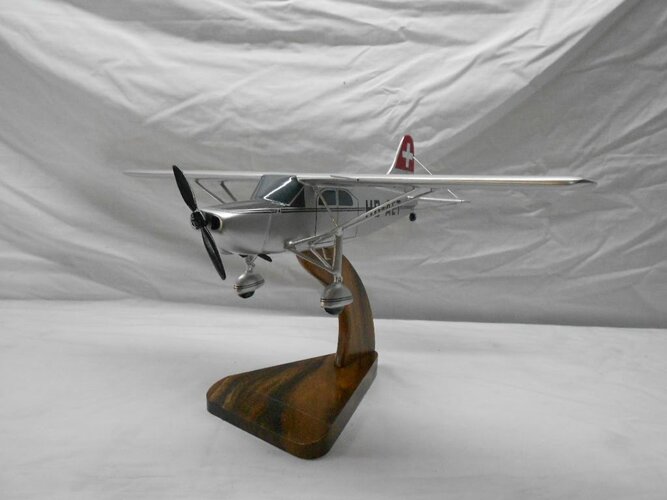

Here are some Pilatus images from a late 1960's general brochure from Pilatus.

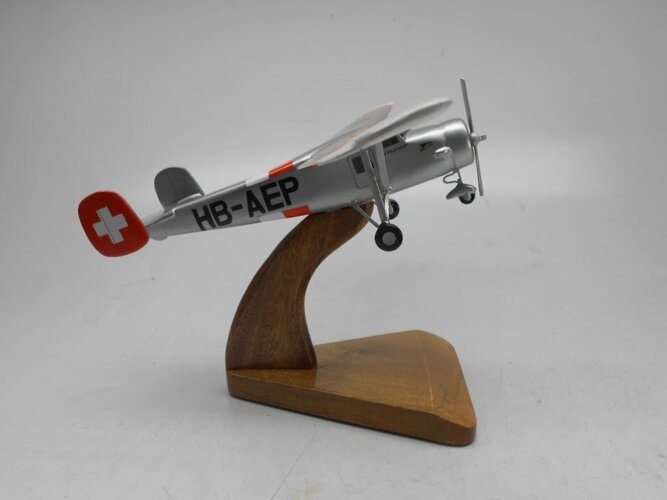

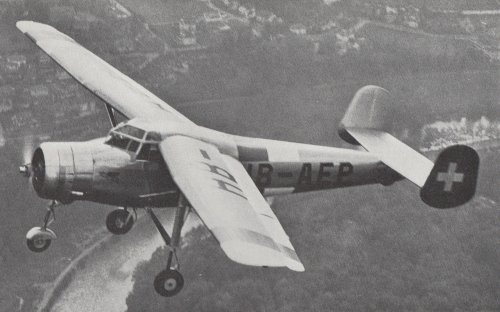

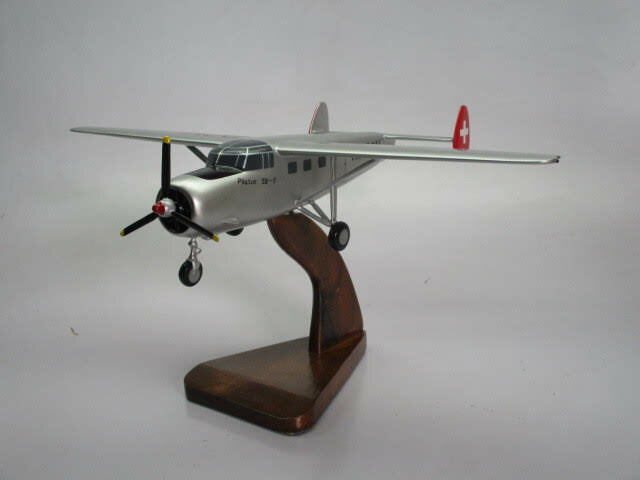

The SB-2 Pelikan was ordered by the Swiss federal air force in 1942. The design was especially suited for mountain operations.

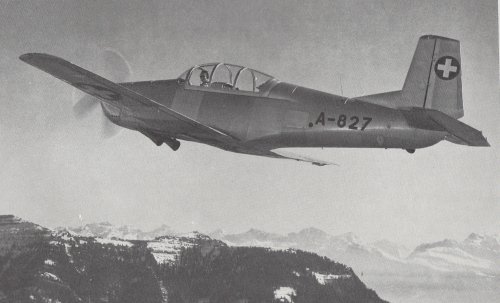

The P-3 first flew in 1953 and paved the way for later trainer designs.

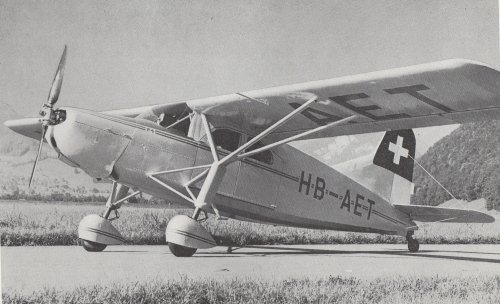

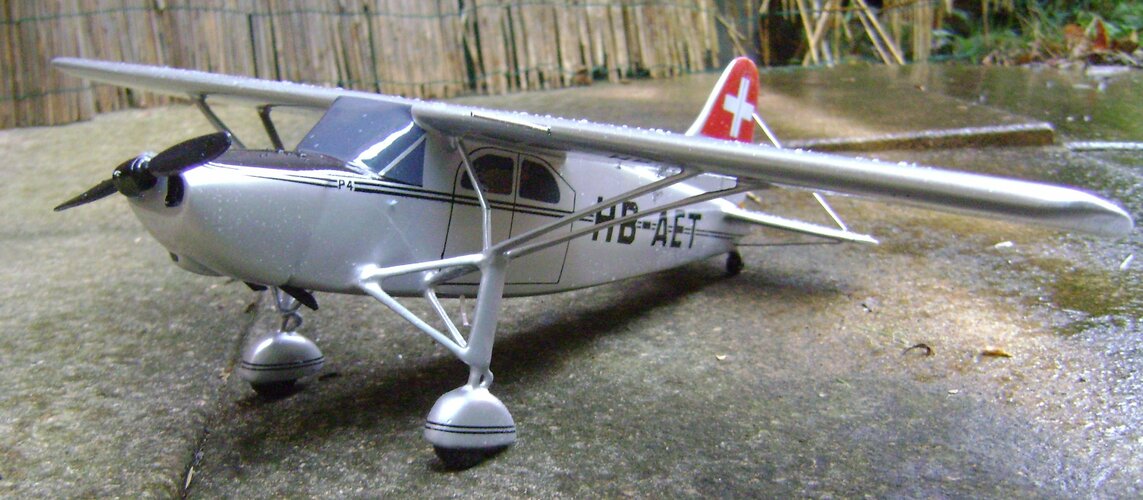

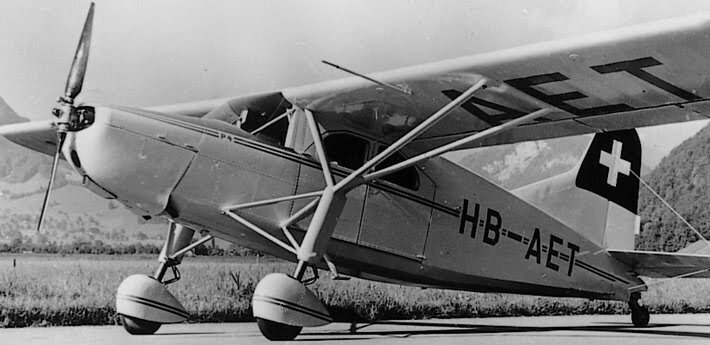

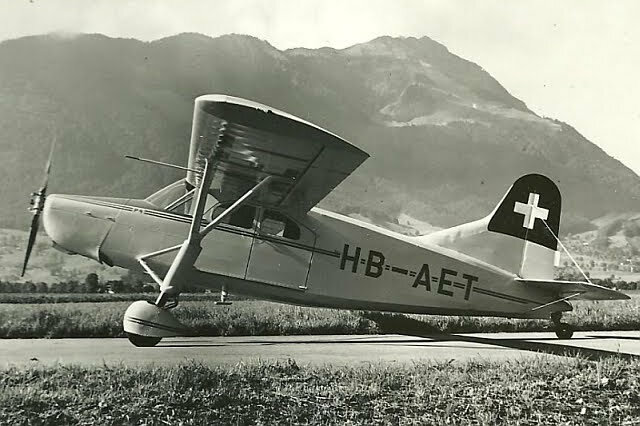

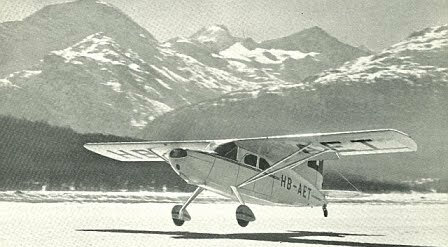

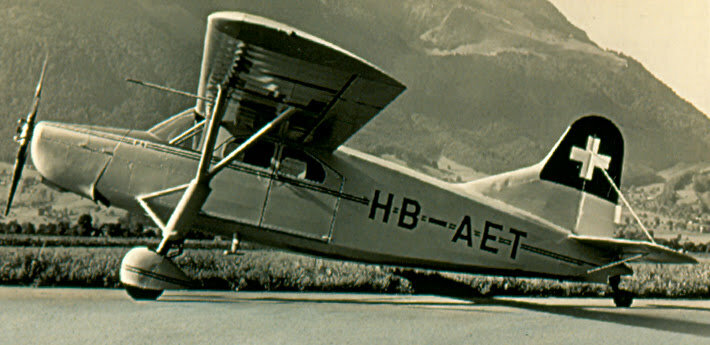

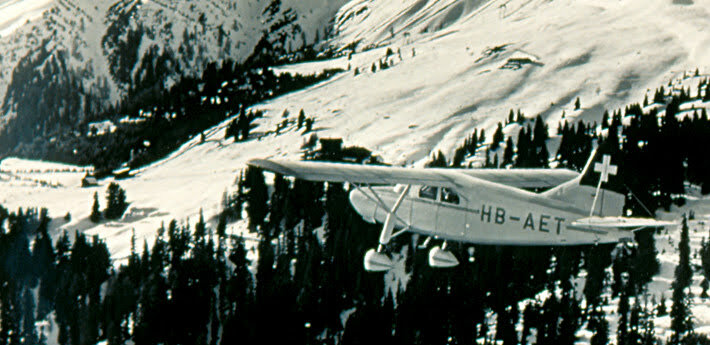

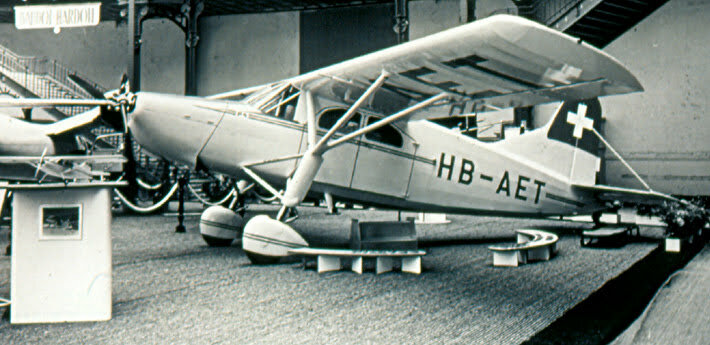

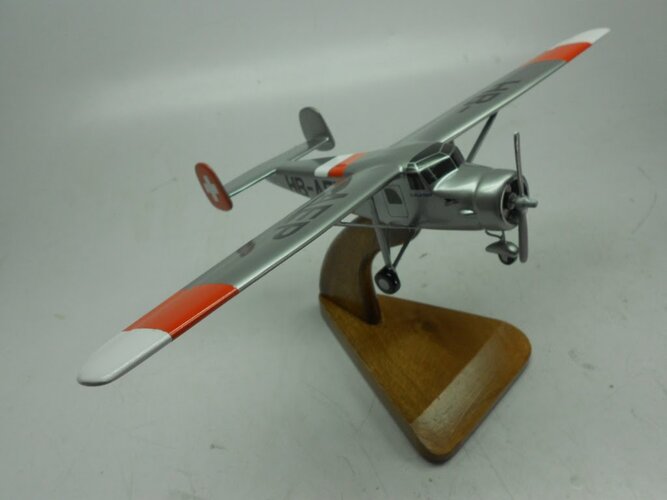

The P-4 first flew in 1949 and was described by the firm as a rugged 5-seat transport which did not go into series production because the facilities were needed for the licence manufacture of fuselages and tail booms for Vampires from 1952.


Attachments

  • Pilatus_P-4_HB-AET_Image.jpg
    1.5 MB · Views: 107
  • Pilatus_P-3_A-827_Image.jpg
    1.4 MB · Views: 89
  • Pilatus_SB-2_Pelikan_HB-AEP_Image.jpg
    1.5 MB · Views: 96

Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
82
Reaction score
45
I am wondering why the "Pelican" had twin rudders - does anybody have a good idea or even an explanation for that?


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
82
Reaction score
45
Translated from a really great blog on Pilatus, the Unofficial Blog of Pilatus Aircraft:

http://pilatus-history-and-news.blogspot.fr/



SB-5

In 1944 an aircraft project designated SB-5 for a 5-ton, 9-passenger transport fitted with a 1000 hp engine, directly derived from the SB-2 Pelikan.

The SB-5 was rather a "study" than an actual "project" - however, Pilatus was not involved but the study was solely done by the "Studienbüro für Spezialflugzeuge" of ETH Zürich. Actually the SB-5 should have been an aircraft which was thought would be more economically in use... but at the time it was proposed, Pilatus had already lost any interest in further such projects.


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
82
Reaction score
45

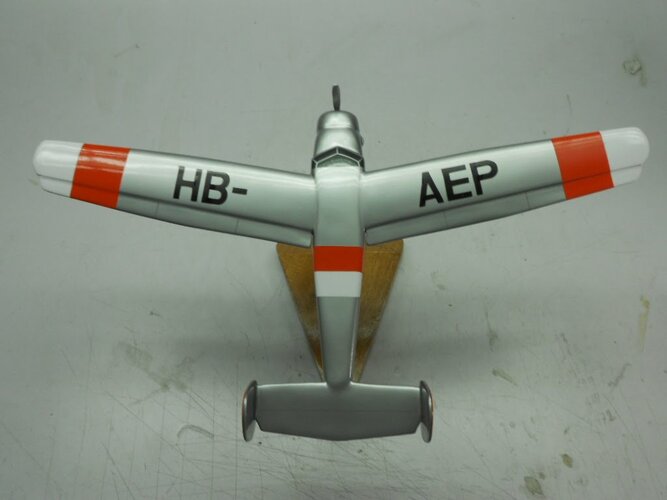

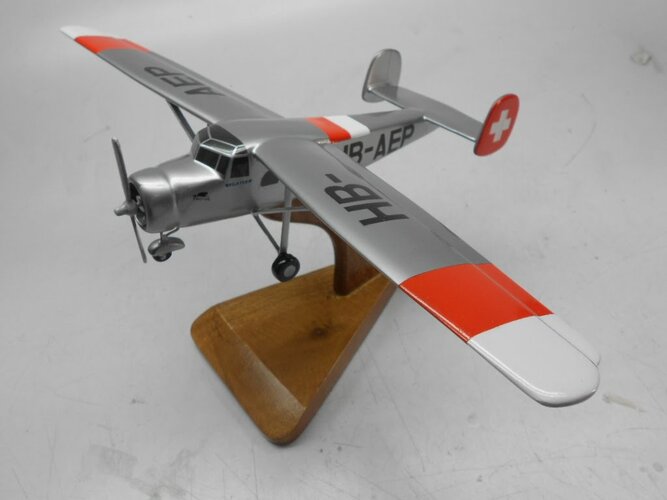

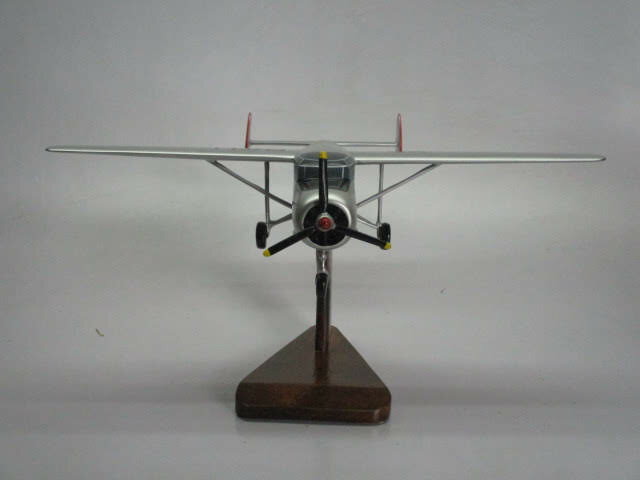

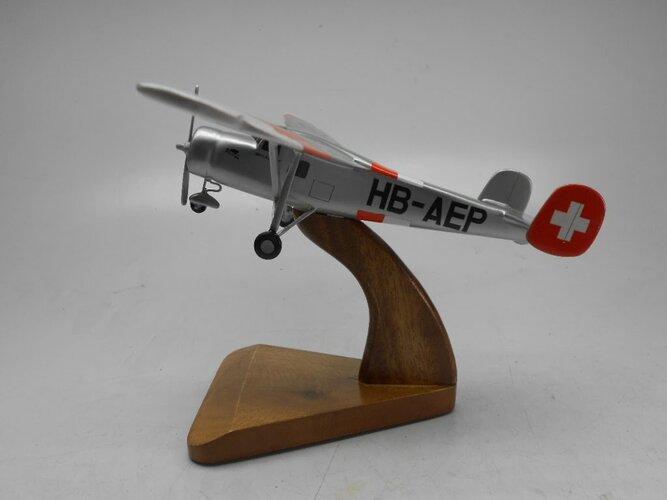

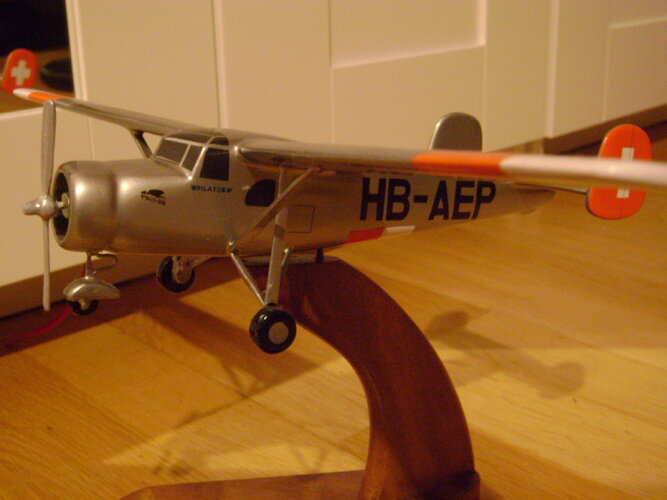

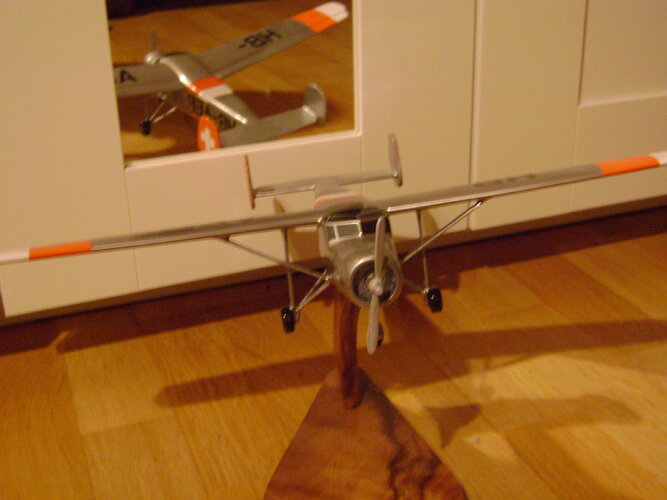

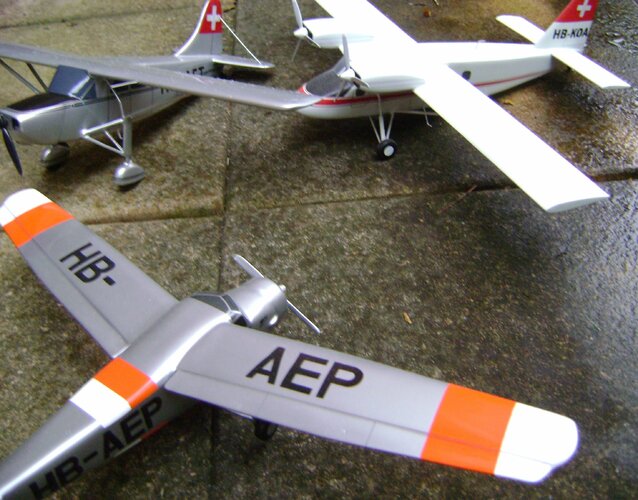

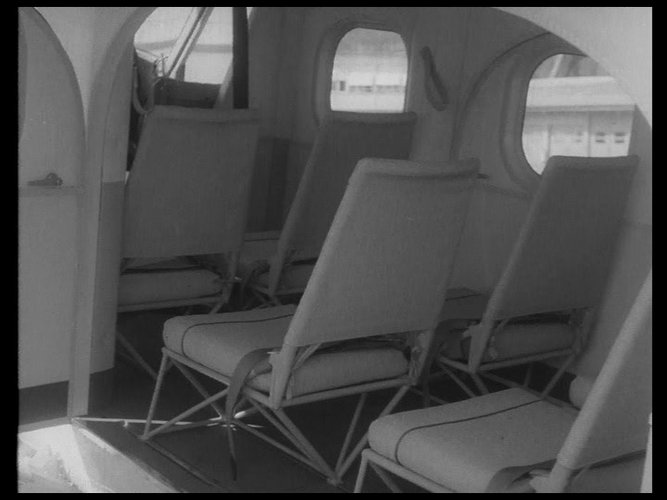

The SB-2 Pelikan was ordered by the Swiss federal air force in 1942. The design was especially suited for mountain operations.

In fact the Swiss Air Force (that time called "Flugwaffe") was not involved at all into the SB-2. The origin of the project is to be found in the "Vivil Aviation Authority" (That time named "Luftamt"), which indeed was thinking a specialized aircraft to connect the narrow mountain valley with the cetres of the country would be a good idea. Only later, when nobody showed interest in this aircraft, the air force was approached and asked to do trials... they never materialized.


FFA P-16

ACCESS: Confidential
Joined
Jan 4, 2022
Messages
51
Reaction score
200

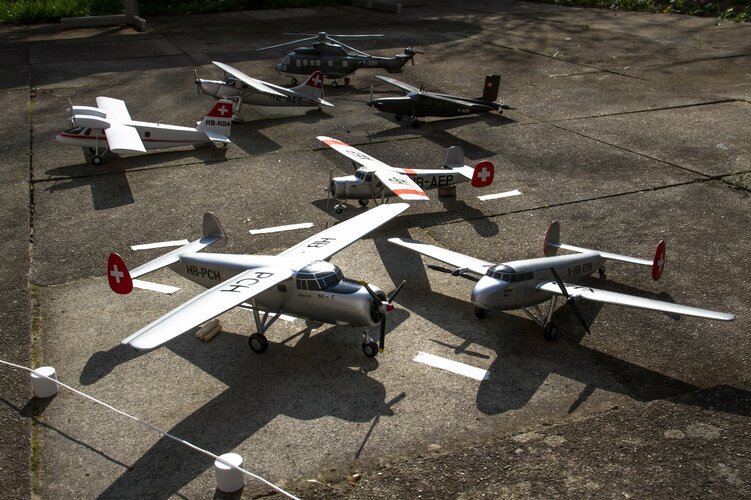

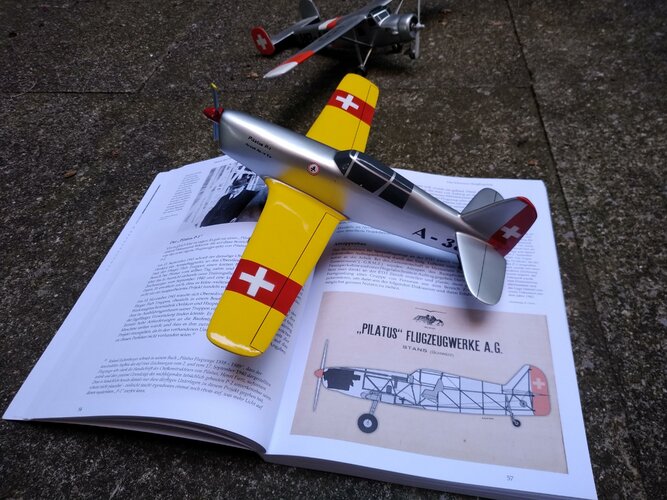

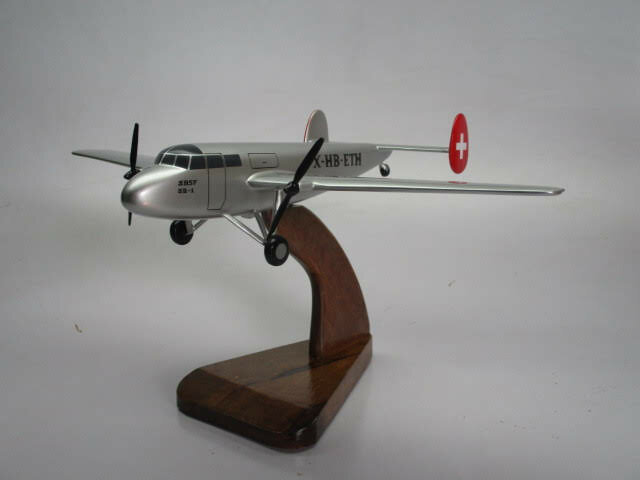

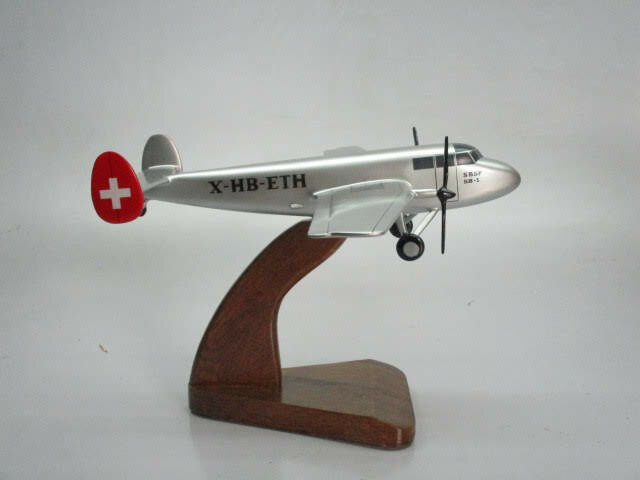

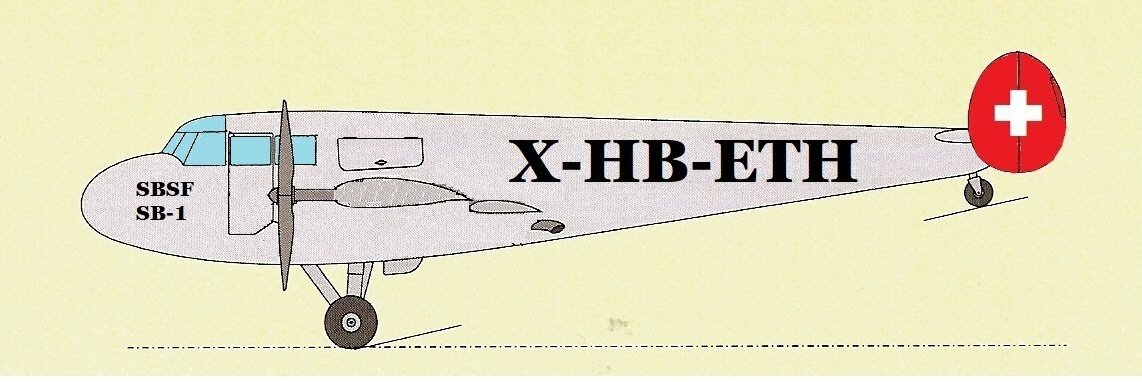

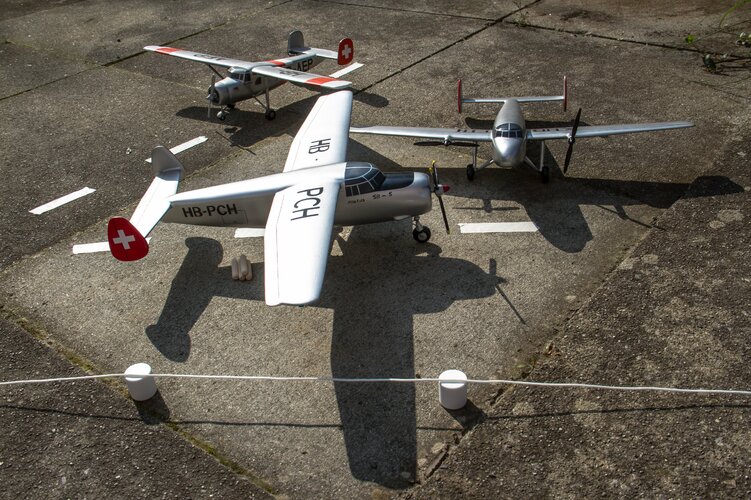

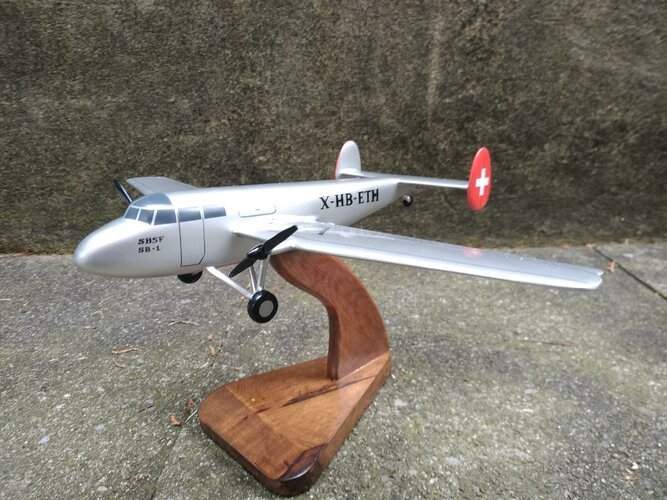

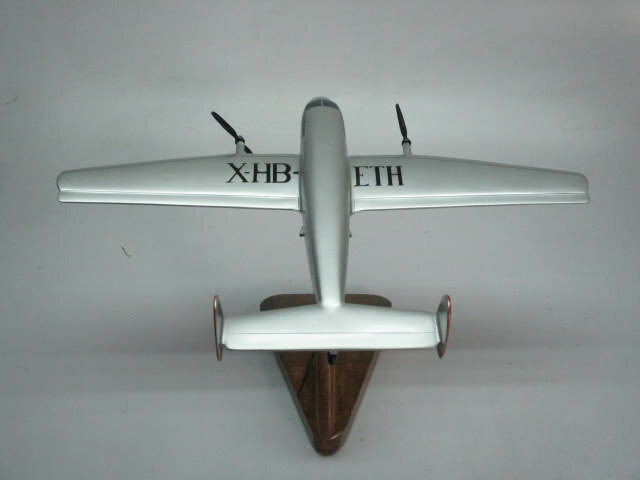

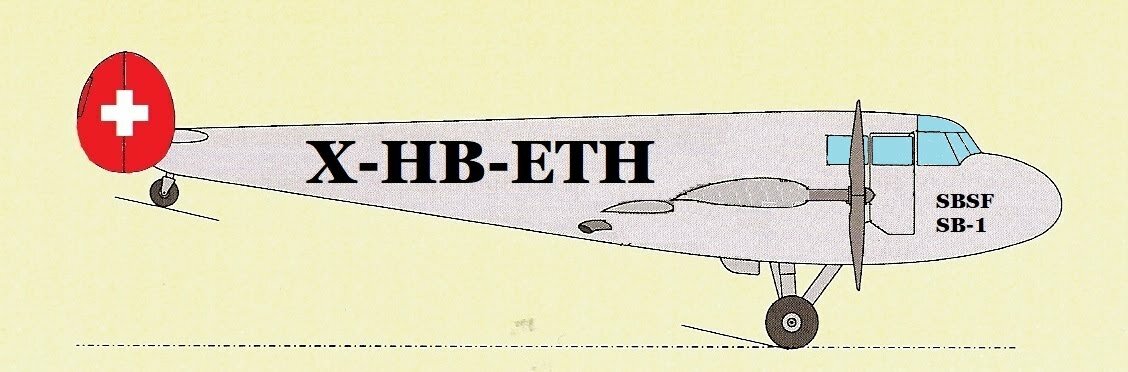

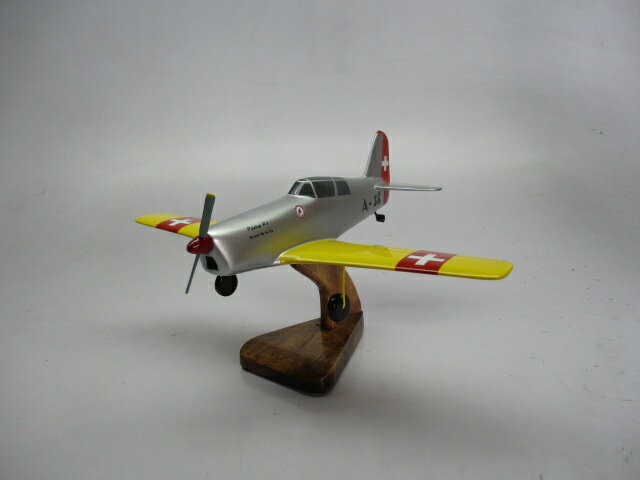

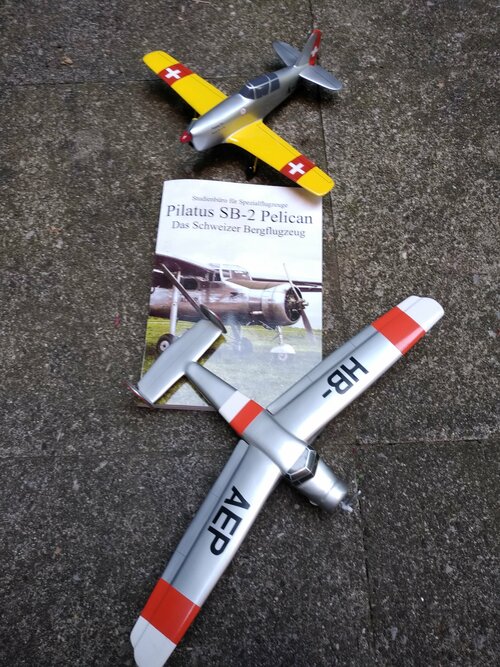

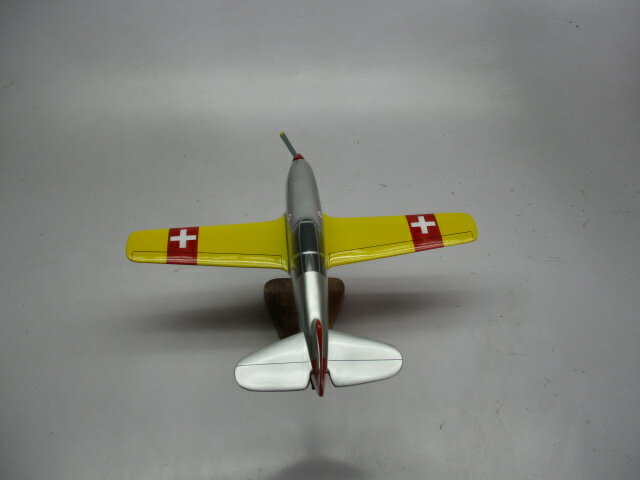

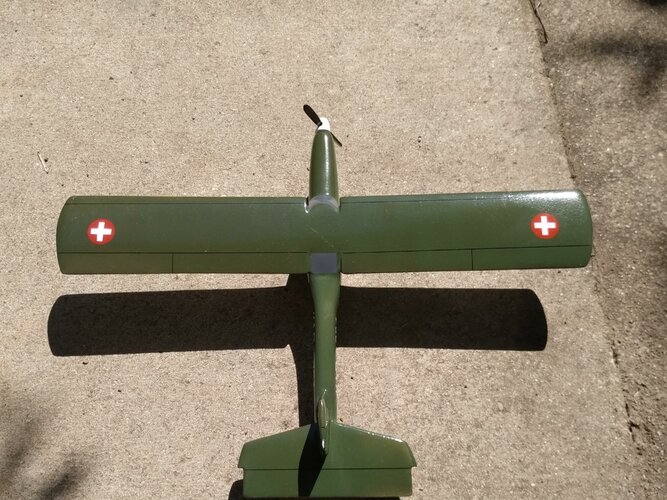

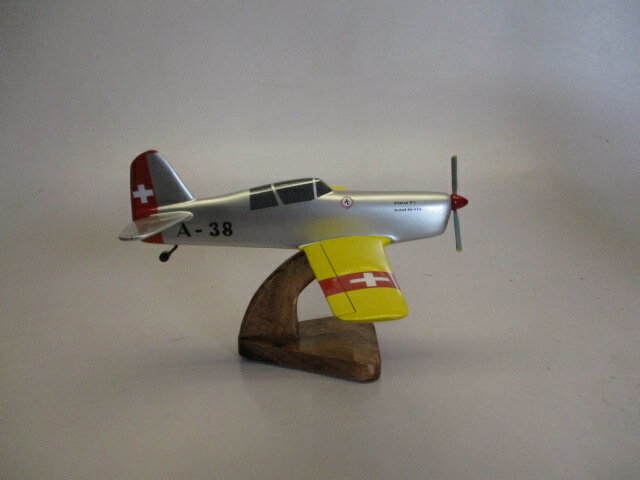

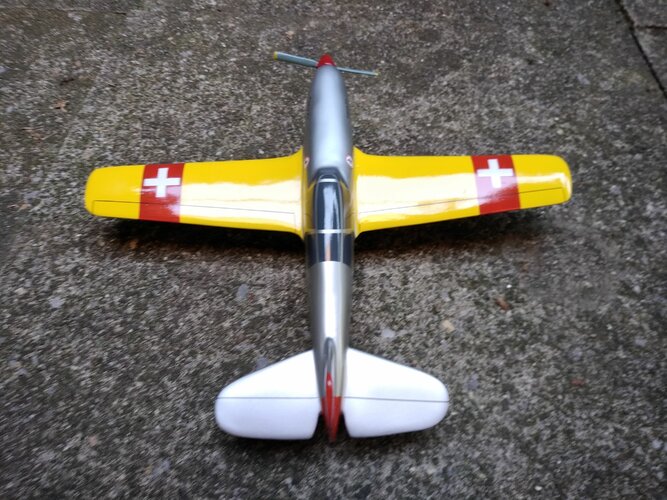

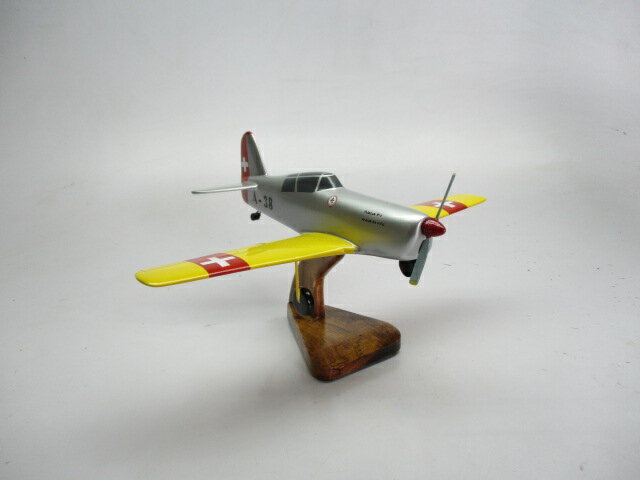

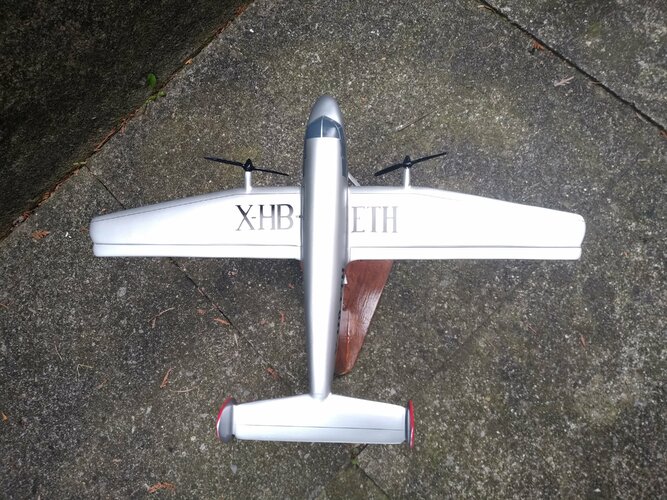

I want to share the pictures of the SB-1 model here. The SB-1 was never built. Strictly speaking, the SB-1 is not a Pilatus aircraft, as the project was started before Pilatus was founded. The SB-1 was a project at the ETH Zurich. However, the follow-up project, the SB-2, was the first aircraft that Pilatus built. That's why I think it fits here. The inspiration for the model was the book by Kuno Gross: "Pilatus SB-2 Pelican". The Reg X-HB-ETH is purely symbolic.

IMG_20200322_153343.jpg IMG_20200322_153343.jpg IMG_20200322_153353.jpg IMG_20200322_153404.jpg IMG_20200322_153413.jpg IMG_20200322_153417.jpg IMG_20200322_153431.jpg IMG_20200322_153441.jpg Pilatus SB-1 Airplane (1).jpg Pilatus SB-1 Airplane (2).jpg Pilatus SB-1 Airplane (3).jpg Pilatus SB-1 Airplane (4).jpg Pilatus SB-1 Airplane (5).jpg Pilatus SB-1 Airplane (6).jpg SB-1 front.jpg SB-1andereseite.jpg SB-1seite.jpg


FFA P-16

ACCESS: Confidential
Joined
Jan 4, 2022
Messages
51
Reaction score
200

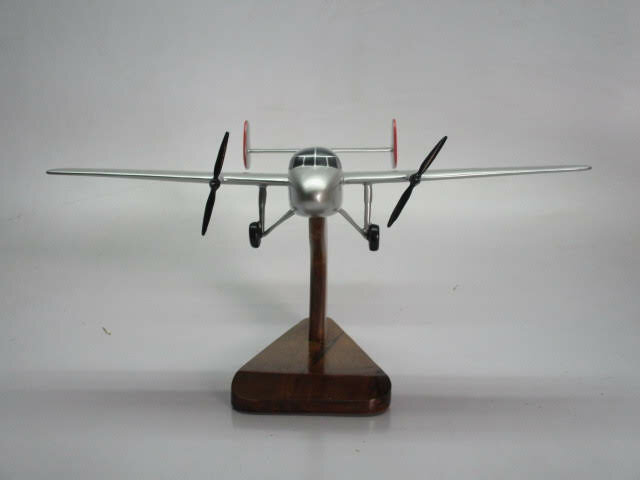

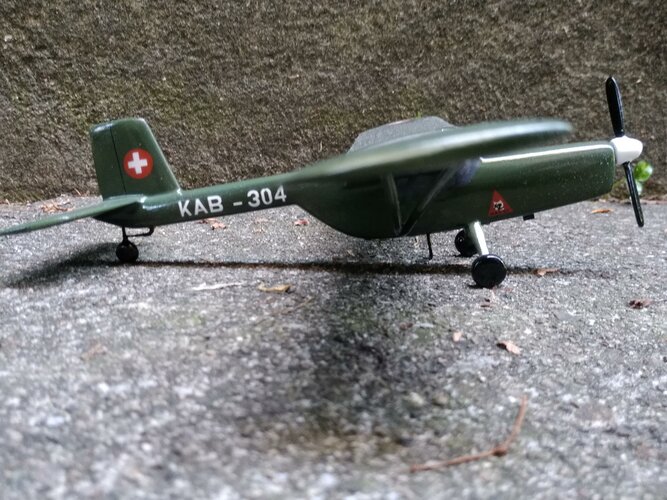

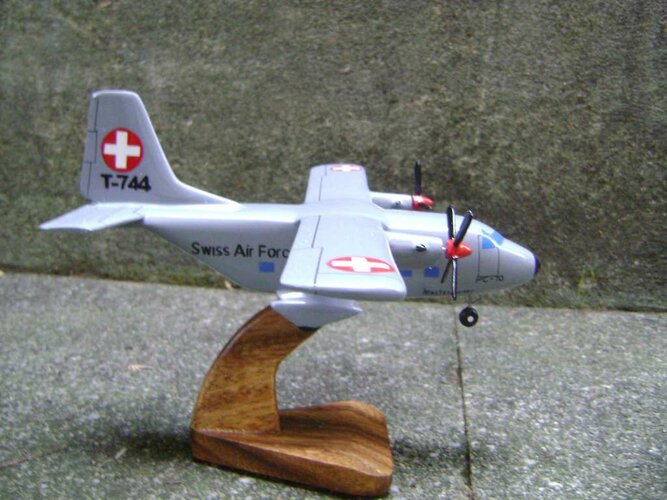

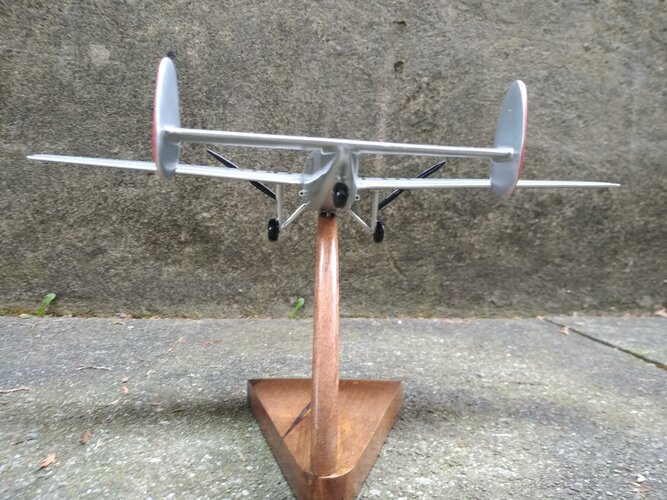

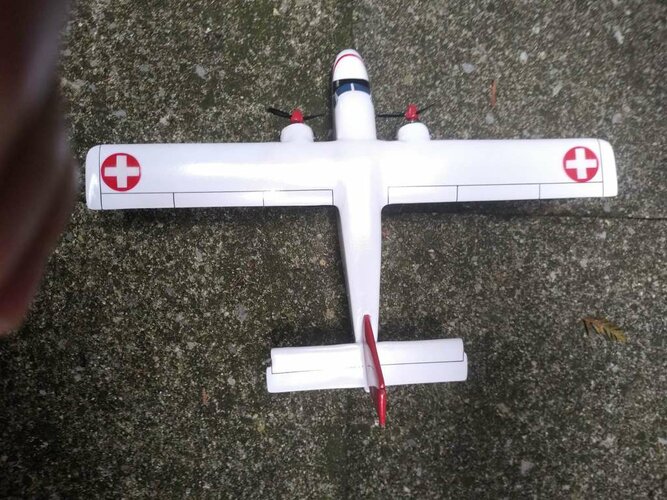

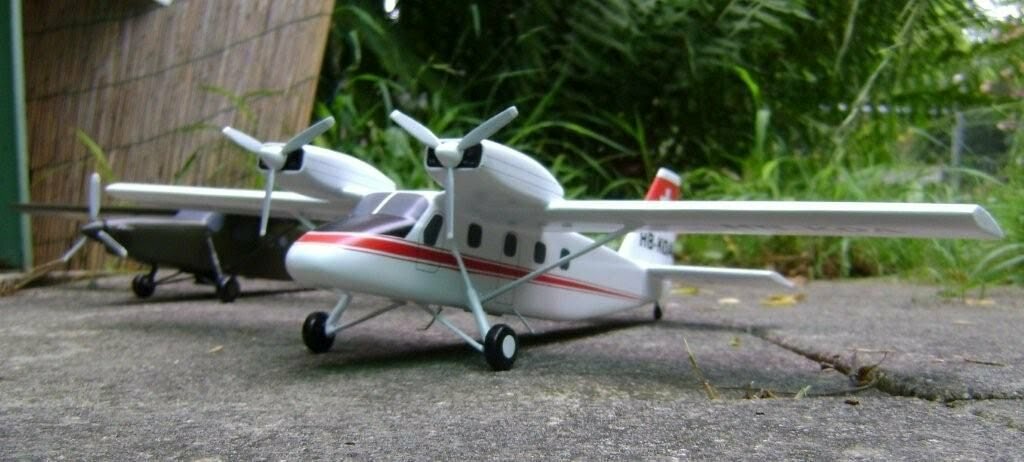

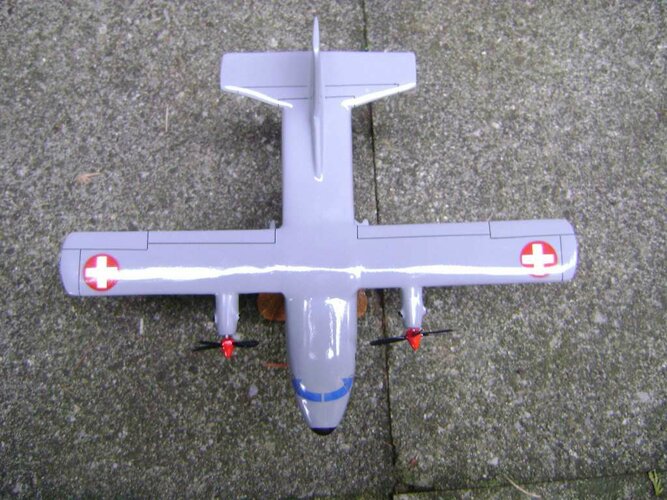

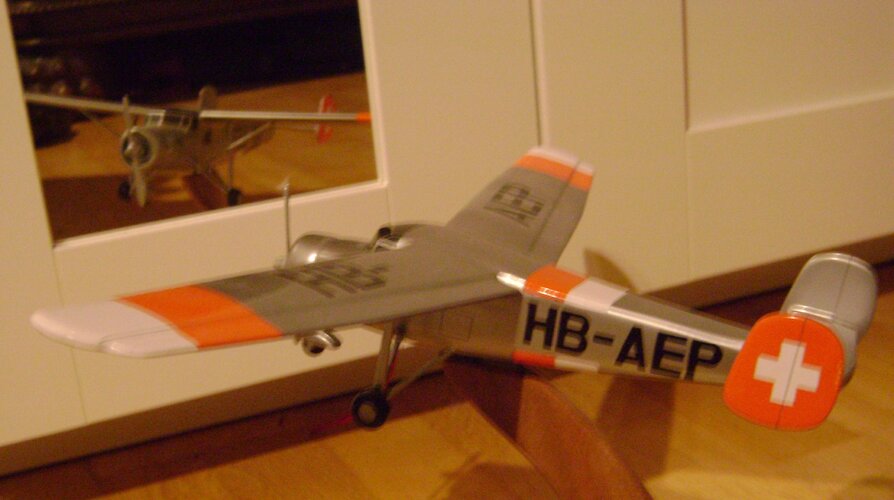

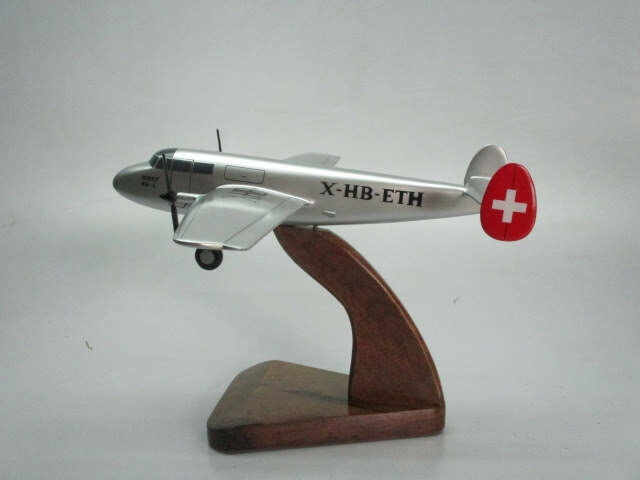

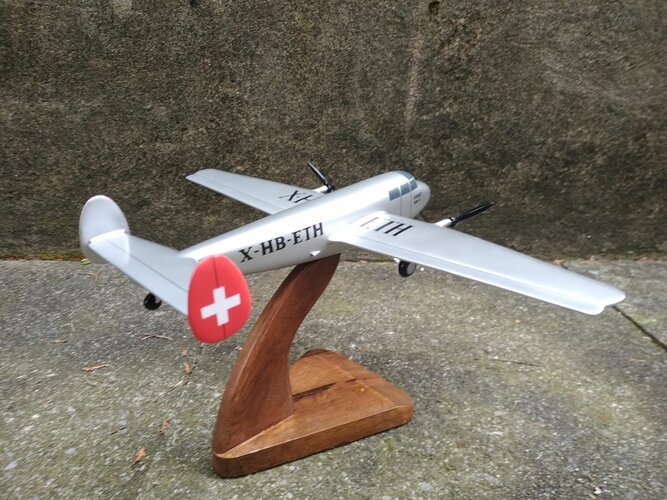

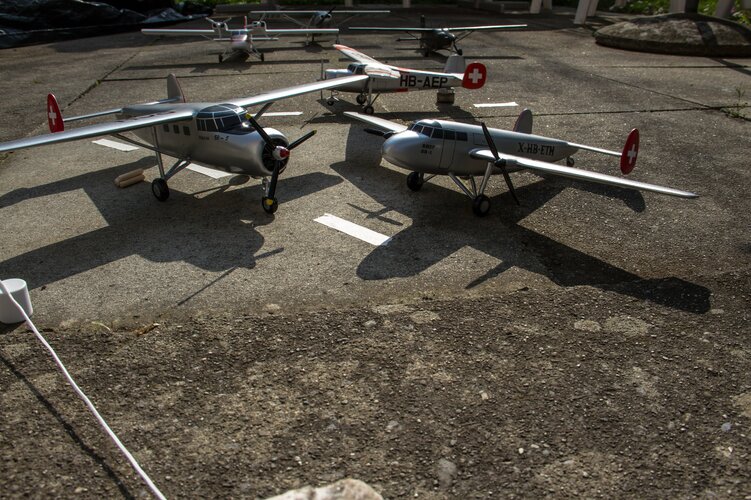

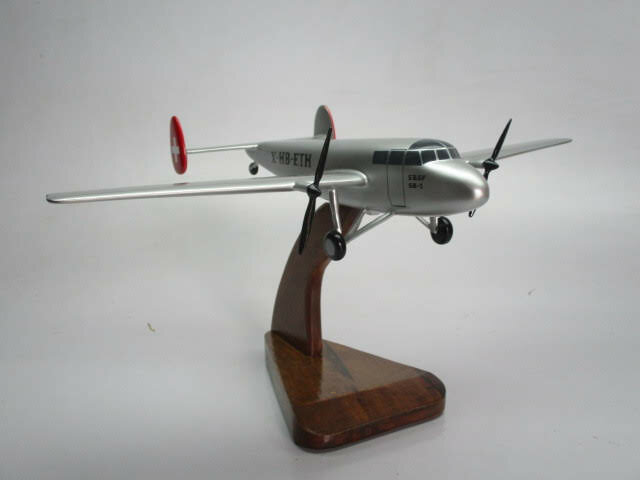

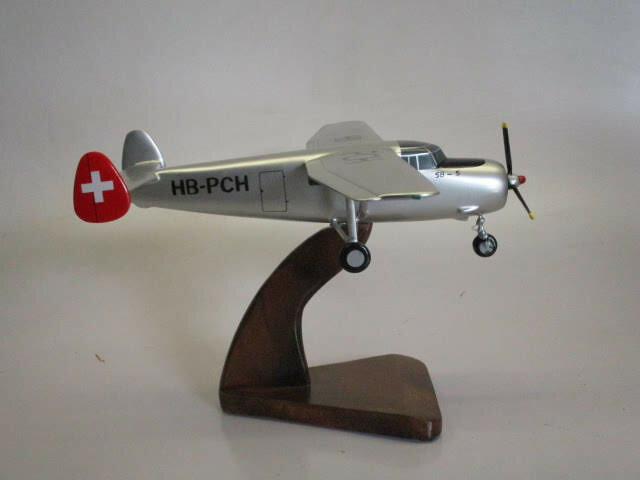

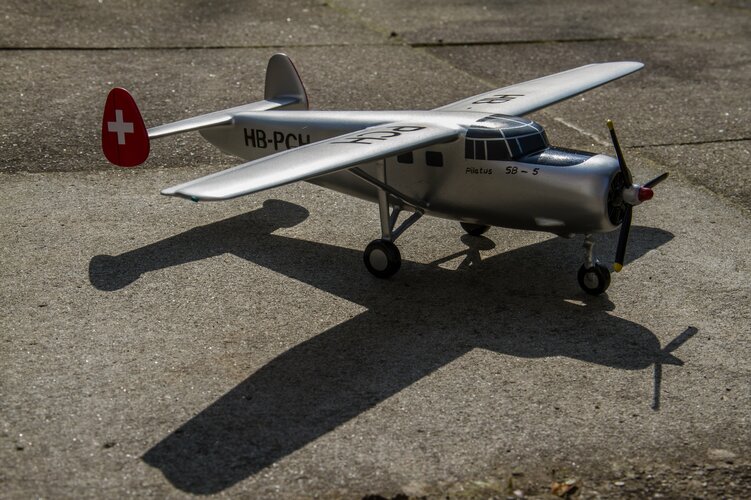

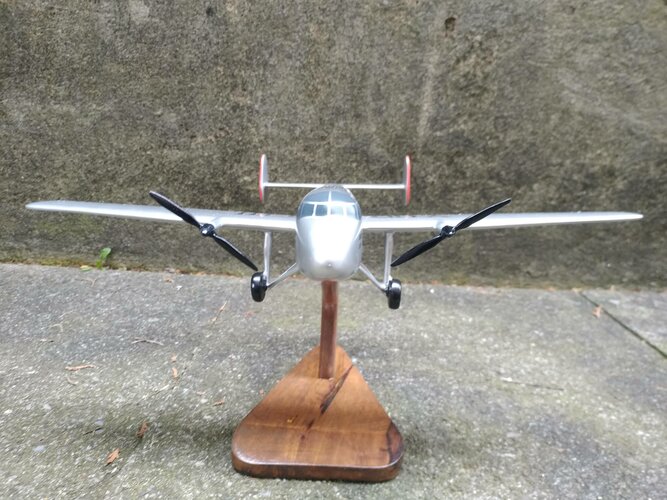

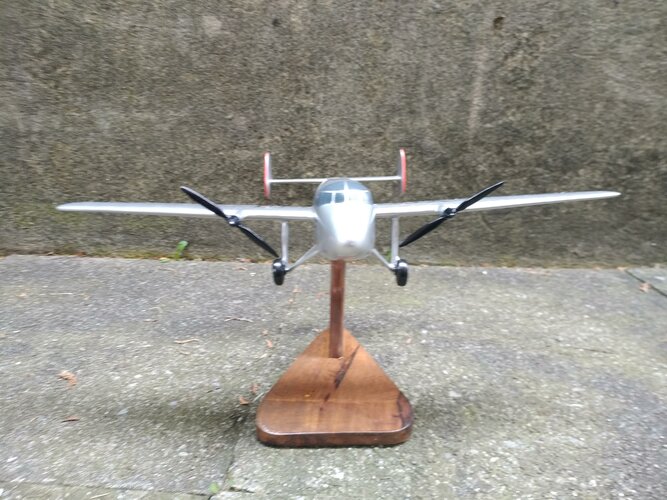

I would like to share the pictures of the Pilatus SB-5 model here. The Pilatus SB-5 was never built. The registration HB-PCH is symbolic, as the callsign for Pilatus Aircraft Company is "PCH", the Reg HB-PCH is .in reality for a Piper PA-28-161. The inspiration for the model was the book by Kuno Gross: "Pilatus SB-2 Pelican".

Pilatus SB-5 Airplane (1).jpg Pilatus SB-5 Airplane (2).jpg Pilatus SB-5 Airplane (3).jpg Pilatus SB-5 Airplane (4).jpg Pilatus SB-5 Airplane (5).jpg Pilatus SB-5 Airplane (6).jpg IMG_2565.jpg IMG_2574.jpg IMG_2576.jpg IMG_2579.jpg IMG_2582.jpg


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,051
Reaction score
1,496

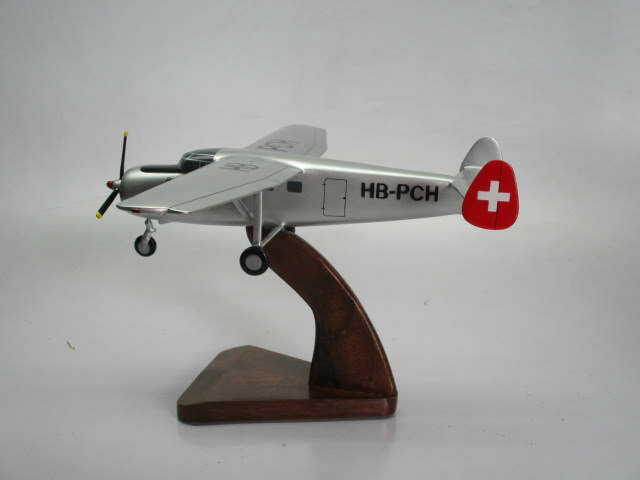

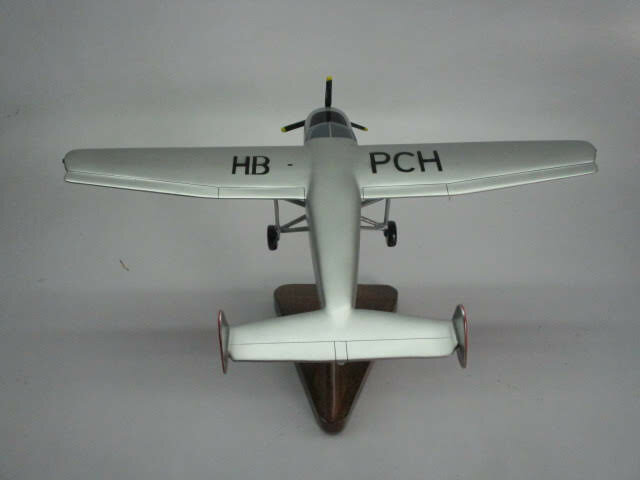

I am wondering why the "Pelican" had twin rudders - does anybody have a good idea or even an explanation for that?

Probably for the same reason as Max-Holste's Brossard and 1930s vintage twins. They needed to mount rudders outboard of the turbulent airflow coming off the propeller and fuselage.
Also consider that any float-plane version will need massive fin(s) for yaw stability.


FFA P-16

ACCESS: Confidential
Joined
Jan 4, 2022
Messages
51
Reaction score
200

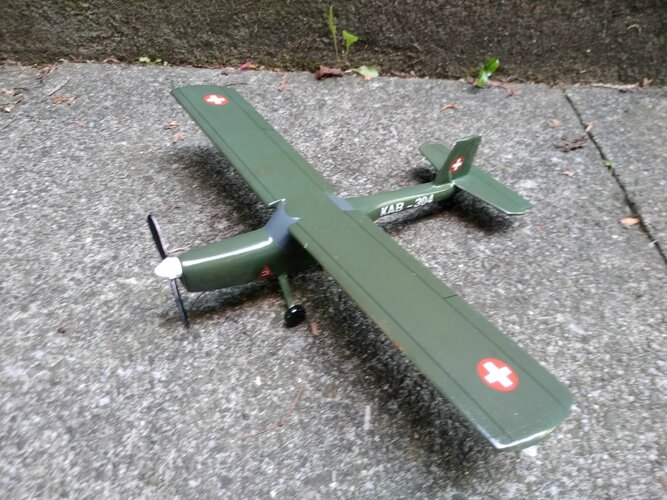

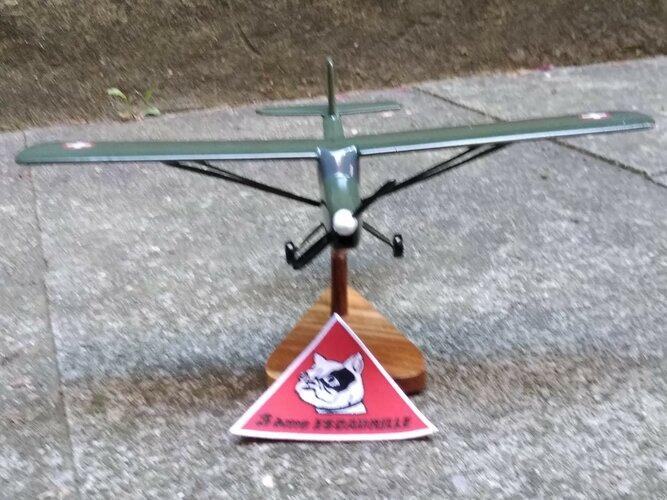

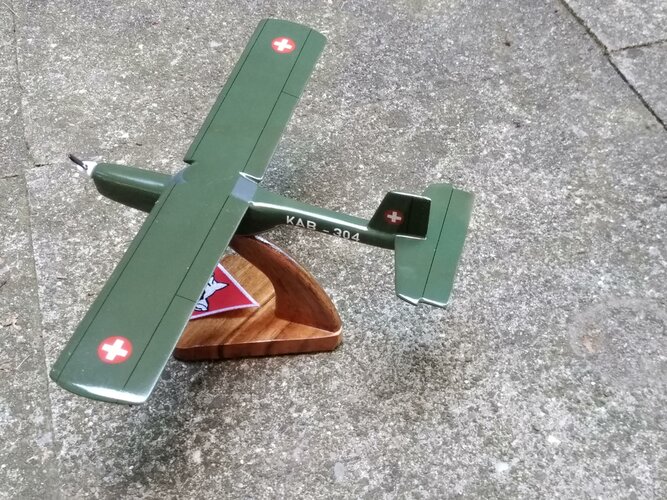

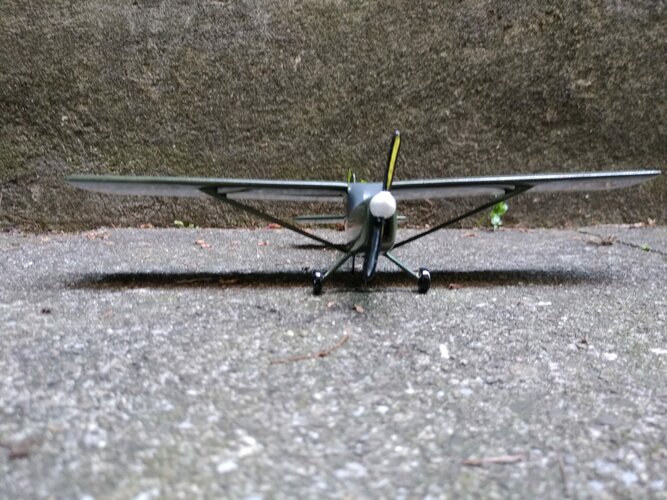

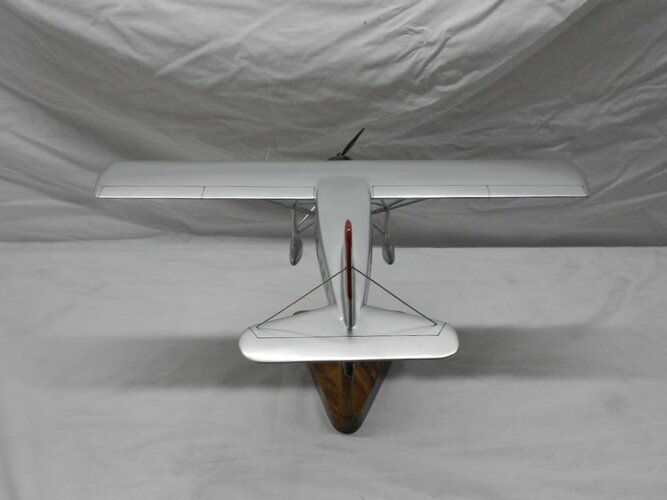

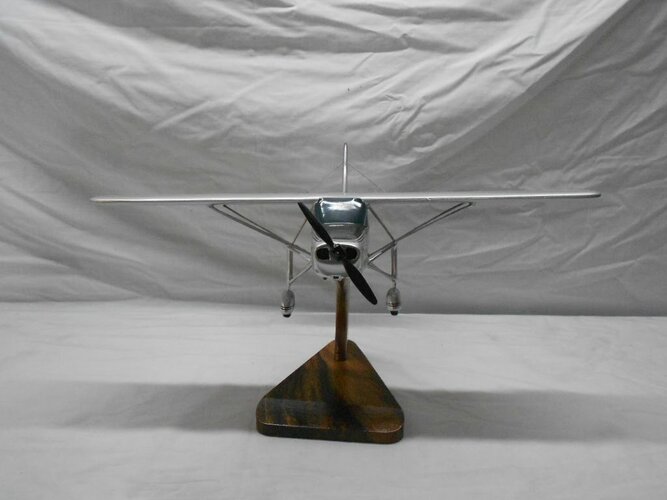

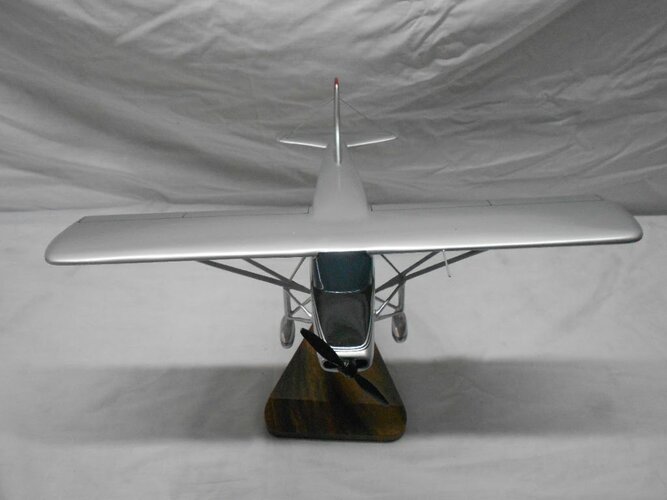

Here a few pictures of a wooden model of the project Pilatus P-5 (could probably also be named Pilatus PC-5). This aircraft was ment to be an artillery spotting aircraft. KAB was an Swiss Air Force registration and stands for Kampffeld & Artillerie Beobachtung (Battlefield IMG_20200602_171056.jpg IMG_20200602_171128.jpg IMG_20200624_153546.jpg IMG_20200624_153634.jpg IMG_20200624_153926.jpg IMG_20200624_153952.jpg IMG_20200624_154008.jpg , Artillery Surveillance)


Similar threads

Top
