another one which is often evoked but nothing seems to have come out regarding pictures, dimensions etc... (speed , ceiling, etc... must be zero , even double zero "licence to kill its pilot")



JCC


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com

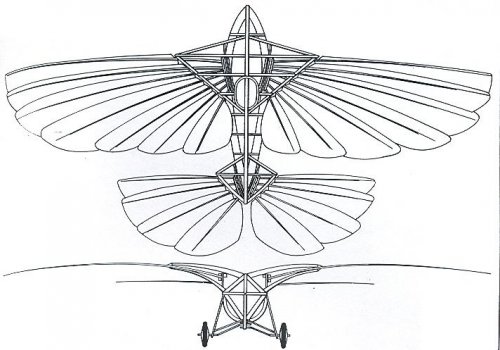

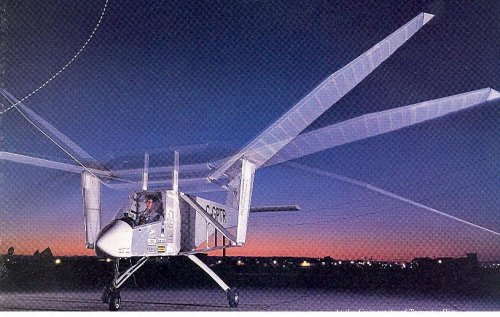

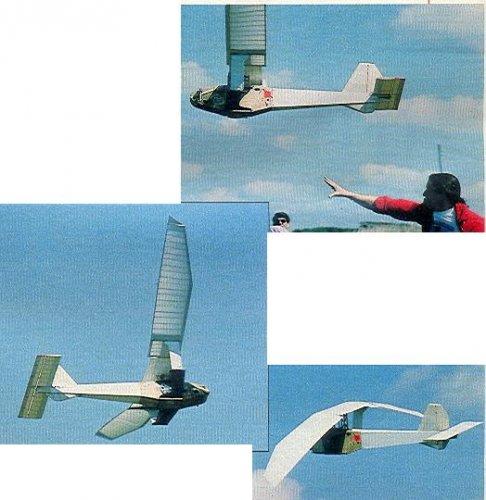

It is a bird?


Attachments

  • bird1.jpg
    61.5 KB · Views: 535
  • bird6.jpg
    54 KB · Views: 68
  • bird5.jpg
    57.5 KB · Views: 286
  • bird4.jpg
    117.2 KB · Views: 474
  • bird3.jpg
    148.5 KB · Views: 494
  • bird2.jpg
    48.1 KB · Views: 501

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
244

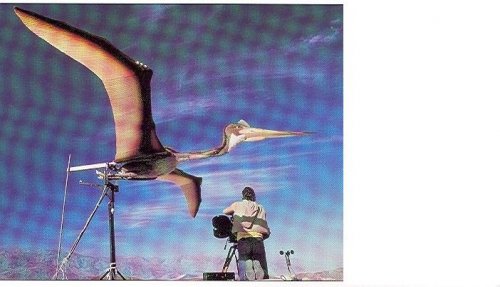

"bird 6" is a model of Quetzalcoalus:

http://en.wikipedia.org/wiki/Quetzalcoatlus

a pterodactyloid (flying reptile, no related to dinosaurs) from late Cretacious period (84 to 65 million years ago). It was built for a Science TV documentary.

(I also love Evolution's secretprojects ;D)

Cheers,
Antonio


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38

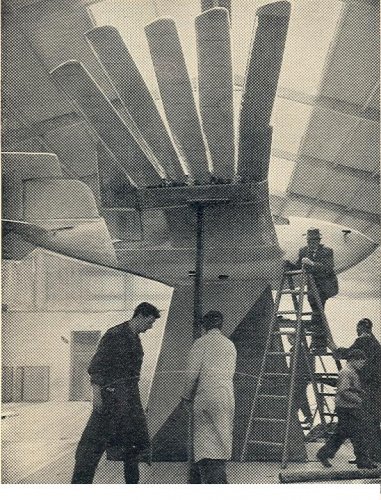

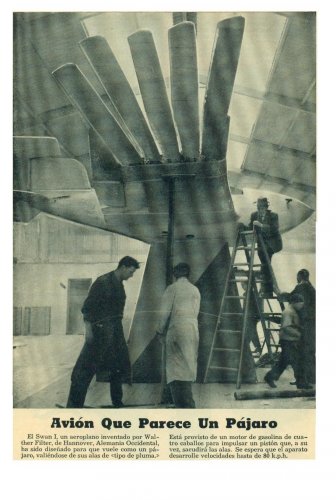

The third is the German Filter "Schwan Eins" built by Dahm & Krüger and shown at Hannover in 1958. 4 hp motor .

Wo could identify the first pic ?

Thanks


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
244
For the first pic I should take a look at my books tonight


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
The third pic reminds me of something called 'Winggrid', website is gone now but was a concept involving 'feather-like' winglets.


zhuravlik

ACCESS: Restricted
Joined
May 14, 2007
Messages
43
Reaction score
0
Hi lads,

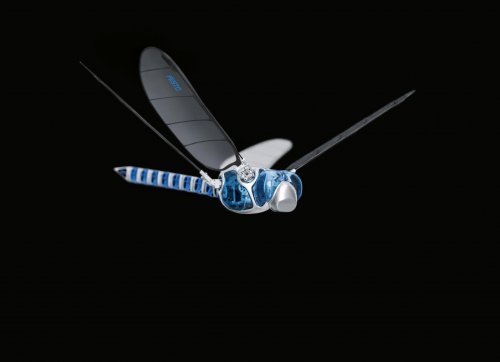

Have a look at this:
http://www.festo.com/INetDomino/coorp_sites/en/22ff224c0cba8e40c12572d60033d076.htm
The coolest thing i've EVER seen....

Best regards

Francesco


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
Really great, probably the most agile lighter-than-air vehicle ever built.
But heavier-than-air, man carrying ornithopters still seem notto be
around the corner.
But, would there be any advantage to other concepts ? ???

W

Wingknut

Guest
Re: the flying scale-model of 'Quetzalcoatlus Northropi', there's the following paper: A. N. Brooks, P. B. MacCready (et al), 'Development of a Wing-Flapping Flying Replica of the Largest Pterosaur', AIAA Paper 85 - 1446, 1985.
(And yes, I gather the beast is officially Q. 'Northropi' because of its resemblance to one of Jack N.'s fabulous flying-wings.)
Cheers,
'Wingknut'


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,970
Reaction score
88
What about the Bich-16 and Bich-18? :D

I head that the Quetz was a real pain to keep from blowing off the vehicle while it was being taken uprange (people had to ride on the outside of the truck to keep it on...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
zhuravlik said:
Hi lads,
Have a look at this:
http://www.festo.com/INetDomino/coorp_sites/en/22ff224c0cba8e40c12572d60033d076.htm
The coolest thing i've EVER seen....

Best regards

Francesco

Although it does fly, and surprisingly well, but I wouldn't quite call it an "ornithopter" because this means "bird's wings", and obviously this one ought to be called "whale's flaps"...


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
244
To be still the most precise, the ray is a fish. Then we have a fish wing and going to a classical greek derivative it would be called "ichthyopter"


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Thanks! You are absolutely right, it is not in the shape of a sea mammal but a fish, indeed.

To be quite accurate, it should be spelled "ichtyopter". Thanks again!


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
8
Warning, potentially inaccurate content but there are nice pics of German ornithopters here.
http://discaircraft.greyfalcon.us/Adalbert%20Schmid%20Ornithopter.htm


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,887
Reaction score
2,035

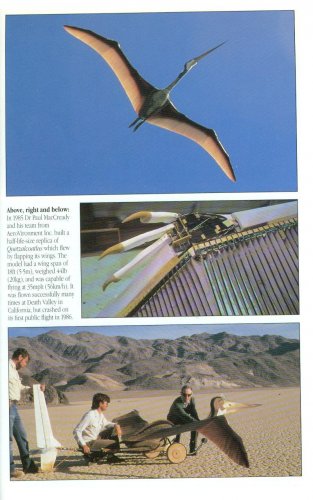

I suppose AeroVironment mid-80's Quetzalcoatlus Northropi research UAV would fit in here:​


[IMAGE CREDIT: AeroVironment, Inc]​


http://www.youtube.com/watch?v=x4bhBSOS9p4​


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com

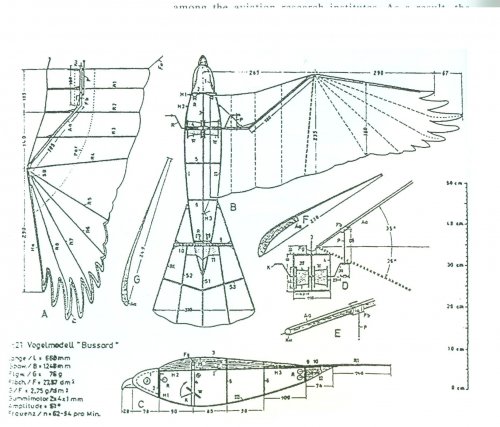

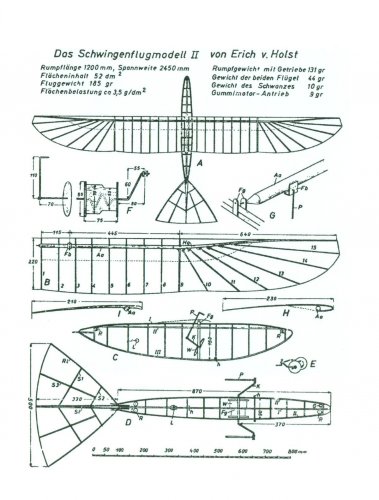

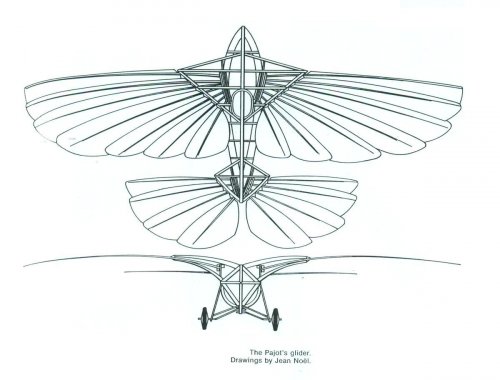

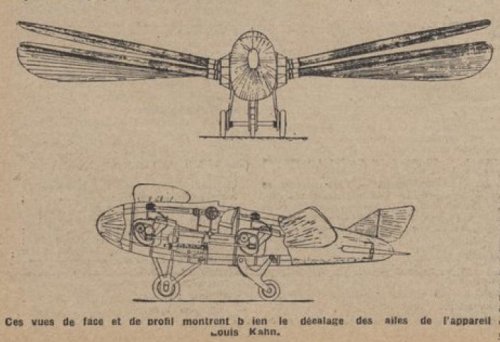

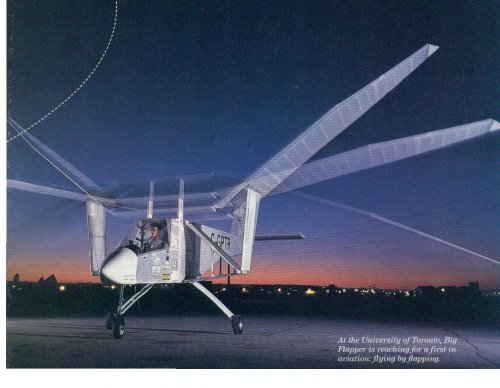

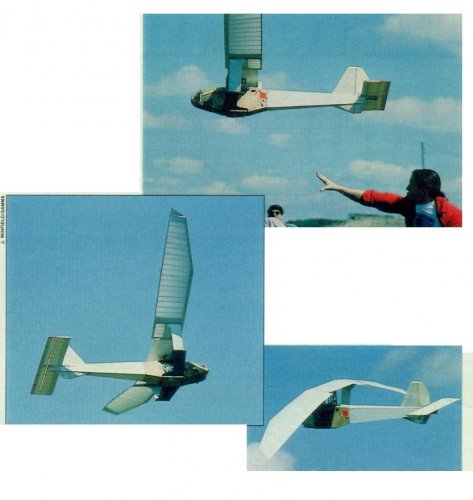

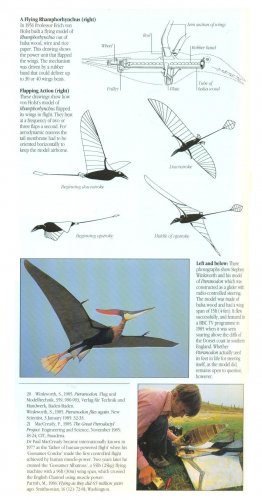

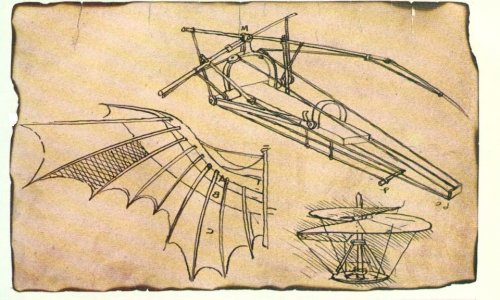

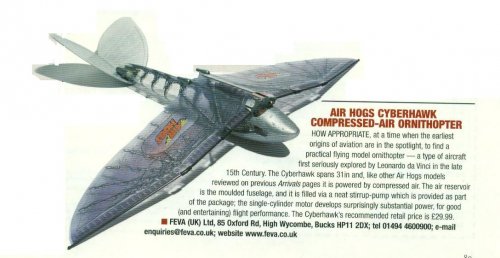

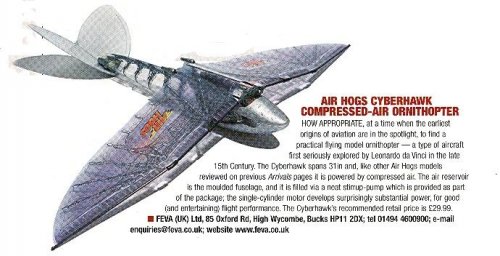

Ornithopters


Attachments

  • ñ 007.jpg
    ñ 007.jpg
    87.1 KB · Views: 47
  • ñ 006.jpg
    ñ 006.jpg
    251.2 KB · Views: 34
  • ñ 005.jpg
    ñ 005.jpg
    65.4 KB · Views: 27
  • ñ 004.jpg
    ñ 004.jpg
    97.7 KB · Views: 26
  • ñ 003.jpg
    ñ 003.jpg
    188.5 KB · Views: 334
  • ñ 002.jpg
    ñ 002.jpg
    34.1 KB · Views: 350
  • ñ 001.jpg
    ñ 001.jpg
    251.5 KB · Views: 379
  • ñ.jpg
    186.3 KB · Views: 408

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,405
Reaction score
2,303
Website
www.amazon.com

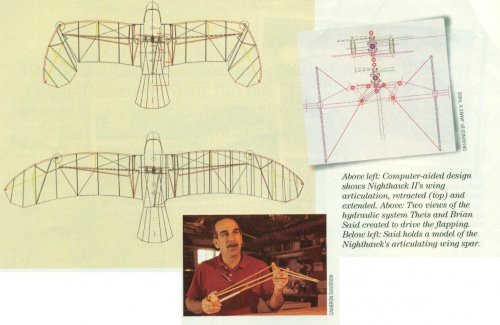

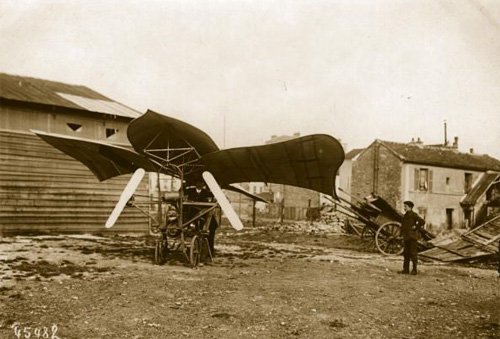

Ornithopters-2


Attachments

  • ñ 004.jpg
    ñ 004.jpg
    171.6 KB · Views: 52
  • ñ 003.jpg
    ñ 003.jpg
    199.5 KB · Views: 44
  • ñ 002.jpg
    ñ 002.jpg
    115.3 KB · Views: 35
  • ñ 001.jpg
    ñ 001.jpg
    222.3 KB · Views: 49
  • ñ.jpg
    179.9 KB · Views: 41

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466

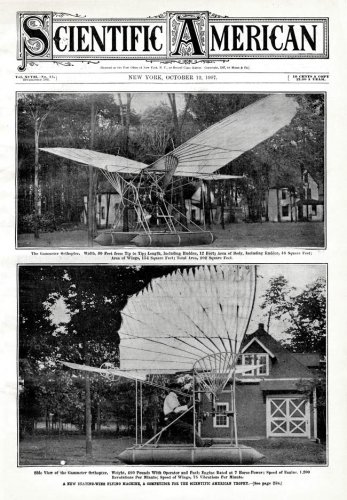

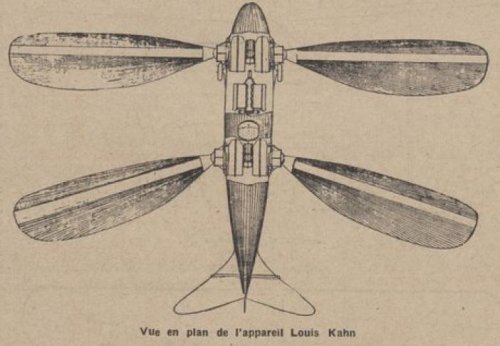

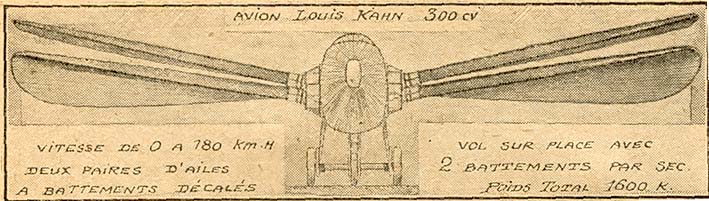

A few ornithopters from the early days of aviation:


Attachments

  • ScientificAmerican_Gammeter Orthopter, 1907-10-12.jpg
    ScientificAmerican_Gammeter Orthopter, 1907-10-12.jpg
    141.6 KB · Views: 27

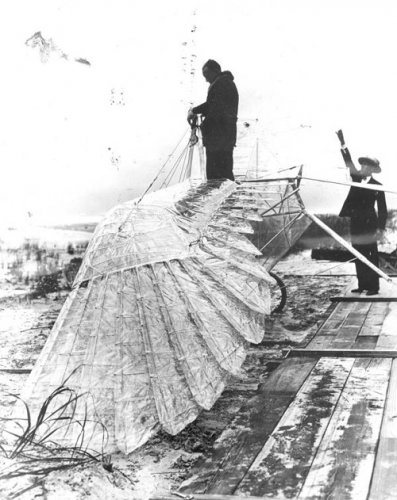

  • Ornithopter and creator George R. White at St. Augustine” (1927).jpg
    Ornithopter and creator George R. White at St. Augustine” (1927).jpg
    112.1 KB · Views: 25
  • The Stoekel, 1909.jpg
    The Stoekel, 1909.jpg
    65.1 KB · Views: 26

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,887
Reaction score
2,035
H/t off to Chulo over at MilitaryPhotos.net for this:

http://www.youtube.com/watch?v=TZ3spmVqnco&feature=player_embedded


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Grey Havoc said:
H/t off to Chulo over at MilitaryPhotos.net for this:

Ahem... "Ornithopter" means "bird's wing." Insectopters do not quite belong in the same category, do they?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
Stargazer2006 said:
Ahem... "Ornithopter" means "bird's wing." Insectopters do not quite belong in the same category, do they?

Have googled a bit and although you're right about the literal meaning of the word "Ornithopter", but the general
meaning seems to be a flying machine, which produces lift by flapping its wings. The word "Insectothopter"
seems to have been created originally for that artificial dragonfly, as most hits refer directly to it, but is used
sometimes for other very small (insect sized) flying machines. Maybe a differentiation between machines with
a single pair of wings like a bird and others with at least two pairs, like many insects would make sense, but it
seems not to be used that way.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
822
Reaction score
329

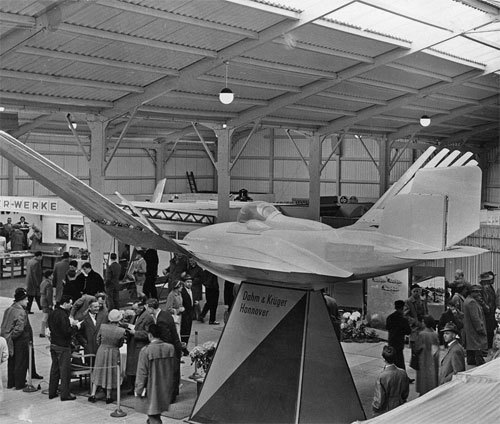

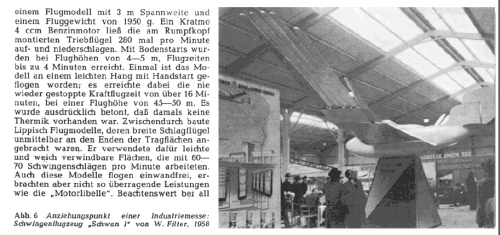

Another photo of the Dahm & Krüger Schwan-1 ornithopter at Hannover:




VTOLicious

ACCESS: Top Secret
Senior Member
Joined
Nov 24, 2008
Messages
696
Reaction score
294

Attachments

  • Festo_BionicOpter_en.pdf
    1.1 MB · Views: 5

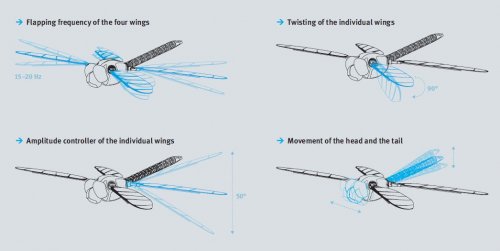

  • festo-bionicopter-8.jpg
    48.1 KB · Views: 204
  • BionicOpter00001_13x18_rgb.jpg
    83.6 KB · Views: 203

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732

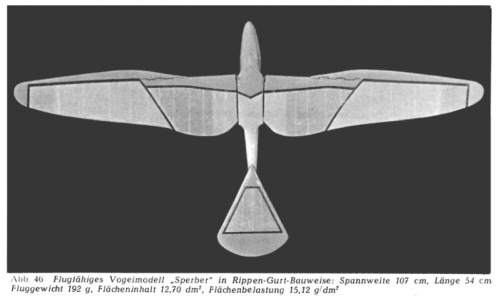

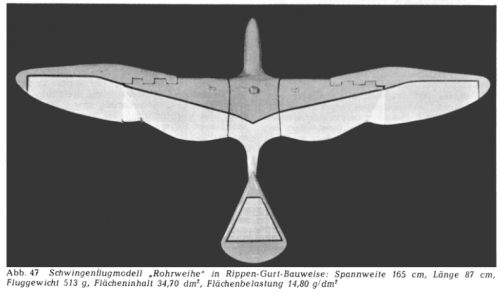

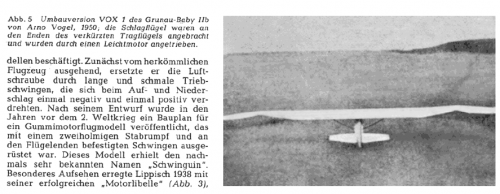

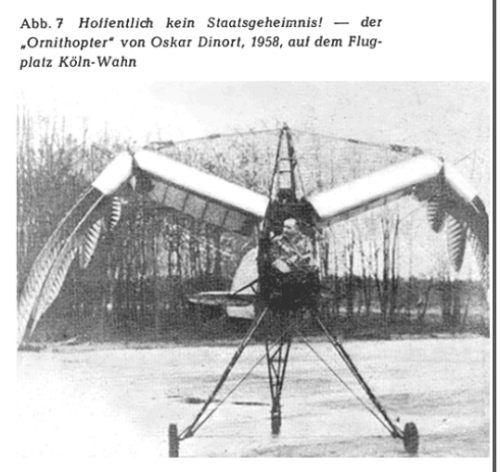

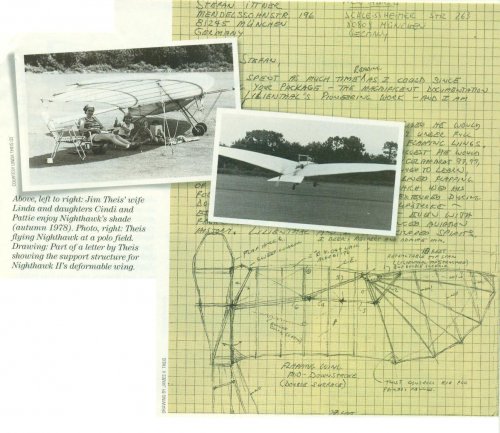

Hi,


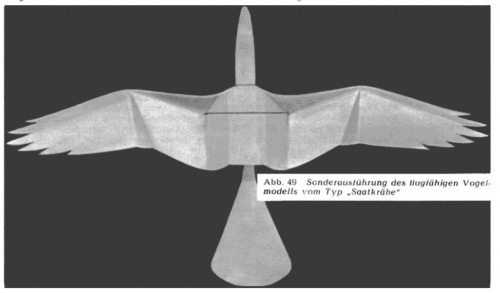

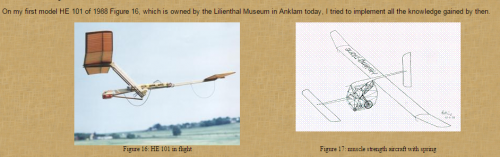

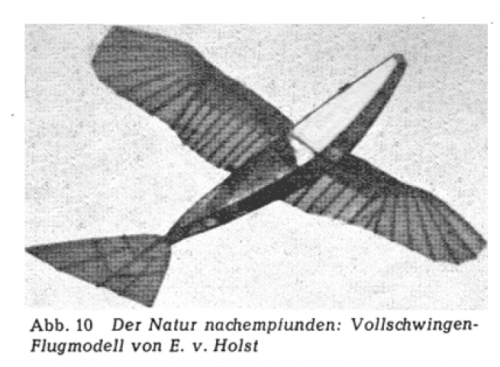

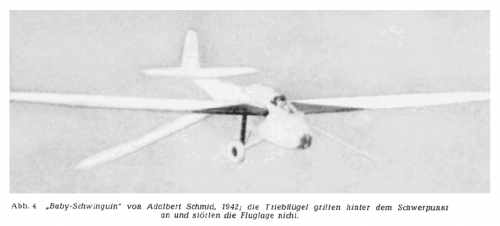

http://www.ornithopter.de/daten/herzog/63feb.pdf
http://www.ornithopter.de/daten/herzog/64feb.pdf


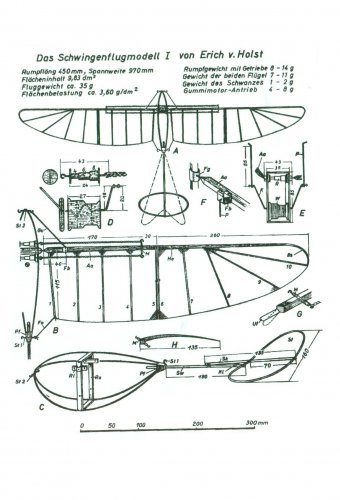

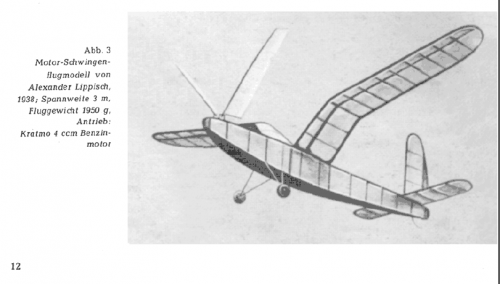

Attachments

  • 7.png
    224.7 KB · Views: 26
  • 6.png
    144.5 KB · Views: 30
  • 5.png
    198.7 KB · Views: 380
  • 4.png
    157.4 KB · Views: 393
  • 3.png
    71.1 KB · Views: 505
  • 2.png
    107.7 KB · Views: 535
  • 1.png
    111.9 KB · Views: 563

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732

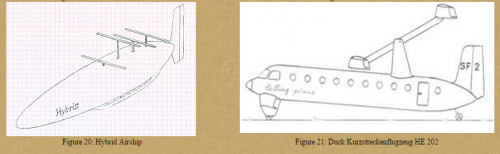

And;


Attachments

  • 11.png
    68.1 KB · Views: 15
  • 10.png
    107.7 KB · Views: 17
  • 9.png
    113.2 KB · Views: 17
  • 8.png
    114.1 KB · Views: 18

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732

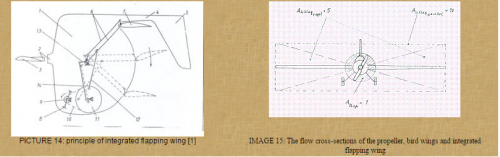

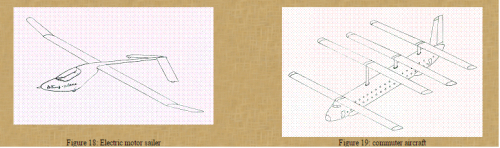

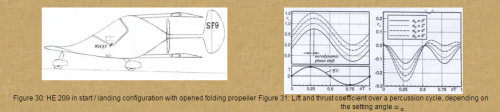

Also those amazing modern concepts (No.3,4,5 & 6);


http://www.mfc-rossendorf.de/fileadmin/Projekte/SchlagfluegelProjekt/Schlagfluegel_DGLRveroeff.html


Attachments

  • 6.png
    153.7 KB · Views: 32
  • 5.png
    124.8 KB · Views: 32
  • 4.png
    80.6 KB · Views: 35
  • 3.png
    54.4 KB · Views: 34
  • 2.png
    100.8 KB · Views: 37
  • 1.png
    111.2 KB · Views: 37

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,970
Reaction score
88
Grey Havoc said:
I suppose AeroVironment mid-80's Quetzalcoatlus Northropi research UAV would fit in here:

Although technically it, and its kin, are pterothopters.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
Hi,


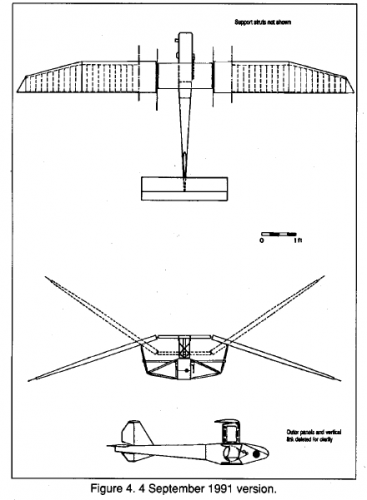

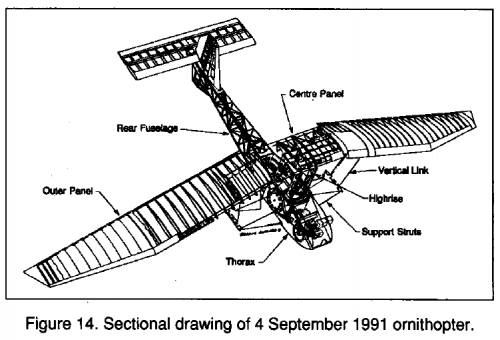

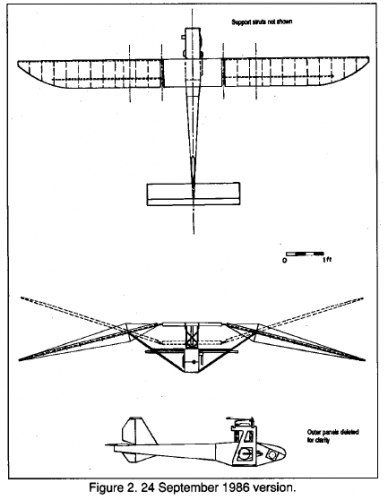

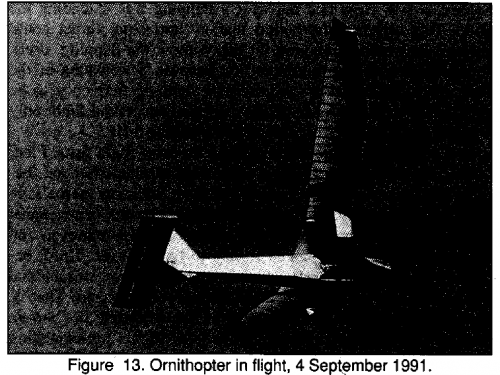

http://greatflapper.com/Publications/AStudyOfMechanicalFlapping-WingFlight.pdf


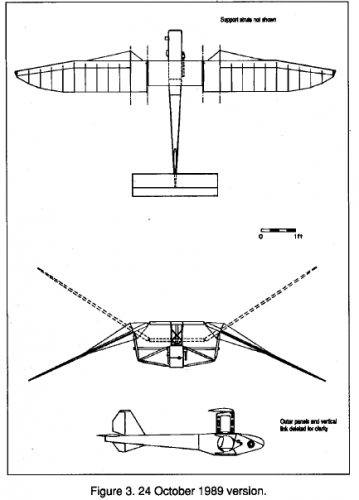

Attachments

  • 5.png
    36.4 KB · Views: 17
  • 4.png
    68.7 KB · Views: 19
  • 3.png
    23.3 KB · Views: 22
  • 2.png
    22.5 KB · Views: 20
  • 1.png
    22.6 KB · Views: 20

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,748
Reaction score
537
Avimimus said:
Grey Havoc said:
I suppose AeroVironment mid-80's Quetzalcoatlus Northropi research UAV would fit in here:

Although technically it, and its kin, are pterothopters.
<pedant_mode>
I assume you are referring to a Pterodactylus-like wing. Etymology rears its head here, apologies in advance.
Pterodactylus is derived from pteron (wing) and dactylos (finger), literally wing-finger.
Pterothopter, with both "pter"'s deriving from pteron, means, therefore, wing-wing.
I would suggest dactylopter (finger-wing) instead for the Quetzalcoatlus Northropi research UAV. Or Butch.
</pedant_mode>
Thank you for reminding me of Butch.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
Hi,

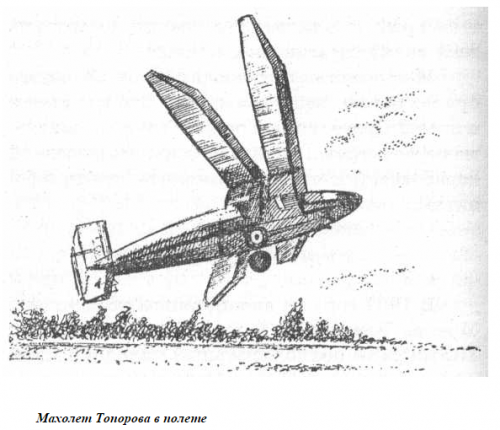

here is an ornithopter aircraft,[font=verdana, arial, helvetica, sans-serif]created by V. Toporov,a Russian man.[/font]

[font=verdana, arial, helvetica, sans-serif]http://coollib.com/b/228703/read[/font]


Attachments

  • Toporov.png
    170.6 KB · Views: 25

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732

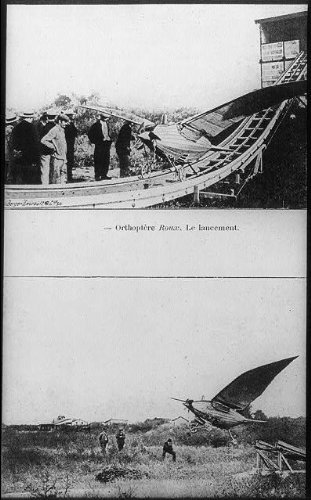

And the French designer Roux of 1904;

http://www.amazon.com/Photo-Orthopere-lancement-Glider-takeoff/dp/B005Q3UE98


Attachments

  • 51wWAUUteTL.jpg
    39.1 KB · Views: 30

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
Hi,

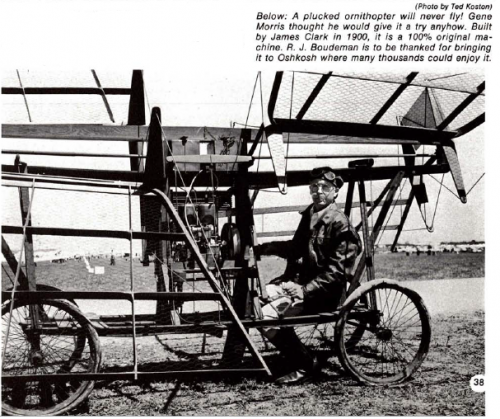

here is a rare US flying machine,in Vintage magazine considered it an ornithopter
design ?,are they right ?.

http://members.eaavintage.org/wp-content/uploads/2013/02/VA-Vol-4-No-11-Nov-1976.pdf


Attachments

  • 1.png
    480.6 KB · Views: 26

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,045
Reaction score
3,732
Unknown ornithopter.
here is the source,but it is not working.

http://www.impdb.org/index.php?title=Category:Unidentified_Aircraft&from=The+Green+Berets

(Edit: Judging the search results, the original source could be the DVD box "A Century of Flight: 100 Years of Aviation")


Attachments

  • 500px-AVION_ALF_IE.jpg
    30.3 KB · Views: 23
