Hi,


Clouds Ranked # 5-R two-seater open spaces with dual controls and wheel fairing. The R in honor of records obtained.
  • Ranked # 5 Nuvoli-RR two-seater covered seats, with dual controls and wheel fairing, with improved aerodynamics and smaller wings.
  • Clouds Ranked # 5-T two-seater open spaces with redesigned fuselage, powered by a 90 hp Pobjoy, sold 38,000 liras, was built in two copies (I-I-COLB and MAFF).
  • Ranked # 5 Nuvoli-Cab cabin with more seats (executive aircraft), built in duplicate (registered respectively RUSP and I-I-CLOUD). The first with wood propeller and engineFiat A.54 of 140 hp , the second with metal propeller and folding wings. The latter was involved in a fatal accident during the Rally del Littorio , 1935. [2]
  • Clouds Ranked # 5-Aq experimental vehicle from training at high altitude (Aq), built at the request of the Air Ministry (MM298). [2] It had hubcaps metal cowling NACA type Magni engine and engine Fiat A.70 with metal propeller. This was the last aircraft built in1938 , by Workroom Aeronautics, because (as mentioned) the holder had to work full-time in the role of official military genius .
  • Clouds ND 6.6 was the design of a twin-engine designed by Nuvoli and subsequently constructed by the National Society of Officine Savigliano who took over the Workroom Aeronautical.


Attachments

  • Nuvoli_N.5.jpg
    42.1 KB · Views: 521
  • N.5.png
    70 KB · Views: 343
  • N.5R.png
    69.6 KB · Views: 338
  • N.5T.png
    58.2 KB · Views: 322
  • N.5Aq.png
    70.7 KB · Views: 309
  • N.5RR.png
    63.9 KB · Views: 15
  • N.5 Cab.png
    N.5 Cab.png
    63.9 KB · Views: 14
  • N.5 Cab I.png
    N.5 Cab I.png
    68.4 KB · Views: 15

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,034
And;


Attachments

  • N.6.png
    52.1 KB · Views: 25

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
517
hesham said:
  • Clouds Ranked # 5-R
  • two-seater open spaces
  • Ranked # 5 Nuvoli-RR
  • Clouds Ranked # 5-T
  • Ranked # 5 Nuvoli-Cab
  • the holder had to work full-time in the role of official military genius.
  • Clouds ND 6.6
  • the Workroom Aeronautical.


hesham, this is embarrassing... not the fact that you use Google Translation to try and understand a page, but the fact that you copy-paste that absolutely crap of a translation into a post and call it a topic.

Not to mention all the crappy HTML code you copy-pasted from the results page...


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
110
Reaction score
25
Another (with my basic english) translation:

The project originates from a Ing. Nuvoli's private venture, which previuos N.3 was not built by FIAT. He bet (and win) with Giovanni Agnelli (The President of FIAT) he would have been able to build a successful light airplane.

From N.5 (1 built) Nuvoli created many variants:
N.5R - Biplace, open cockpits, dual control, faired landing gear. R for Records.

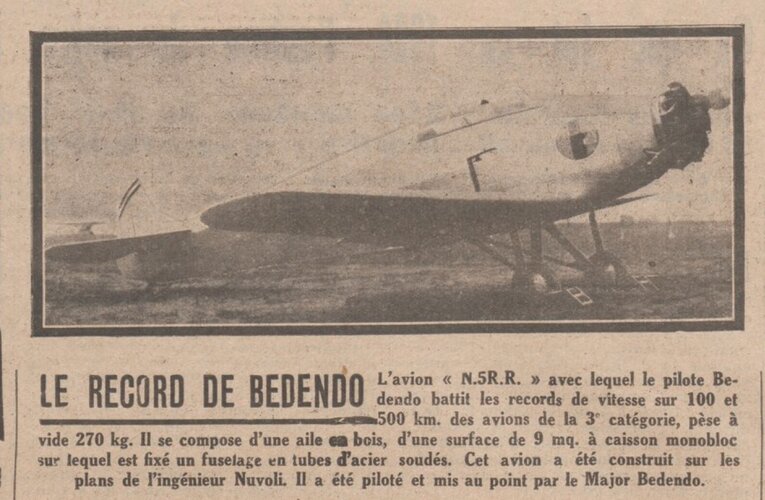

N.5RR - Biplace, closed cockpit, dual control, faired l.g., improved aerodynamics, reduced wings.
N.5T - Biplace, open cockpit, redesigned fuselage, powered by Pobjoy 90HP. Sold at 38000 lire, 2 examples built (I-COLB and I-MAFF).
N.5Cab - Multiplace executive, 2 built (I-RUSP and I-NUBE). The first with wooden propeller on FIAT A.54 engine (140HP); the second with metal propeller and folding wings. The second lost on a fatal crash during 1935 Raduno del Littorio.

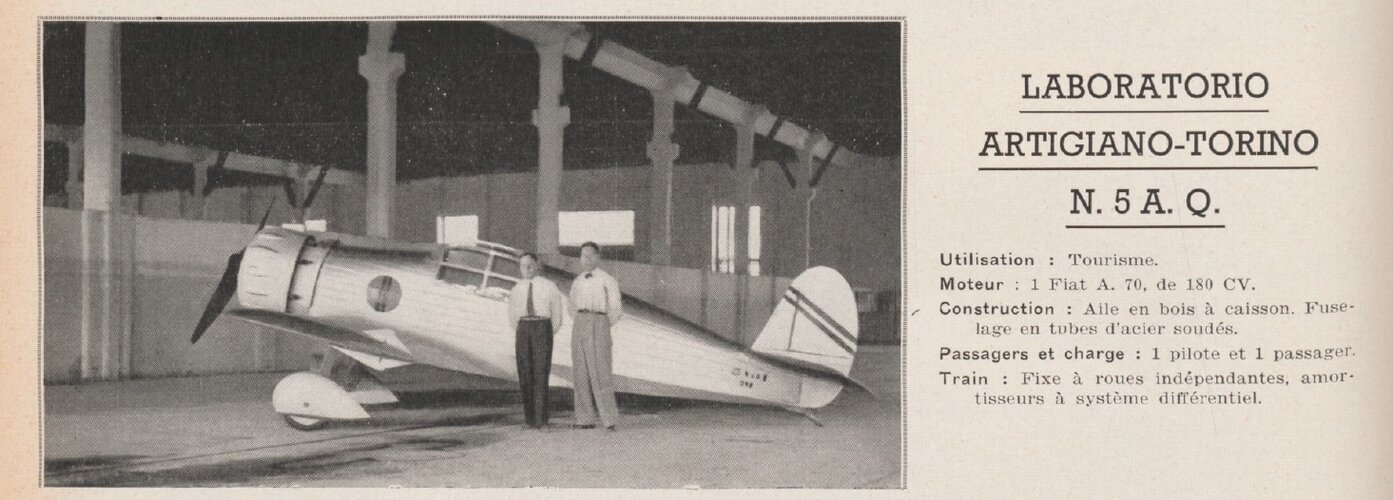

N.5AQ - For Alta Quota (high altitude). Experimental high altitude trainer, requested by Air Ministry (MM298). Metal wheel fairings, Magni engine cowling, FIAT A.70 engine, metal propeller. This was the last built aircraft, in 1938, by the workshop, as Nuvoli was called up for duty as military engineer.
ND 6.6 - Nuvoli's twin engined project built by Società Nazionale Officine di Savigliano.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,034
Hi,

all we know about this designer (Prospero Nuvoli) is N.3,N.5 & N.6,but what
was N.1,N.2 & N.4 ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,650
Reaction score
999
"... Fiat N.3, dove N sta per Nuvoli mentre il numero 3, secondo le cronache, venne scelto per scaramanzia."

The Fiat N.3 was capitano ingegnere Prospero Nuvoli's first aircraft. Apparently, Nuvoli chose the number three for good luck. So, it is likely that there never was an N.1 or N.2.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,034
Where is it my dear Patvig ?,I never saw it in the page.


patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org

rlucas

ACCESS: Restricted
Joined
Oct 31, 2010
Messages
34
Reaction score
4
Hi all,

Did anyone ever see complete 3 views for any of the Nuvoli aircraft? There are ofcourse the views in this thread.

Many thanks in advance!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,284
Reaction score
4,034
rlucas said:
Hi all,

Did anyone ever see complete 3 views for any of the Nuvoli aircraft? There are ofcourse the views in this thread.

Many thanks in advance!

Need to search Rlucas,give me a few time.


rlucas

ACCESS: Restricted
Joined
Oct 31, 2010
Messages
34
Reaction score
4
Hello Hesham,

That would be great! :D I tried to search online also in some archives, but so far little luck... Many thanks in advance!
