Notional STOL projects from NASA

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

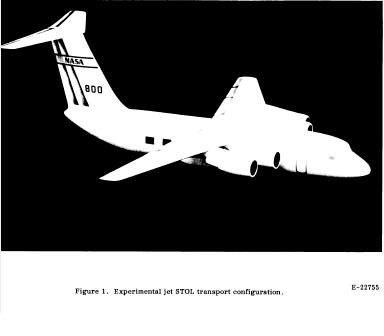

the NASA experimental jet STOL transport aircraft.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

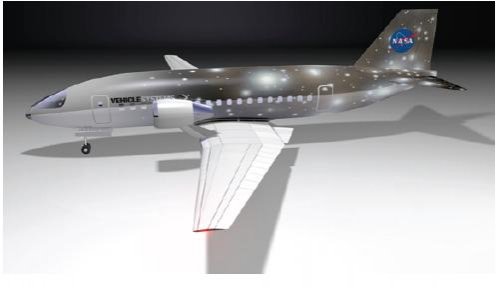

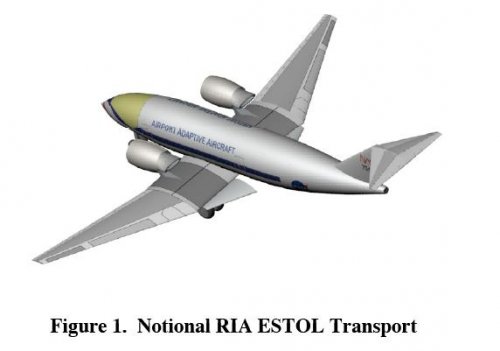

Notional RIA ESTOL transport aircraft.

http://aeronautics.arc.nasa.gov/assets/pdf/AIAA-2003-6856.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

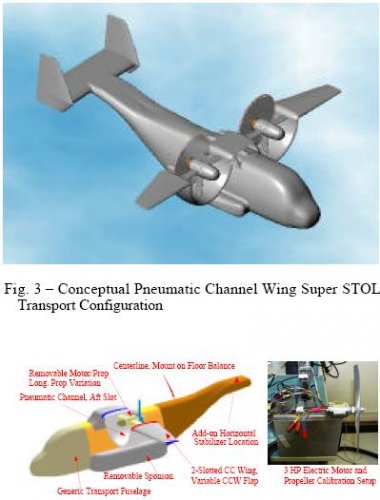

recently,the Custer channel wing concept is studied by NASA,as STOL
transport aircraft.
http://www.stavatti.com/PDF/NASA-AIAA-2002-3275.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

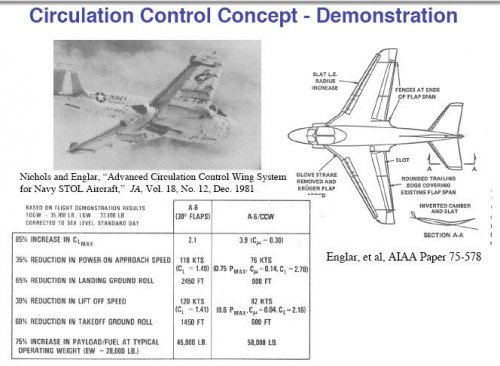

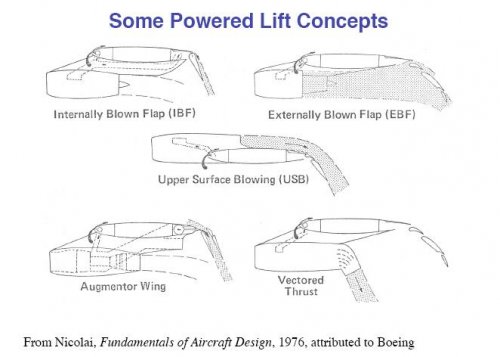

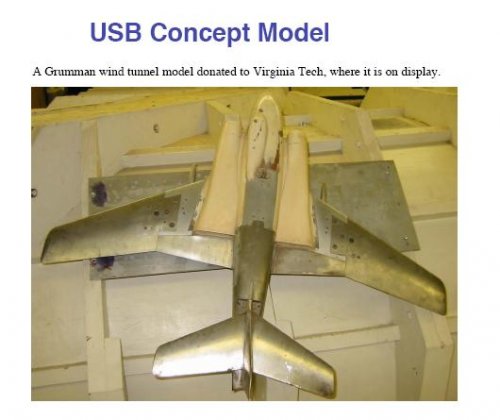

The cruise efficient STOL aircraft concept.
http://www.nianet.org/workshops/docs/QA/presentations/KFS/Huff.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

a jet-flap STOL aircraft.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19710002764_1971002764.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667

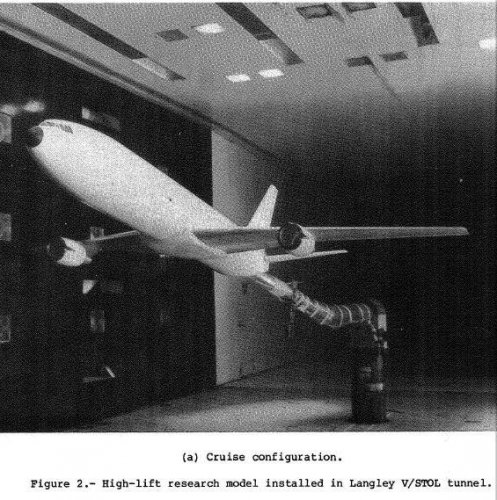

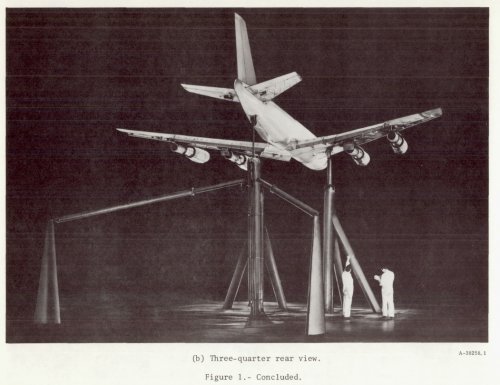

The high lift research Model.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19820007142_1982007142.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

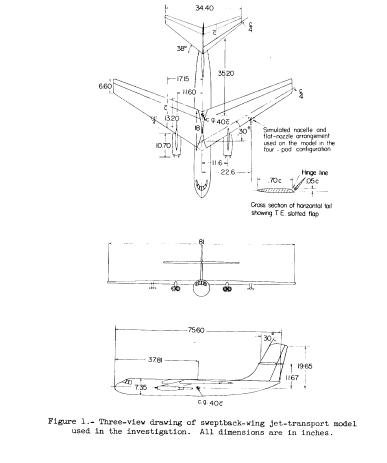

here is jet-transport model equipped with an extrernal-flow jet-augmented
double slotted flap.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19980228239_1998394578.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

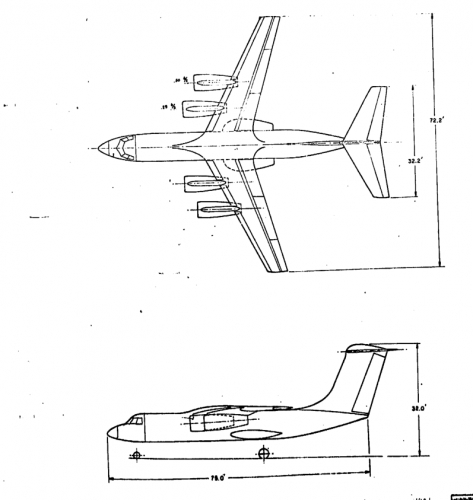

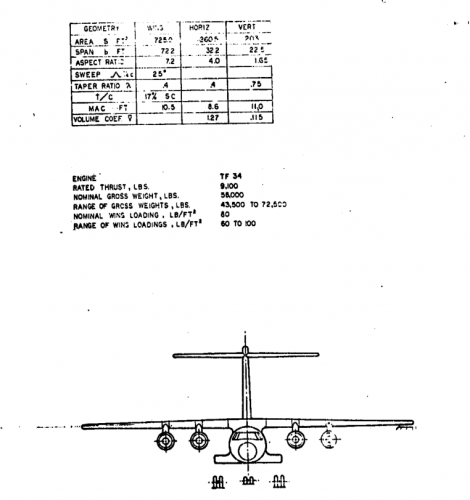

here is a swept wing USB aircraft.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740007606_1974007606.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

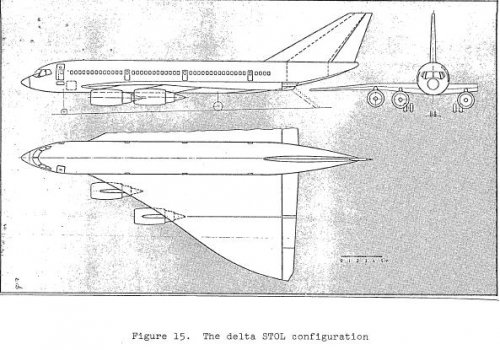

here is a STOL delta-wing transport aircraft.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730017304_1973017304.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,872
Reaction score
1,667
Hi,

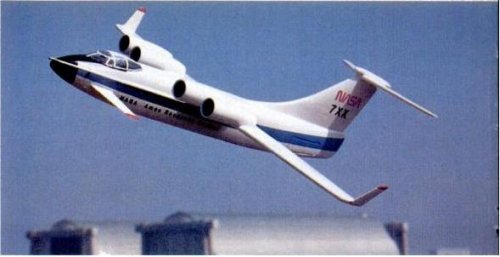

I think it was a model not real aircraft,but I was never heard about
it before.

http://books.google.com.eg/books?id=mQAAAAAAMBAJ&pg=PA74&dq=AVG+variable+geometry+popular&lr=&cd=2#v=onepage&q&f=true


Attachments

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,798
Reaction score
72
I think it was a model not real aircraft,but I was never heard about
it before.
A B&W version of this image appears on page 49 of the 'Aerofax' Douglas A-3
Skywarrior book, published in 1987, along with the two images posted below.
The caption to the above image states :-

'This artist's rendering shows the proposed Upper Surface Blowing research aircraft
as it would appear in flight over the distinctive dirigible hangar at NAS Moffett Field.
NASA Ames Research Center still hopes to obtain the funding to modify an A-3
airframe and fit it with four turbofans to provide for upper surface blowing.'
The description, on the previous page, relates how, in 1983, NASA Ames selected
the A-3 as a basis for a follow-on USB research aircraft to the modified DHC Buffalo
based QSRA.

"Seeking to develop a high-speed Upper Surface Blowing (USB)
research aircraft to extend into higher speed and altitude the work done with it's
QSRA..."

The proposed engines were the GE TF34 or the Garret ALF502.
The wing and tailplane would be all-new.

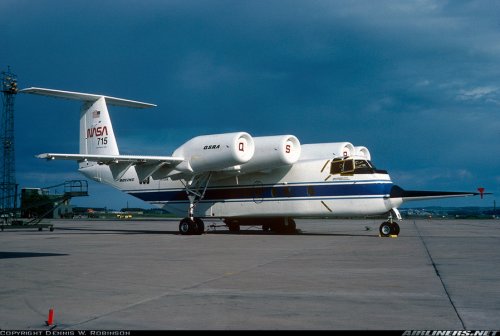

Also see below an image of the QSRA, from airliners.net.


cheers,
Robin.


Attachments

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,329
Reaction score
89

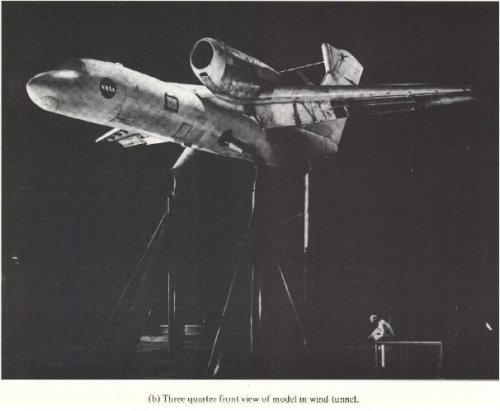

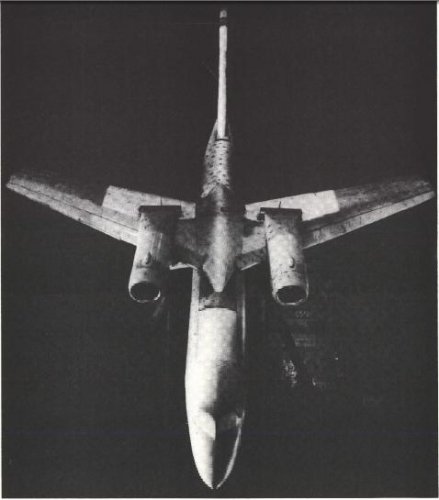

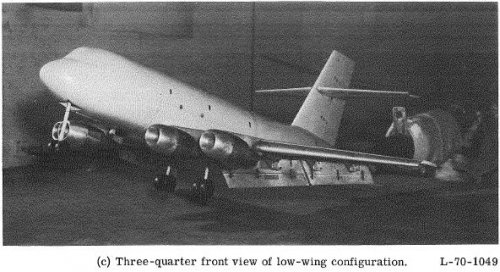

The generic model from one of my earlier posts, now being used to test STOL.

Investigation Of A 0.3 Scale Jet-Transport Model Having a Jet-Augmented Boundary-Layer-Control Flap with Direct-Lift Control Capablility

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19690021344_1969021344.pdf

The attached images are figure 1, showing the XC-99 like model used.

Figure 2, in the post following shows the key features of the wing design being tested.


Attachments

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,329
Reaction score
89

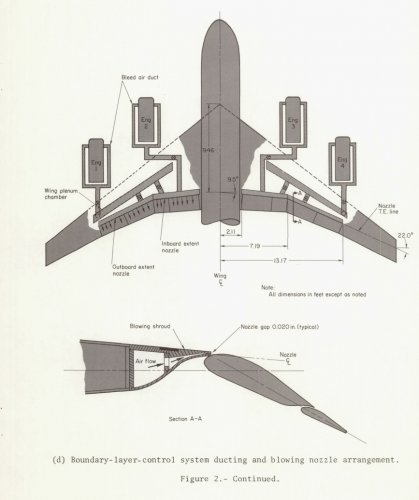

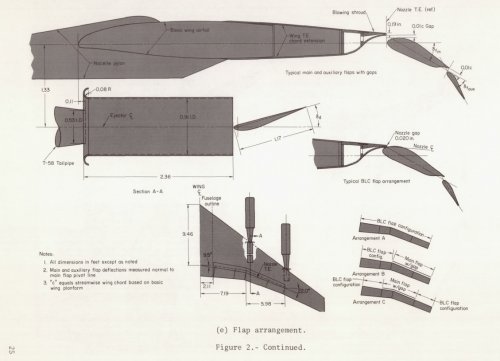

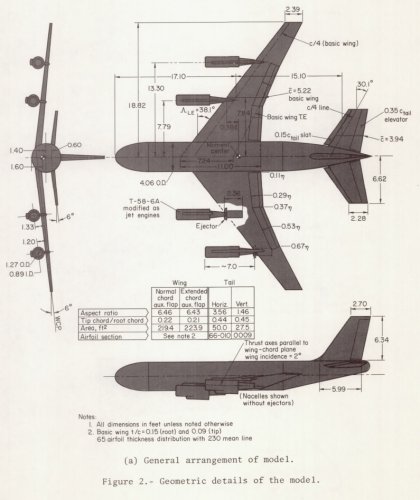

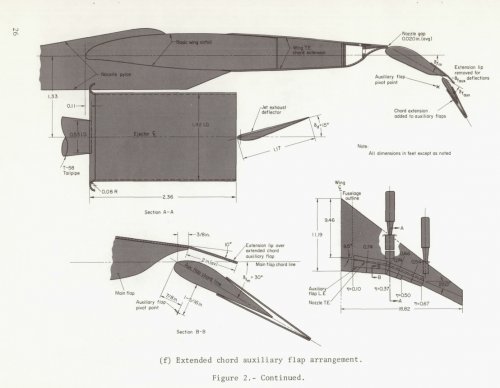

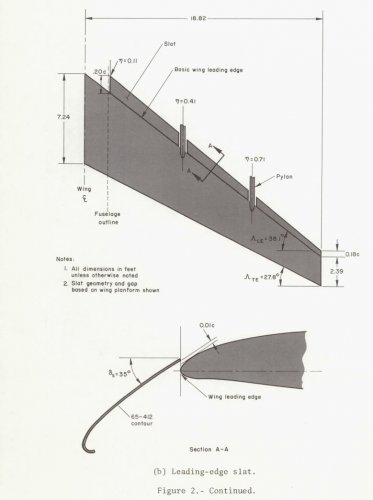

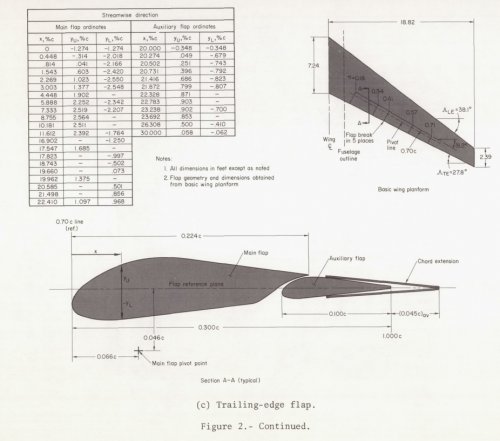

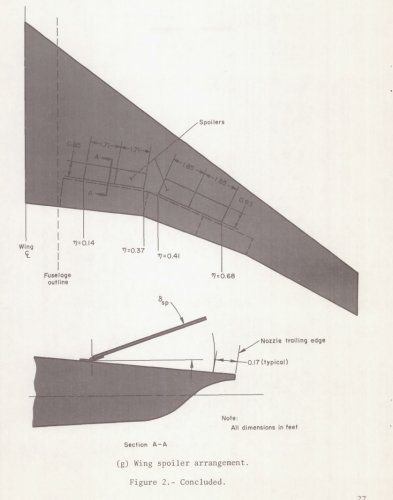

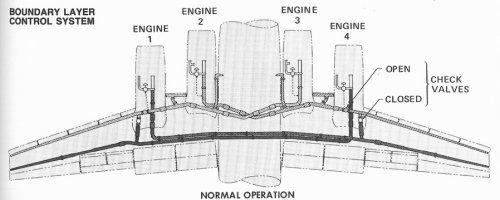

Figure 2. Showing the details of the wing design tested.

Embarrassed to ask this, but can anyone tell me how to convert the scale measurements into the actual figures... :-[


Attachments

Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,329
Reaction score
89

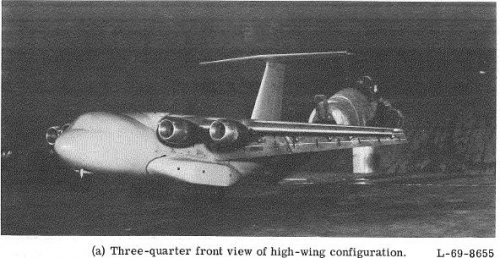

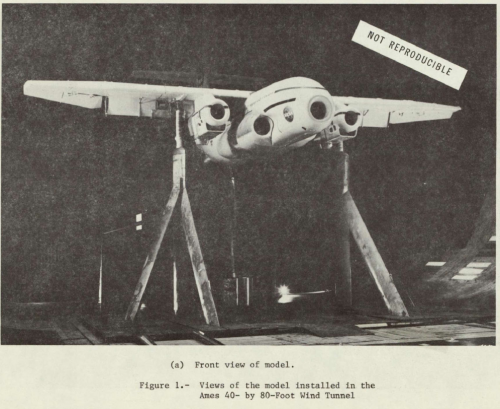

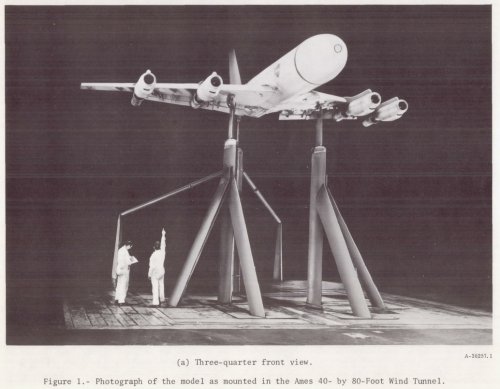

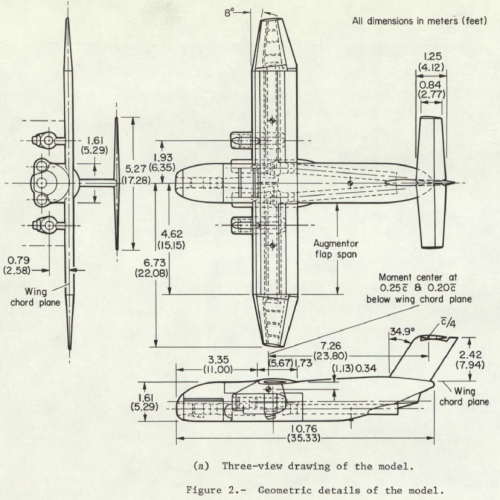

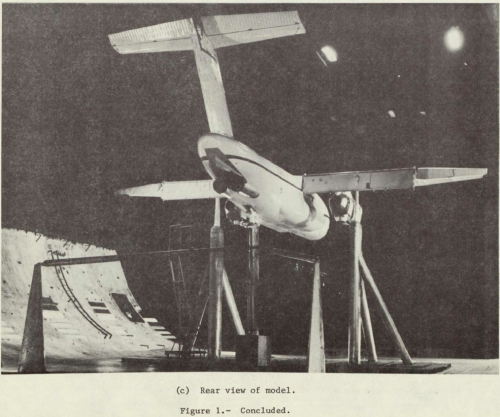

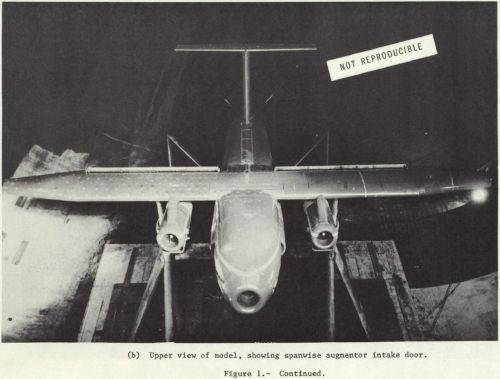

An investigation was made to study the aerodynamic characteristics of a large scale model equipped with an augmented-jet flap and underwing cruise engines with deflectable thrust capability. The augmented jet flap is a jet flap with the primary jet thrust increased by means of a spanwise ejector system installed in the wing trailing-edge flap. The flap installation was on the inboard part of the wing, with blown ailerons outboard.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19710016707_1971016707.pdf


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
190
Presumably related to AMST development.


Graham1973

CLEARANCE: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,329
Reaction score
89
Stargazer2006 said:
Presumably related to AMST development.
It might be, but I've never seen anything quite like it before, I stumbled across it trying to run down details on a C-17 lookalike that was used as the basis for some STOL landing simulations in the 1970's.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
190
Apparently we don't have a topic on the QSRA, although I believe the program was a lot more than "notional"...

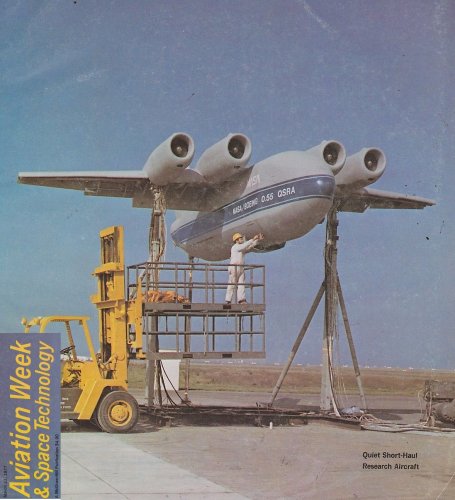

Anyway, here is the "0.55 QSRA" which was featured on the cover of Aviation Week, March 21, 1977.

I wasn't aware of that model previously and do not know whether "0.55" refers to its scale compared to the final article, nor whether its engines were operational or if it was only a wind-tunnel thing.
