Hello all,

Would really like to get my hands on a three view drawing of the TF-86F Sabre.

I think only two where ever made? any help would be great ;D

Justo Miranda do you have this in your endless supply of three view drawings?? :-\

Thanks to all who can help!

Lockon


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Two made: TF-86F No. 1 52-5016, TF-86F No. 2 53-1228. First one crashed and killed NAA test pilot Joe Lynch.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54

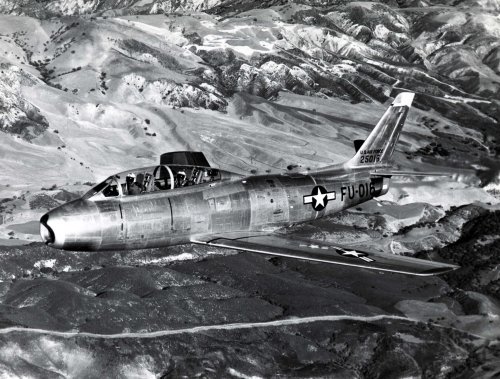

Two pictures.


Attachments

  • TF-86F No. 1.jpg
    TF-86F No. 1.jpg
    250.4 KB · Views: 397
  • TF-86F No. 1-2.jpg
    TF-86F No. 1-2.jpg
    477.7 KB · Views: 379

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Thanks Guys :)

Thanks for the side view it is a start!

Lockon


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

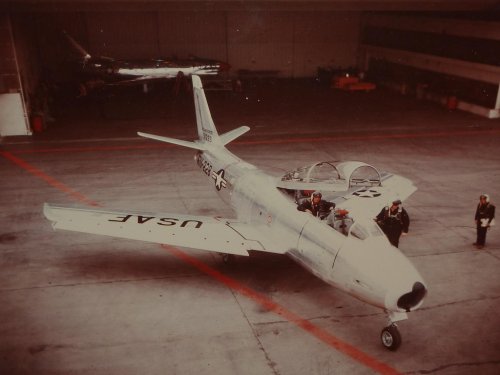

More pics, from Squadron Signal's second F-86 Sabre in Action volume (# 1126):


Attachments

  • Image1.jpg
    440 KB · Views: 302
  • Image2.jpg
    331.3 KB · Views: 56
  • profile.gif
    11.8 KB · Views: 73

Lockon

ACCESS: Confidential
Joined
Dec 22, 2007
Messages
52
Reaction score
1
Hey Stargazer thanks for your input just got me a copy of the book ;D

But to me, the canopy on the side drawing just does not look right?

lockon


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Lockon said:
Hey Stargazer thanks for your input just got me a copy of the book ;D

Cool!!! Here's for all the idiotic publishers who think sharing stuff on forums will keep their books from selling...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,978
Reaction score
395
From 'North American F-86 Sabre', Duncan Curtiss,
Crowood Series, pp.87-89

TF-86F Two seat Sabre

On 3rd February 1953 NAA began design of a two seat F-86F,
to meet a USAF requirement for high speed T-33 trainer
replacement.
Initial construction of the NA-204 began on 8th April 1953.
The new aircraft was a modification of the F-86F-30 by
splicing in a 63" (160cm) plug into the forward fuselage
to accommodate the second cockpit. The alteration in the
CofG thus caused was corrected by moving the wing forward
by 8" (20cm).
The trainer would use a one piece clamshell canopy, rather
than the sliding type fitted to the fighter.
Armament was not fitted. One change from the fighter version
was the use of the slatted wing, rather than one with the fixed
'6-3' leading edge.
The first aircraft 52-5016, made it's first flight on December14th,
and proved to have a similar performance to the F-86F.
On 17th March 1954, NAA test pilot Joe Lynch, took off from
Nellis AFB on the aircraft's ninth flight.
Pulling into a slow roll on take-off, the aircraft crashed and
exploded, killing Lynch.
Investigations revealed that the base personnel had filled the
fuel tanks completely, rather than partially, as required by the
flight profile, the extra weight leaving the pilot no margin
for error.
On 23rd March the AF authorised the construction of a
second machine as the NA-216. The last F-86F-35 was
converted to the new configuration, with further modifications
as a result of the previous, brief, flight tests.
An extended vertical tail was installed, along with a ventral fin.
Two .50 cal guns were also installed, along with underwing
pylons, as was the slatted wing.
The aircraft,53-1228, flew for the first time on 5th August 1954,
but on 7th February 1955, the Air Force announced that no
production aircraft would be procured. Therefore, on 10th
March the aircraft was transferred to Edwards AFB for use
as a chase plane. The aircraft had a sucessful career at
Edwards, before being retired in November 1958, and
finally scrapped in March 1961.

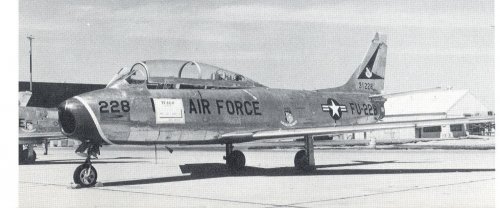

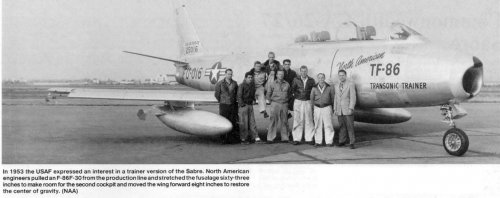

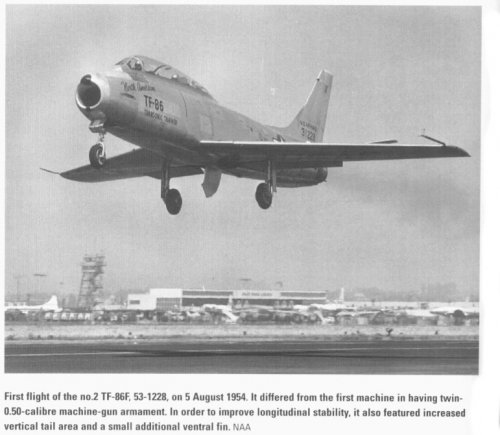

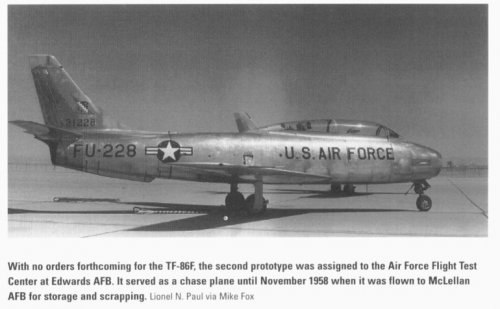

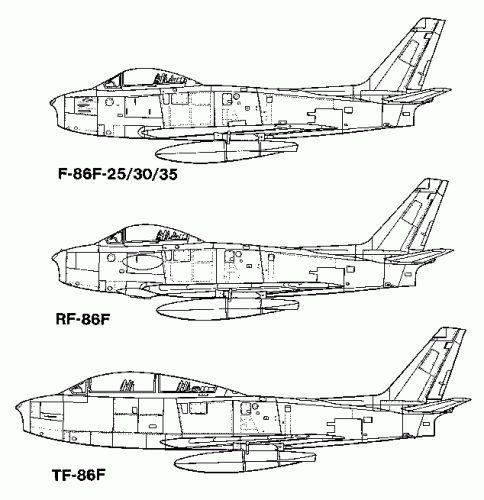

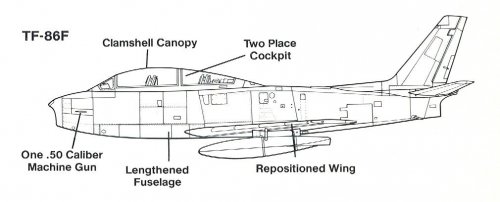

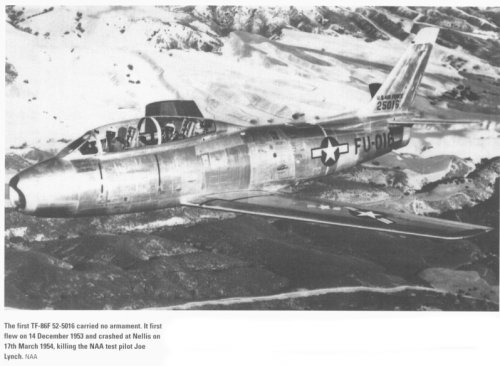

First three pictures from the above reference,
the drawing is from
'Aircraft of the USAF', Nico Sgarlato, A&AP, 1978, page 9.


cheers,
Robin.


Attachments

  • TF-86F 2nd example.jpg
    TF-86F 2nd example.jpg
    55.7 KB · Views: 56
  • TF-86F image #3.jpg
    TF-86F image #3.jpg
    143 KB · Views: 53
  • TF-86F image #2.jpg
    TF-86F image #2.jpg
    213 KB · Views: 45
  • TF-86F image #1.jpg
    TF-86F image #1.jpg
    200.9 KB · Views: 33

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,479
Reaction score
995
77 pictures at the SDASM Archives.
Link: http://www.flickr.com/search/?ss=2&w=49487266%40N07&q=TF-86F&m=text


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

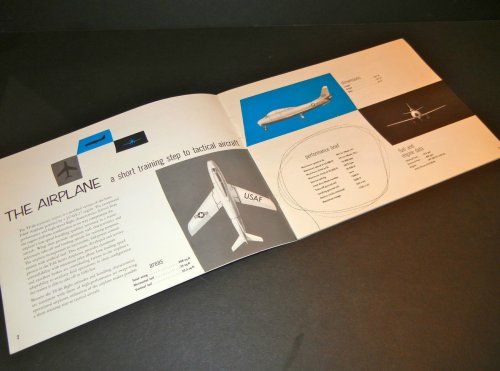

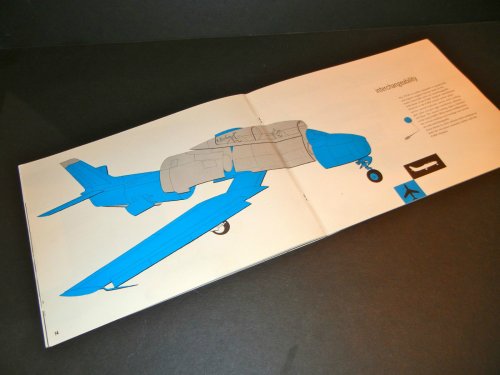

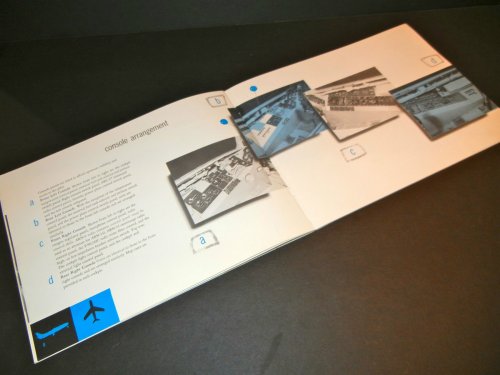

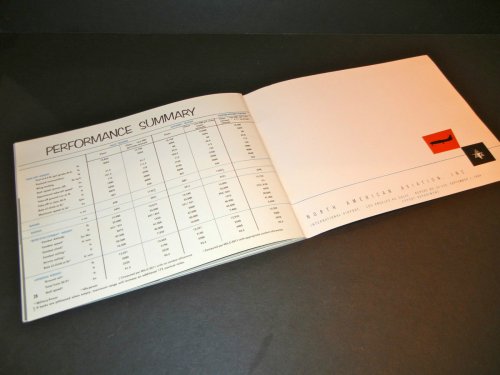

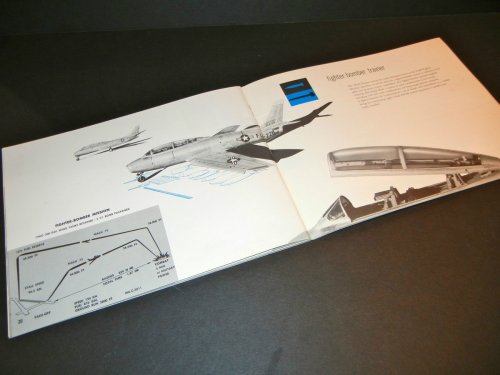

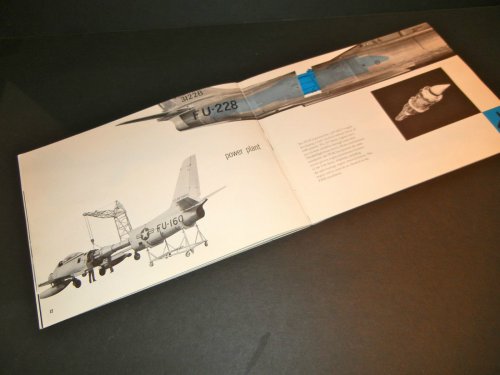

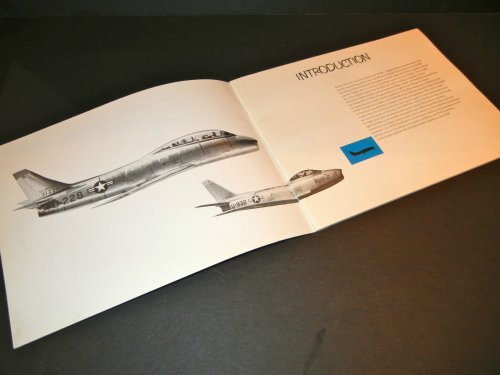

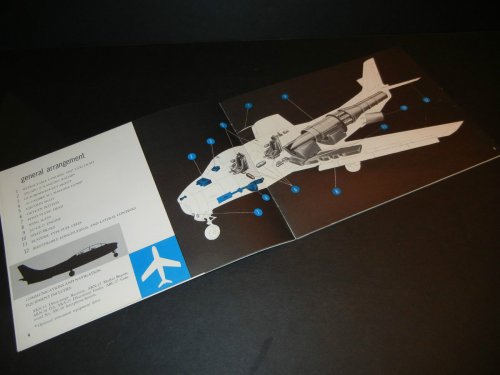

A superb 30-page brochure seen on eBay:


Attachments

  • 20-21.JPG
    333.1 KB · Views: 28
  • 14-15.JPG
    324.7 KB · Views: 25
  • 12-13.JPG
    305.5 KB · Views: 19
  • 08-09.JPG
    326.7 KB · Views: 20
  • 06-07.JPG
    358 KB · Views: 26
  • 04-05.JPG
    269.9 KB · Views: 28
  • 02-03.JPG
    305.1 KB · Views: 30
  • 01.JPG
    272 KB · Views: 28

Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
14
Stargazer2006 said:
A superb 30-page brochure seen on eBay:

Is this still available ..May i have the Link please?

Thank you,


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Ardavan.K said:
Damn it... any idea where this kind of stuff might be available ?

I guess that eBay is still your best bet. There are truly some amazing collections being sold this year on eBay, mostly from former Lockheed employees.
You must be on the lookout very regularly and be quick! Since they can get pretty expensive, what you could do is write the names of the few sellers that have the most interesting items, check their pages regularly, then make offers on a few so that you save on postage when you win several auctions.


bercr

ACCESS: Confidential
Joined
Jan 12, 2011
Messages
180
Reaction score
57

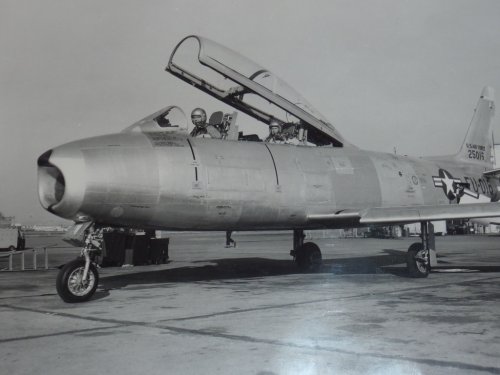

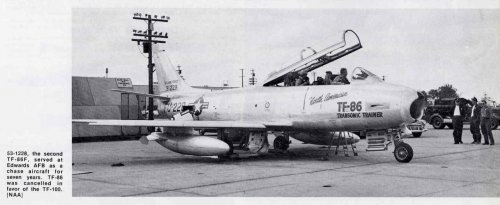

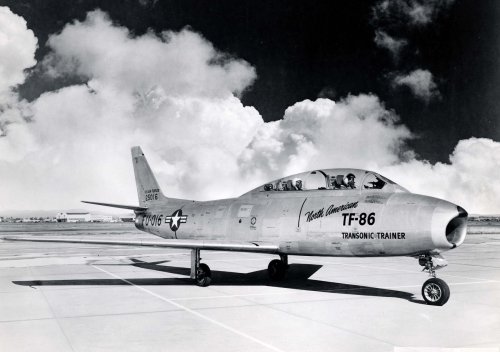

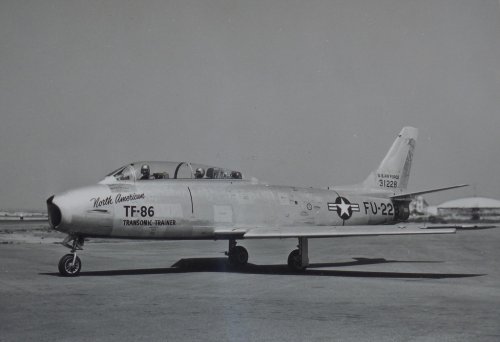

more photos


Attachments

  • 6175306107_a8e9c74826_b.jpg
    250.2 KB · Views: 91
  • 7272170448_67389a0ea8_h.jpg
    812.6 KB · Views: 101
  • 6750386275_de570abace_b.jpg
    236.6 KB · Views: 109
  • 7597748374_dd104f30c6_b.jpg
    302 KB · Views: 118
  • 6085767911_819ff706fa_b.jpg
    230.7 KB · Views: 82
