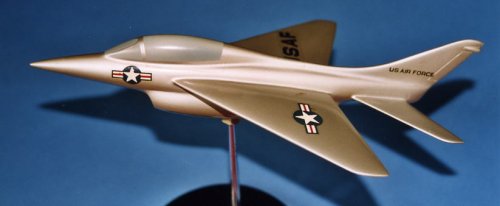

"Rapier" lightweight fighter from Tony Buttler


Attachments

  • NAA Rapier1.jpg
    NAA Rapier1.jpg
    26.6 KB · Views: 1,601
  • NAA Rapier2.jpg
    NAA Rapier2.jpg
    35.4 KB · Views: 1,408

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,356
Reaction score
6,003
Very nice garys,

what was this NA aircraft ?.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
636
Reaction score
386
Don't you think it may be just a toy?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,247
Reaction score
1,660
It's not a toy.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115

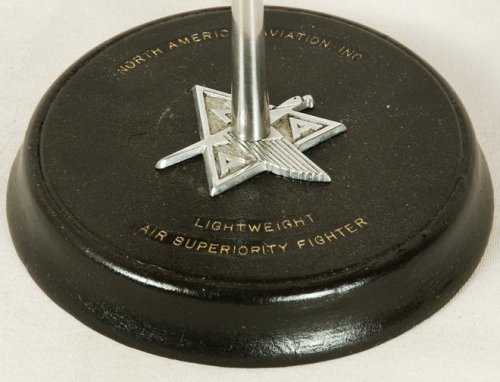

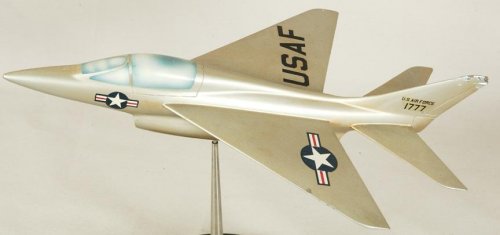

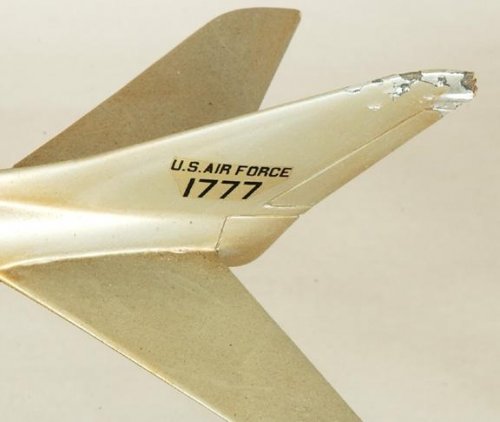

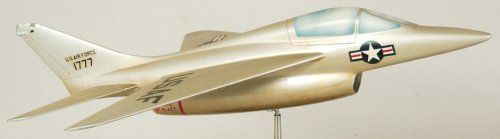

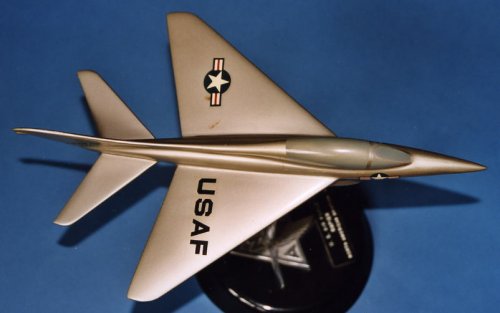

No, its a real North American project called Rapier - or "Lightweight Air Superiority Fighter" in this case. Photos of a model of it owned by Sir George Cox is in American Secret Projects. I've added some pictures from Tony Buttler posted previously.


Attachments

  • 77.4.jpg
    48.7 KB · Views: 91
  • 77.3.jpg
    22 KB · Views: 94
  • 77.2.jpg
    25.4 KB · Views: 1,154
  • 77.1.jpg
    20 KB · Views: 1,182
  • 77.0.jpg
    31.1 KB · Views: 1,207

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115
I'd venture an educated guess that this design was entered into the late 1952 GOR for a lightweight air superiority fighter against the Lockheed L-246, Republic AP-55, and Northrop N-102 Fang, that resulted in the F-104.

Published sources have said that North American submitted the NA-212 (F-100B/F-107) but this project seems too late to fit the timeline. Lockheed's L-246 won in Jan 1953, but NA-212 started development in August 1953.

Additionally, the shape of the design looks appropriate for early 1950s and the size of the model fits this competition better than anything else I can think of. It might be a private venture model perhaps, but mid 1950s at latest.

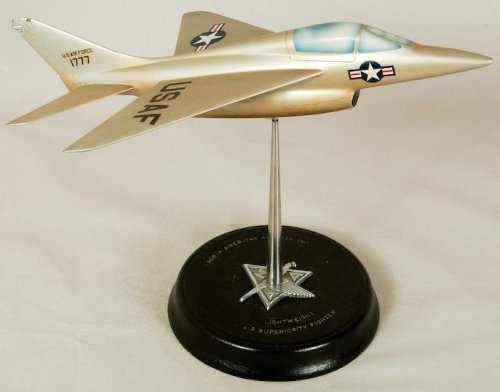

Model is 28cm length and 18.6cm span. At 1:32nd scale, that would be 8.96m length, 5.96m span. Pretty much in the Folland Gnat category. Judging from the relative size of the canopy, I would say this seems about right.

1/32 scale seems most probable; if it was 1/48th the resulting airplane would be too large, 1/24th scale too small.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115
Additionally, the Rapier lightweight design it must logically preceed the XF-108 Rapier, as I can't see that name being reused after the XF-108 as it was too well known a project.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115

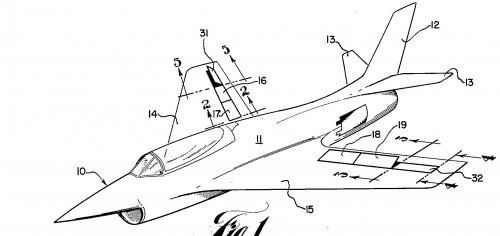

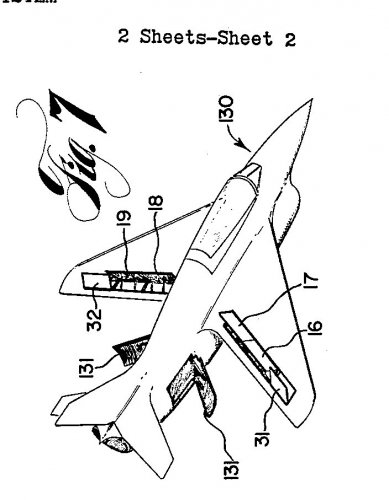

Well, its not identical, but this 1958 NAA patent for an aircraft control system has drawings of what seems to be a related design. Intake slightly different and the Rapier has the jetpipe cut away.

http://www.google.com/patents/about?id=FA5NAAAAEBAJ


Attachments

  • NAA-Fighter-1.jpg
    80.4 KB · Views: 90
  • NAA-Fighter-2.jpg
    135.3 KB · Views: 97

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213
PaulMM said:
So, anyone know more about this one?

Yes I do!

First, it did come after the F-108, because it was known as the Rapier II (please revise topic title accordingly).
Second, here is an illustration showing how the rockets are launched in orderly fashion, while the engine cleverly refrains from ingesting any gases.
Third, there was an NAA Rapier III (saw it mentioned in a report), but I'm not sure what that was.


Attachments

  • NAA Rapier II.jpg
    NAA Rapier II.jpg
    54.4 KB · Views: 209

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115
2 photos of a wooden inhouse "Rapier III" model are on P.112 of Secret US Proposals of the Cold War by Jim Keeshan. Single engine, longer than Rapier II, something like a blend of Rapier II with an F-100B. USAF markings.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,115
Thanks to Bob Bradley and "Aim9xray" we can find:


D198 Rapier Lightweight Fighter Guppy
D234 Rapier III Navy Rapier (Super F86)
D235 LRI
D265 LRI (202A) Phase I


Take that, Aim9xray! The lightweight "Rapier" designs precede LRI studies :)
