North American Hoverbuggy VTOL test rig

walter

CLEARANCE: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Can it be that Northrop was involved (or even built?) a test rig named Hover Buggy intended for VTOL trials. Never saw any details.


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
NOT Northrop. You'll have to have the topic's title edited...

It was North American. Here is what Aerofiles says about it:

FS-1 Hoverbuggy 1965 = Open framework VTOL research vehicle, "Flight Simulator Number 1". Two 2200# GE YJ85 turbojets for lift, four engine bleed-air nozzles on outriggers for control; "span": 23'0" length: 36'0" load: 1550# v (max): 58 range 10. The ship had made 15 tethered and 185 free flights at altitudes up to 100' when the program was shut down in 1967.

http://www.aerofiles.com/_noram.html


walter

CLEARANCE: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Thank you very much Stephane!
Sorry I caused confusion. I thought it was a Northrop "product", but I started the topic wrongly with North American. On this forum you learn every day (at least, I do).


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
No probs! Now if you have a picture of that thingy, I would be very interested!


walter

CLEARANCE: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100

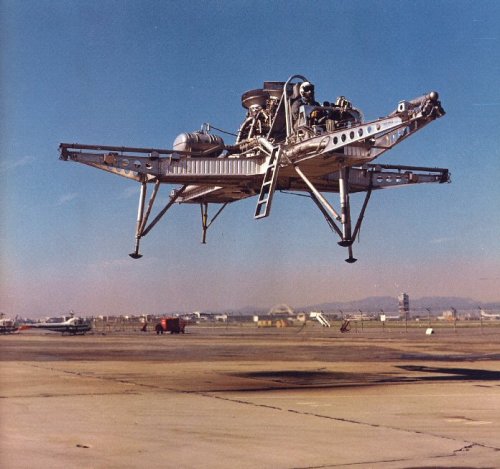

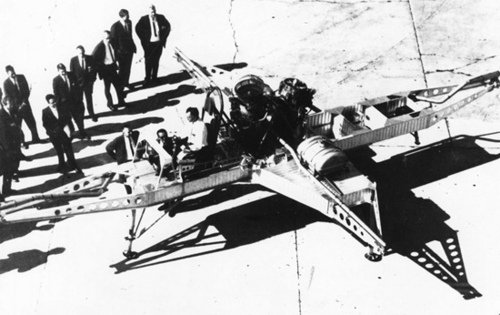

will you accept 2 photos? ;D


Attachments

  • Hover Buggy, foto.jpg
    Hover Buggy, foto.jpg
    65.9 KB · Views: 115
  • Hover Buggy, foto 2.jpg
    Hover Buggy, foto 2.jpg
    79.5 KB · Views: 116

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Great! I give the name, you give the pics, sounds like a fair deal! LOL ;D


vstol

CLEARANCE: Confidential
Joined
May 9, 2006
Messages
67
Reaction score
0
Website
www.vtol.org
Color photo of the North American Hoverbuggy from the cover of the Journal of the American Aviation Historical Society, Vol 39 (1994), No. 2.

http://www.aptcollectibles.com/aahs/JournalTOC/tocv39.htm.


Attachments

  • hoverbuggy front.jpg
    hoverbuggy front.jpg
    111.1 KB · Views: 116

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
vstol said:
Color photo of the Northrop Hoverbuggy from the cover of the Journal of the American Aviation Historical Society, Vol 39 (1994), No. 2.

http://www.aptcollectibles.com/aahs/JournalTOC/tocv39.htm.

Great pic, vstol... but it's NORTH AMERICAN!!! Not Northrop!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

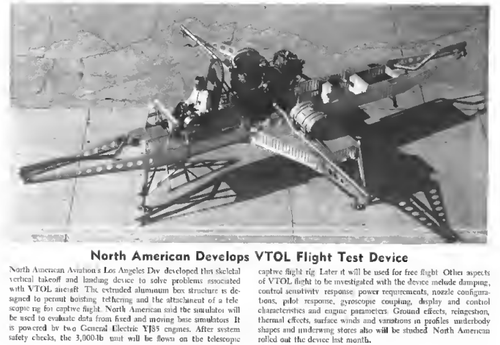

From AW 1965.


Attachments

  • 1.png
    278.3 KB · Views: 32
