Nieuport 140

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,317
Reaction score
4,672
Website
www.amazon.com

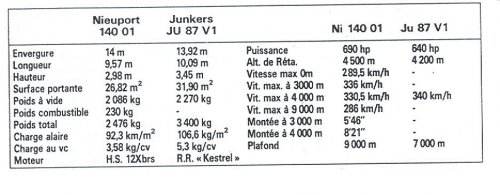

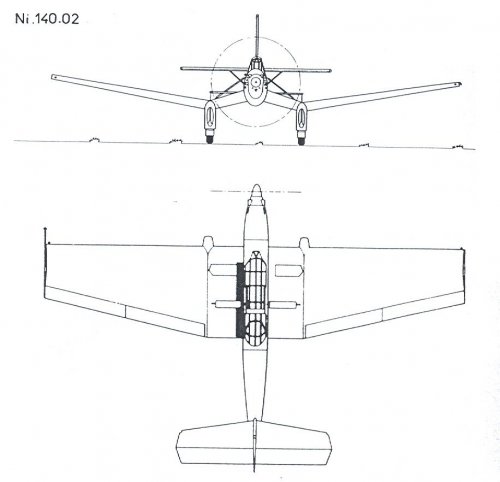

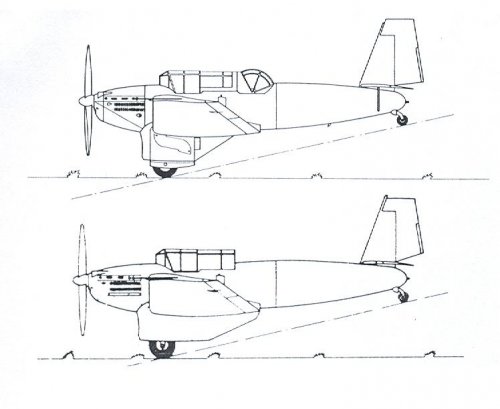

French "stuka" prototype
source
-Le fanatique de l'Aviation nº 189-Aout 1985


Attachments

  • Escanear0002.jpg
    104.8 KB · Views: 294
  • Escanear0003.jpg
    48 KB · Views: 245
  • Escanear0004.jpg
    37.8 KB · Views: 245
  • Escanear0006.jpg
    58.2 KB · Views: 223

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,270
Reaction score
957

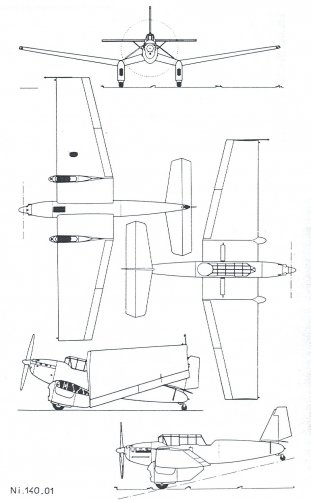

The Nie-140-01 was destroyed in a diving test on 8 july 1935 (engine failure, pilot safe)

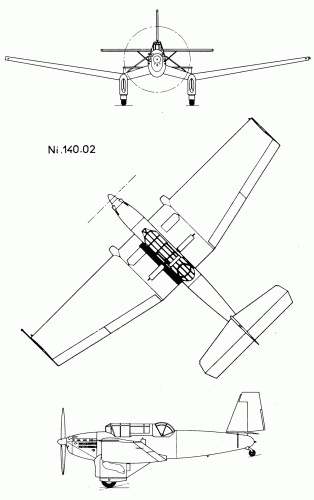

The Nie-140-02 was destroyed in diving test too on 15 may 1936 (reason unknown, pilot dead). The programme was abandonned but the one seat LN-40 family is a derivative of the Nie-140.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,270
Reaction score
957
Well, i forgot my source :

Nieuport 1909 - 1950, Leonard Rosenthal, Alain Marchand, Michel Borget, Michel Benichou. Docavia / Editions Lariviere, 1997 (from page 239 to page 243)


royabulgaf said:
It was license built by the Confederates, who called it the Ass Kicker

Yes, in Too Much Beer Monthly ;D


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,317
Reaction score
4,672
Website
www.amazon.com
Hammer Birchgrove said:
royabulgaf said:
It was license built by the Confederates, who called it the Ass Kicker
Is this some Alternative History I haven't heard about? ???

SINK THE BISMARCK?
source
-Le fanatique de l'Aviation nº 189-Aout 1985


Attachments

  • Escanear0001.jpg
    522.1 KB · Views: 200

Hammer Birchgrove

ACCESS: Top Secret
Joined
May 13, 2009
Messages
583
Reaction score
17
Justo Miranda said:
Hammer Birchgrove said:
royabulgaf said:
It was license built by the Confederates, who called it the Ass Kicker
Is this some Alternative History I haven't heard about? ???

SINK THE BISMARCK?
source
-Le fanatique de l'Aviation nº 189-Aout 1985
"Confederates" made me think about the Confederated States of America... Is it perhaps, in this context, an aeroplane manufacturer? ???

You meant the Allies (UK, USA, etc)?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,270
Hi!

http://www.airwar.ru/enc/bww2/ni140.html

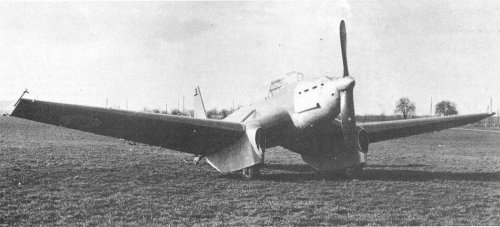

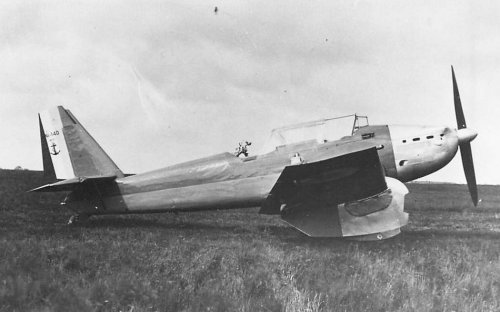

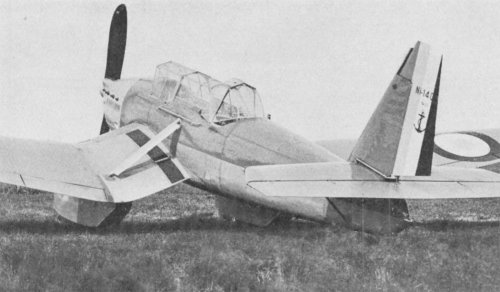

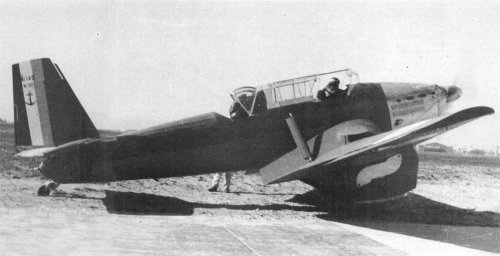

"The idea to design a deck dive crafter itself originated in the early 1930s. Based on all the advantages and disadvantages of the existing schemes, Nieuport engineers came to the conclusion that a modern aircraft should be a monoplane with a closed cockpit of pilots and, if possible, with a retractable landing gear. This approach provided the best aerodynamic qualities and allowed maximum use of the engine's power characteristics to ensure a higher speed. With the first two points the problem did not arise. Moreover, they decided to abandon the retractable landing gear. This was done for several reasons - saving weight, reducing the load on the pilot, and if you break the wing in the form of a "reverse gull", then in the place of the break, you can very compactly install the fairings and place a bomb load or brake shields in them. They decided to make small arms as powerful as possible. The engine was equipped with a 20 mm motor cannon and additionally supplied one 7.5 mm machine gun. While making out the external appearance of the aircraft it became clear that the Ni 140 would strongly resemble the Ju-87A. The Germans quite rightly accused the French of stealing drawings, although most likely we are talking about adopting the ideas of German specialists. Indeed, by the time of its appearance, the Ni 140 struck the eye with the huge fairings of the chassis racks and the typical water-cooling motor that gave the Nieuport airplane the closest resemblance to the Junkers. However, there were differences. The French dive bomber originally had a single-keystone vertical tail, and the brake flaps were installed in the rear of the fairings, when installing radiators in the front. However, all this will be later. "


Attachments

  • ni140-4.jpg
    91.3 KB · Views: 43
  • ni140-3.jpg
    76.4 KB · Views: 44
  • ni140-2.jpg
    71 KB · Views: 49
  • ni140-1.gif
    114.1 KB · Views: 46
  • ni140-7.jpg
    73.3 KB · Views: 40
