Potez and Potez-CAMS flying boats and seaplanes

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,783
Website
www.amazon.com

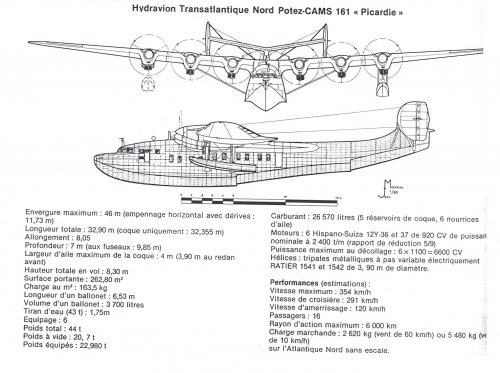

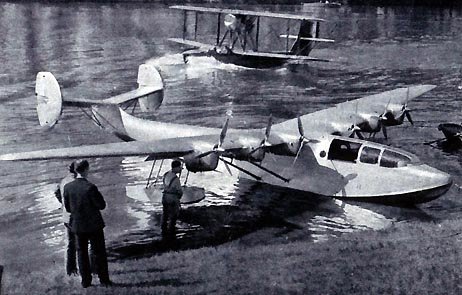

Potez CAMS 160 and 161

Model and prototype
source
-le fanatique de l'Aviation unknown issue


Attachments

  • Escanear0002.jpg
    219.9 KB · Views: 785
  • Escanear0003.jpg
    236.5 KB · Views: 744
  • Escanear0004.jpg
    154.4 KB · Views: 668

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,783
Website
www.amazon.com

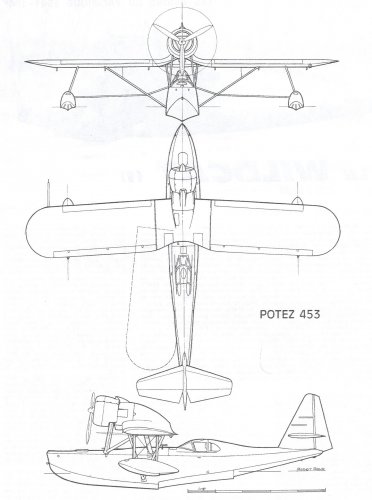

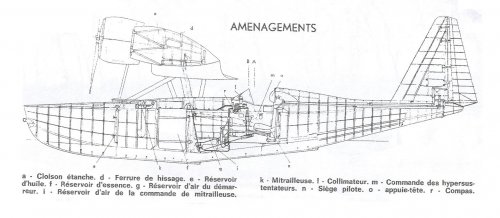

Potez 453

French fighter flying boat prototype
source
-le fanatique de l'Aviation unknown issue


Attachments

  • Escanear0001.jpg
    207.4 KB · Views: 597
  • Escanear0002.jpg
    148.7 KB · Views: 541
  • Escanear0003.jpg
    51 KB · Views: 154

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
89
Well, that could easily outfly the fighter variant of the Shavrov Sh-2 ;D

Though, If I recall correctly, the Shavrov was better armed.


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
I'm found out that there are still nobody posting anything about this beautiful flying boat!

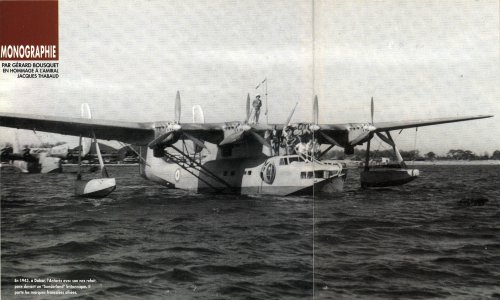

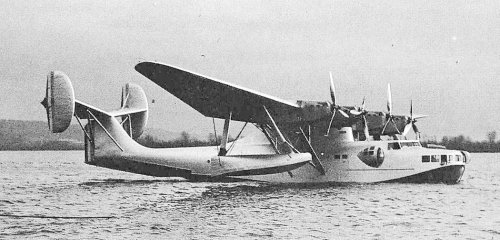

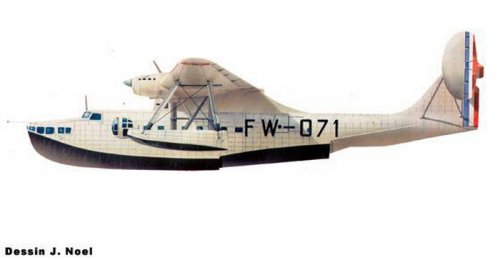

Potez-C.A.M.S. 141 Antares


Attachments

  • Potez C.A.M.S. 141.jpg
    Potez C.A.M.S. 141.jpg
    183.9 KB · Views: 157
  • Potez C.A.M.S. 141 2.jpg
    Potez C.A.M.S. 141 2.jpg
    299.2 KB · Views: 166
  • Potez C.A.M.S. 141 3.jpg
    Potez C.A.M.S. 141 3.jpg
    884.3 KB · Views: 231
  • Potez_CAMS_141_1.jpg
    35.8 KB · Views: 190

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,783
Website
www.amazon.com

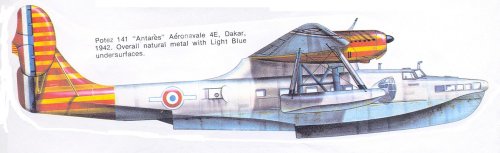

Some additional info from
-Warplanes of the Second World War-Volume Five- by William Green
-Unknown source


Attachments

  • Escanear0002.jpg
    121.4 KB · Views: 203
  • Escanear0001.jpg
    181.1 KB · Views: 195

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,232
Reaction score
93
Website
zeef.com
Justo Miranda said:

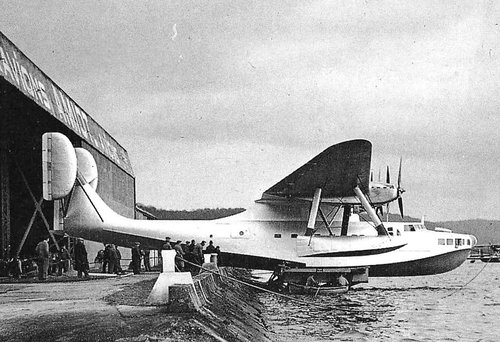

Potez CAMS 160 and 161

Model and prototype
source
-le fanatique de l'Aviation unknown issue
this is new for me : i suppose are civil and military variant ( 160 and 161)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528

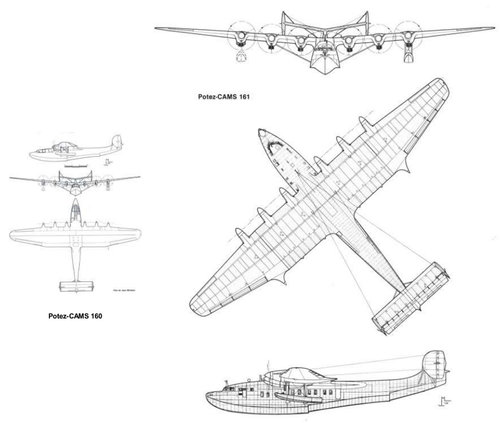

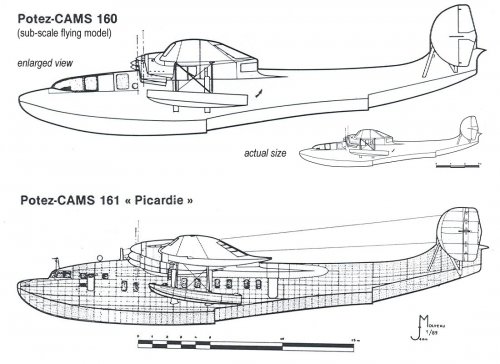

The 160 was the sub-scale flying model of the 161 as shown here:


Attachments

  • 160 vs 161.jpg
    160 vs 161.jpg
    287.6 KB · Views: 199

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
Nice Stargazer' ... where is that from?

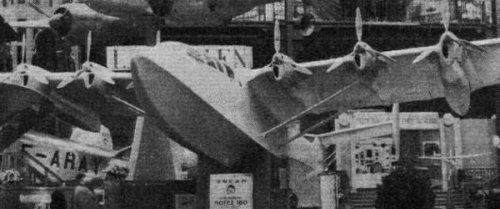

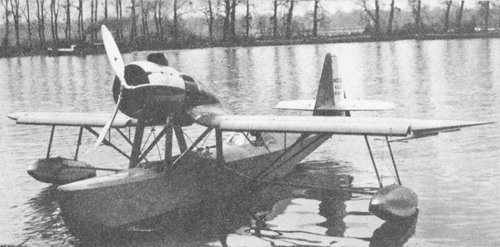

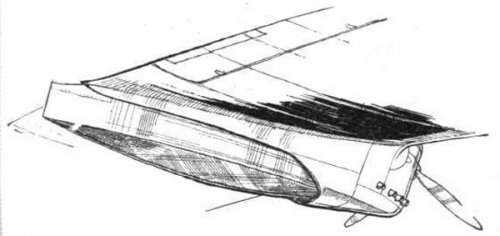

A bit more on the 160 from Flight...


Attachments

  • potez-cams-160-flight-1dec38.jpg
    40.8 KB · Views: 139
  • potez-cams-160float-flight-1dec38.jpg
    32.5 KB · Views: 138

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
528
The collage is by me, but the artwork is by Jean Molveau, a French author and photographer who did several very good books on French aircraft. Now where did I get these scans from? I thought it was from this very forum, but then perhaps not!


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12

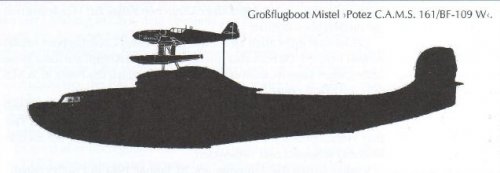

I don't remember where i got this picture, but it seems to me it would be appropriately to post it here.
May be anyone of you can tell some words about it,


Attachments

  • potezmistel.jpg
    15.3 KB · Views: 194

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,108
I've seen this picture before on the Nexusboard, were it was described as a large
Mistel, intended for an attack on the US homeland. Besides the doubtful source,
there are other points of criticism, I think. It would have been purely a one-off
combination, so a one-off mission, but quite a large effort for it. A float plane version
of the Bf 109 was never developed and why it would have been used here is hard to see,
I think. It just would have increased drag and reduced performance. For saving the pilot,
additional flotation gear would have done the same. But perhaps the intention was to land
right in New York harbour after the demolition of the Statue Of Liberty. And then, landing
a floatplane and leaving it at the pier, saluting in front of hundreds of reporters would have
looked much better, of course ! :D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,783
Website
www.amazon.com
flying-finn said:
I'm found out that there are still nobody posting anything about this beautiful flying boat!

Potez-C.A.M.S. 141 Antares

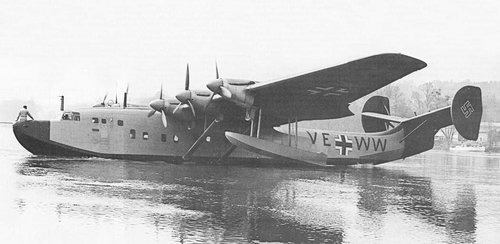

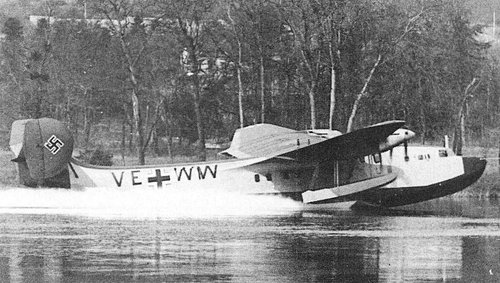

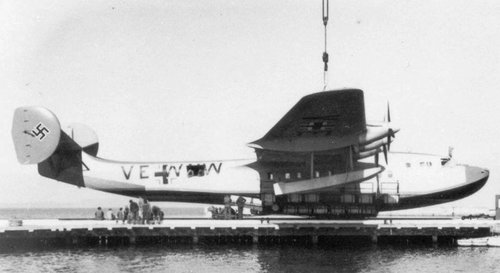

In Luftwaffe service


Attachments

  • Escanear.jpg
    426.7 KB · Views: 1,066

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,654
Reaction score
1,005
Justo: despite its caption, that photo (from the Musée de Sartrouville) is not the four-engined 141. It is the prototype Potez-CAMS 161 (marked VE+WW) preparing for its maiden flight on the Seine near Sartrouville.

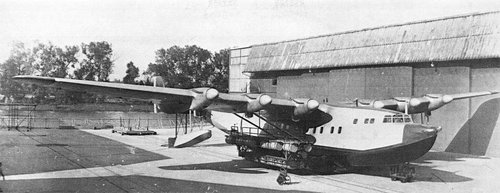

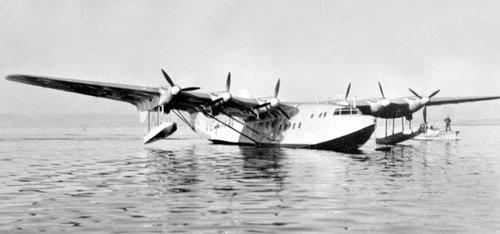

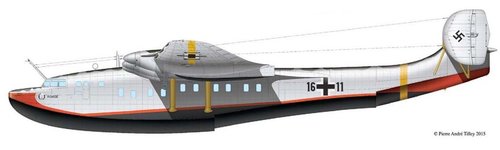

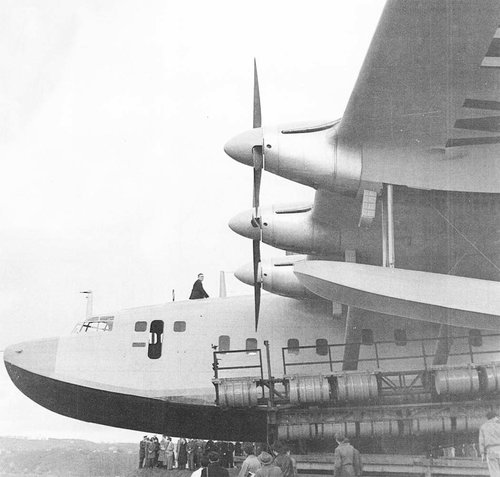

The prototype Potez-CAMS 161 was planned with four 2200hp Gnome & Rhône 18s or 1600hp GR 14Ns. Instead, it was finished with six of the more readily available 920hp HS-12Y-36/37s.

The Potez-CAMS 161 was destroyed by USAAF 1st Lt Urban Drew who claimed a "BV 222 destroyed on the waters of Schaal See" (later changed to be the Bv-238 prototype). The CAHS Journal (Summer 2008. p.73) details the problem with Drew's Bv-222 claim and identifies the aircraft involved as the Potez-CAMS 161. BTW, the Potez-CAMS 141 flew with E4 out of Dakar and was scrapped sometime in 1944.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056

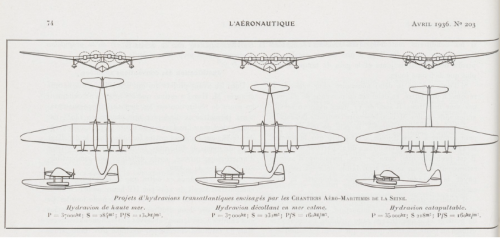

From l'Aeronautique 1936,


I think those projects are the CAMS-100,CAMS-130 & CAMS-150,you can compare
with TU magazine Info.


Attachments

  • CAMS-150.png
    73.8 KB · Views: 526
  • CAMS-130.png
    60.2 KB · Views: 534
  • CAMS-100.png
    59 KB · Views: 618
  • CAMS.png
    414.4 KB · Views: 756

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the CAMS-59 was three engined torpedo bomber Project version of CAMS-52,with third
500 hp engine in the nose.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the CAMS-41 was a long range recce-bomber flying boat project of 1923,with two 400 hp
Lorraine 12Db engines,and the CAMS-41bis powered with two 450 hp engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,

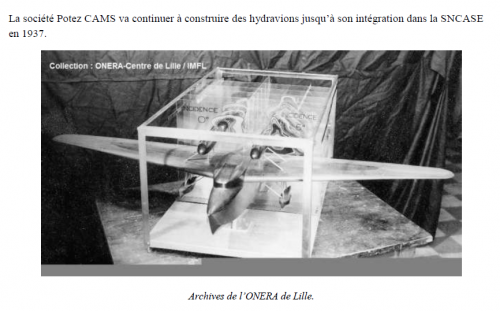

I don't know what was this flying boat from Potez-CAMS of 1937 ?.



Brochure réalisée pour la conférence de Vitrolles (juin 2013)
Les hydravions à Vitrolles
(de CAMS à la SNCASE)


Attachments

  • Potez-CAMS.png
    294.7 KB · Views: 175

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
hesham said:
the CAMS-41 was a long range recce-bomber flying boat project of 1923,with two 400 hp
Lorraine 12Db engines,and the CAMS-41bis powered with two 450 hp engines.


The CAMS-43 was developed from CAMS-41,but powered by two 420 hp Gnome-Rhone
Jupiter 9A engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the CAMS-162 & CAMS-163 was derivative of CAMS-161,but no details are known,the CAMS-164
was also derivative of CAMS-161,accommodated 40 soldiers,39 ton weight and powered by six
950 hp Hispano Y engines.


TU magazine 169


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


CAMS E32 (was different from CAMS-32) was a large flying boat monoplane project of 1932,
powered by four Gnome-Rhone 9Kbr engines in tandem position,63m span and metallic hull,
lost in a competition Loire-70 and Breguet Bizerte.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Also;


CAMS-71 was a large monoplane transatlantic flying boat of 16 ton,long range military
patrol powered by either four 500 hp or two 1000 engines.


TU magazine 169


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the CAMS-142 was a commercial version of CAMS-141,intended for South Atlantic.


TU magazine 169


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Hi,


the CAMS-55/5 was a version of CAMS-55 with 500 hp Hispano 12Xbrg engines.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

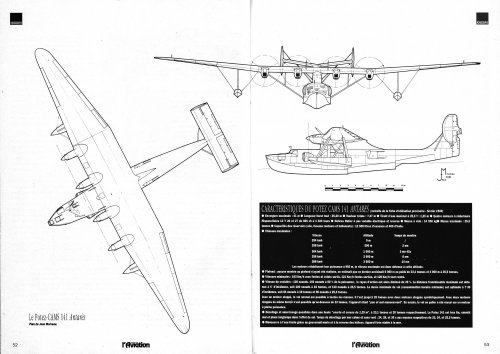

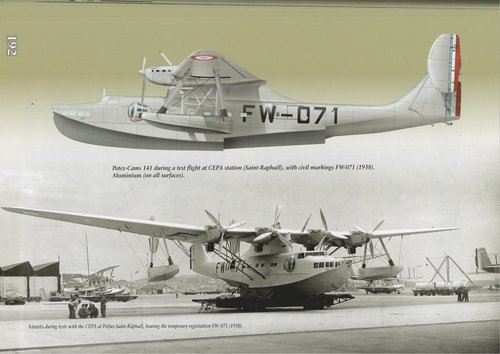

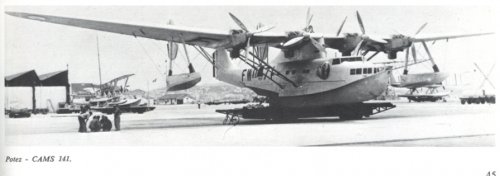

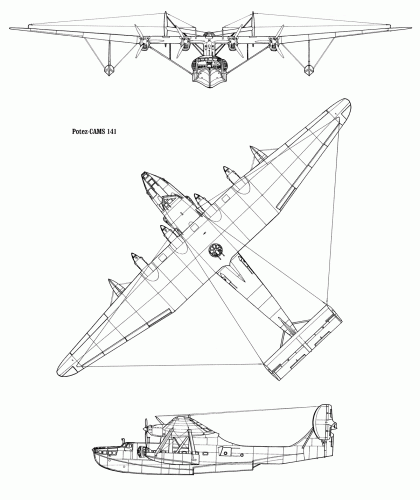

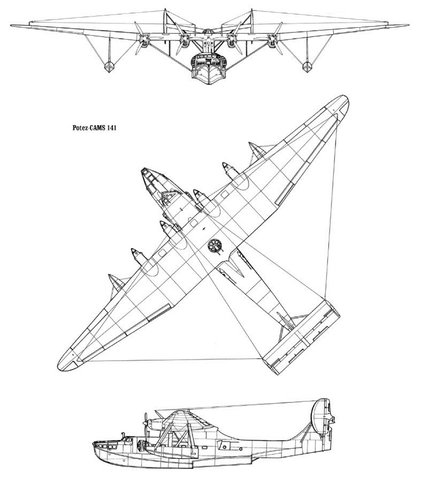

Another three side view drawing and pictures of Potez-C.A.M.S. 141 flying boat.

https://en.wikipedia.org/wiki/Potez-CAMS_141

https://www.rcgroups.com/forums/showthread.php?2528079-Potez-CAMS-141

https://www.aviarmor.net/aww2/aircraft/france/potez_cams_141.htm


Attachments

  • pcams141-1.gif
    167.1 KB · Views: 143
  • pcams141-9.jpg
    137.9 KB · Views: 129

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
hesham said:

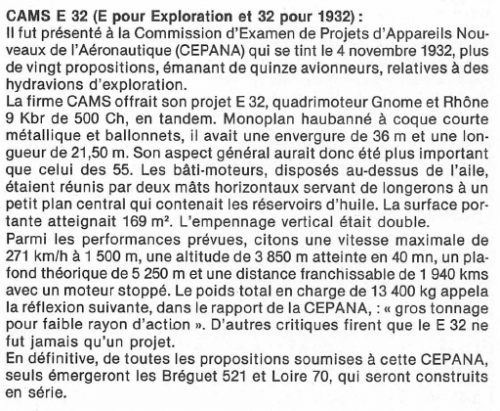

CAMS E32 (was different from CAMS-32) was a large flying boat monoplane project of 1932,
powered by four Gnome-Rhone 9Kbr engines in tandem position,63m span and metallic hull,
lost in a competition Loire-70 and Breguet Bizerte.

From Le Fana 231.


Attachments

  • 4-231.png
    190.1 KB · Views: 97

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
142
This newsreel wartime compilation of gun camera footage appears to show the partially sunk Potez-CAMS 161 being strafed by 2nd Lt. Ronald M Howard (USAAF), 55th Fighter Squadron, 20th Fighter Group, on October 6, 1944.

See between the 4min 44sec to 4 min 50sec mark.
YouTube - British Pathe: "Combat Footage Aircraft (1944)"
https://www.youtube.com/watch?v=sXUs3PWH6es


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,056
Caravellarella said:

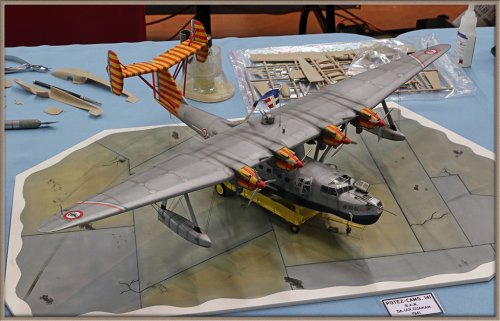

A lovely scale model (not mine) of the Potez-CAMS 141 Antarès......

Very nice my dear Caravellarella.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

Attachments

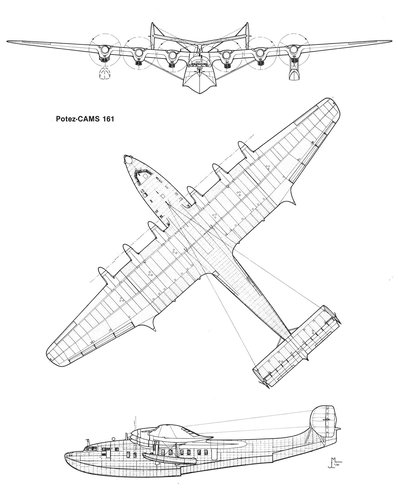

  • pcams161-1 (2).jpg
    pcams161-1 (2).jpg
    250.2 KB · Views: 61
  • pcams161-1.jpg
    88.7 KB · Views: 46
  • pcams161-4.jpg
    80.7 KB · Views: 40
  • pcams161-5.jpg
    127.3 KB · Views: 41
  • pcams161-10.jpg
    167.8 KB · Views: 42
  • pcams161-13.jpg
    217.2 KB · Views: 42
  • pcams161-14.jpg
    55.1 KB · Views: 44
  • pcams161-15.jpg
    52.6 KB · Views: 55
  • pcams161-c1.jpg
    37.2 KB · Views: 60

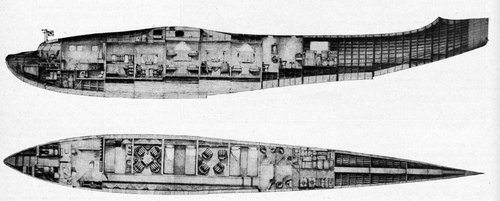

  • Potez-CAMS_161_cutaway_L'Aerophile_December_1941.jpg
    267.4 KB · Views: 68
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

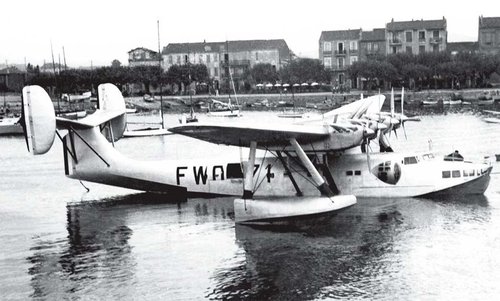

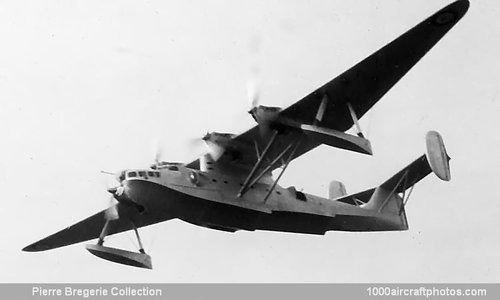

Hi! Potez-CAMS 141.


Attachments

  • image_7.jpg
    343.1 KB · Views: 79

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

Attachments

  • P3V-CAMS141.jpg
    295 KB · Views: 56

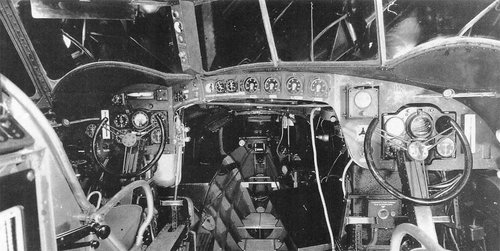

  • Cokpit-CAMS-141.jpg
    126.2 KB · Views: 50
  • Cams141-1.jpg
    194.5 KB · Views: 44
  • Cams141-4.jpg
    102.6 KB · Views: 46
  • 10335L.jpg
    37.4 KB · Views: 56
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

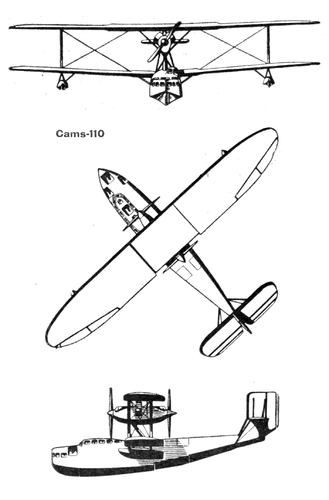

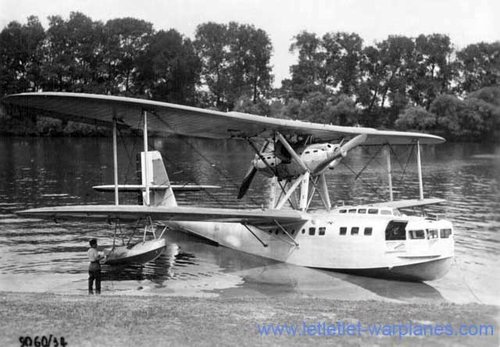

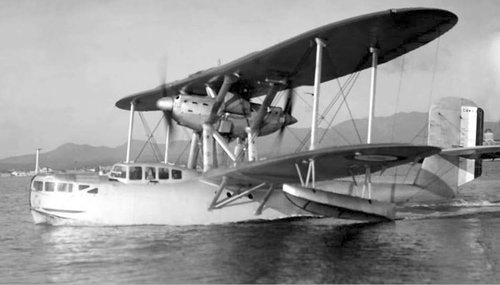

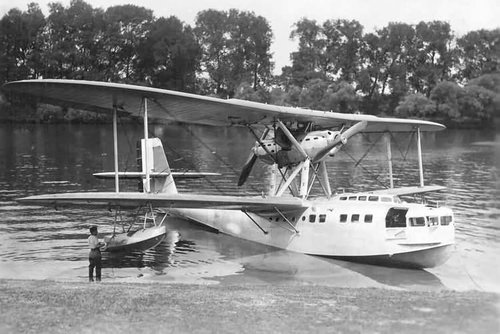

Hi! CAMS 110.
Cockpit shape is impressive.
"The CAMS 110 maritime reconnaissance biplane flying boat had wooden wings and a metal hull, and was powered by two 860 hp Hispano-Suiza 12 Ydrs engines placed in in tandem, driving a push and a pull propeller. Its armament consisted of four 0.295 in (7.5 mm) Darne machine guns mounted in side ports, and a bomb load of 2,25 lb (1,000 kg) could be carried. Yves-Marie Lantz flew the aircraft on its first flight from Sartrouville in July 1934. Despite excellent performance the French Navy did not order the type."
Span: 73 ft 9.8 in (22.50 m)
Length: 53 ft 5.7 in (16.30 m)
Height: 19 ft 8.2 in (6.00 m)
Wing area: 1238.39 sq.ft (115.05 sq.m)
Weight empty: 12,170 lb (5,520 kg)
Loaded weight: 20,393 lb (9,250 kg)
Max speed: 149 mph (240 kmh)
Service ceiling: 21,325 ft (6,500 m)
Range: 1,678 mls (2,700 km)
https://1000aircraftphotos.com/Contributions/BregeriePierre/10118.htm
http://www.letletlet-warplanes.com/2008/07/05/french-flying-boats-and-amphibians/
https://gallica.bnf.fr/ark:/12148/bpt6k6553876m/f3


Attachments

  • cams110-1.gif
    285 KB · Views: 35
  • cams110-1.jpg
    103.1 KB · Views: 35
  • cams110-3.jpg
    57.3 KB · Views: 38
  • cams-110-prototype.jpg
    41 KB · Views: 46
Last edited:

Similar threads

Top
