New X-20 Dyna Soar reference available

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,444
Reaction score
325
Website
www.aerospaceprojectsreview.com

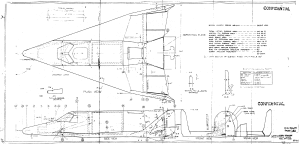

14 detailed drawings showing the evolution of the Boeing Model 844 Dyna Soar glider, available here:

http://www.up-ship.com/drawndoc/drawndocspace.htm



Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,444
Reaction score
325
Website
www.aerospaceprojectsreview.com
X-20 Dyna Soar history documents

Just added three new documentsfor my available-on-CD-ROM collection that show aspects of the Dyna Soar program.

http://www.up-ship.com/drawndoc/drawndocspace.htm

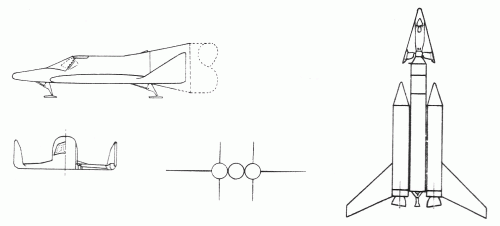

"Standardized Launch Vehicles for Space Applications" gives a look at the early days of the Titan III (before it was called that) and shows some of the lesser-known launchers studied for Dyna Soar

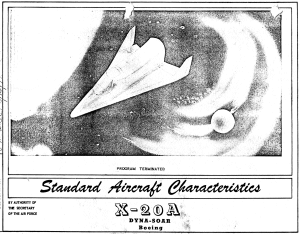

"Dyna Soar Characteristics summaries" is a collection of Standard Aircraft Characteristics sheets for Dyna Soar showign the evolution from the early Boeing Titan ICBM-launched version to the final design.

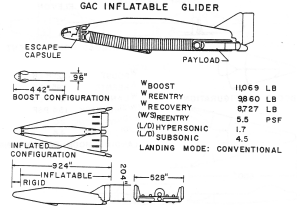

"Review of Dyna Soar Reentry Vehicle Configuration Studies" shows some of the competitors designs for Phase Alpha of the Dyna Soar program. See the Lockheed, Goodyear, Chance-Vought, Avco, Bell, and General Electric concepts.


Attachments

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
440
Reaction score
142
This thread ought to be redirected to the thread "Dynasoar" because the documents on this thread are related to the X-20 program.


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
682
Reaction score
79
Woo-hoo! I mean, thanks.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,657
Reaction score
1,294
This thread ought to be redirected to the thread "Dynasoar" because the documents on this thread are related to the X-20 program.
It's a commercial post offering documents for money. Marketplace seems fine to me.
