New Chinese DDG - Type 055 maybe

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913
Found some weeks ago at the same testsite at Wuhan, where also the Liaoning and other ships EW's systems were tested ...

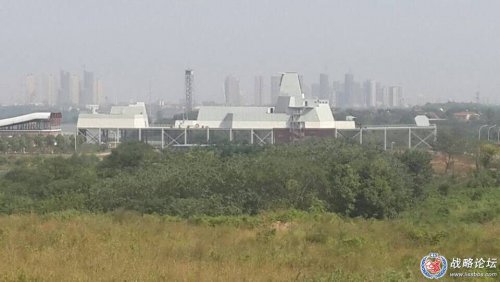

Now a few more interesting high-resolution photos from that new Chinese DDG ... said to be a test-stand for the Type 055 DDG:


























Since ships are really not my topic ... any ideas from our naval experts ??
Anyway it will be interesting to see how it finally will look like ... and even more if a real ship will be build.

Deino


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,825
Reaction score
291
What's the purpose of that carrier deck on the building? It cannot be used for fixed wing landings, because there are buildings behind it. I could see it being used for flight deck training and maybe helo operations.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,449
Reaction score
475
blackstar said:
What's the purpose of that carrier deck on the building? It cannot be used for fixed wing landings, because there are buildings behind it. I could see it being used for flight deck training and maybe helo operations.
They put instrumented planes on the deck and tested antennae configurations to check for interference, I would guess.


The aft portion of the 055 deckhouse strikes me as odd. I'm assuming there's a hangar in there, but having a full break between the fore and aft structures would needlessly complicate operations, especially in bad weather. Unless they're having serious weight problems topside, I'm not seeing the logic there.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913

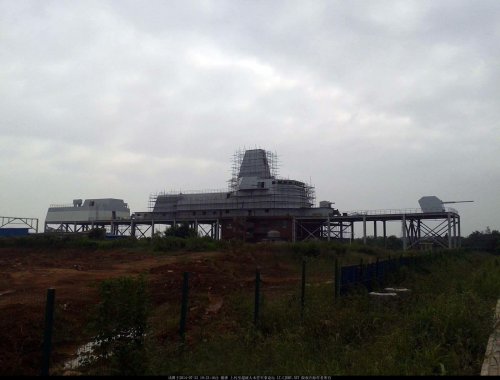

It came quite nicely along during the last months ...


Attachments

  • PLN Type 055 DDG maybe - 22.7.14.jpg
    PLN Type 055 DDG maybe - 22.7.14.jpg
    134.4 KB · Views: 141

RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
377
Reaction score
260
Moose said:
The aft portion of the 055 deckhouse strikes me as odd. I'm assuming there's a hangar in there, but having a full break between the fore and aft structures would needlessly complicate operations, especially in bad weather. Unless they're having serious weight problems topside, I'm not seeing the logic there.
There's no way that's the complete deckhouse; there's at least one deck, probably two, that they've not built in that mockup.


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
475
Reaction score
311
Website
rp-one.net
As a minor technical note: Long continuous deckhouses become effective in longitudinal bending which can be both good (increases the depth of structure resisting bending) and bad (can lead to fatigue failure at the ends of the deckhouse). Unless the extra structure is really needed breaking it up into smaller blocks can be desirable to avoid the problems of fatigue.


There also can be conflicting requirements from the operators; on the one hand they would like to have an extra deck with internal longitudinal access. On the other, they would like to have uninterrupted longitudinal access on the upperdeck. This argument goes around and around...


RP1


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,311
An attempt to complete those orphaned deckhouses by bringing them together
with cousins and nephews ..... sorry for that. ::)


Attachments

  • DDG-055.jpg
    38.9 KB · Views: 245

Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,634
Reaction score
900
Looks like a Chinese Zumwalt of sorts


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,981
Reaction score
4,717
http://snafu-solomon.blogspot.ie/2014/08/chinas-new-type-55-destroyer.html


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,449
Reaction score
475
As guess renderings go, that's not bad. Went a little overboard on the radars though. Would be pretty surprised to see it with 4 large fixed VSRs plus another one that rotates.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913
Jemiba said:
An attempt to complete those orphaned deckhouses by bringing them together
with cousins and nephews ..... sorry for that. ::)

Here's another attempt ...


Attachments

  • PLN Type 055 DDG maybe - CG 1.9.14.jpg
    PLN Type 055 DDG maybe - CG 1.9.14.jpg
    574.2 KB · Views: 179

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913

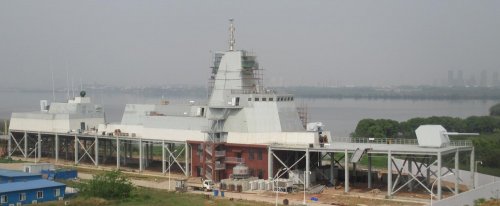

Update ...


Attachments

  • PLN Type 055 DDG maybe - 24.9.14 - 1xs.jpg
    PLN Type 055 DDG maybe - 24.9.14 - 1xs.jpg
    79.5 KB · Views: 86
  • PLN Type 055 DDG maybe - 24.9.14 - 2xs.jpg
    PLN Type 055 DDG maybe - 24.9.14 - 2xs.jpg
    76.6 KB · Views: 78

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913

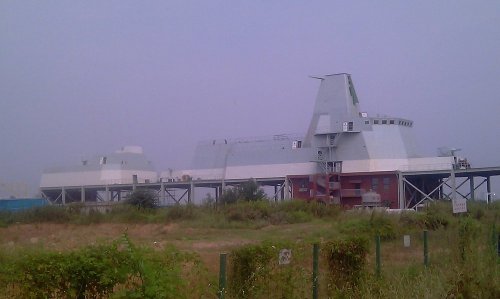

... another one !


Attachments

  • PLN Type 055 DDG maybe - 6.10.14 - 2.jpg
    PLN Type 055 DDG maybe - 6.10.14 - 2.jpg
    76.6 KB · Views: 108

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913
Posted today with the text "construction initiation ceremony for 055 destroyer number 1" on it ... and since apparently all related threads on cjbdy, that included this image were deleted or closed it looks like an "accidental leak".

Deino ;)


Attachments

  • PLN Type 055 DDG - construction initiation ceremony for 055 destroyer number 1 - 29.12.14.jpg
    PLN Type 055 DDG - construction initiation ceremony for 055 destroyer number 1 - 29.12.14.jpg
    111.8 KB · Views: 41

covert_shores

Research + illustration
Senior Member
Joined
Oct 31, 2014
Messages
707
Reaction score
181
Website
www.hisutton.com
Seems a very conservative design. That might not be a bad thing but I was rather expecting Chinese designs to start competing with Zumwalt.


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
988
Reaction score
43
covert_shores said:
Seems a very conservative design. That might not be a bad thing but I was rather expecting Chinese designs to start competing with Zumwalt.


First, Chinese doctrine never calls for a symmetrical arm race with the US, matching weapon type for weapon type.


Secondly, US only plans to build 3 zumwalt class, posing no significant numbers to be considered a game changer that beckons a Chinese response of equivalence.


Thirdly, a zumwalt type with a couple big guns and stealth features have no place in the anti access area denial doctrine really.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,449
Reaction score
475
covert_shores said:
Seems a very conservative design. That might not be a bad thing but I was rather expecting Chinese designs to start competing with Zumwalt.
China's not shown any inclination to take risks with big ticket items like surface combatants. Gradual, conservative evolution seems very much to be their thing.


covert_shores

Research + illustration
Senior Member
Joined
Oct 31, 2014
Messages
707
Reaction score
181
Website
www.hisutton.com
Agreed with all points but my sentiment remains, I was just expecting China to step it up a notch with large combatant design. Just like they have with Type-022 FAC and J-20 fighter and UCAVs.

Whatever happened to the Trimaran fad? I was rather hoping for a trimaran cruiser



TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,759
Reaction score
2,073
Trimarans don't seem to scale well. The larger the ship, the less helpful a trimaran form becomes.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,449
Reaction score
475
There are bunch of reasons why really big multis are problematic. If high speed is not an essential requirement, monos are still more economical and practical.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,915
Reaction score
913

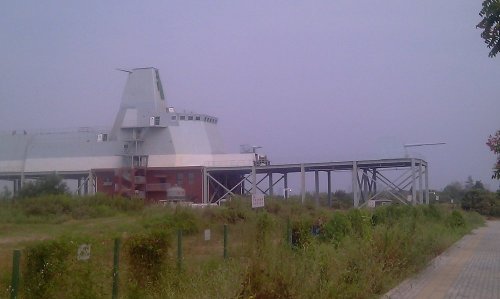

Latest image ...


Attachments

  • PLN Type 055 DDG - 22.4.15.jpg
    PLN Type 055 DDG - 22.4.15.jpg
    89.2 KB · Views: 183

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,553
Reaction score
1,042
That ECM mast looks really out of place.

Unsurprisingly, no large radar on the rear superstructure.


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,449
Reaction score
475
Yeah that might be the dish for an illuminator back there, or not a radar at all, but no big SMART-L clone like the local bloggers were putting on their renders. Also looks like they're only mounting fixed panels on the side facing the water, so until someone cruises by on a boat and snaps a pic we won't have a real look at those arrays.
