Navy AX and A/F-X projects

Rafael

CLEARANCE: Confidential
Joined
Oct 23, 2006
Messages
128
Reaction score
4
Hola!!!
I'm interested in information about this subject, and if there are more images, 3-views, etc..

Thanks in advance,
Rafa


Attachments

  • Lockheed-Rockwell-AFXstealthattack.jpg
    24.3 KB · Views: 2,744

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Obviously, this is Advanced/Fighter-Attack (A/F-X) competition entry, what, in fact, onboard markings say. http://www.globalsecurity.org/military/systems/aircraft/a-x.htm Wery sceptic about the fact that any additional pics were released so far.
All images published has one source - brilliant Stevenson's The $5 Billion Misunderstanding: The Collapse of the Navy’s A-12 Stealth Bomber Program published by the Naval Institute Press in the Fall of 2001. (www.a-12.com)


Attachments

  • lock-rockw_af-x.JPG
    31.4 KB · Views: 2,727

Rafael

CLEARANCE: Confidential
Joined
Oct 23, 2006
Messages
128
Reaction score
4
Thorvic said:
That look VG BTW ?

G

Now that you mention it.... and the side view is a little more revealing.

It has some resemblance to the NATF model, or am I seeing things?

Would be fine to have an underside look

Rafa


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
It's also in Jay Miller's Skunk Works book - and it is a Rockwell/Lockheed study. (The two companies did talk to each other - they had considered getting together for ATB.) Lockheed had at least two designs in A/F-X in the 1992-94 timeframe, the other being a distant cousin of the F-22 with GD and Boeing. (It was a swing wing with origins in NATF.)
The whole picture at the time was very confused, with AX - essentially a watered-down A-12 - being followed very quickly by A/F-X, which was intended to replace the F-14 and the A-6. What made it confused was that everyone had multiple offerings - some based on their old alignments, like Macs and GD, and some being new. Where it would have fitted in the USAF inventory I can't imagine, since the F-15E was new and the F-111 was already on its way out of the door. It did not matter since the entire project was whacked in 1993, although Lockheed continued to brief it into early 1994.


elider

CLEARANCE: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2
MDD and Vought teamed together in the A/F-X competition as well. I have not seen anything concerning their design. Does anyone have any info on it?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
109
Website
www.hitechweb.genezis.eu
Funny that the first picture is the one, that I retouched a bit to better show the details as VG wing or the cockpit :) I also think, that this design can be a explanation of the AX-17 rumour. It has a lot of commonalities.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

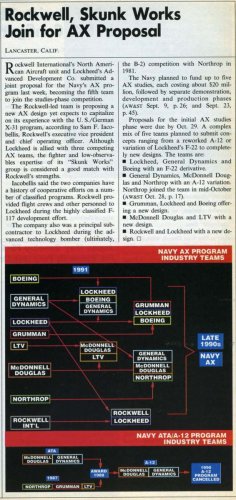

Hope this AWST article can bring some light in very complicated structure of AX competition contenders.


Attachments

  • AWST_1991_NOV_04_AXs.jpg
    117.4 KB · Views: 2,406

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
I searched the forums for more on this and other than a thread discussing the Tomcat 21/Tomcat II here (http://www.secretprojects.co.uk/forum/index.php/topic,589.0.html), I've not found much as of yet. What I have read so far is that the A/FX program was short lived being set up following the cancellation of the A-12 Avenger II. The Navy had the A-X program for an A-6 replacement as well as the NATF for a navalized version of the ATF and the USAF was looking for an F-111 replacement. So as I understand it, those three programs became the A/FX in 1991 but would be cancelled in 1993, eventually morphing into the JSF via the JAST program.

A 1994 issue of Flight International had a provisional 3 view drawing of what looked like a YF-22-based two seater with swing-wings. My understanding is that design was a Lockheed/Boeing design designated AFX-653. However I had read somewhere else that provisional drawing wasn't the Lockheed/Boeing design.

Whose design is it and what, if any, other competitor designs were submitted for A/FX?


CFE

CLEARANCE: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
There was an A-12 derived design with cranked outer wing panels.

I got this info from the Invisible Defenders website, which unfortunately appears to be defunct. Aside from the AFX-653 concept and the A-12 derivative, I don't have much info on A-X and A/F-X proposals.

Last edited by a moderator:

CFE

CLEARANCE: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
The Lockheed-Rockwell design looks similar to a rendered pic I've seen on some of the "Area 51" sites of a purported "A-17." This is the first time I've seen the Lockheed-Rockwell design, and it looks very sweet.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

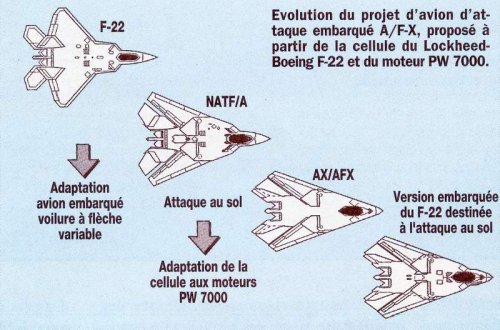

Several times have seen on the net this drawing - can someone pint to the original publication source?


Attachments

  • 2.jpg
    77.9 KB · Views: 946

LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
It's possible that they came out of Lockheed briefings at Asian Aerospace in 1994, given by a chap named Burbage who was never heard of again. Maybe that version was filed with Interavia and published with changed captions in Air & Cosmos, but that's just a rumor.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Tom Burbage, Lockheed Martin JSF executive VP? A/F-X program manager in 1992...Yes. never heard of him...


Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
1
Found this picture in one of my old magazines. It says that it's a early concept for the A/X program for the navy. Doesn't say whose concept it is,but since it reminds me of Lockheed's early sketches for the ATF program I presume that it was one of their bids.


Attachments

  • AX.jpg
    132.6 KB · Views: 1,096

LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
It's a PR image... doubtless vetted to make sure it did not look like anything real.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,443
Reaction score
168
LowObservable, could you please tell me what is a PR image?

thanks :)


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Maki, this is early Lockheed pseudo-'NATF' illustration from Syd Mead
http://www.secretprojects.co.uk/forum/index.php/topic,1165.0.html


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,336
Reaction score
1,367
That was Lockheed artwork done by Syd Meade (renowned industrial designer).


Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
1
So the magazine was wrong,it actually wasn't a AX proposal but PR artwork from the NATF :eek:. Sorry about that. I honestly thought it was a genuine AX proposal.And all this time I was wondering why a single-seat delta-canard configuration was chosen for a carrier based strike fighter when it is well known that the navy prefers two-seat and a wing configuration better optimized for carrier landings.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Following discussion of what PR image is was moved here http://www.secretprojects.co.uk/forum/index.php/topic,1099.0.html


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
Maki,
I'm not sure why the Navy hates canards. They can certainly work fine for carrier landings because they can be set up for low approach speeds (Rafale) with moderate angle of attack. And canards can be stealthy too (X-36). Northrop Grumman proposed a species of canard, the hammerhead LEX, for JSF, before teaming with Macs and losing.


Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
1
Of course delta-canards can land on carriers,that is not an issue,but since the A/F-X is a bigger and heavier bird then the Rafale,to operate at slow speeds would probably require more enlarged control surfaces (larger canards) which could complicate things. I have read that in the beginning of the JSF competition Lockheed started out with a delta-canard design but abandoned it for a number of reasons,among which was the Navy's requirement for controllability at slow speeds during carrier landings. They started enlarging the canards to try to meet the requirements but noticed that their size was starting to grow to big and that it degraded other elements of their design. Instead of pursuing this route Lockheed chose to switch to a conventional tailplane design,which would eliminate a great technical risk and speed up development.

So I guess that is the reason the Navy isn't fond of delta-canards,v-tails or any other unconventional solution. They don't like great risks,especially after the A-12 fiasco. Perhaps that's why some of the A/F-X proposals have variable geometry wings. But then you have to wonder what are the RCS numbers for swing wing designs,so they present a risk of their own.


CFE

CLEARANCE: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
LowObservable said:
Maki,
I'm not sure why the Navy hates canards. They can certainly work fine for carrier landings because they can be set up for low approach speeds (Rafale) with moderate angle of attack. And canards can be stealthy too (X-36). Northrop Grumman proposed a species of canard, the hammerhead LEX, for JSF, before teaming with Macs and losing.

If I understand the speculation on the Naval F-23 correctly, Northrop proposed a canard on their navalized F-23. The wing would be moved aft, and the ruddervators would be replaced with canted vertical stabilizers.


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
LowObservable said:
Maki,
I'm not sure why the Navy hates canards. They can certainly work fine for carrier landings because they can be set up for low approach speeds (Rafale) with moderate angle of attack. And canards can be stealthy too (X-36). Northrop Grumman proposed a species of canard, the hammerhead LEX, for JSF, before teaming with Macs and losing.

Correct me if I'm wrong, but didn't Lockheed droped canards from its ASTOVL/JAST/JSF proposals when it was determined that to maintain effectiveness as a control surface, a "stealthy canard" would have been prohibitively large and heavy?

I won't deny that the Rafale M has a lower approach speed and more moderate angle of attack than the first generation Hornet, allowing for a far less robust landing gear - although there seems to be no great advantage in terms of overall structural weight. However, a usefully lower approach speed was accomplished with the second generation Super Hornet by the simple expendient of increasing wing area.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
At least three sources that have seen final Northrop/MDC ATF proposal, said that their NATF was a).canard and b).weird looking canard


Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
1
One of the factors that helped the YF-22 win the ATF competition was that its design was considered more adaptable for carrier usage. A canard YF-23 was probably to unconventional for the Navy.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,815
Reaction score
256
Actually, you're incorrect regarding "risk aversion." The reason the JSF went from a canard to a tailed aircraft is the same reason the ATF prototypes didn't have canards; Canards have a more limited AOA capability when compared to a standard tailed aircraft. Especially in the naval environment where they have the bring back weight requirement coupled with the WOD requirement. The simple fact is the tailed aircraft was the better solution to this problem than the canard configuration was and was also the reason the X-32 gained a horizontal tail. I seriously doubt the Rafale comes anywhere near meeting the U.S. navy's requirements in this regard.

It wasn't about risk, it was about what was the best design to meet the requirements, pure and simple. The mission drives the design, not the other way around.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Guys, note the thread title.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
Very interesting, particularly the comments on F-22 LO (primarily air to air) versus the early A/F-X (not the one in the pix, but the pure wedge with folding tails). We're seeing the same argument emerge today, with people once again saying that it's only a tailless, all-wing shape that will give you all-aspect, wideband LO.

That Burbage fella always seemed a promising chap. Wonder whatever happened to him?


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
LowObservable said:
That Burbage fella always seemed a promising chap. Wonder whatever happened to him?

LO, are you kidding as always?)))
Tom Burbage (LM Aero Executive Vice President and General Manager for JSF)


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

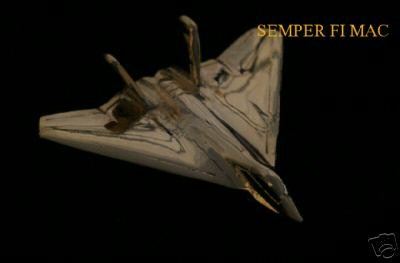

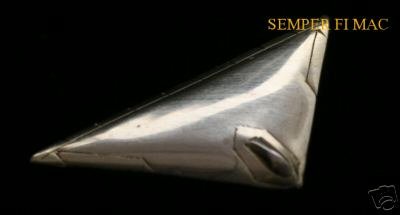

Found on eBay these pins from ex-Marine - both from the same seller...first is A-12...and the second is...A-12 too, in his opinion, but we know that this is something else...


Attachments

  • 0909_1.jpg
    9.4 KB · Views: 997
  • 854e_1.jpg
    10.6 KB · Views: 1,161

Maki

Anytime Baby!!!
Joined
Sep 2, 2007
Messages
21
Reaction score
1
Does anybody know anything more about the nozzle that was used by Lockheed's A/F-X in the wedge shaped configuration ? In the article that was posted by TinWing, the author said that initially the thrust vectoring nozzles were used for pitch,roll and yaw. Later this was deleted when they switched to the notched configuration of the aircraft, and the nozzles were used only for pitch and roll. What interests me is how did they make a low IR/radar stealthy nozzle that works in yaw and pitch. Somehow i doubt they used paddles like on the X-31 or a nozzle like on the F-15 ACTIVE.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,197
Reaction score
118
Right... A-12. Sure.

What it's not, given it does not look like a swing-wing, is an AF/X, since it's not carrier-suitable.

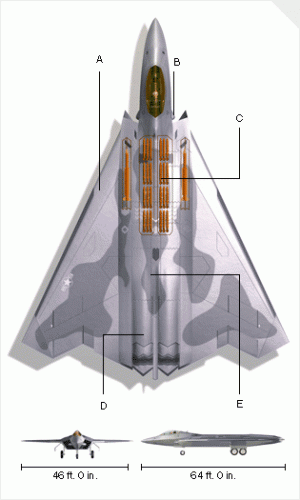

I don't know what it is but it looks like GD... a grown-up F-16XL. Or this, with tails:


Attachments

  • fb-22.gif
    34.9 KB · Views: 1,183
