3-View request

[Rafael]

For this subject:

It's been most elusive since I first saw it. So if any of you guys have it and want to share.....

Thanks in advance
Rafa



[Stargazer]

The configuration of the Lockheed HTV-3X Blackswift project has changed several times... The one you're showing has replaced the earlier twin-fin designs (themselves evolved from the HTV Falcon) and is described in several places as the "final" one.

We have a Blackswift topic here: http://www.secretprojects.co.uk/forum/index.php?topic=8846.0

No three-view arrangement yet, but at least here's a couple more pictures of the same configuration.



[Rafael]

Thanks, Stephane, I searched for it there, even went fishing for it in patents, but found nothing (there is a patent for the latest Blackswift in this site)

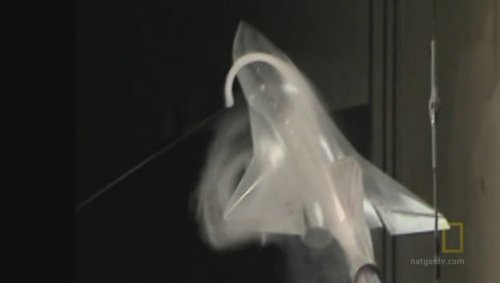

I even have the DARPA Video from NatGeo which is the source for the tunnel model you posted
