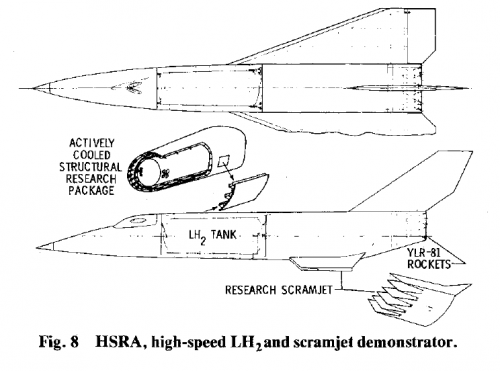

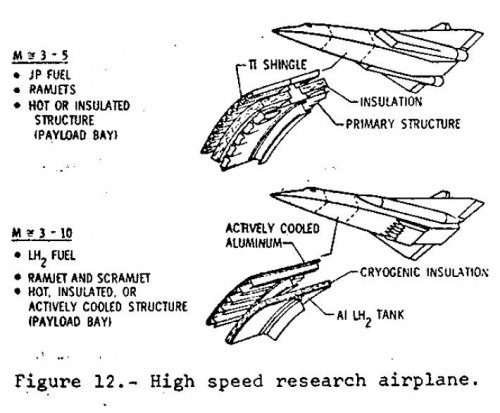

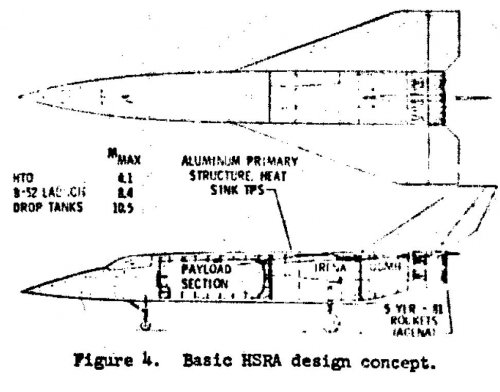

NASA Langley HSRA (High-Speed Research Aircraft) from 1974


Attachments

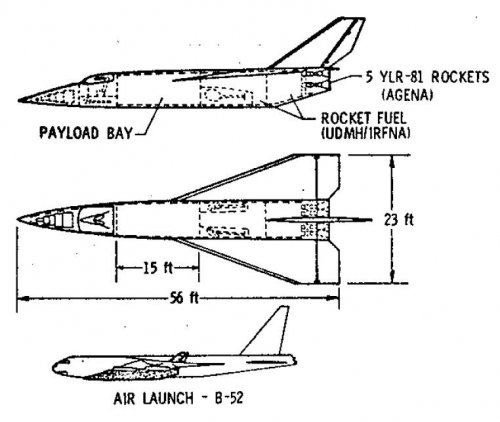

  • NASA_LRC_HSRA_1_BASIC.jpg
    76.6 KB · Views: 437
  • NASA_LRC_HSRA_1_RAMJET_SCRAMJET.jpg
    60.2 KB · Views: 68

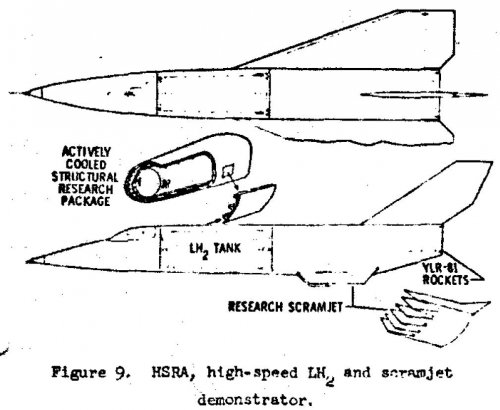

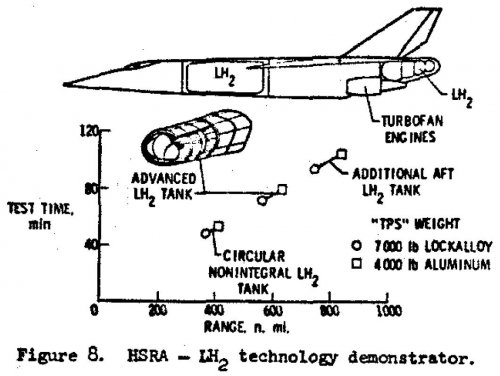

  • NASA_LRC_HSRA_1_LH2a.jpg
    52 KB · Views: 57

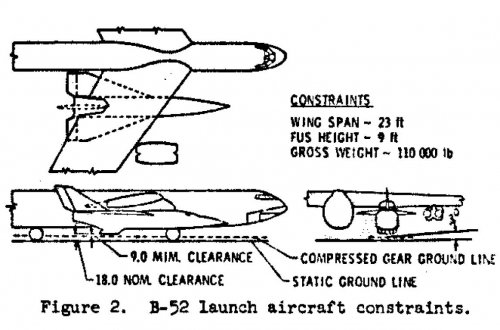

  • NASA_LRC_HSRA_1_LAUNCH_CONSTRAINTS.jpg
    100.8 KB · Views: 46
  • NASA_LRC_HSRA_1_LH2_SCRAMJET.jpg
    80.6 KB · Views: 335
  • NASA_LRC_HSRA_1_LH2.jpg
    90.1 KB · Views: 342

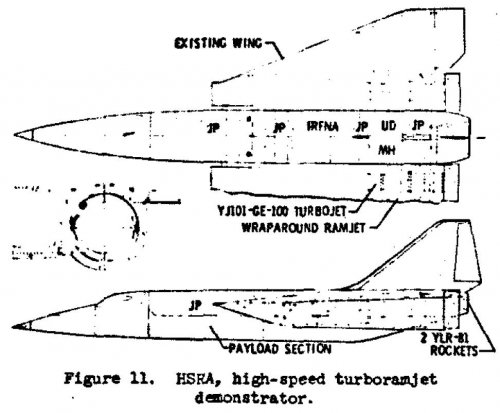

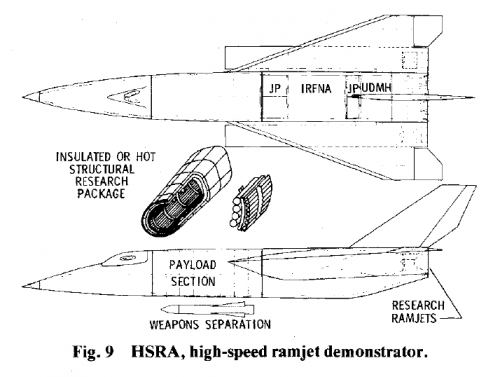

  • NASA_LRC_HSRA_1_TURBORAMJET.jpg
    85.4 KB · Views: 354

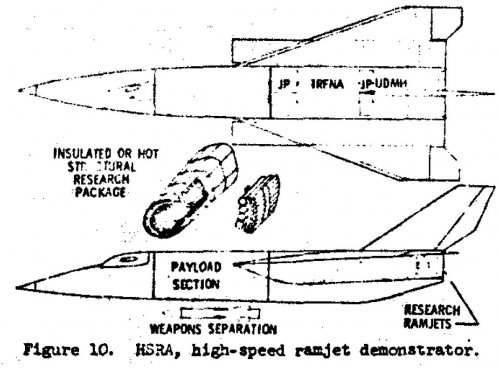

  • NASA_LRC_HSRA_1_RAMJET.jpg
    105.5 KB · Views: 372

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,161
Reaction score
56
Gregory,

You wouldn't happen to know if McDonnell was tied to this project? It looks awfuly familiar. ;)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
This was as said in paper, 'Langley in-house study'.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
143
http://www.secretprojects.co.uk/forum/index.php/topic,352.msg33751.html#msg33751


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
...well...is this a hint or a guess? RF would know...

Meanwhile, digging a little bit more...http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19780017116_1978017116.pdf


Attachments

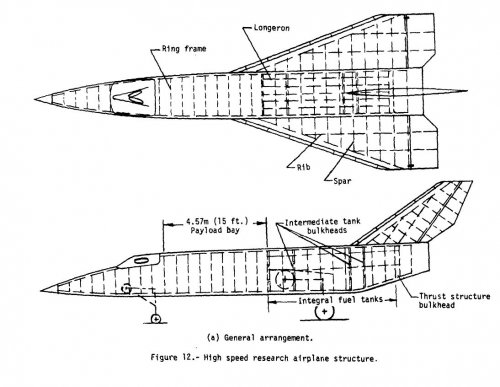

  • Langley_HSRA-1-crosssections.jpg
    105.8 KB · Views: 53

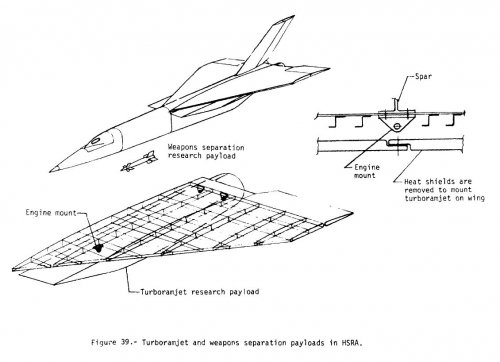

  • Langley_HSRA-1-weap.rar.jpg
    96.2 KB · Views: 68

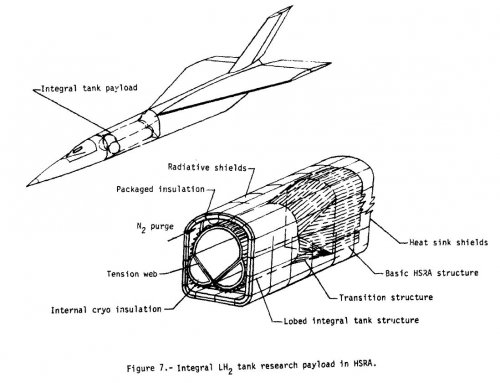

  • Langley_HSRA-1-lh2tank.rar.jpg
    105.2 KB · Views: 68

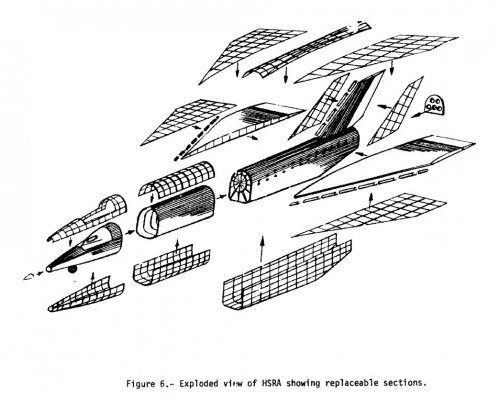

  • Langley_HSRA-1-exploded.rar.jpg
    126.7 KB · Views: 61

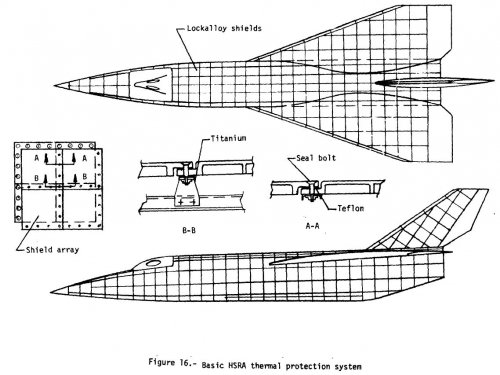

  • Langley_HSRA-1-tps.rar.jpg
    144.7 KB · Views: 60
  • Langley_HSRA-1-struct.rar.jpg
    123.8 KB · Views: 64

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
note that Langley were studying another configuration at the later timeframe...other contractor, may be?
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790005909_1979005909.pdf


Attachments

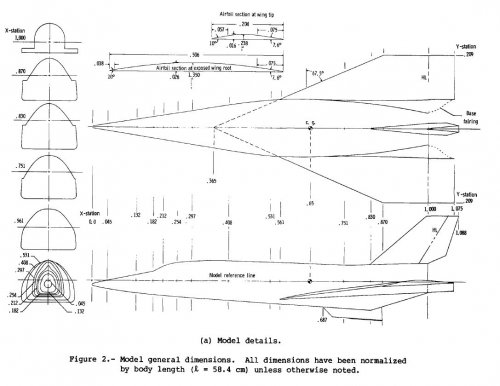

  • Langley_HSRA-2.jpg
    100.3 KB · Views: 74

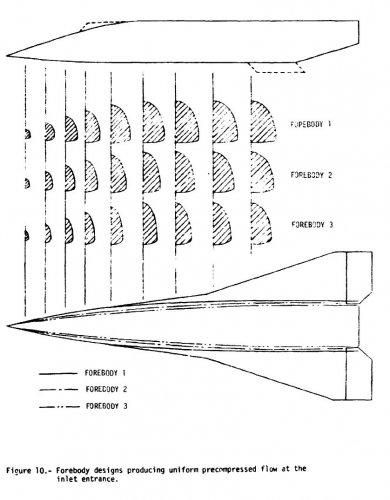

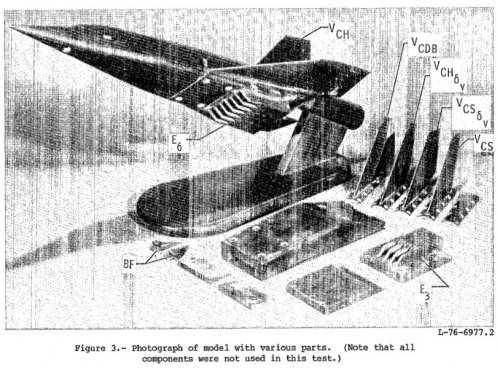

  • Langley_HSRA-2a.jpg
    165.8 KB · Views: 84

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

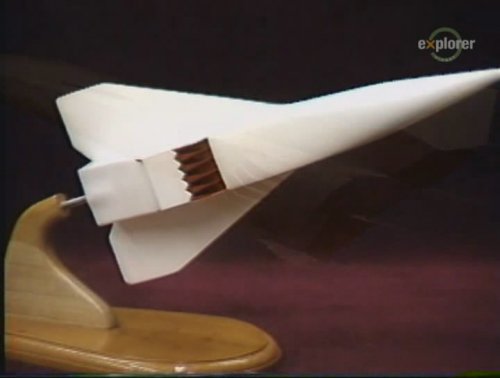

LH2+scramjet HSRA desktop model


Attachments

  • snapshot20081021015027.jpg
    34.3 KB · Views: 69

mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
8
These hypersonic things need to be catalogued, there are so many of them!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
My dear Flateric,


here is a clearer views to the same aircraft,NASA Langley HSRA.


http://arc.aiaa.org/doi/abs/10.2514/3.59885?journalCode=ja


Attachments

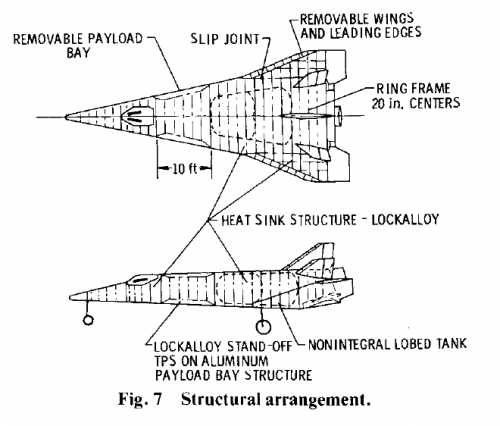

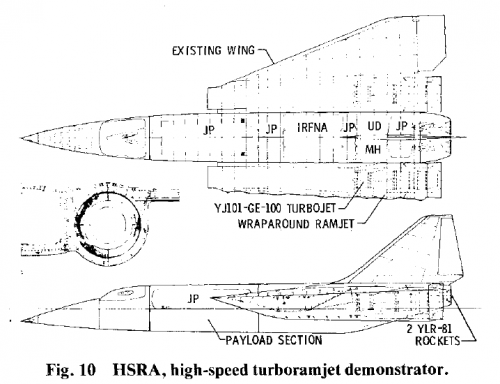

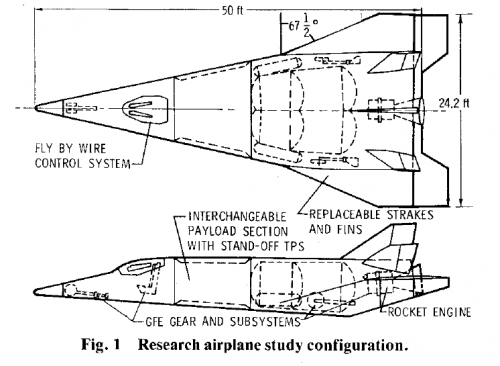

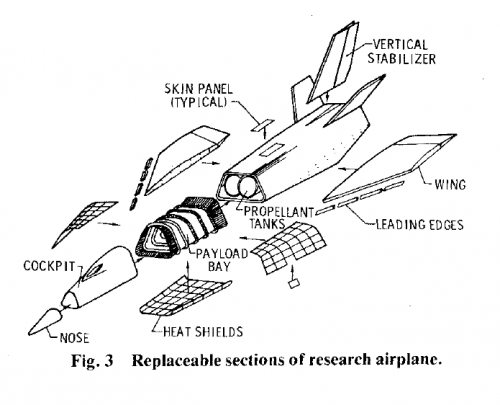

  • 4.png
    33.7 KB · Views: 52
  • 3.png
    28.4 KB · Views: 41
  • 2.png
    31.5 KB · Views: 44

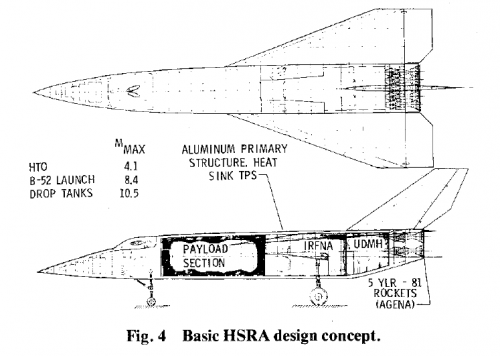

  • 1.png
    31.4 KB · Views: 43

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Re: NASA Langley - Vought HSRA (High-Speed Research Aircraft)

Hi,


here is a HSRA (High-Speed Research Aircraft),but this work was done by co-operation
with Vought Corporation.


http://arc.aiaa.org/doi/abs/10.2514/3.58371?journalCode=ja


Attachments

  • 1.png
    35.8 KB · Views: 31
  • 2.png
    32.4 KB · Views: 31
  • 3.png
    32 KB · Views: 32
  • 4.png
    32.6 KB · Views: 37
