NASA Advanced Transport Technology (ATT) or Mach 1 Airliner program

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38

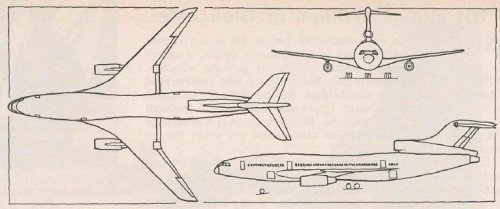

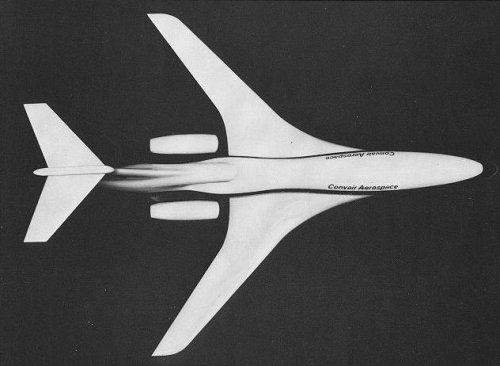

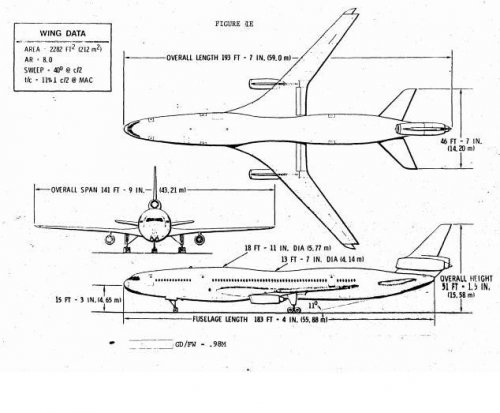

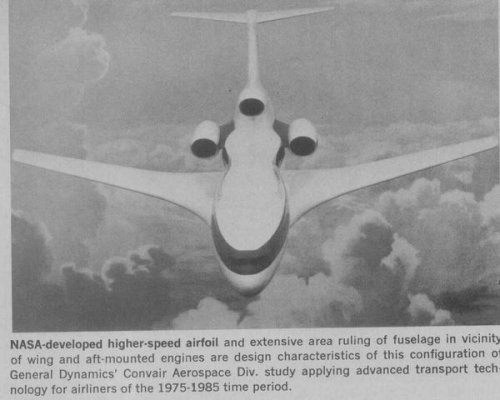

This model picture was published very often in aviation magazines of the early 1970s (my scan is from FLUG REVUE 2/1972 page 40). The Convair Aerospace Division of General Dynamics proposed this design with supercritical wing for the period between 1975 and 1985. At which stage did they stop the work on it (only windtunnel tests?) ? Did it get a Model number like other Convair/GD designs?


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,986
Reaction score
360

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31
Yes, but at least for Boeing, they were far more then theoretical and speculative. W/o the 1973 Oil Shock and subsequent events, the 767 would habve been a transonic airliner.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,986
Reaction score
360
Yes in Japan we always travel by 767 and 777. They are beauty,too. We are waiting 787!!!!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,986
Reaction score
360
Sorry we travel by A300 and A320,too.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
During the late 1960s and early 1970s, NASA had a research program to develop an airliner that would travel at about the speed of sound that was expected to appear in the late 1970s. The program was called the Advanced Transport Technology (ATT) or the Mach 1 airliner. The ATT would be "boomless" because it would cruise at about Mach 1 or 660 mph at an altitude of 35,000 to 45,000 feet. One of the most interesting and salient design features of the ATT is its "Coke bottle" or wasp-waist fuselage intended to reduce drag. To be able to approach the speed of sound, the ATT had a flat-topped supercritical wing. The ATT program developed design concepts for aircraft carrying from 200 to 400 passengers.

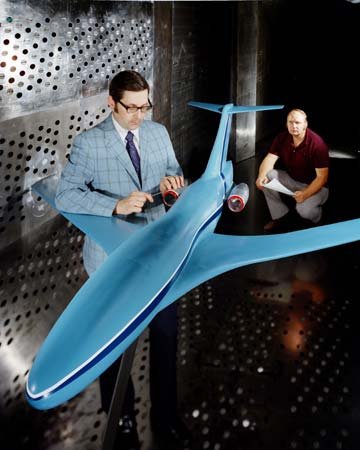

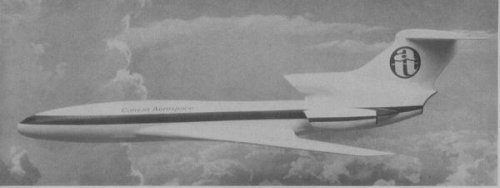

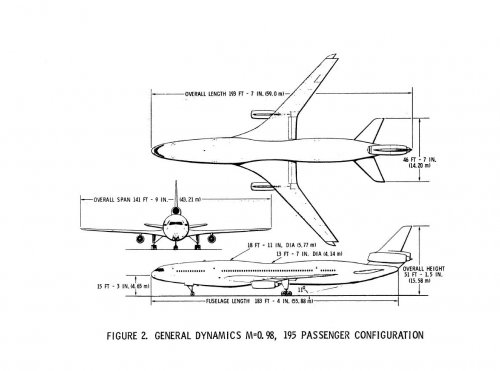

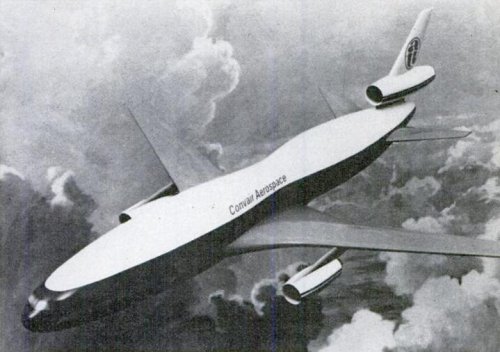

Artist's impression of General Dynamics Convair Division Mach 1 airliner capable of carrying 200 passengers with a maximum range of 3,400 miles.


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com

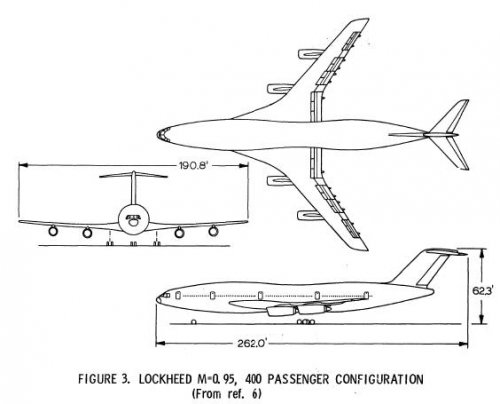

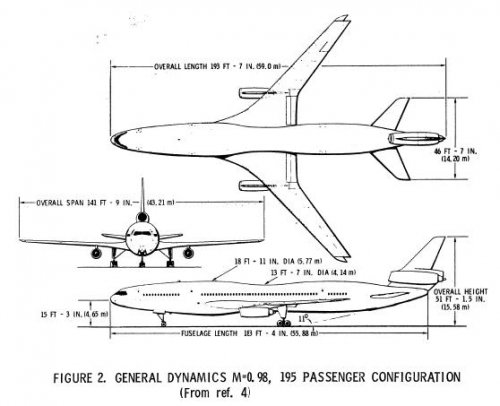

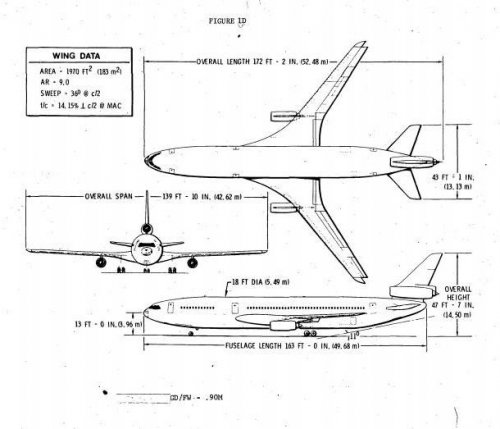

"A summary of the application of active controls technology in the ATT system studies" by RV Hood, Langley Research Center, Aug 1, 1976.

Abstract

The application of active controls technology to subsonic, long-range transport aircraft was investigated in three Advanced Transport Technology system studies. Relaxed stability requirements, maneuver and gust load alleviation, and active flutter suppression were the concepts considered. A different configuration was investigated for each of the three airframe manufacturers, and each had a somewhat different approach to the application of active controls technology. Consequently, the results varied in magnitude between the contractors, but several trends were noted. Relaxed stability requirements resulted in the largest benefits - reduced weight, increased return on investment, and decreased direct operating costs. Maneuver load alleviation, gust load alleviation, and flutter suppression resulted in much smaller benefits. Prior to application of active controls technology, a research and development program directed toward fulfilling data base requirements, establishing effective design techniques and criteria, improving systems maintainability and reliability, and demonstrating technology readiness must be completed.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760024072_1976024072.pdf


Attachments

GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
774
Reaction score
28
I've never fully understood the motivation for this program. It always seemed counterintuitive to specify a cruise speed that is right at the transonic drag spike. I'd be willing to bet the drag at M1.2 is less than at M0.98.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,749
Reaction score
13
I've never fully understood the motivation for this program. It always seemed counterintuitive to specify a cruise speed that is right at the transonic drag spike. I'd be willing to bet the drag at M1.2 is less than at M0.98.
As stated in the first post, M = 0.98 = no sonic boom, which means you can actually get to fly your aircraft. M = 1.2 = Boom! = Banned!!

cheers,
Robin.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com

Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

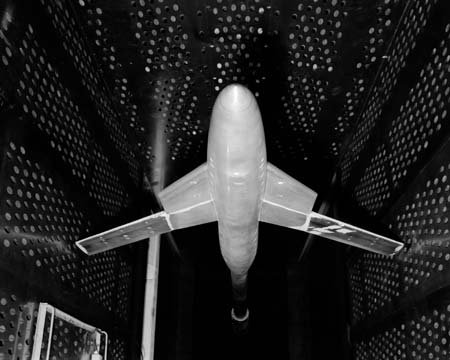

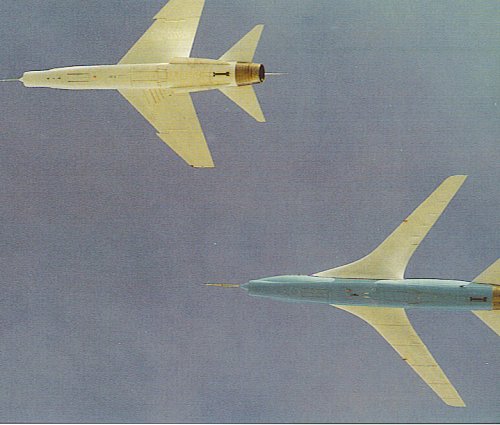

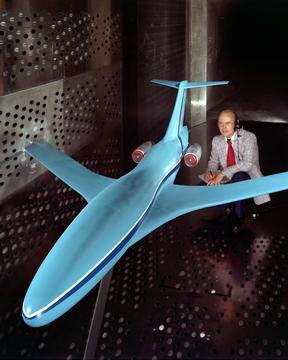

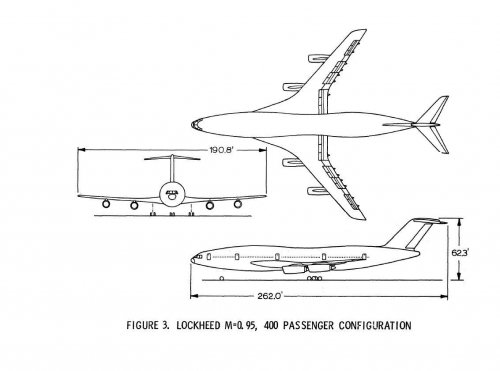

The ATT program wasn't limited to the near-supersonic concepts. In a study extension, some slightly supersonic (Mach 1.2) configurations were studied, and one of that was the oblique wing one. Both Lockheed and Boeing studied that. Earlier, in 1966, Boeing had done for FAA a no-boom configurations studied, including one with a VG wing. Near supersonics and slighly supersonics were studied by British and Canadian companies too.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
"Study of the application of advanced technologies to long range transport aircraft. Volume 2: Advanced technology program recommendations" The Boeing Company

Abstract:
The benefits of the application of advanced technology to future transport aircraft were investigated. The noise reduction goals established by the CARD (Civil Aviation Research and Development) study for the 1981-1985 time period can be satisfied. Reduced terminal area and airway congestion can result from use of advanced on-board systems and operating procedures. The use of advanced structural design concepts can result in greatly reduced gross weight and improved operating economics. The full potential of these benefits can be realized in a 1985 airplane by implementing a research and development program that is funded to an average level of approximately 55 million per year over a ten year period.
URL: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720018357_1972018357.pdf


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
31

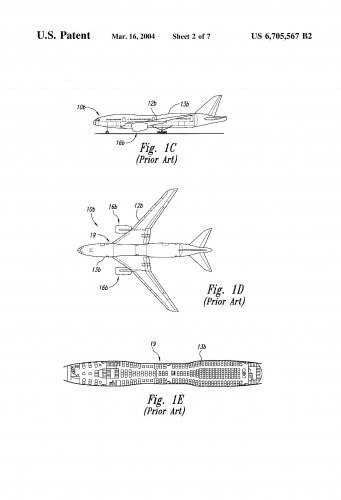

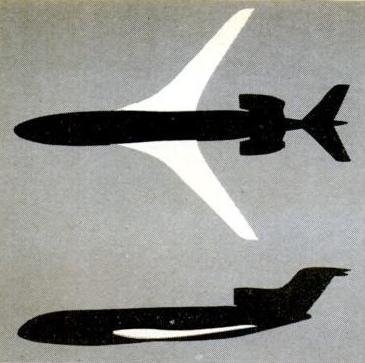

To Stargazer: that configuration is much later. Been discussed in the Sonic Cruiser thread. Another one, covered by another patent, tries and uses a 747-like configuration of the front fuselage to attempt a vertical squeeze area ruling.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com

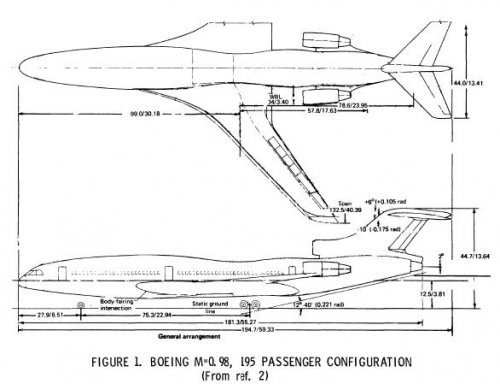

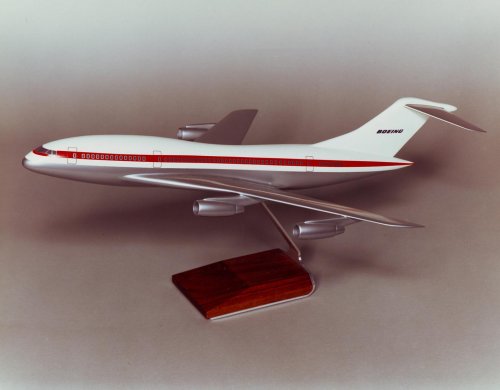

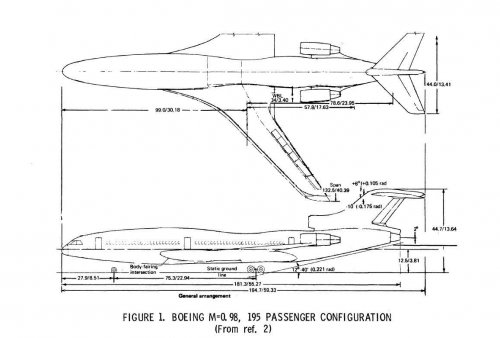

Three-view drawing of Boeing Advanced Transport Technology (ATT) concept, also known as high-subsonic transport aircraft or near-sonic transport aircraft. This aircraft had a payload of 40,000 lbs. with a range of 3,000 nm. Cruising speed was Mach 0.9 to Mach 0.98. (Boeing Model 767-620)

Source: "Aircraft Design at the AIAA" Flight International September 7, 1972 p. 342.
http://www.flightglobal.com/pdfarchive/view/1972/1972%20-%202415.html


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Preliminary Design Department. Advanced subsonic long-haul transport terminal area compatibility study. Volume 2: Research and technology recommendations The Boeing Commercial Airplane Company Feb 1, 1974

Abstract:
The Terminal Area Compatibility (TAC) study is briefly summarized for background information. The most important research items for the areas of noise congestion, and emissions are identified. Other key research areas are also discussed. The 50 recommended research items are categorized by flight phase, technology, and compatibility benefits. The relationship of the TAC recommendations to the previous ATT recommendations is discussed. The bulk of the document contains the 50 recommended research items. For each item, the potential payoff, state of readiness, recommended action and estimated cost and schedule are given.
URL: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740008617_1974008617.pdf


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,019
Reaction score
195

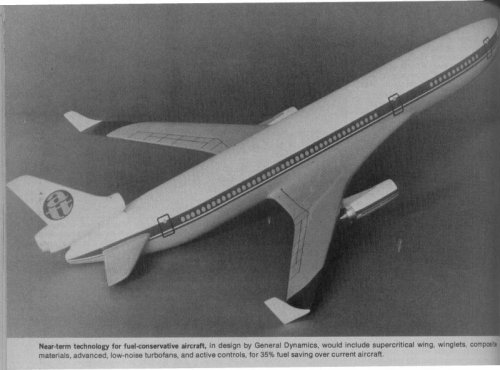

From AviationWeek, October 1974 a photo of a model of the GD design:
(sorry for the distortion, it was scanned from a bound volume)


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com

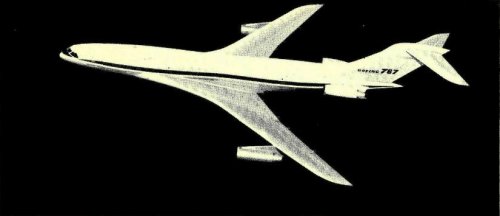

Stargazer2006 said:
Same project as this? The engine configuration is different, though.

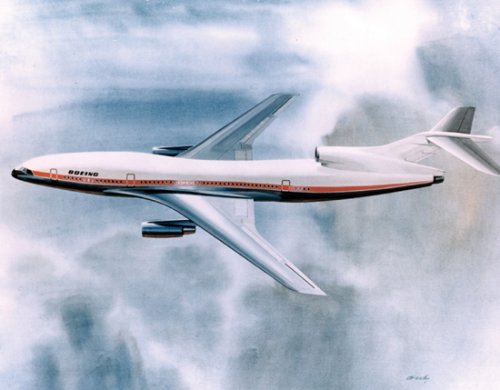

Boeing Model 767-601 (above). The color artist's impression (below) is Boeing Model 767-620.



Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Would a moderator be so kind as combine this topic with an earlier one I found this morning?

"Convair airliner design of the early 1970s" « on: August 19, 2006, 12:01:43 pm »
http://www.secretprojects.co.uk/forum/index.php/topic,607.0.html


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Model of Boeing Advanced Transport Technology (ATT) 767-701 concept with four wing-mounted engines at the Boeing Archives.

Sources:
http://www.flickr.com/photos/airlinereporter/4957523520/in/set-72157624753056369/
http://www.flickr.com/photos/airlinereporter/4957523566/in/set-72157624753056369/


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com
Should be merged with this topic:

NASA Advanced Transport Technology (ATT) or Mach 1 Airliner program
http://www.secretprojects.co.uk/forum/index.php/topic,7714.msg75068.html#msg75068


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
213
Website
deeptowild.blogspot.com

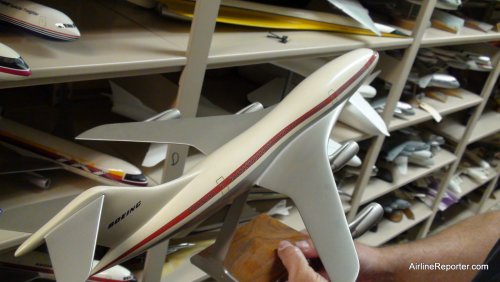

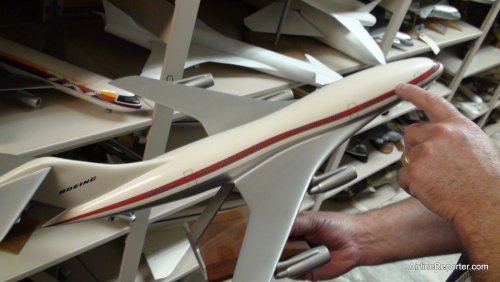

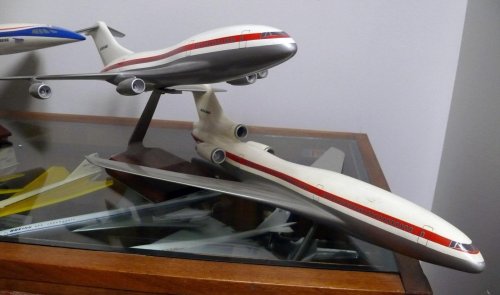

Models in the Boeing Archives Bellevue, Washington.

Source:
http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-7x7-engineering-and-display-models-early-1970s/19070


Attachments

NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
130
Reaction score
12
I love the look with the area ruled fuselages. Makes them so much more sexy looking, like a nice hourglass shape on a woman.

My question is, are there any benefits with the area rule in regards to normal airliner speeds (< M.92)?


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
215
Reaction score
42
NUSNA_Moebius said:
I love the look with the area ruled fuselages. Makes them so much more sexy looking, like a nice hourglass shape on a woman.

My question is, are there any benefits with the area rule in regards to normal airliner speeds (< M.92)?

I recall that when the 747-300 introduced the extended upper deck, the fuel consumption was lower than predicted. This was attributed to the longer "hump" bringing the cross-sectional distribution closer to the area-ruled ideal.


dannydale

CLEARANCE: Secret
Joined
May 13, 2007
Messages
212
Reaction score
2
I read up on wikipedia about the Whitcomb Area Rule, and it said Mach .75 is where it begins to become an important design consideration. Something meant to fly at .98 Mach would definitely need area ruling.

It's really about making the aircraft conform roughly to a Sears-Haack cross-sectional area distribution. There's something else to be said about how 'sexy' the design ends up as a nice side effect! B)
