Mystery F-111: VTOL? Seaplane? Something else?

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,060
Reaction score
1,482
Website
www.aerospaceprojectsreview.com
I've been pondering over this illustration for years now, trying to determine just what it shows. My first reaction, years ago, was that it shows an F-111 with lift-fan doors in the top of an extended forward fuselage. Now I'm not so sure.

Higher rez images here:
http://up-ship.com/blog/?p=4122

Looking at the lower fuselage, it looks like a flying boat lower hull.

WTF???


Attachments

  • Image191.jpg
    40.2 KB · Views: 1,348

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
It is a VTOL, or extreme STOL. Maybe someone else knows more.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,791
Reaction score
2,006
Just my two cents but it looks like the wings are smaller than a standard F-111. This (among the other details) makes me wonder if it were an effort to significantly increase low altitude speed. The lift engines would be to enable it to still get off the ground in a reasonable distance similar in concept to the various Russian STOL demonstrators but with the higher fineness ratio and smaller wings it should have a better ride (higher wing loading) at low altitude and perhaps the body shaping is to improve body lift or move the CP forward a bit (and more fuel). ???


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
598
I don't think this could be a hull. The distance between the wing and the water would be much too small, making the lift-off very difficult I think. Flying-boats have a higher elevation, mid- or high-wing, floats under the wings (or at the wingtips). The latter is simply not possible with a VG configuration (how do you stabilize the fighter laterally without wing floats?)


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
73
I'm loking at the tail and engine arrangement, and I'm wondering if this was an alternate condition for the "H"-model Vark.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,459
Reaction score
938
For me it's looks like a STOL version of a F-111.
But the big question for me is:
Does it have an internal weapon bay, a small one behind the lift engines, or is it deleted for more fuel?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
Stargazer2006 said:
I don't think this could be a hull. The distance between the wing and the water would be much too small, making the lift-off very difficult I think. Flying-boats have a higher elevation, mid- or high-wing, floats under the wings (or at the wingtips). The latter is simply not possible with a VG configuration (how do you stabilize the fighter laterally without wing floats?)

I agree and add that the position of the air intakes and nozzles is far from ideal for the operations on the water.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,205
Reaction score
49
XP67_Moonbat said:
I'm loking at the tail and engine arrangement, and I'm wondering if this was an alternate condition for the "H"-model Vark.

Looking at the tail section of the model, I was thinking the exact same thing.


dragon72

ACCESS: Confidential
Joined
Aug 8, 2006
Messages
63
Reaction score
4
The extra 'hull' along the bottom may be just to increase the vertical height to fit the STOL engines. Notice how it ends just under the wing. There doesn't appear to be any modifications under the rear engines to denote them rotating for VTOL so the new engines are for STOL only.

As for the wings being smaller, I believe that's just an optical allusion due to the increased size of the aircraft.

Just thought of something else. They could be eject-able passenger modules. That'd be a fun ride :)


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
217
This would appear to be an F-111 further customised for the USAF requirement away from the more common, to the US Navy F-111B, F-111A. Part of the USAF mission was a rough field shorter takeoff than legacy aircraft which one of the reasons OSD was attracted to combining TFX with the US Navy Phoenix fighter. So add lift jets would further this airfield requirement to a very short takeoff and landing, very 1960s. It would not appear to be VTOL as the cruise engine nozzles do not appear to be rotating. The other major change is the additional length and streamlining which was pulled from the F-111A so it could land on carriers. If lift jets were placed where they appear to be there would still be space aft for the bomb bay. There would probably be a lot more fuel up forward as well.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
The tail section could house thrust -vectoring (one-dimension) nozzles. I think the wings look smaller only because the fuselage is much longer than the normal F-111s, both regular and stretched. Regarding this, a wild suggestion. There is another F-111 proposed variant that's known existed but on which there aren't data, the 111-3-M. COULD be that that had the fuselage of this one, with lift engine and thrust vectoring deleted to make space for a third crewmember, additional fuel and maybe internal stores. It's a pity that Convair Fort Worth hasn't anything like the SDAM (AFAIK). All in all the TFX/F-111 lineage confirms itself as the least known of major recent aircraft programs.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,771
Reaction score
4,455
Comparisons. Its clearly a lot longer than the stretched F-111H even, and differs in so many details that its hard to see it as a variant.


Attachments

  • Mystery F-111.jpg
    Mystery F-111.jpg
    134.5 KB · Views: 1,107

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,791
Reaction score
2,006
Skybolt said:
The tail section could house thrust -vectoring (one-dimension) nozzles. I think the wings look smaller only because the fuselage is much longer than the normal F-111s, both regular and stretched. Regarding this, a wild suggestion. There is another F-111 proposed variant that's known existed but on which there aren't data, the 111-3-M. COULD be that that had the fuselage of this one, with lift engine and thrust vectoring deleted to make space for a third crewmember, additional fuel and maybe internal stores. It's a pity that Convair Fort Worth hasn't anything like the SDAM (AFAIK). All in all the TFX/F-111 lineage confirms itself as the least known of major recent aircraft programs.

FWIW there were also plans for TF-30s all the way up to 30,000lbs+


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
699
Reaction score
111
Website
www.tommythomason.com
Re small-looking wings: The wings of conventional airplanes are generally sized by the takeoff and landing requirements. A VTOL can get by with smaller wings relative to its size since they don't have to produce as much lift at takeoff and landing speeds. That would support the supposition that ii represents a V/STOL design study.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,311
Reaction score
226
Re increased fuselage depth - Does anyone know what lift engine was considered? the deeper fuselage could be the result of having to house the lift engines stacked vertically including associated inlets and nozzles of sorts - just a guess


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
Lift engines were at least 8. An educated guess would be Continental J-69 (Model 356), derivative from Marborè II, 1,920 lbs max thrust, proposed for use in some VAX Lockheed studies.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
I suspect that all he has on this is that same picture....


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,311
Reaction score
226
Skybolt said:
Lift engines were at least 8. An educated guess would be Continental J-69 (Model 356), derivative from Marborè II, 1,920 lbs max thrust, proposed for use in some VAX Lockheed studies.

Any chance the dedicated lift jets designed by RR would have been used instead? Rb.162 and the like? When designed specifically for the role, you could get pretty high thrust to weight ratios on these engines (10:1 being easily achieved)


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,791
Reaction score
2,006
AeroFranz said:
Skybolt said:
Lift engines were at least 8. An educated guess would be Continental J-69 (Model 356), derivative from Marborè II, 1,920 lbs max thrust, proposed for use in some VAX Lockheed studies.

Any chance the dedicated lift jets designed by RR would have been used instead? Rb.162 and the like? When designed specifically for the role, you could get pretty high thrust to weight ratios on these engines (10:1 being easily achieved)

The XJ99 acheived 20:1 :eek:


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
149
As far as the engines envisaged, any guess is welcome. For her VTOL projects Lockheed used everything on the block, and some unbuilt ones too.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
231
Wasn't there a US/FRG programe for a supersonic VTOL? IIRC Republic or Rockwell was the lead company.

Regards.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
73

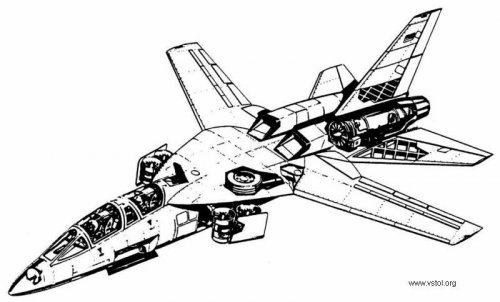

The Fairchild AVS project? Yeah, that one had a quasi-F-111 look to it. But it's not the same as our mystery Vark here.


Attachments

  • avs_1.jpg
    53.9 KB · Views: 1,309

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
After a long search I found this:

Among the many unusual projects explored for possible future F-111 production contracts was this VTOL configuration.
VTOL powerplants were located just ahead of the wing in extende bomb bay section.
Airplane was substantially different from conventional F-111 configurations and incorporated a fuselage stretch
a different empennage section and a slightly revised nose configuration.

so far : Jay Miller in "F-111 ...billion dollar blunder or answer to the loss of the B-1? "
in Airpower July 1979. (vol 9 No 4)

no further info in the article about an eventual seaplane variant.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,915
Reaction score
1,219
index.php


So far i know is this a German/US join-venture study. EWR/Fairchild AVS project
http://www.secretprojects.co.uk/forum/index.php/topic,452.0.html

so this not a Mystery F-111 :-[


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
It was not an FB-111H variant Hesham, see Overscan's reply # 11.


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
419
Reaction score
102
Looks like lift jets but just for fun it could be a radar recon. concept with a side ways looking radar in the ventral canoe and the hatches are for additional crew :)

Edit - doh! just read the blog and someone already had this idea.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
lark said:
It was not an FB-111H variant Hesham, see Overscan's reply # 11.


My dear Lark,


I saw the reply # 11 from my dear Paul,but in the Japanese site,you find it
under the FB-111H section,and in my opinion,the differ came from the lift
fan engines,which essentially required to change in configuration and some
details.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
If you carefull read Overscans and the others posts related to - Orions drawing -
than you must see that perhaps it is a complete new design and not a variant.

Besides, I think that the drawing on the site you found haves the wrong caption..


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,771
Reaction score
4,455
hesham said:
lark said:
It was not an FB-111H variant Hesham, see Overscan's reply # 11.


My dear Lark,


I saw the reply # 11 from my dear Paul,but in the Japanese site,you find it
under the FB-111H section,and in my opinion,the differ came from the lift
fan engines,which essentially required to change in configuration and some
details.


Its a mistake on the part of the author for this article for afwing.com which is a Chinese language site (probably Taiwan?) not Japanese. Who incidentally seems to have taken most of his images on the first few pages from this forum.


Your inability to distinguish between sources is quite frustrating. If someone takes Scott's scan and posts it on a website as a picture of Miley Cyrus, that doesn't make it true.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,060
Reaction score
1,482
Website
www.aerospaceprojectsreview.com
hesham said:
but why they put it under the FB-111H section in this site

Because they are:
A) Wrong
B) Lazy

I have high hopes that one day people will realize that just because they saw something on the internet (or on TV, or in a movie, or even in a "documentary"), they won't automatically believe it to be true, or even necessarily believe that the person who posted it actually knew what they were doing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
Orionblamblam said:
hesham said:
I have high hopes that one day people will realize that just because they saw something on the internet (or on TV, or in a movie, or even in a "documentary"), they won't automatically believe it to be true, or even necessarily believe that the person who posted it actually knew what they were doing.


Yes Scott,

I always ask about if that design is real or not,except if this info from a books,magazines or reality sites.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
598
hesham said:
I always ask about if that design is real or not,except if this info from a books,magazines or reality sites.


BUT books can contain mistakes (see the recent example of the Russian Curtiss "America"), magazines can contain mistakes... :mad:

And what do you call "reality sites", anyway? If they are as true and reliable as "real TV" shows, there is reason to worry... ::)


CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
437
Reaction score
606
Sorry to bring up such an old topic, but looking at the shape of this aircraft's tail and some other details i wouldn't be so sure in thinking this was an F-111 related development. Or even that it was a General Dynamics product at all.

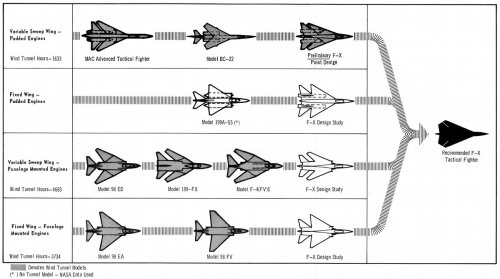

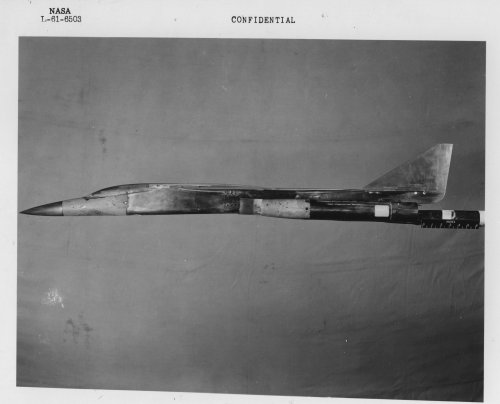

Instead, i can see more than a point of contact with the McDonnell TFX design, of which Overscan posted some pics here http://www.secretprojects.co.uk/forum/index.php/topic,526.180.html in the "Long road to the F-111" topic, and with other McDD studies.

Hope this can be of help.

Regards.


Attachments

  • L-61-6503.jpg
    328.8 KB · Views: 305
  • FX Fighter Studies & Tests-a.jpg
    FX Fighter Studies & Tests-a.jpg
    121.8 KB · Views: 299
