Myasishchev M-67 AIRBORNE SURVEILLANCE TESTBED (AST) analog

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289

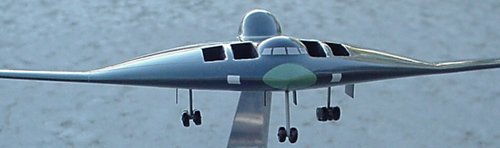

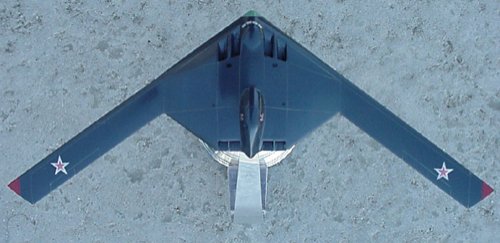

Two manned and two unmanned projects of what must have been Soviet analog of US Boeing 767 AST lab for detection, tracking and target discrimination methods, as well as provide ICBM tracking information to ground radar
(c) The Illustrated Encyclopedia of Myasishchev Aircraft (Avico Press)


Attachments

  • m67cruiserlk.jpg
    27 KB · Views: 1,006
  • m67cruiserlk-m.jpg
    29.5 KB · Views: 1,002

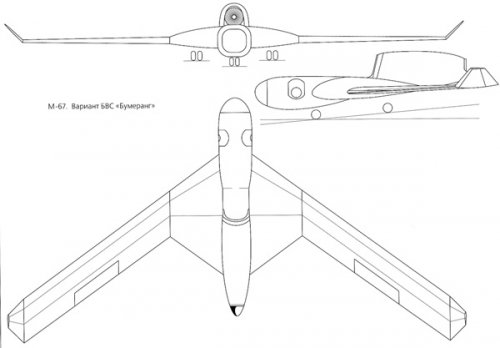

  • m67bvsbumerang.jpg
    37.9 KB · Views: 875
  • m67bvslk.jpg
    31.8 KB · Views: 836

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,767
Excellent!

I've not seen 3 views of these.

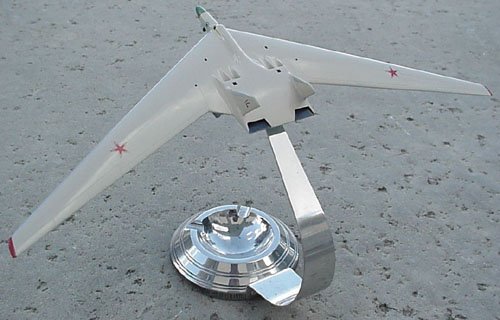

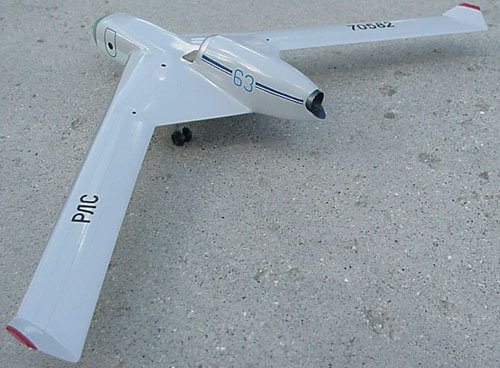

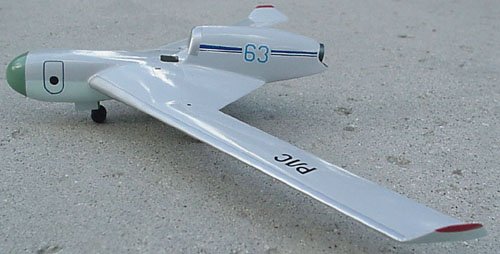

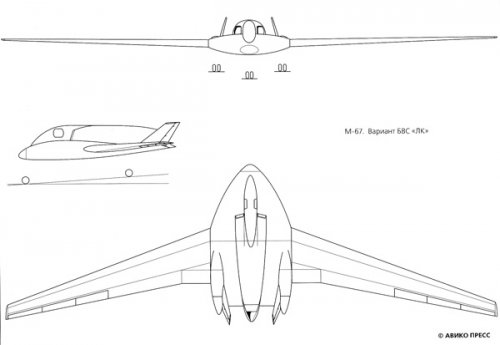

M-67 BVS-LK


Attachments

  • Myasishchev M-67 BVS-LKc.jpg
    Myasishchev M-67 BVS-LKc.jpg
    17 KB · Views: 229
  • Myasishchev M-67 BVS-LKb.jpg
    Myasishchev M-67 BVS-LKb.jpg
    21.5 KB · Views: 237
  • Myasishchev M-67 BVS-LKa.jpg
    Myasishchev M-67 BVS-LKa.jpg
    28.6 KB · Views: 681

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,767

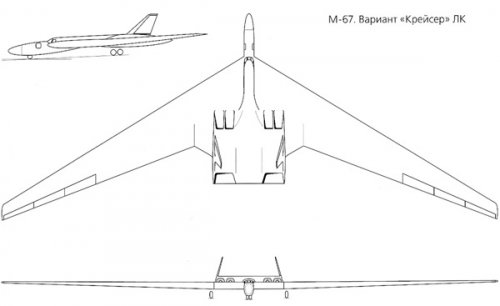

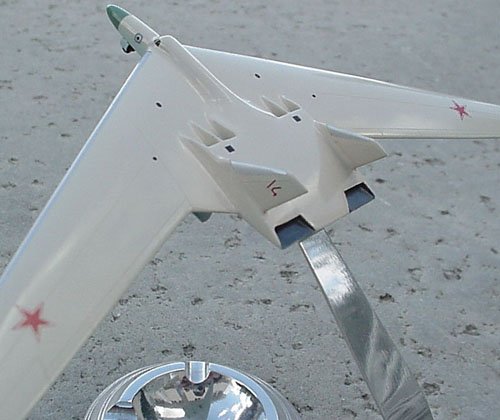

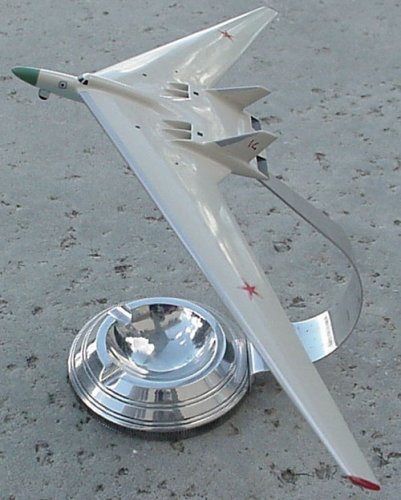

M-67 Kreiser LK


Attachments

  • Myasishchev M-67 Kreiser LKa.jpg
    Myasishchev M-67 Kreiser LKa.jpg
    52.8 KB · Views: 270
  • Myasishchev M-67 Kreiser LKb.jpg
    Myasishchev M-67 Kreiser LKb.jpg
    42.6 KB · Views: 218
  • Myasishchev M-67 Kreiser LKc.jpg
    Myasishchev M-67 Kreiser LKc.jpg
    39.5 KB · Views: 191
  • Myasishchev M-67 Kreiser LKd.jpg
    Myasishchev M-67 Kreiser LKd.jpg
    73 KB · Views: 217

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,767

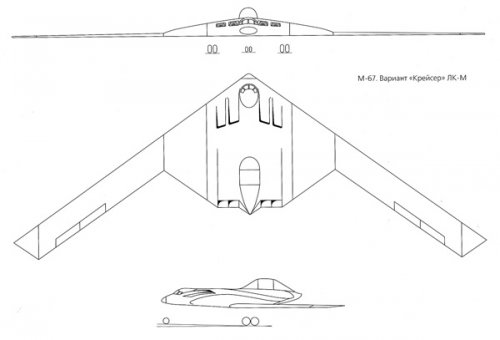

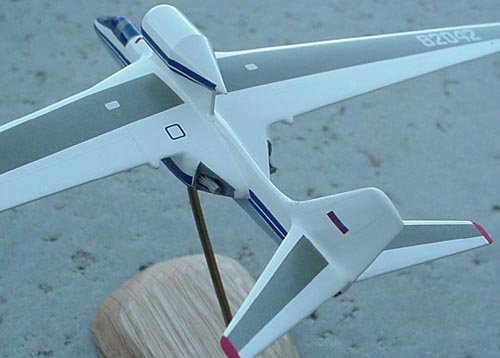

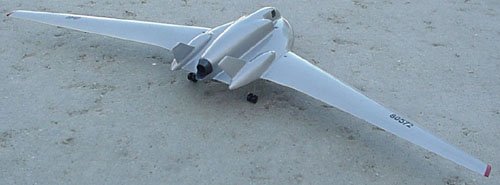

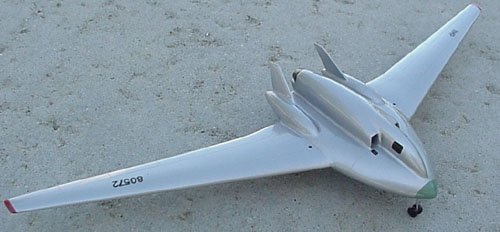

M-67 LK-M Variant 1d


Attachments

  • Myasishchev M-67 LK-M Variant 1d.jpg
    Myasishchev M-67 LK-M Variant 1d.jpg
    57.1 KB · Views: 262
  • Myasishchev M-67 LK-M Variant 1c.jpg
    Myasishchev M-67 LK-M Variant 1c.jpg
    117.2 KB · Views: 254
  • Myasishchev M-67 LK-M Variant 1b.jpg
    Myasishchev M-67 LK-M Variant 1b.jpg
    173 KB · Views: 277
  • Myasishchev M-67 LK-M Variant 1a.jpg
    Myasishchev M-67 LK-M Variant 1a.jpg
    34.2 KB · Views: 302

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289

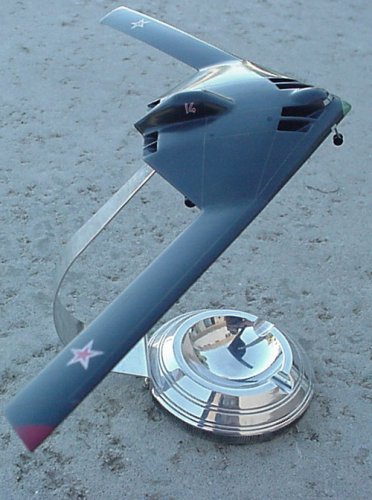

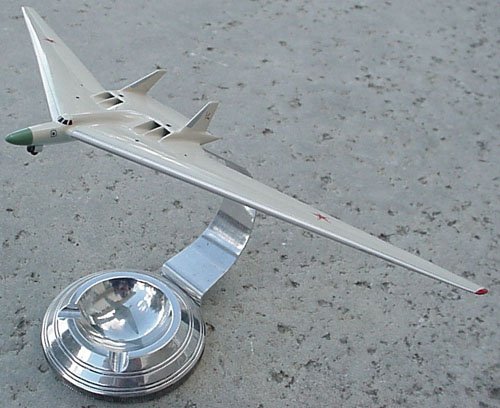

Just noted that Panchenko makes model stands as ashtrays. Seems weird to me.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,767

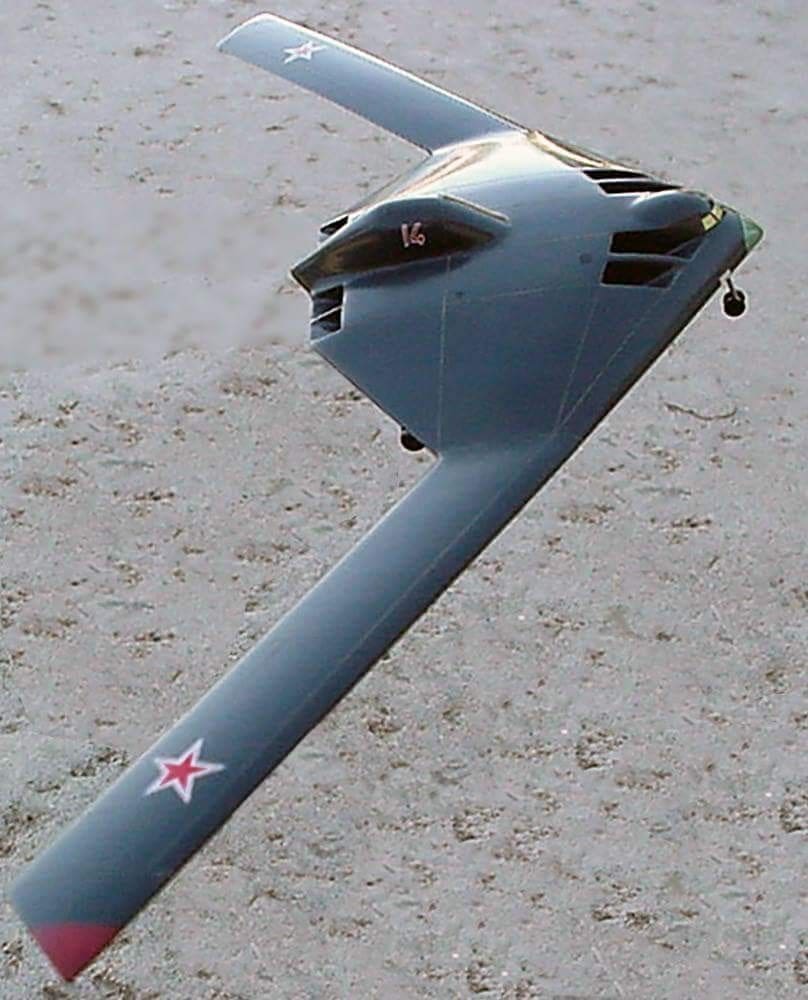

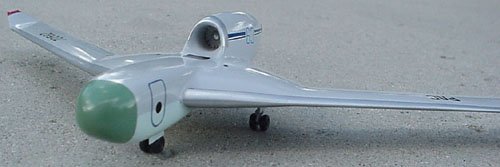

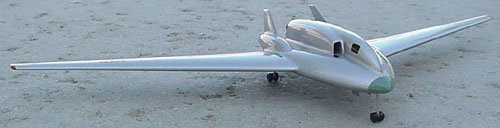

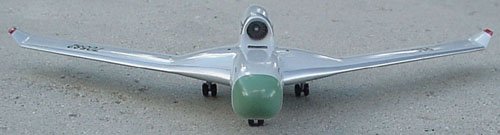

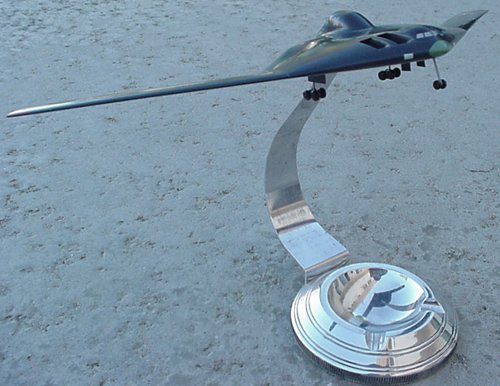

Myasishchev M-67 LK-M


Attachments

  • Myasishchev M-67 LK-Md.jpg
    Myasishchev M-67 LK-Md.jpg
    17.1 KB · Views: 175
  • Myasishchev M-67 LK-Mc.jpg
    Myasishchev M-67 LK-Mc.jpg
    49.2 KB · Views: 180
  • Myasishchev M-67 LK-Mb.jpg
    Myasishchev M-67 LK-Mb.jpg
    32.3 KB · Views: 194
  • Myasishchev M-67 LK-Ma.jpg
    Myasishchev M-67 LK-Ma.jpg
    19.3 KB · Views: 204

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,767

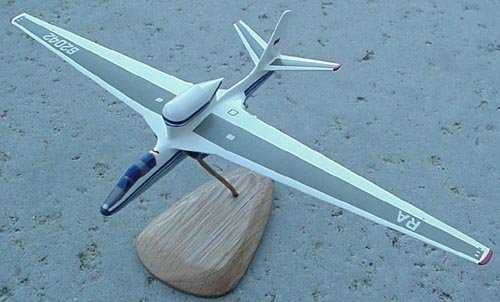

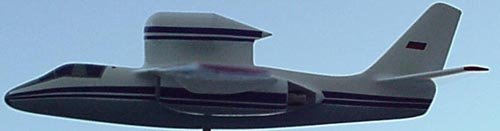

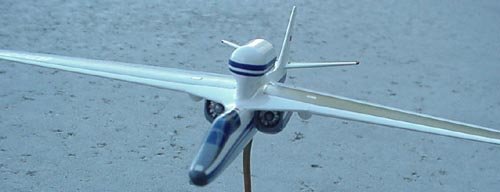

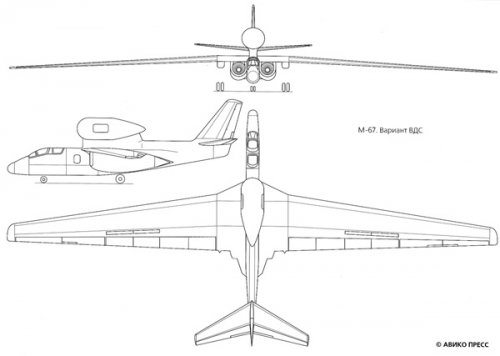

Myasishchev M-67 VDS


Attachments

  • Myasishchev M-67 VDSa.jpg
    Myasishchev M-67 VDSa.jpg
    34.6 KB · Views: 258
  • Myasishchev M-67 VDSb.jpg
    Myasishchev M-67 VDSb.jpg
    17.2 KB · Views: 236
  • Myasishchev M-67 VDSc.jpg
    Myasishchev M-67 VDSc.jpg
    28.9 KB · Views: 208
  • Myasishchev M-67 VDSd.jpg
    Myasishchev M-67 VDSd.jpg
    11.9 KB · Views: 243

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,151
Reaction score
1,289
No dimensions, no specifications were published so far.
Just info on cruising altitude of 20-26 km and duration of flight from 5 to 8 hours.
Take-off weight differs from 15 tonns for unmanned versions up to 100 tonns for manned ones.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Here's a rough translation of text from Krilya Rodine (April-May 2015) on five different design iterations:

(there are bits I couldn't easily translate):

On March 23, 1983, US President Ronald Reagan was officially announced a new long-term program to create the groundwork for the development of large-scale missile defense system. It was named the SDI - Strategic Defense Initiative. The program was meant to place in space a significant number of man-made objects, including satellite interceptors.

Naturally, the Soviet Union did not want to stay away from these events. In addition to various kinds of work being conducted in response to the IDF, it was also necessary to monitor the launch and flights of various space objects of artificial origin. Therefore, in 1987, V. Myasishchev's EMZ bureau began work on a whole family of high-altitude aircraft-detectors, the M-67. Their main purpose was to detect ICBMs and their warheads from a flight altitude of 20-25 km.

Several options were considered for solving the problems of the M-67. First - autonomous, with the tasks for the detection of objects, handling and transmitting information on the control points. To do this, it was planned to create a manned tactical aircraft with a crew of 10-15 people. The second option was a manned aircraft (with a crew of 1-2 people), detecting objects and only transmitting information to Earth for its subsequent processing. The third option was a drone-detector with the same features.

Several variants were developed in accordance with these schemes: flying wings (the manned"Cruiser" LK, the unmanned BVS "LK" and LC-M "Bumerang"), and a monoplane normal scheme ("VDS" design - high-altitude subsonic aircraft). Depending on the size of these design , the weight ranged from 15 to 100 tons.

The result of this research was to prove in principle the possibility of creating a high-flying tracker plane, both in unmanned and manned versions. However, the study failed to create a versatile aircraft capable of solving all the problems it was to face. Therefore, only the development of three-detectors aircraft was considered, complementing each other.
