Myasishchev M-62 Oryol (Eagle) - Soviet Condorski

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
876
Project started in 1986, got a new push in 1989 after Boeing Condor UAV appearence, and was cancelled in 1993 due lack of funding. Shown are:

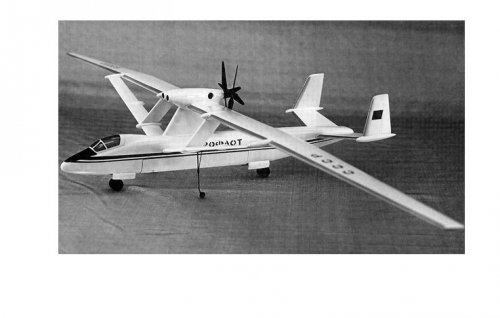

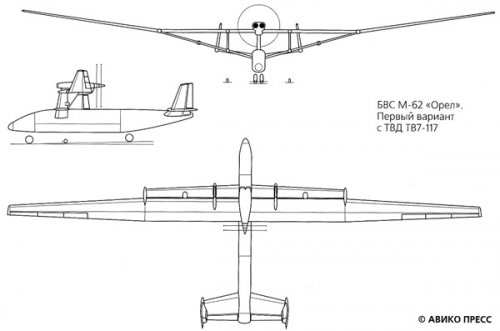

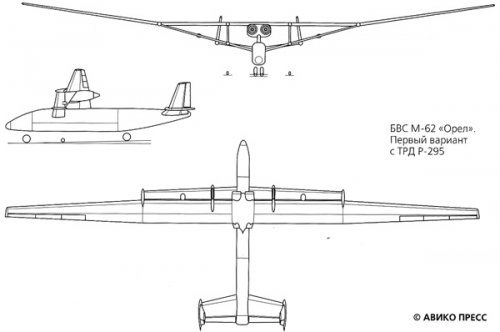

a-c). Two first iterations, with turboprop and turbojet engines, plus manned turboprop version - cabin was interchangable with payload Q-nose, and to be used just during test trials. Of course, that must have been Aeroflot aircraft, Soviet Airlines needed such a planes very much...

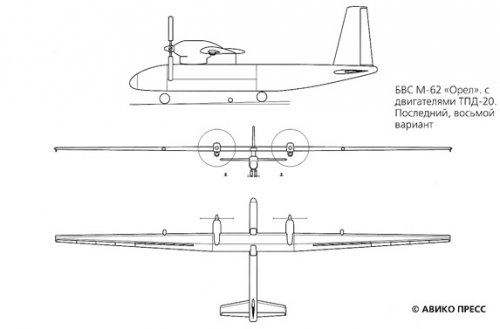

d).The last, eight iteration with TPD-20 turbopiston/turbodiesel engines.

Specs
Wingspan - 61 m
Lenght - 19.1 m
Height - 7.2 m
Cruising altitude - 20 km
Cruising speed - M=0.4
Flight duration - 24-33 h
TOW - 12 000 kg

drawing, photos (c) Avico-Press


Attachments

  • m62-1-tv7-117.jpg
    33.6 KB · Views: 460
  • m62-1-tv7-117manned.jpg
    75.4 KB · Views: 533
  • m62-1-r-295.jpg
    32.5 KB · Views: 400
  • m62-8-tpd20.jpg
    27.5 KB · Views: 367

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Can You Help Me To Identify An Aircraft?

Hi Everyone!

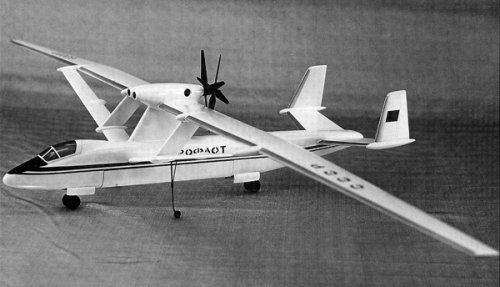

Can someone help me to identify this Russian aircraft?
In the picture's caption, it says M-62, but it seems that more than one design seems to bear that designation.
Would any three-view line drawings be available of this aircraft?

Thanks!!!


Chuck


Attachments

  • m62-1-tv7-117manned[1].JPG
    37.7 KB · Views: 314

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
876
Re: Can You Help Me To Identify An Aircraft?

Chuck, this is manned variant of the first iteration of Myasishchev M-62 Oryol (Eagle) LE UAV - Soviet Condorski
http://www.secretprojects.co.uk/forum/index.php/topic,267.msg1729.html#msg1729


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Re: Can You Help Me To Identify An Aircraft?

Hi!
Insofar I have noticed the Chuck Anderson has an increased interest to histories to russian/soviet aviation. Possible, there is sense little add to posting flateric.

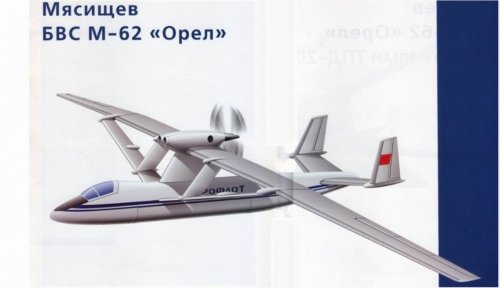

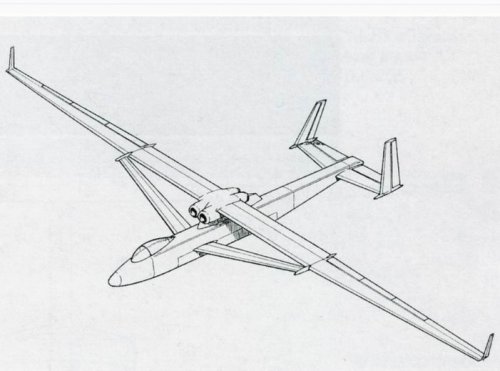

1),2),3)-manned variants

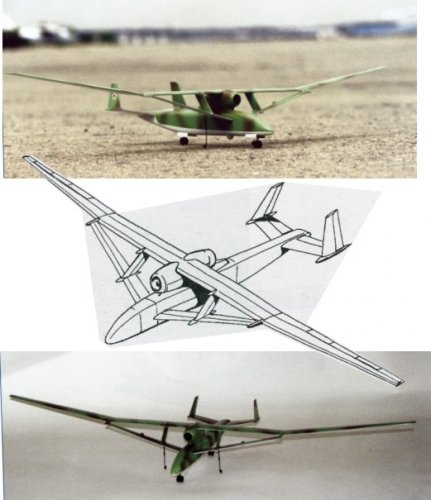

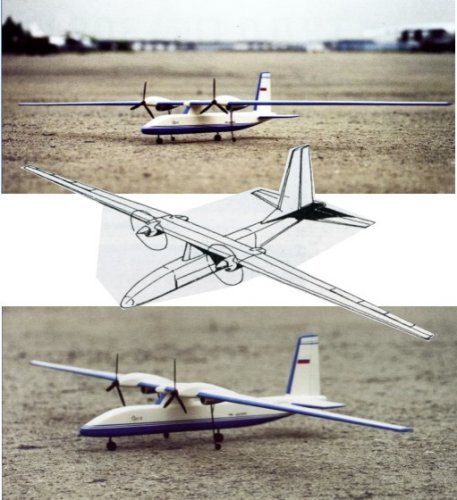

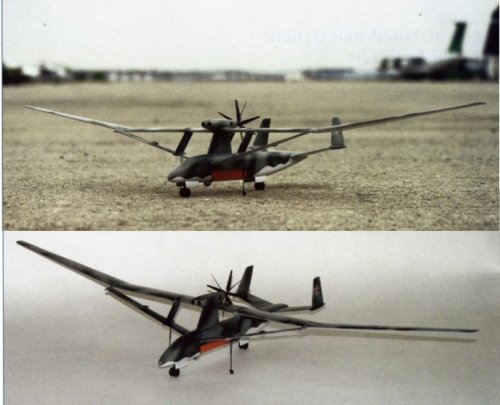

4),5),6)-M-62 UAV models
Source: A.Brook, K.Udalov, S.Smirnov "Illustrated encyclopedia planes of V.M.Myasishchev's" Vol.3 Chapt.1 AVICO 1999


Attachments

  • M-62 2(PS-30V12).jpg
    M-62 2(PS-30V12).jpg
    65 KB · Views: 109
  • M-62 1(TVD 7-117).jpg
    M-62 1(TVD 7-117).jpg
    83.2 KB · Views: 118
  • M-62 Orel.jpg
    M-62 Orel.jpg
    44.8 KB · Views: 134
  • M-62 Orel 1(R-295)pilot..jpg
    M-62 Orel 1(R-295)pilot..jpg
    106.9 KB · Views: 119
  • M-62 (initial form).jpg
    M-62 (initial form).jpg
    107.1 KB · Views: 132
  • M-62 6(pist.eng).jpg
    M-62 6(pist.eng).jpg
    75.7 KB · Views: 133

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
876
Dear Borovik, please read forum rules once more. Always mention source book, please... Don't put all the book contents on the web - may be, it will help Mr. Bruk and Mr. Udalov issue several volumes...some day.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
flateric said:
Dear Borovik, please read forum rules once more. Always mention source book, please... Don't put all the book contents on the web - may be, it will help Mr. Bruk and Mr. Udalov issue several volumes...some day.
Agree. Has Understood. My apologies.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,438
Reaction score
3,453
Borovik, you can post images, and we are very grateful for your interesting posts, but please mention the name of the book or magazine that is the source of the image. You can do it in Russian if that is easier for you.
