Myasishchev flying boats projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254

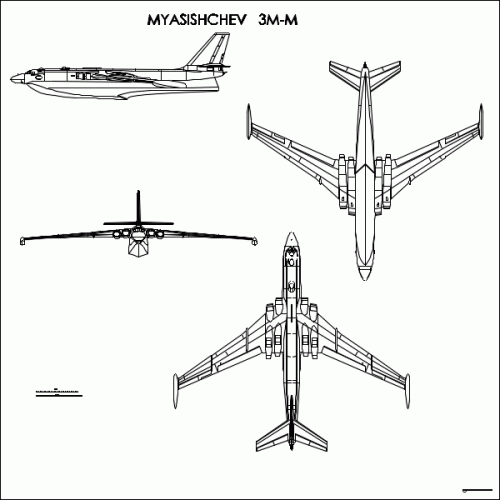

That's the drawing from APR 5/4, about russian seaplane
jetbombers, hope Orionblamblam don't mind me.


Attachments

  • M3-M.GIF
    29.1 KB · Views: 1,108

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254

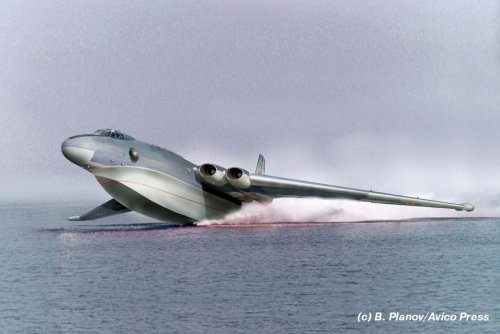

The M-70 and the 60M (nuclear powered), the Bartini designs or the Beriev SD-MBR
were designed from the start as flying boats. IF the problems would have been overcome
(doubtful !), they could have been competitive. But these landbased bombersj with just a
strapped on planing bottom, obiously using the same power plant ,would have been
severely handicaped, to say the least ... ;D


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

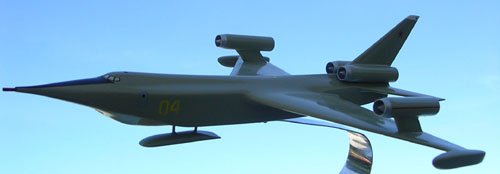

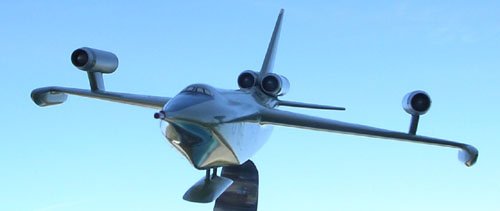

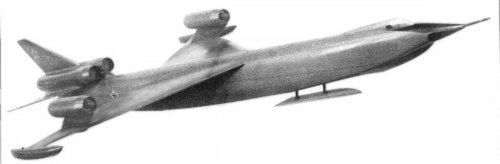

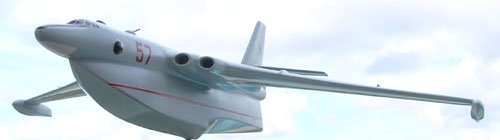

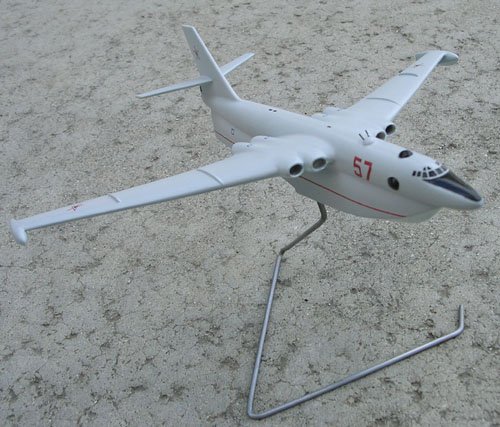

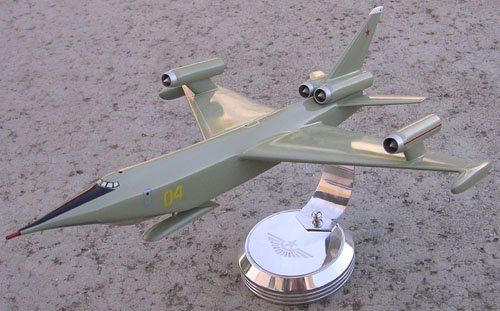

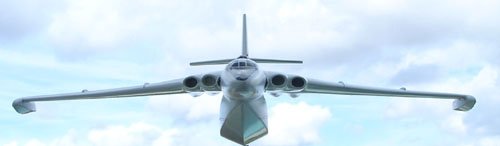

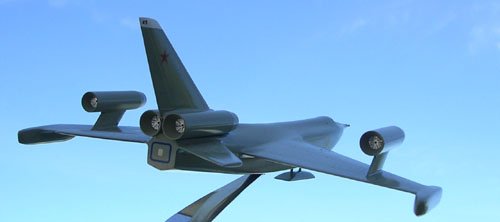

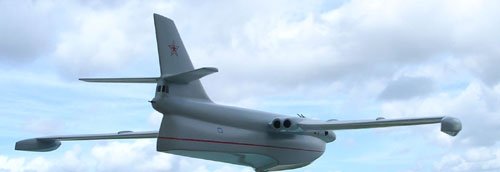

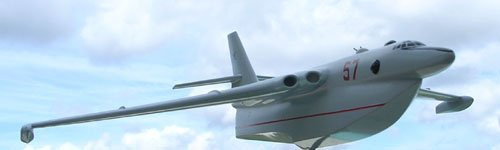

Model of Myasishchev M-70 from USSR-Russian Aviation and Space Collectibles.

NOTE: Although seller claims that model is authentic and accurate, the reader should be aware that the authenticity and accuracy of this model is in question. It may have been manufactured by another party without license.

14 abd 1/4 inches lenght (10 and 3/4 inches wing span) exclusive rare model of M-70 flying boat Intercontinental bomber.Aircraft was ordered from Myasishchev Design Bureau by governmental resolution # 1119-582 of August 15, 1956 (similar aircraft were to be designed also by Tupolev and Beriev).Two versions were provided, a bomber and reconaissance aircraft.
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_48&products_id=2151


Attachments

  • 07143326.jpg
    50.3 KB · Views: 90
  • 07143321.jpg
    49.2 KB · Views: 90
  • 07143316.jpg
    50.6 KB · Views: 631
  • 07143307.jpg
    79.4 KB · Views: 674
  • 07143256.jpg
    49.5 KB · Views: 675

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

Attachments

  • 19194943.jpg
    48.2 KB · Views: 113
  • 19194951.jpg
    96.8 KB · Views: 146
  • 19194957.jpg
    46.5 KB · Views: 111
  • 19195002.jpg
    46.5 KB · Views: 108
  • 19195209.jpg
    49 KB · Views: 109

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
13
That...looks like a pretty awful way to turn a landplane into a seaplane. Basically welding on a boat hull.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254
Hey Scott and boxkite, we succeeded in entering the german Sukhoi website !
Not bad isn't it ? ;D

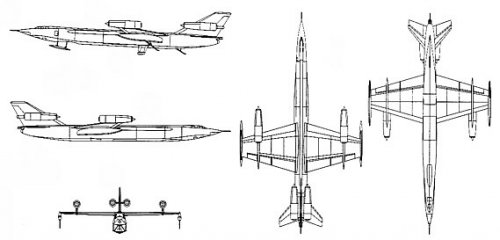

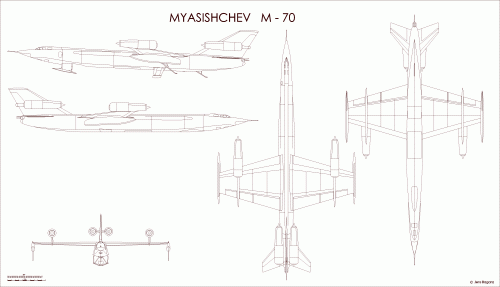

Here the drawing (which was made for boxkites article in Scotts APR Vol.5 N°4)
in a better resolution: ;)


Attachments

  • Myasischtschew M-70.gif
    Myasischtschew M-70.gif
    73.7 KB · Views: 214

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,126
Reaction score
1,662
Website
www.aerospaceprojectsreview.com
Jemiba said:
Hey Scott and boxkite, we succeeded in entering the german Sukhoi website !
Not bad isn't it ? ;D

I guess. I'm honestly surprised that very little of the APR material has been scanned and posted on websites or slapped into books over the years.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,153
Reaction score
1,297
because we care of you and cats, Scott


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,126
Reaction score
1,662
Website
www.aerospaceprojectsreview.com
flateric said:
because we care of you and cats, Scott

No, I think it's mostly because APR is so little known. I've seen lots of things in books and online over the years where the conclusion was that "we just don't have any more information," when I'd published detailed schematics *years* before.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,975
Reaction score
393
I'm honestly surprised that very little of the APR material has been scanned and posted on websites or slapped into books over the years.

It's because *you* know where *we* live, and you pack heat...

Seriously, it's because virtually everyone who's interested in it gets it legitimately, plus we all know, if piracy of APR got
to be a serious problem, you're likely to shut up shop...


cheers,
Robin.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,495
Reaction score
4,241
Jemiba said:
The M-70 and the 60M (nuclear powered), the Bartini designs or the Beriev SD-MBR
were designed from the start as flying boats. IF the problems would have been overcome
(doubtful !), they could have been competitive. But these landbased bombersj with just a
strapped on planing bottom, obiously using the same power plant ,would have been
severely handicaped, to say the least ... ;D

True. On the other hand, the existing land based Myasishchev 3M was somewhat short on range, and the Soviets were even shorter on IFR assets. A seaplane bomber could, in theory, touch down at a pre-designated refueling point while in route to a target, say in the Continental United States.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
Splendid, ucon, thanks! But next time, would you please care to develop "MDB" for non-specialists? Nowhere did you mention the name Myasishchev or the word Russian in your post. Can you imagine tracing these images for future reference? Impossible!

I'm changing the name of your topic right away...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661

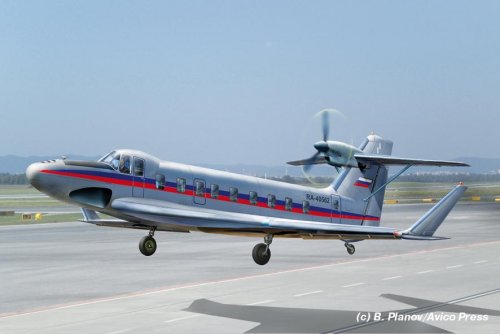

Also ucon, please why did you include the Taifun and Kaira designs here? Obviously they are not seaplanes!


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

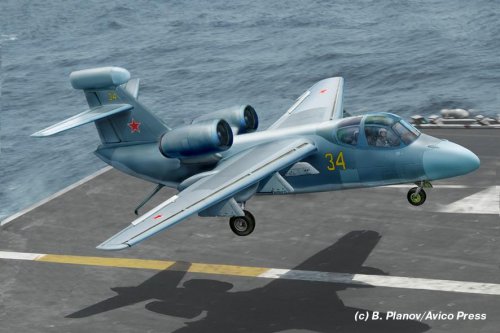

Was the Myasishchev Taifun related to this project:

"OKB Korchagin Typhoon multirole carrier-based aircraft"
http://www.secretprojects.co.uk/forum/index.php/topic,353.0.html

Was this aircraft intended for use on the aircraft carrier Ulyanovsk?
http://en.wikipedia.org/wiki/Soviet_aircraft_carrier_Ulyanovsk

I presume that the Taifun is similar to the Grumman EA-6B Prowler and was intended for electronic warfare/attack.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com

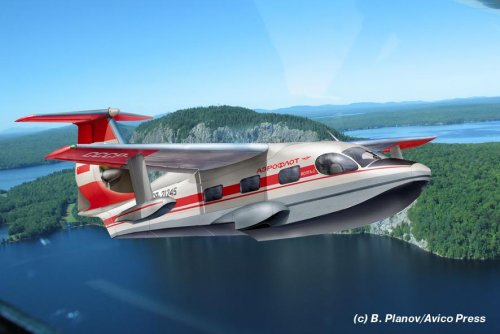

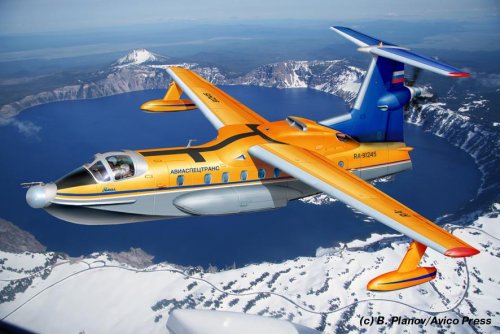

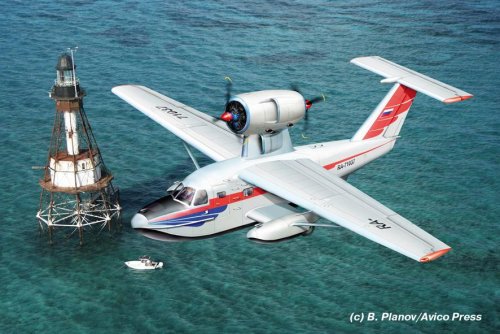

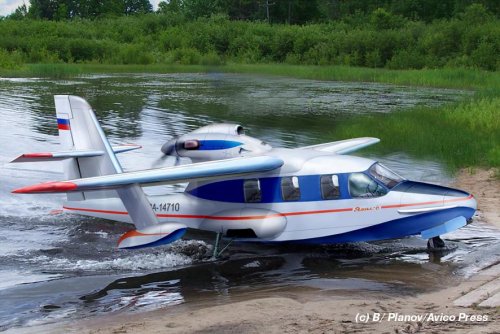

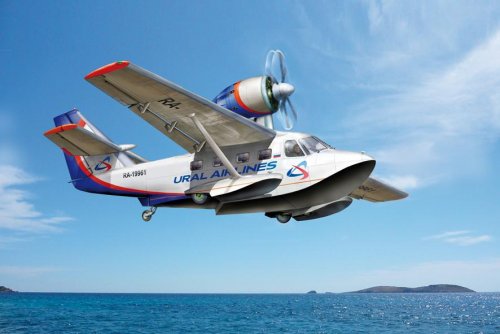

Yamal is also discussed in this topic:

"Aviapetstrans Yamal amphibian"
http://www.secretprojects.co.uk/forum/index.php/topic,7227.msg81402.html#msg81402

It gives me a headache trying to keep track of post-breakup aircraft design bureaus and who has what project. :eek:


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
553
Reaction score
163
Website
www.avicopress.ru
No headache or confusion.
The "Typhoon" was designed in DB Myasishchev in 1978 by Valentin Korchagin - future General Disigner of "Aviaspetstrans".
"Aviaspetstrans" was being incorporated into DB Myasishchev and "Yamal" made at the factory of DB Myasishev. Then "Aviaspetstrans" became an independent unit, but the staff were from KB Myasishev.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
818
Website
deeptowild.blogspot.com
ucon said:
No headache or confusion.
The "Typhoon" was designed in DB Myasishchev in 1978 by Valentin Korchagin - future General Disigner of "Aviaspetstrans".
"Aviaspetstrans" was being incorporated into DB Myasishchev and "Yamal" made at the factory of DB Myasishev. Then "Aviaspetstrans" became an independent unit, but the staff were from KB Myasishev.

Thank you, ucon. :)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
ucon, could you clarify for me the connection (if any) between Myasishchev and the Molniya series of aircraft and projects?

I was once under the impression that Molniya projects were somehow related to Myasishchev but now I'm not sure...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,871
Reaction score
4,798
Stargazer2006 said:
ucon, could you clarify for me the connection (if any) between Myasishchev and the Molniya series of aircraft and projects?

I was once under the impression that Molniya projects were somehow related to Myasishchev but now I'm not sure...

In part answer:

Myasishchev's EMZ was absorbed by NPO Molniya to work on Buran in February 1976

NPO "Molniya" comprised two design bureaus - "Burevestnik" (Chief Designer A.V.Potopalov), who had experience in creating designs of hypersonic aircraft and anti-aircraft missiles, and "Molniya" (Chief Designer M.R.Bisnovat ) which develops unmanned aerial vehicles - and EMZ (Experimental Engineering Plant) (General Designer V.M.Myasischev), which designed and tested heavy and high-altitude aircraft.

They were linked, at least in the past. Not sure of the current situation.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,981
Reaction score
102

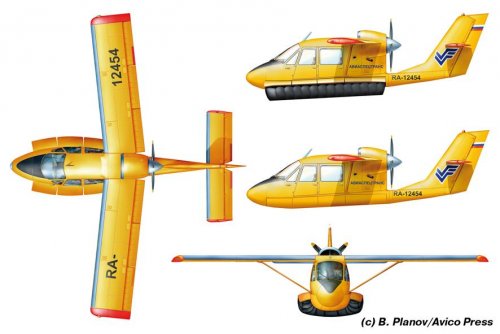

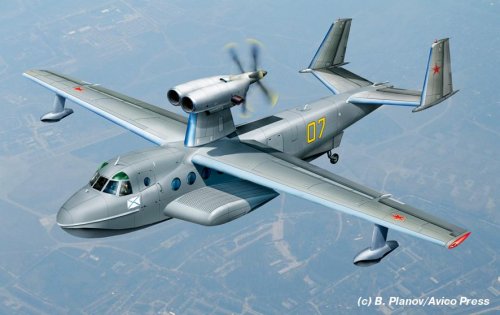

Does anyone have specification for Yamal 8 (weight, dimensions, engine?)

I take it the illustration is from the MDB encyclopedia by AvicoPress?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Hi,

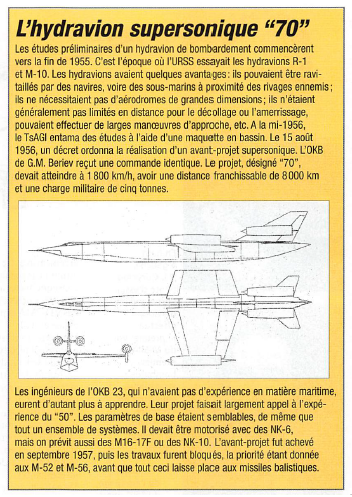

does anyone hear about Myasishchev M-10 flying boat bomber Project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
From Le Fana 400.


Attachments

  • 400-1.png
    337.7 KB · Views: 346

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
63
hesham said:
Hi,

does anyone hear about Myasishchev M-10 flying boat bomber Project ?.

Are you sure it's Myasischev?

The Beriev Be-10 was also known as Izdelie "M", and its record-breaking version was designated "M-10" for the FAI.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,785
Reaction score
4,941
Oops,sorry,I will correct it my dear Redstar.
