Monte-Copter Model 15 Tri-Phibian amphibious cold-cycle helicopter prototype....

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
30 November 2007
Messages
1,089
Reaction score
430
Dear Boys and Girls, here is an article in French about the Monte-Copter Model 15 Tri-phibian amphibious helicopter prototype which had a cold-cycle rotor......

The article comes from the 6th January 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Monte-Copter Model 15 Tri-Phibian cold cycle amphibious helicopter prototype - Les Ailes No.jpg
    Monte-Copter Model 15 Tri-Phibian cold cycle amphibious helicopter prototype - Les Ailes No.jpg
    83.8 KB · Views: 373
  • Monte-Copter Model 15 Tri-Phibian cold cycle amphibious helicopter prototype - Les Ailes No.jpg
    Monte-Copter Model 15 Tri-Phibian cold cycle amphibious helicopter prototype - Les Ailes No.jpg
    111.6 KB · Views: 377
Source: "Jane's all the world's Aircraft 1962-63"


Attachments

  • Monte-Copter.JPG
    228.5 KB · Views: 339
Looks like something Disney's Imagineers dreamed up to go with the monorail...

A bad scan but interesting info:

Maurice Ramme, a founder of the American Helicopter Society and the 87th licensed commercial pilot in the United States, died in December 1995. His helicopter experience began in 1948 when he served as test pilot for Hoppi Copter in Seattle.
There he tested and promoted a counter rotating, one man, back pack helicopter which looked like something out of "Buck Rogers." Mr. Ramme also tested Hoppi's one man, tricyc1e landing gear) counter rotating helicopter which was the forerunner of many of today's ultra light machines. While teaching turbine theory at Edison TechniCal Institute he learned that gas turbine air might be used to power a helicopter. In 1953, Mr. Ramme formed MonteCopter, Inc. to develop one of the first air driven rotor helicopters in the
United States. His prototypes include the Model 10, the first helicopter to fly using boundary layer slots as the only means of propelling the rotors, the Model 12, the first twin turbine pressure jet helicopter in the U.S., and the Model 15 Triphibian, capable of operating on land, sea or in the air.


Attachments

  • Triphibian (Vertiflite, 9 Jan 1993).jpg
    Triphibian (Vertiflite, 9 Jan 1993).jpg
    207.2 KB · Views: 234
When I joined Trident Aircraft at Victoria, BC in 1976 the hulk of the Monte-Copter Model 15 was stored in a corner of our hanger at Victoria International Airport. We shared the hanger with an elderly gentleman who rebuilt wrecked light aircraft, and he told me that he in turn had rented storage space to a Canadian company that owned the design rights. He gave me a phone number of the company, but the number had been disconnected (I wanted to send them a resume ;D). The hulk left the building one weekend about a year later.

From memory, it was just a fibreglass shell, with no engine or rotors. I think it was a very faded pink and white, may have been red and white at one time. I regret that I never took any photos of it at the time.

Color photos of Monte-Copter Model 15 Tri-Phibian.

Source:
http://xplanes.tumblr.com/post/183858219/the-monte-copter-model-15-triphibian-circa-1960
http://xplanes.tumblr.com/page/92

Perhaps a photo editing demigod might want to correct the faded colors? ;)


Attachments

  • tumblr_kppnc0d80n1qzsgg9o1_r1_500.jpg
    69.6 KB · Views: 53
  • tumblr_kppnugtAxC1qzsgg9o1_500.jpg
    85.7 KB · Views: 58
Another picture of the Tri-Phibian:


Attachments

  • Monte-Copter.jpg
    159.4 KB · Views: 46
In Aero France, April 1959, I found photos ot the Monte-Copter 12 and 14, mentioned in Stéphanes post,
data only for the 14:
Two seats, rotor diameter 9,75 m, length 9,75 m, width 5 m, heighht 2,60 m, empty weight 455 kg, TOW 635 kg.


Attachments

  • Monte-Copter-14.JPG
    154.1 KB · Views: 41
  • Monte-Copter-12.JPG
    168.7 KB · Views: 39
Jemiba said:
In Aero France, April 1959, I found photos ot the Monte-Copter 12 and 14, mentioned in Stéphanes post,
data only for the 14:
Two seats, rotor diameter 9,75 m, length 9,75 m, width 5 m, heighht 2,60 m, empty weight 455 kg, TOW 635 kg.


The "Model 14" seen here was actually the earlier Model 10A prototype before it was rebuilt into the Model 12.

The original Model 10, before removal of wings and canopy as Model 10A in Jemiba's post:


Attachments

  • those-fabulous-mini-helicopters-Jan-1957-ma-7.jpg
    14 KB · Views: 135
  • mc1234110 - Copy.jpg
    mc1234110 - Copy.jpg
    9.3 KB · Views: 34
Did some editing in GIMP. Not sure about the results.
<edit>replaced second picture with slightly bigger one


Attachments

  • triphibian 1.png
    triphibian 1.png
    293.7 KB · Views: 38
  • triphibian 2.png
    triphibian 2.png
    382.3 KB · Views: 34

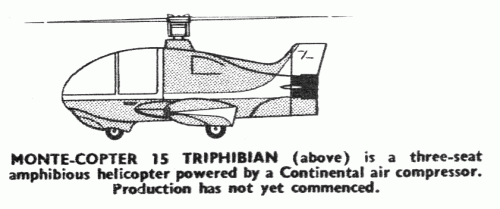

Another profile view of the Triphibian from RAF Flying Review in 1960:


Attachments

  • Monte-Copter 15 Triphibian.gif
    Monte-Copter 15 Triphibian.gif
    73.5 KB · Views: 76
Monte-Copter Model 12 pic

Monte-Copter Model 10 pic

Monte-Copter Model 15 pics


Monte-Copter%20Model%2015%20Tri-Phibian%20cold%20cycle%20amphibious%20helicopter%20prototype%20-%20Les%20Ailes%20No.%201%2C807%20-%206%20Janvier%201961%201.......jpg
