MOL Presentation

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Hi folks,

here it is a presentation jointly written, and drawed, by me and Dwayne Allen Day.
It covers almost all the aspects of this interesting and unlucky project and it took more the 3 months of work to be prepared.

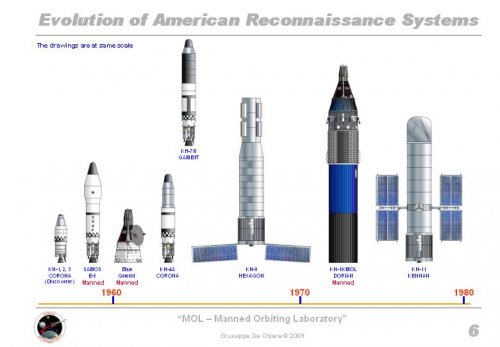

A small note: on Slide 6 the SAMOS E-5 is labelled as "Manned". Of course the E-5 wasn't started as manned project but USAF did foreseen a manned derivative, so this is the sense of the label.

Enjoy it!!


Attachments

  • Slide1.JPG
    19.2 KB · Views: 96

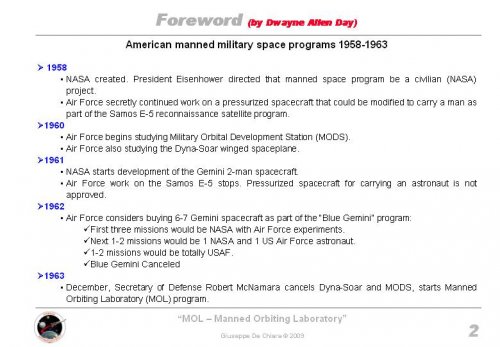

  • Slide2.JPG
    69.3 KB · Views: 95

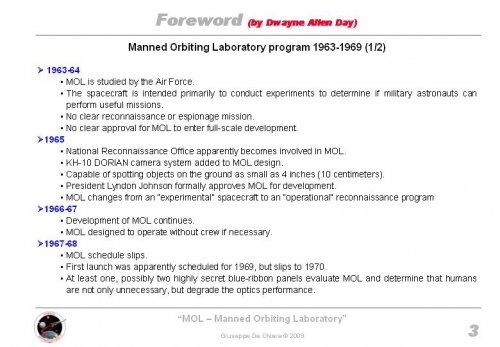

  • Slide3.JPG
    67.8 KB · Views: 93

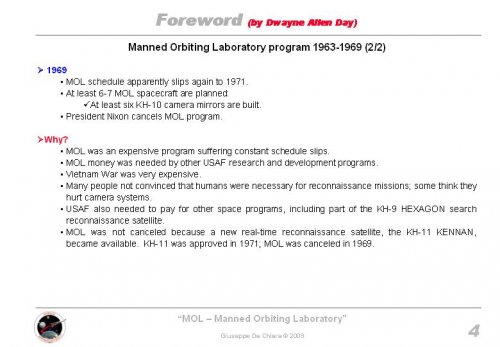

  • Slide4.JPG
    56.2 KB · Views: 91

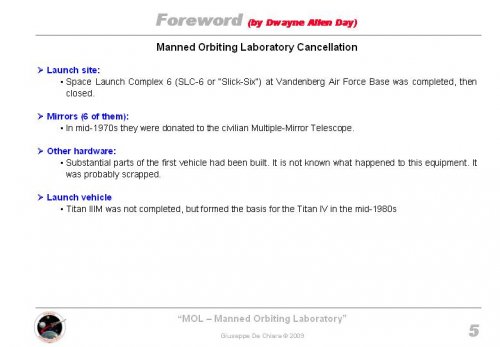

  • Slide5.JPG
    40.4 KB · Views: 95

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
More slides.....


Attachments

  • Slide10.JPG
    38.8 KB · Views: 90

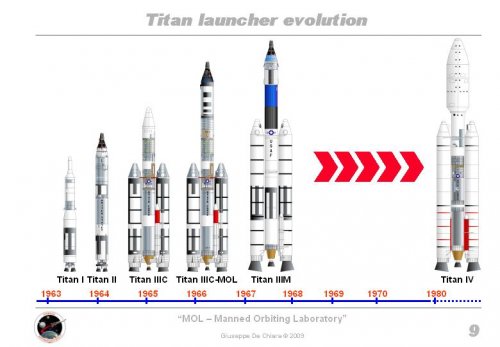

  • Slide9.JPG
    43.4 KB · Views: 131

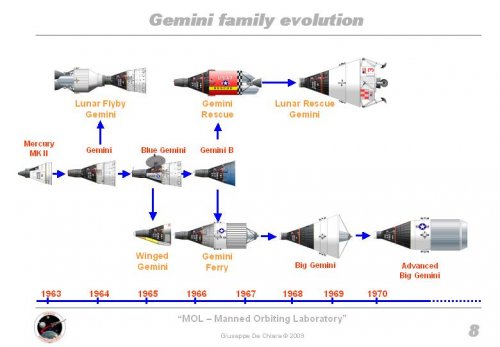

  • Slide8.JPG
    41.3 KB · Views: 142

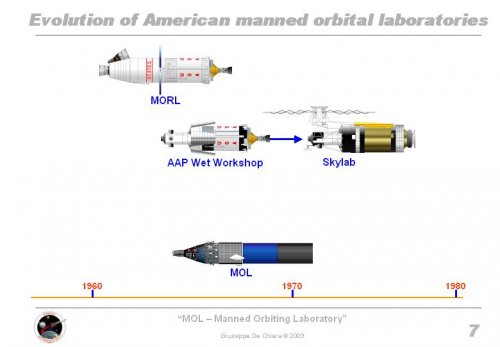

  • Slide7.JPG
    29 KB · Views: 138
  • Slide6.JPG
    38.4 KB · Views: 165

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
More slides.....


Attachments

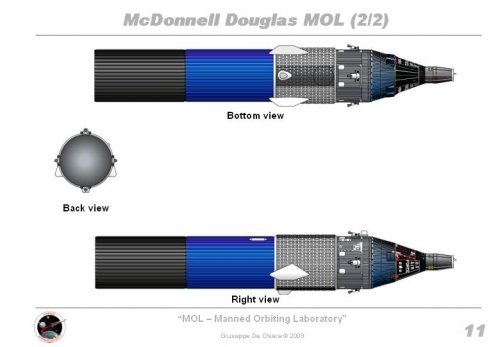

  • Slide11.JPG
    37.4 KB · Views: 76

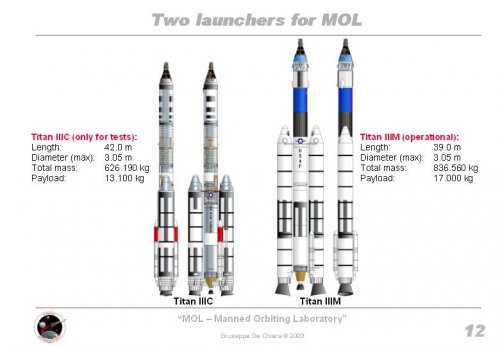

  • Slide12.JPG
    41 KB · Views: 110

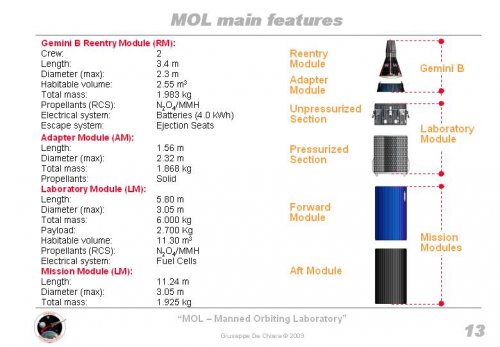

  • Slide13.JPG
    58.3 KB · Views: 88

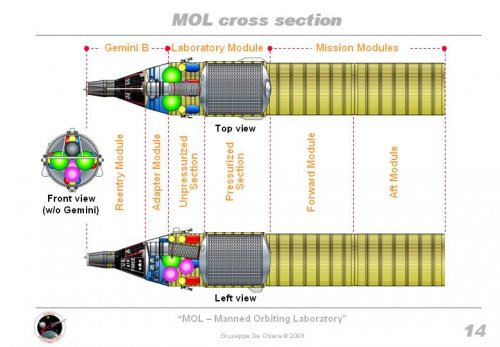

  • Slide14.JPG
    56.4 KB · Views: 97

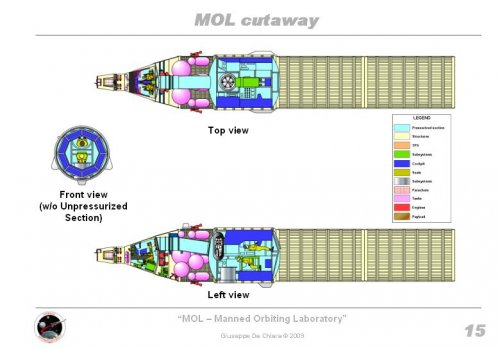

  • Slide15.JPG
    50.1 KB · Views: 97

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
More slides.....


Attachments

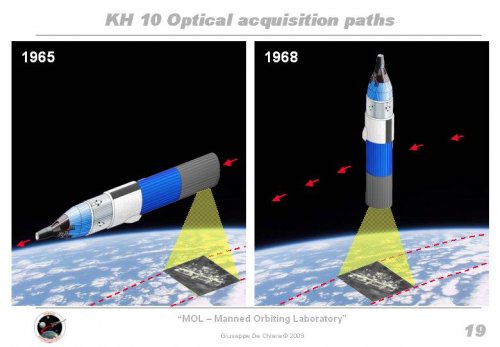

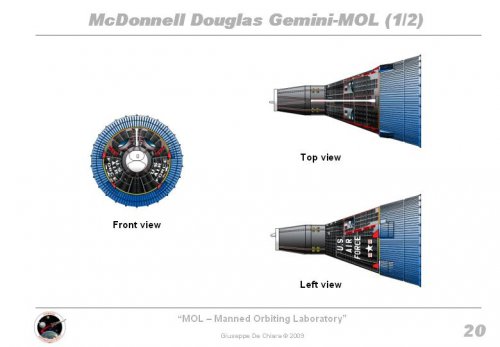

  • Slide20.JPG
    34.6 KB · Views: 78
  • Slide19.JPG
    46.8 KB · Views: 80

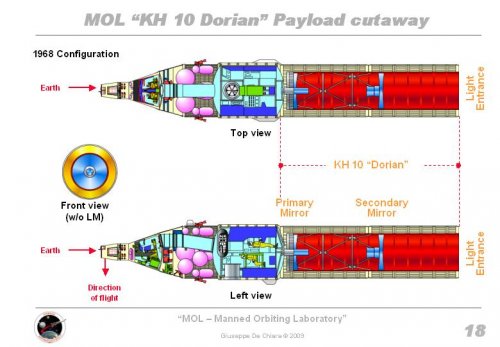

  • Slide18.JPG
    56.2 KB · Views: 88

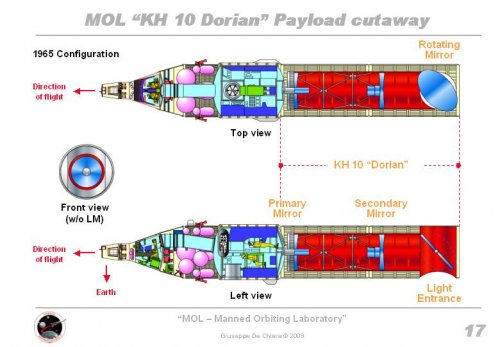

  • Slide17.JPG
    56.8 KB · Views: 91

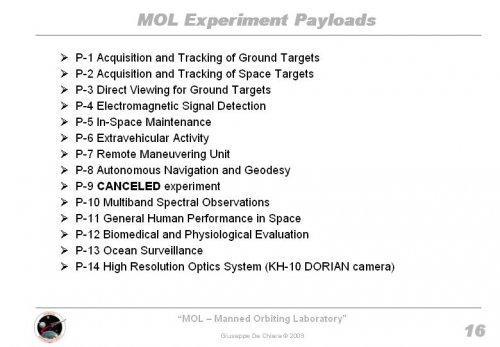

  • Slide16.JPG
    53.8 KB · Views: 54

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
More slides.....


Attachments

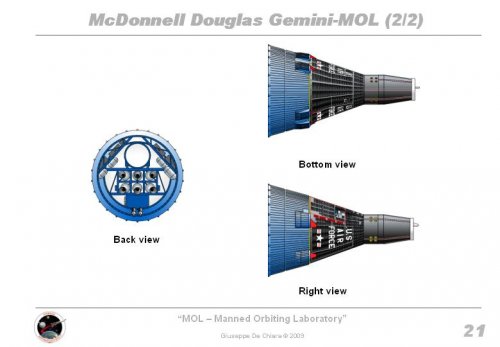

  • Slide21.JPG
    34.3 KB · Views: 72

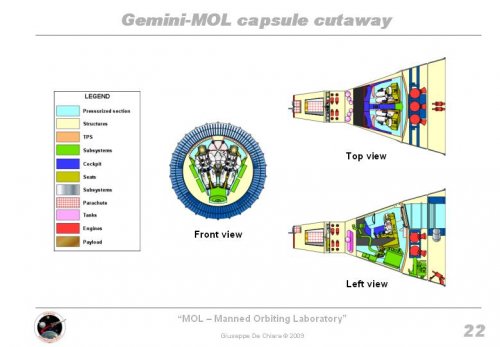

  • Slide22.JPG
    43.3 KB · Views: 80

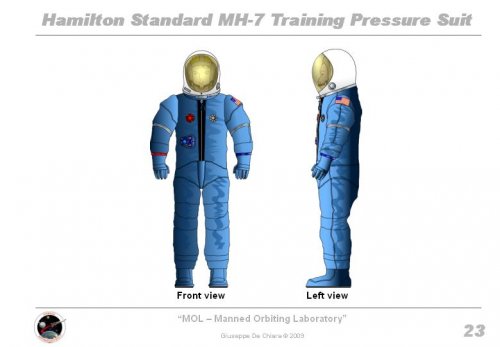

  • Slide23.JPG
    30 KB · Views: 71

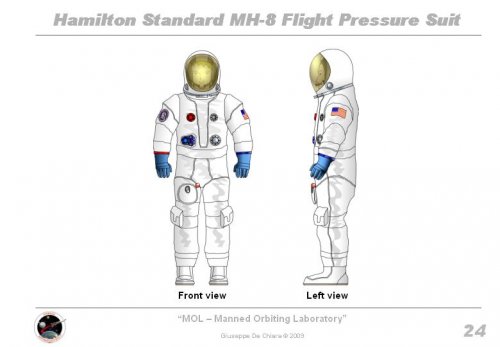

  • Slide24.JPG
    31.1 KB · Views: 70

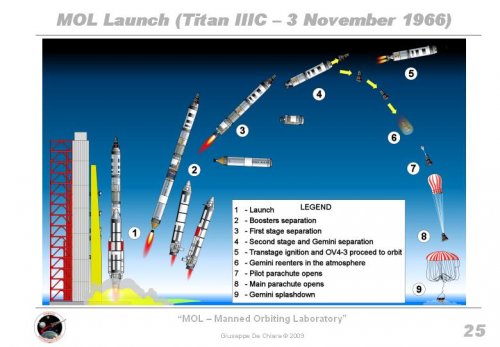

  • Slide25.JPG
    54.2 KB · Views: 75

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
More slides.....

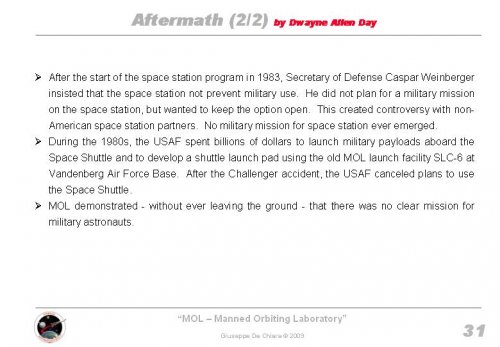

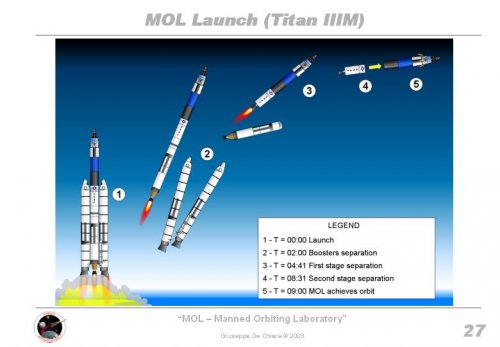

Attachments

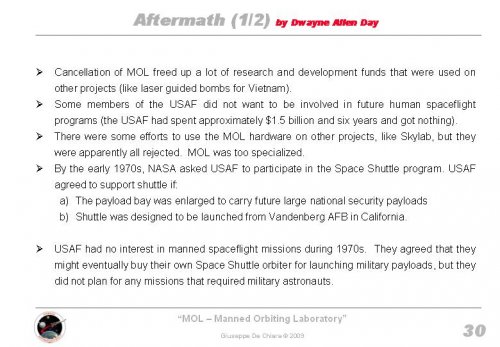

  • Slide30.JPG
    78.1 KB · Views: 60

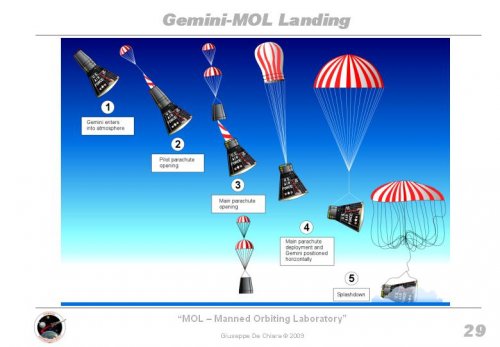

  • Slide29.JPG
    44.9 KB · Views: 74

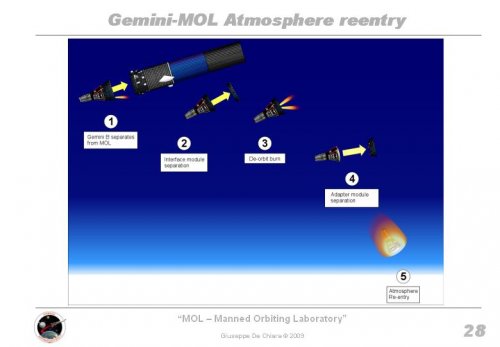

  • Slide28.JPG
    28.7 KB · Views: 70
  • Slide27.JPG
    39.7 KB · Views: 69

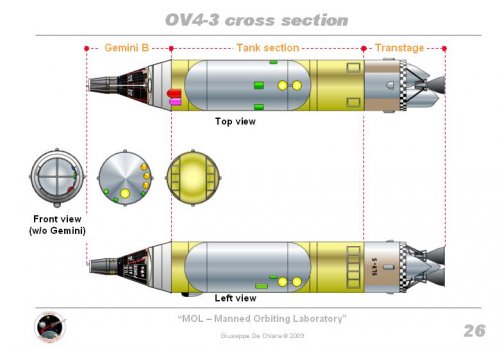

  • Slide26.JPG
    42.7 KB · Views: 91

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
656
fantastic, wonderfull

by the way, you know the NASA MOL proposal
at U-ship.com ?


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Michel Van said:
fantastic, wonderfull

by the way, you know the NASA MOL proposal
at U-ship.com ?

Of course.
But, in principle, the presentation is focused about the military aspects of MOL project.
As written by Dwayne there wasn't NASA's MOL but only company proposal attempts to save the programme.

Anyway I do not exclude a further update with a specific chart for MOL derivatives including the proposal submitted to NASA.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
archipeppe said:
As written by Dwayne there wasn't NASA's MOL but only company proposal attempts to save the programme.

...Excellent artwork on your part, Arch!

Q: Do you do actual 3D rendering work? If so, have you considered doing meshes for any of these concepts?


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
OM said:
...Excellent artwork on your part, Arch!

Q: Do you do actual 3D rendering work? If so, have you considered doing meshes for any of these concepts?

Many thanks OM.

Effectively I could do it using AutoCad
I could try out to obtain meshes from Canvas drawing and see what happens....


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
GTX said:
Impressive - was it presented at a conference or similar?

Regards,

Greg

Not yet, it will be in future.
But it will also used for my lectures at Faculty of Engineering of University of Naples.... :D


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,996
Reaction score
491
Website
beyondthesprues.com
archipeppe said:
GTX said:
Impressive - was it presented at a conference or similar?

Regards,

Greg

Not yet, it will be in future.
But it will also used for my lectures at Faculty of Engineering of University of Naples.... :D

Interesting - what particular subject?

Regards,

Greg


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
GTX said:
Interesting - what particular subject?

Regards,

Greg

Since 1997 I held a lecture-course focused about the configuration of manned spacecrafts.
Usually it is divided in three lessons, two hours each one, the first one about manned space capsules (American, Russian and Chinese), the second one about aerospaceplanes and the last one about space stations (MOL, Salyuts, Skylab, Mir and ISS).


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156

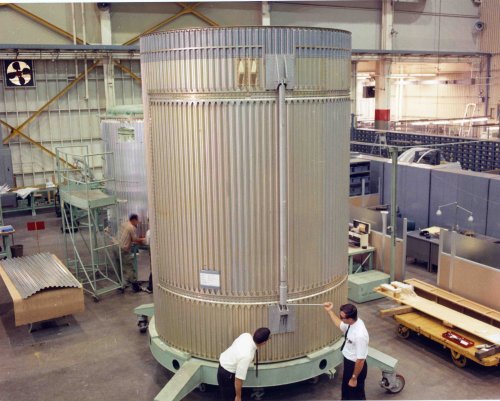

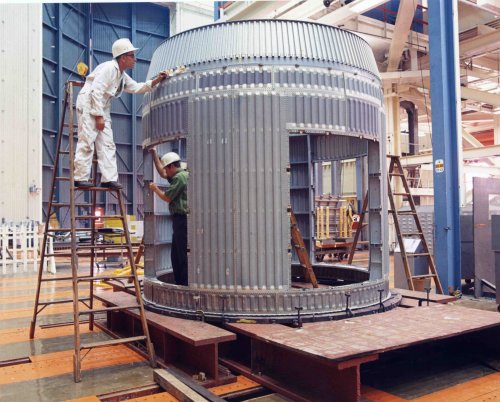

MOL manufacture.


Attachments

  • MOL Manufacture 02.jpg
    MOL Manufacture 02.jpg
    496.7 KB · Views: 76

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156
Another one.


Attachments

  • MOL Manufacture 08.jpg
    MOL Manufacture 08.jpg
    515.7 KB · Views: 69

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156
The mockup.


Attachments

  • MOL Mockup 103.jpg
    554.6 KB · Views: 64

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156
One possible configuration.


Attachments

  • MOL Model 01.jpg
    MOL Model 01.jpg
    262.2 KB · Views: 87

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156

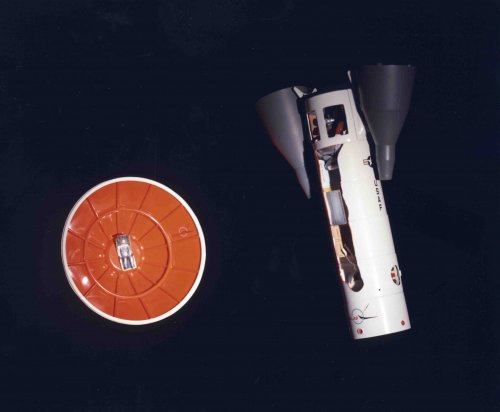

A model with a reentry vehicle.


Attachments

  • MOL Model 02.jpg
    MOL Model 02.jpg
    234.6 KB · Views: 94

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156

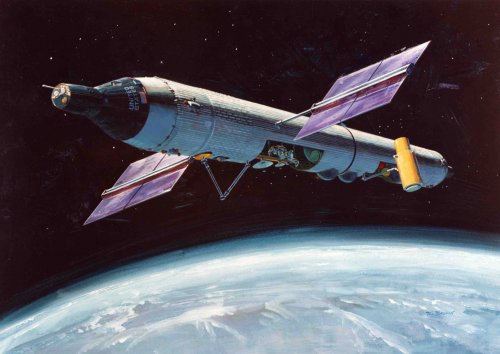

Artist concept of a NASA double-MOL vehicle.


Attachments

  • MOL Artist Concept.jpg
    MOL Artist Concept.jpg
    315.7 KB · Views: 86

NERVA

ACCESS: Confidential
Joined
Dec 2, 2007
Messages
60
Reaction score
1
archipeppe said:
GTX said:
Impressive - was it presented at a conference or similar?

Regards,

Greg

Not yet, it will be in future.
But it will also used for my lectures at Faculty of Engineering of University of Naples.... :D

Archipeppe...

Do you have the entire MOL presentation in one file to download? Thank you.


mz

ACCESS: Top Secret
Joined
May 28, 2007
Messages
681
Reaction score
8
They don't do space hardware in that cute corrugated Junkers style anymore. :(


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
NERVA said:
Do you have the entire MOL presentation in one file to download? Thank you.

Of course but it's too large, even in zip file, to be post here.
Please contact me via pm....
