Miles Tailless Twin Boom Aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,282
Found by my dear Tophe,

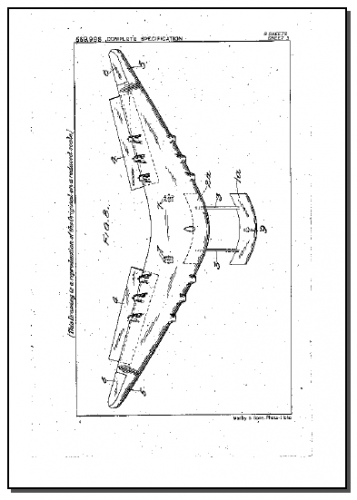

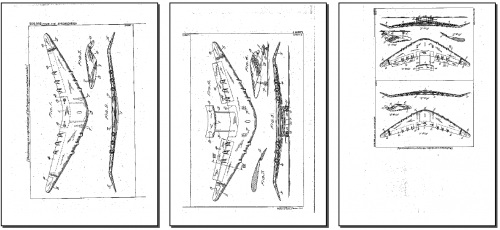

here is a tailless and twin boom aircraft patent,intended by Frederick George Miles and his company
Miles Aircraft Ltd.


http://worldwide.espacenet.com/publicationDetails/biblio?DB=worldwide.espacenet.com&II=0&ND=3&adjacent=true&locale=en_EP&FT=D&date=19450618&CC=GB&NR=569998A&KC=A
http://worldwide.espacenet.com/publicationDetails/mosaics?CC=GB&NR=569998A&KC=A&FT=D&ND=3&date=19450618&DB=EPODOC&locale=en_EP


Attachments

  • 1.png
    77.1 KB · Views: 432
  • 2.png
    20.4 KB · Views: 423

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
Thought I knew pretty much every Miles project but once again this proves that the more one thinks one knows, the less one does!

Thanks to Tophe (though he no longer visits here) and hesham for sharing this.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
146

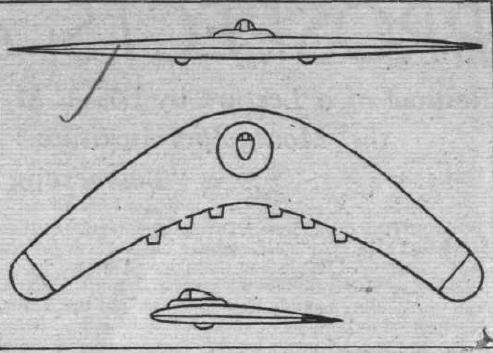

The shape of this flying wing patent reminds me the "boomerang airliner" project from Flight 1946
http://www.secretprojects.co.uk/forum/index.php/topic,3326.msg26778.html#msg26778


Attachments

  • Boomerang.JPG
    29.7 KB · Views: 259

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,987
Reaction score
112
Just a note: The third picture in the first post appears to be upside down.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,282
Retrofit said:
The shape of this flying wing patent reminds me the "boomerang airliner" project from Flight 1946
http://www.secretprojects.co.uk/forum/index.php/topic,3326.msg26778.html#msg26778

That's right my dear Retrofit.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,550
Reaction score
792
The feature that is the subject of this patent is a tailplane that normally sits flush with the lower wing surface but extends when the flaps and UC are deployed. The purpose is to counter the strong pitch-down effect on a flying wing when the flaps are lowered. An alternative canard arrangement is also described. It isn't strictly correct to refer to it as a twin-boom.
I doubt that the flying wing itself was a true Miles project, just a sketch to show the extendable tailplane in operation. It looks to be a generic concept based on Northrop and Lippisch designs. The timing of the patent coincides with the setting-up of the Tailless Aircraft Advisory Committee by the Ministry of Aircraft Production, Miles probably patented the idea quickly to establish priority in case the committee suggested something along these lines.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,550
Reaction score
792
Actually I'm going to amend my comment. A further Miles patent was for a hinged wingtip that they say was particularly suited to tailless aircraft, so it appears that they may have done a little work on flying-wing-type aircraft. I wonder if there is any more information hidden away somewhere?

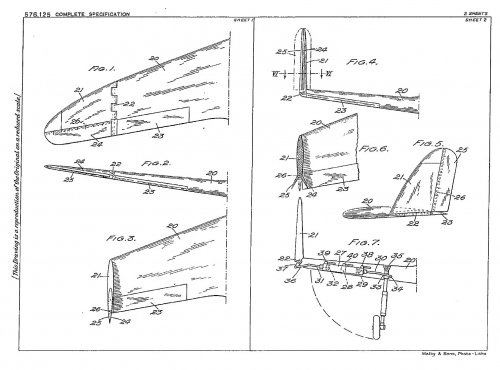

Patent GB576125 application date July 1942


Attachments

  • GB576125A.jpg
    196.1 KB · Views: 116
