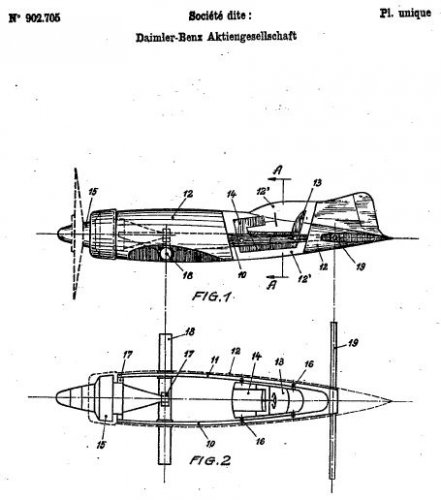

My dear Tophe discovered this amazing aircraft,and he suggested it was a racer airplane
looks like FW.190,any idea ?.

https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=FR&NR=902705A&KC=A&FT=D&ND=3&date=19450911&DB=fr.worldwide.espacenet.com&locale=en_EP


Attachments

Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,138
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Well, the patent description says the fuselage construction is for any aircraft with small transverse section, for example a fighter. The drawing does look more like a racer.

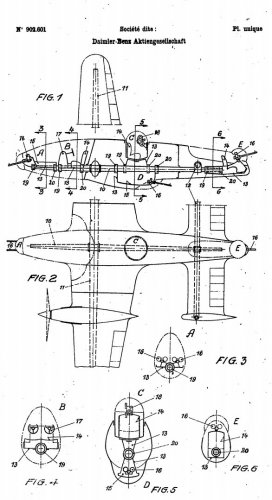

Here is another patent by Bela Barenyi for the design of cockpits, observers cupolas and gunners turrets

https://worldwide.espacenet.com/publicationDetails/originalDocument?CC=FR&NR=902601A&KC=A&FT=D&ND=3&date=19450905&DB=EPODOC&locale=en_EP#


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Thank you my dear Schneiderman.


moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Hi
Some patents from Bela Barenyi / Daimler.

Patent Nr. DE890757
Anordnung des Fernwellenträgers an Flugzeugen mit Fernantrieb der Luftschrauben
(armed seaplane)
Year 1944

DE879962
Mehrmotoriges Flugzeug mit zu beiden Seiten des Rumpfes angeordneten Luftschrauben
(bomber)
Year 1943

DE901136
Flugzeuge mit mehreren zu beiden Seiten des Rumpfes angeordneten Luftschrauben
(fighter and bomber)
Year 1943

DE857158
Insbesondere Freitragend ausgebildeter Bedienungs bzw. Kampfstand für Flugzeuge
(cockpit)
Year 1943

https://depatisnet.dpma.de/DepatisNet/depatisnet?action=einsteiger


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
496
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Thanks for sharing of these patents!

There was at least one supporter (perhaps, unintentional) of Barenyi ideas in aircraft structures - Richard Vogt, who frequently impemented tubular main spar to it's aircraft. In BV 144 this tubular spar became not only the main structural elemnt of wing and fuel tank - but the axis of variable incidence as well.

Mr. Barenyi seems to be a great car designer, but I wonder what connection he has to aviatio, and Daimler-Benz comapnay, during WW2?
The company, in turn well-known for aircraft engines, lathough their aircraft' project looks weird, IMHO


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Thank you my dear Moin1900.


moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

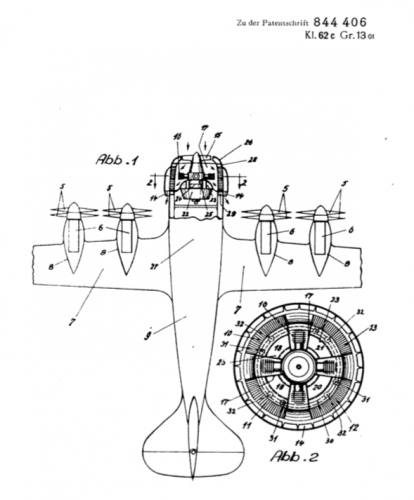

Patent Nr. DE844406
Title: Kühlvorrichtung an Flugzeugen mit mehreren Antriebsmaschinen
Year: 1942
(aircraft with four engines and contra-rotating propellers)


sienar

CLEARANCE: Top Secret
Joined
Mar 8, 2009
Messages
520
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

Silencer1 said:
Thanks for sharing of these patents!

There was at least one supporter (perhaps, unintentional) of Barenyi ideas in aircraft structures - Richard Vogt, who frequently impemented tubular main spar to it's aircraft. In BV 144 this tubular spar became not only the main structural elemnt of wing and fuel tank - but the axis of variable incidence as well.

Mr. Barenyi seems to be a great car designer, but I wonder what connection he has to aviatio, and Daimler-Benz comapnay, during WW2?
The company, in turn well-known for aircraft engines, lathough their aircraft' project looks weird, IMHO
This patent is quite a while after B&V started its love affair with the tubular spar wing. I wonder if the influence went the other way. I've also seen this idea discussed in Soviet literature just prior to WW2, but I'm not sure if the soviet engineers were pulling this idea from Blohm or if it was an independent invention.

Although what sticks out to me this patent is the cockpit and some of the other structures - they look like they are built up from stamped part that are built up and then welded/bolted onto the steel tubes. Heinkel and Messerschmitt both experimented with this idea of built up structures from stampings but not to the extent present in this patent.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

moin1900 said:
Patent Nr. DE844406
Title: Kühlvorrichtung an Flugzeugen mit mehreren Antriebsmaschinen
Year: 1942
(aircraft with four engines and contra-rotating propellers)
I can't get the drawings.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0
Re: Daimler-Benz Strange Airplane of 1943-1945

richard B said:
Here it is :
Thank you my dear Richard.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0

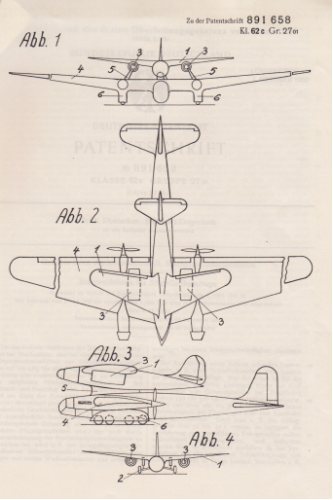

A very strange Mistel aircraft;

http://www.fliegerrevuex.aero/wp-content/uploads/2017/03/Uebelacker-891658.pdf


Attachments
