"Miles schlägt die Weiterentwicklung der M.100 "Student" durch ein stärkeres Triebwerk in die Ausführung "Graduate" vor. Dieses Flugzeug soll nur halb so teuer sein, wie ein normaler Strahltrainer. Die "Graduate" ist als Schulflugzeug und als Einsatzjäger für Guerillakriege gedacht."

An attempt of a translation: "Miles proposes a development of the M.100 "Student" using a more powerful engine, half of the costs of a normal jet trainer. The Miles "Graduate" (this is the name of the derivative) is planned as trainer and as ground attack/COIN. aircraft."

SOURCE: Flugwelt-Eildienst Nr. 109 from 18th June 1963 (volume XII) - page 400

My question: Can anybody help with further information? Or did the name of this version later changed and I'm on the wrong track?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
" Centurion" was the name later given.
I'll come back to night with more info....


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Beginning 1964 the prototype Sudent was modified to the
Mk.2 version with a Marboré 6F turbojet.
Interchangeable underwingpods for a variety of weapons
bombs or rockets were installed.

A four seat communications variant was also planned.

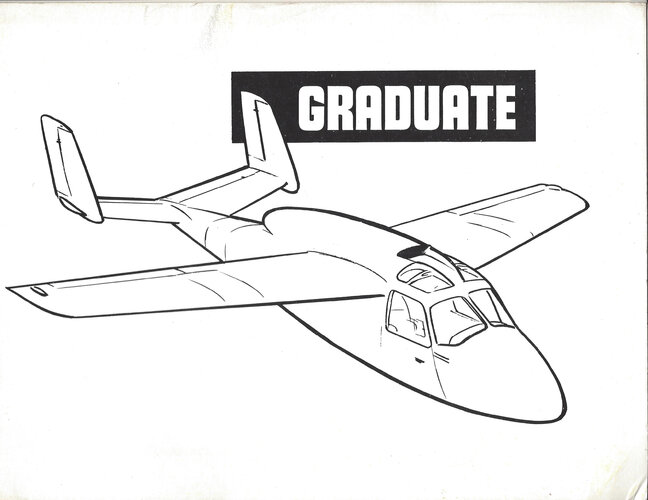

This was known as the Graduate powered by one
Turbomeca Aubisque of 1540 lb thrust.

An other further project was the 4 seat Centurion. A 1 1/8 size
Student powered by a Armstrong Siddeley Viper or two
Rolls-Royce RB.145 engines.

Main source: Miles Aircraft Since 1925.Don L.Brown- Putnam. London 1970


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164
After much searching in my attic, I have found an old 1958 Miles brochure for the M.100 Student.

In the introduction it states that a future development would be the "more improved Centurion".

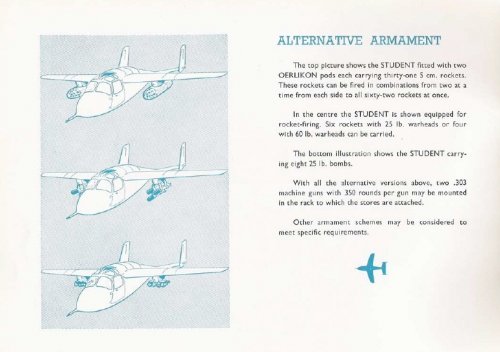

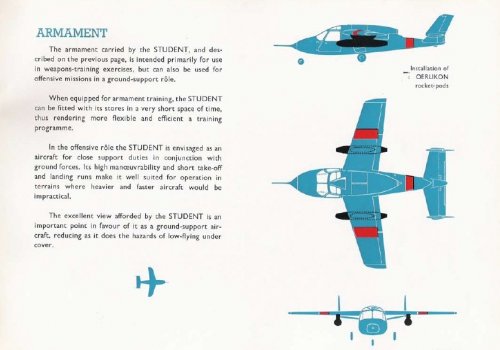

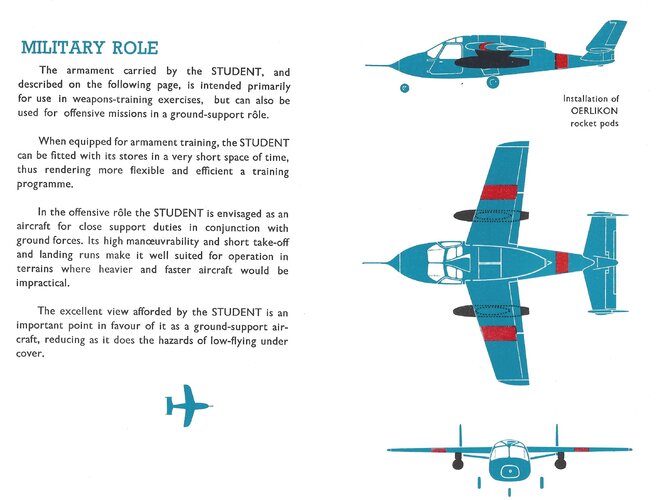

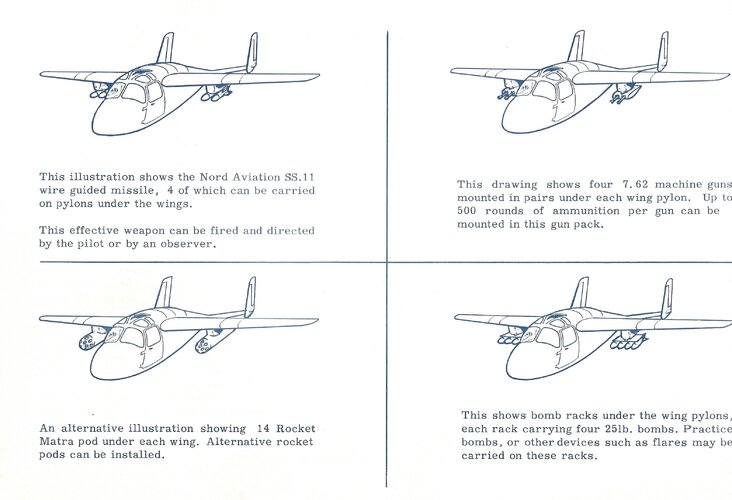

However, the brochure also has proposed armament for the basic M.100 Student together with a view of Student undertaking a ground attack viewed from the cockpit of a following M.100.

I attach the relevent pages and hope they are of interest.


Attachments

  • Miles_M100_Student_Ground_Attack_Armament_1_1958.jpg
    137 KB · Views: 716
  • Miles_M100_Student_Ground_Attack_Armament_2_1958.jpg
    102 KB · Views: 684
  • Miles_M100_Student_Ground_Attack_Artwork_1958.jpg
    191.3 KB · Views: 646

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Wow, a great find. Any chance you could provide a .pdf version of the whole brochure for posterity?

Also, I wonder if a dedicated single-seat light attack version of the Student was ever evaluated or sketched, perhaps just a modified forward fuselage with a convertional canopy, ejection seat and a couple of machine guns but identical to the two-seater aft of the cockpit? If Miles never envisioned it, I wonder if the South Africans ever did, as there were discussions at one point to put the Student into production in South Africa.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,229
Reaction score
945
Mole said:
Also, I wonder if a dedicated single-seat light attack version of the Student was ever evaluated ...

Had the same idea, but remembering the BAC Jet Provost or Cessna T-Bird, both were used as
dedicated strike aircraft with the same seating arrangement. Maybe that a second pair of eyes
was regarded as quite useful ?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,386
Reaction score
99
Website
cluttonfred.info
Hmm, I don't know about the Jet Provost, but the Cessna A-37 (AKA Super Tweet) was, I think, flown solo in the close-support role and two-up in the forward air controller role. So, yes and no, it depends on the mission.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164
Next time I'm in the attic I will copy the rest of the brochure - hopefully before next Christmas!

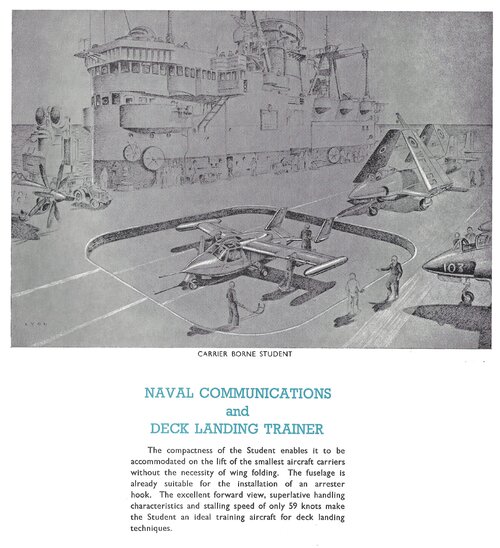

In the meantime there is one other image I was going to post, the accompanying text read:

Carrier Borne

The compactness of the Student enables it to be accommodated on the lift of the smallest aircraft carriers without folding any portion. The fuselage is already suitable for the installation of a hook. With its excellent view, stalling speed only 59 knots, superlative handling characteristics, the Student is ideal for deck-landing training.


Attachments

  • Miles_M100_Student_Naval_Artwork_1958.jpg
    170.7 KB · Views: 502

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,896
Reaction score
234
From 'Learning From The Student', Aeroplane Monthly, May 1975, pp 220-224 :-

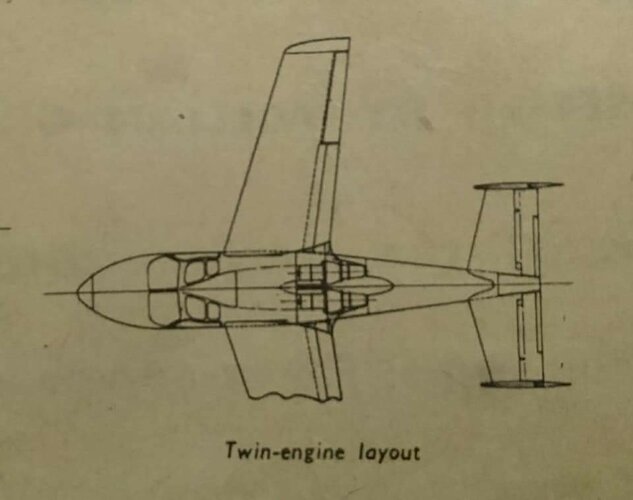

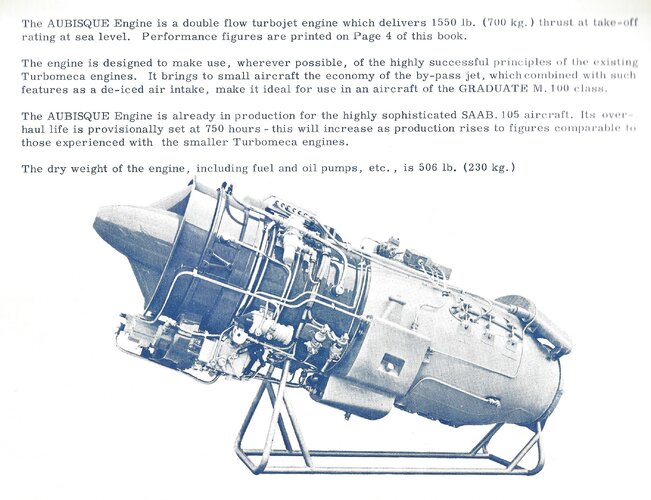

"It could be used as a two-seat basic trainer powered by either one Blackburn Turbernéca Marboré 2 engine of 8801b static thrust or two Palas 600 engines, or a four seat communications aircraft known as the Graduate and powered by a 1,5401b thrust Turboméca Aubisque engine.
The Student could also be offered as a light ground attack aircraft, where the excellent forward visibility, light wing loading and manceuvrability were an advantage. In this case the armament was to be carried in underwing pods."

Also :-

"Another proposal was for an AOP version with an increased centre-section span, full span slots, modified flaps, better visibility through rear vision panels and the cabin top, and an intake moulded from clear perspex.
This version could be fitted with a bogie undercarriage for rough field operations, and the controls could be removed from the right-hand seat in order to accommodate a camera installation and observer.
Extra observation windows were also provided."

...the "more improved Centurion".

"In July 1957 the Centurion range, a new, developed and more powerful range of the Student design was announced. As well as the Mk 3, these projects also included the Mk 4, powered by a 1,4051b thrust Turboméca Gourdon engine giving the aircraft an estimated maximum speed of 580 m.p.h. at 25 ,000ft, and the Mk 5, powered by two Turboméca Arbizons developing 5501b of thrust each for take off, and with an estimated speed of 300 m.p.h. at 22,000ft and a climb to l0,000ft in five minutes. All the Centurion variants were 51ft 8in long, and the all-up weight was 4,000lb, making them a little larger than the Student."

...as there were discussions at one point to put the Student into production in South Africa.

"The Student completed its military trials and plans were made for licence production in South Africa for the SAAF, but these were cancelled before being put into effect due to an arms embargo imposed by the British Government,
and the Student never entered production. The prototype, which last flew on August 5|, 1964, was already in its packing case waiting shipment to Cape Town when the Labour Government's embargo brought proceedings to a halt..."


cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
robunos said:
"In July 1957 the Centurion range, a new, developed and more powerful range of the Student design was announced.

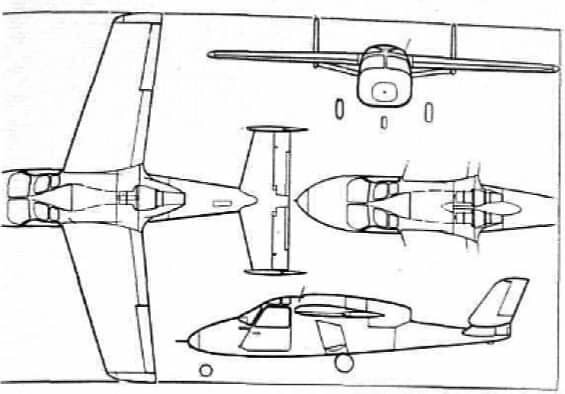

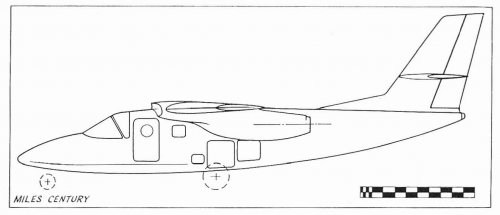

Wonder if this is the same (or related to) the Miles Century project?


Attachments

  • Century.jpg
    132.8 KB · Views: 383

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495
My dear Boxkite,


the Miles Graduate is a variant of Miles Centurion,a four seat liaison aircraft/business
jet project,but with a larger fuselage and powered by a Turbomeca Aubisque engines,
and for Satgazer,the Miles Century is not related to them,but it was a new design of
1963,and in 1964 the mock-up was built,and Scottish Aviation was invited to partner
the project.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
a bit more about the Century.

F.G.Miles: Century

... A new design,the Century was put foreward in 1963 after a commission from Col.J.Scott of Johannesburg
and was to be a six- to seven seater executive twinjet able to travel over 1.600miles at 450 mph.
In 1964 a mock-up was built at Shoreham,and Scottish Aviation were invited to partner the project.
Power would have been provided by two Turbomeca Aubisques of 1.540lb thrust.
The design ,of high wing layout with a single fin and mid tailplane , attracted interest of joint funding from
governement, and studies were made as a joint venture with France , but the
company was unable to fund its share of the project.

Span: 40ft.

so far :Richard Payne in 'Stuck on the Drawing Board' Tempus 2004.U.K.

P.S. :Air Enthusiast N° 69-70 produced also a lot of info about the Miles Student /Centurion/Graduate and Century.


Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
19
Hi,
There was a canard light transport proposed in the middle sixties, i think there was an illustration in Flight published some years later. i do not know if it was devolved from the student.

lark said:
a bit more about the Century.

F.G.Miles: Century

... A new designs,the Century was put foreward in 1963 after a commission from Col.J.Scott of Johannesburg
and was to be a six- to seven seater executive twinjet able to travel over 1.600miles at 450 mph.
In 1964 a mock-up was built at Shoreham,and Scottish Aviation were invited to partner the project.
Power would have been provided by two Turbomeca Aubisques of 1.540lb thrust.
The design ,of high wing layout with a single fin and mid tailplane , attracted interest of joint funding from
governement, and studies were made as a joint venture with France , but the
company was unable to fund its share of the project.

Span: 40ft.

so far :Richard Payne in 'Stuck on the Drawing Board' Tempus 2004.U.K.

P.S. :Air Enthusiast N° 69-70 produced also a lot of info about the Miles Student /Centurion/Graduate and Century.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164

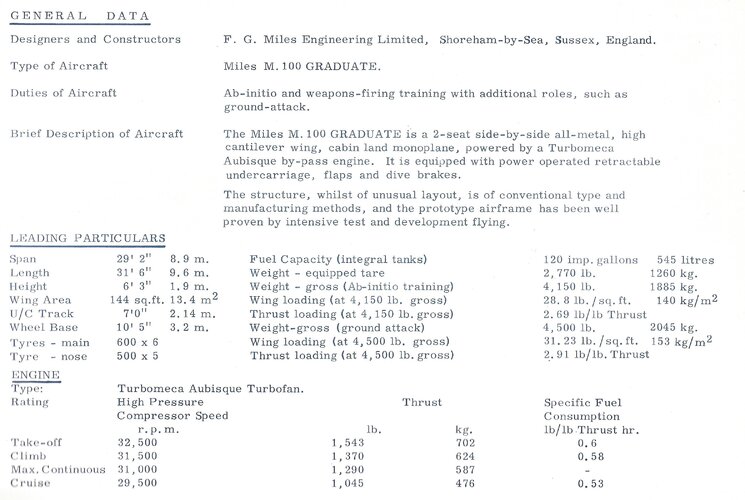

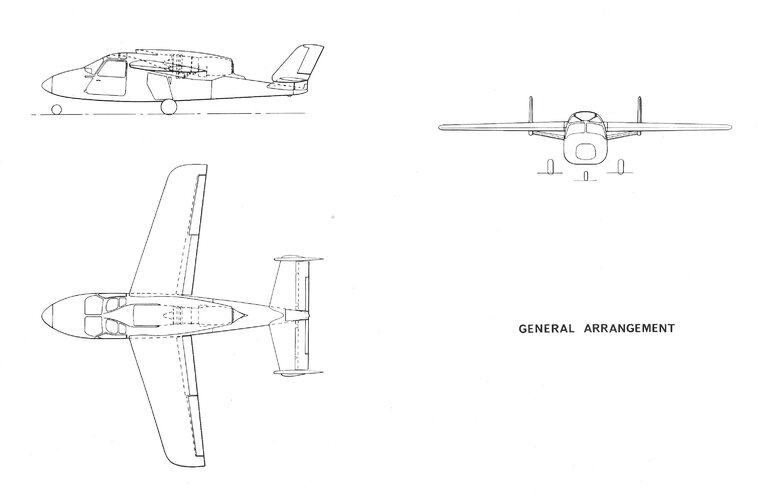

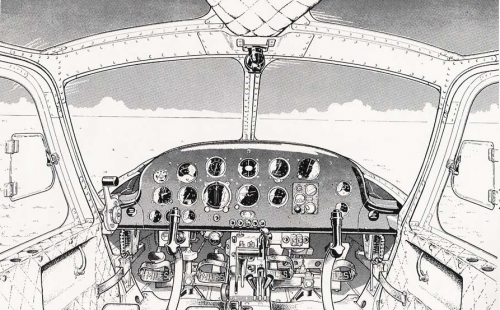

Some more from the 1958 Miles Student brochure...(only a year late!)


Attachments

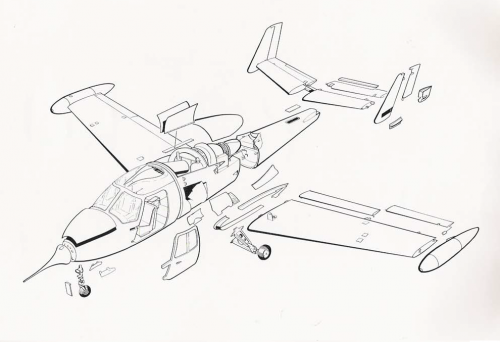

  • Miles_M100_Student_Exploded_View.png
    311.7 KB · Views: 164

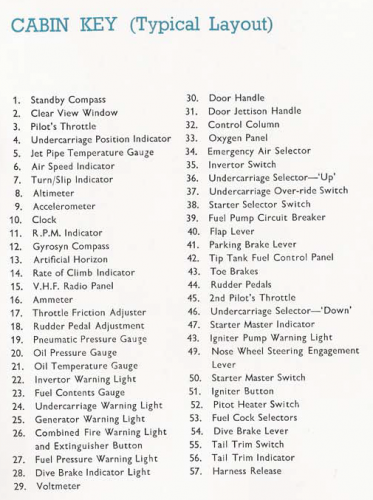

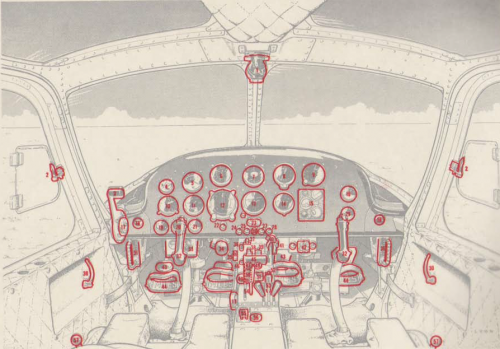

  • Miles_M100_Student_Cockpit_[1].png
    822.3 KB · Views: 141
  • Miles_M100_Student_Cockpit_[2].png
    871.8 KB · Views: 113
  • Miles_M100_Student_Cockpit_[3].png
    296.4 KB · Views: 86
