Mil Mi-60 MAI

[Triton]

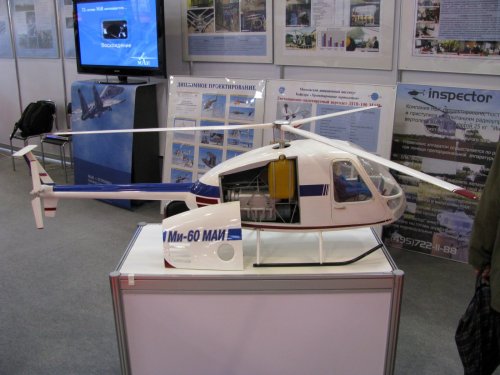

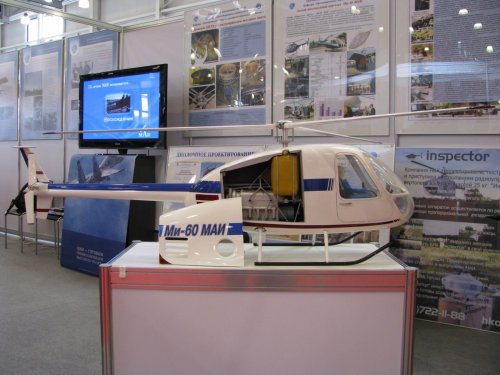

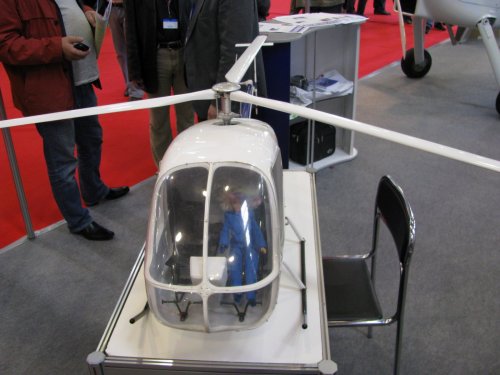

Mock-up of Mil Mi-60 MAI.

Source:
http://kaf102.mai.ru/prepod_files/akd_tmn.htm



[Triton]

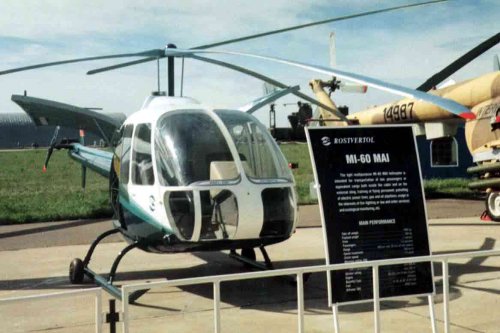

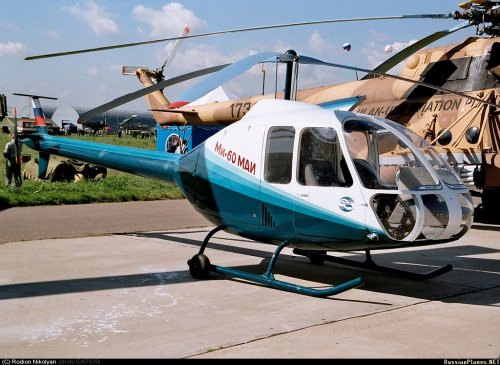

Mock-up of Mil Mi-60 MAI.

Source:
http://russianplanes.net/st/Mil/Mi-60_MAI



[hole in the ground]

very simple looking main rotor hub. flap and lag done with blade flex? lag damping?



[flateric]

mockup



[hole in the ground]

but not a representative one???



[flateric]

student-built mockup

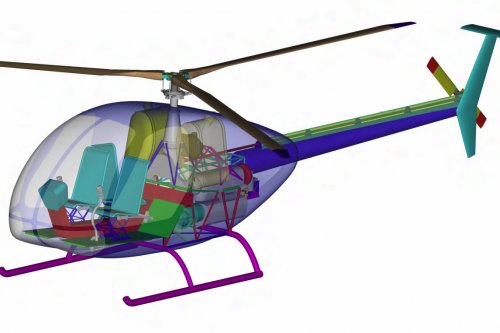

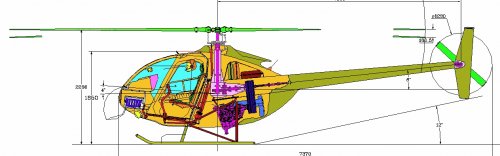

at least at scale model and rendering everything looks little bit different
