Messerschmitt P.08 - Early MRCA ?

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545

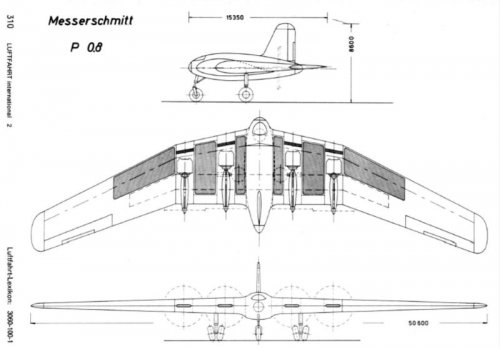

The Messerschmitt P.08 project for a tailless aircraft is featured on quite a lot of sites, like
Luft'46 and so on, but it's nearly almost described as long range/heavy bomber. Reading the
projects description in Luftfahrt International, it actually was intended as a multi role aircraft:

1. Bomber with a bombload of 20.000 kg (to 50.000 kg over shorter distances),delivery up to a dive angle of 90° !
2. Naval combat aircraft. armed with guided bombs and/or torpedoes
3. Long Range recce aircraft with a range of 27.000 km

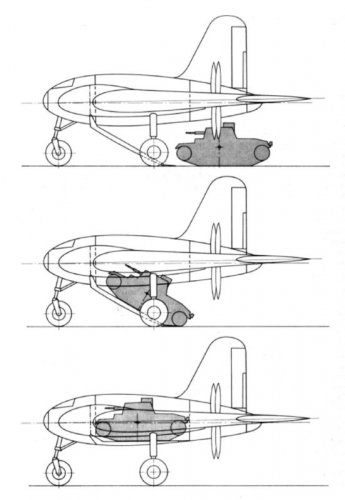

4. Transport with the capability of carrying 22 t tanks
5. Glider tug
and (most surprising to me)
6. Nightfighter with an armament of four 88 mm AA guns !

A stated advantage of this design was the possibilty to change the "Bombenchassis" (bomb module ?),
a kind of containerised bomb bay, so a quick adaption to another role should have been possible.

The articles in that publication were mostly based on original documents and this one is said to be the
slightly shortened form of the original description by the Messerschmitt AG from 1st of September 1941.
Nevertheless, the very idea of an aircraft with a MTOW of 90.000 kg attacking in a vertical dive, or by
firing four "8-8 Flak" (88 mm AA gun) makes me think, that the Messerschmitt designers and maybe Willy
Messerschmitt himself, had no false modesty !


Attachments

  • Me_P-08_01.jpg
    39.9 KB · Views: 722
  • Me_P-08_02.jpg
    40.7 KB · Views: 711

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,949
Reaction score
968
Jemiba said:
and (most surprising to me)
6. Nightfighter with an armament of four 88 mm AA guns !
German industry turned several bombers into nightfighters: Do 17, Do 217, Ju 88. Nothing new there.

However.

Fitting the 88mm gun to a nightfighter is weird enough, fitting four of them is plain bonkers. *Nice* find.


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
20
Jemiba said:
The Messerschmitt P.08 project for a tailless aircraft is featured on quite a lot of sites, like
Luft'46 and so on, but it's nearly almost described as long range/heavy bomber. Reading the
projects description in Luftfahrt International, it actually was intended as a multi role aircraft:


Jemiba wich issue of Luftfahrt has information about this project?


Jemiba said:
The articles in that publication were mostly based on original documents and this one is said to be the
slightly shortened form of the original description by the Messerschmitt AG from 1st of September 1941.
Nevertheless, the very idea of an aircraft with a MTOW of 90.000 kg attacking in a vertical dive, or by
firing four "8-8 Flak" (88 mm AA gun) makes me think, that the Messerschmitt designers and maybe Willy
Messerschmitt himself, had no false modesty !


Yeahh, really think in this plane doing dive bombing is scary :eek: . They were very confident in their designs.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,949
Reaction score
968
Alcides said:
Jemiba said:
Nevertheless, the very idea of an aircraft with a MTOW of 90.000 kg attacking in a vertical dive, or by
firing four "8-8 Flak" (88 mm AA gun) makes me think, that the Messerschmitt designers and maybe Willy
Messerschmitt himself, had no false modesty !


Yeahh, really think in this plane doing dive bombing is scary :eek: . They were very confident in their designs.
If I remember correctly, the Ju 88, Do 217 and He 177 were designed with dive bombing in mind, although maybe not for vertical diving. Operationally, little use, if any, was made of this ability.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Alcides said:
Jemiba wich issue of Luftfahrt has information about this project?


Sorry, it was N° 2 from 1976.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,076
Reaction score
241
Do you know how the 88's would be mounted?

Allied night bombers were maneuverable enough that a flexible mounting would've been exceptionally important.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,949
Reaction score
968
The 88mm gun was several metres in length, putting that in a flexible mounting would have interesting consequences for aircraft trim when the gun was tracking its target. Then there is the matter of recoil of such a big gun - troublesome enough when firing in the line of flight. Most kills by night fighters were made with fixed guns, either firing straight ahead or obliquely upwards.

On the other hand, once you are crazy enough to propose mounting four whacking big 88s, why not go the whole hog and put them in flexible mountings?


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,076
Reaction score
241
Exactly - once someone has proposed a 90 ton flying wing dive bomber - all bets are off.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,169
Reaction score
4,340
Website
www.amazon.com

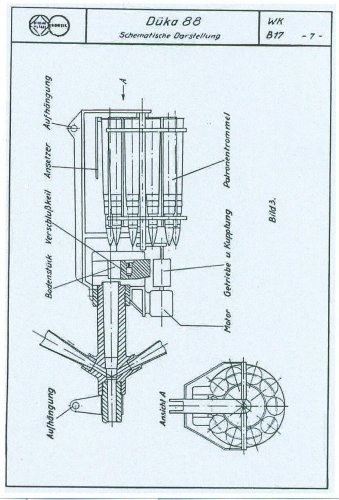

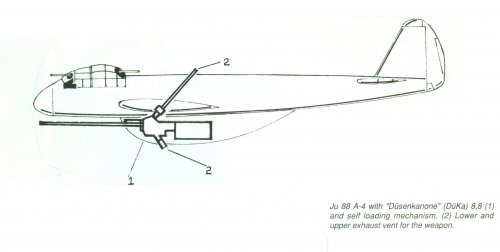

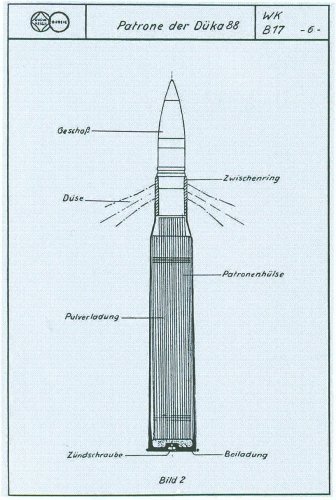

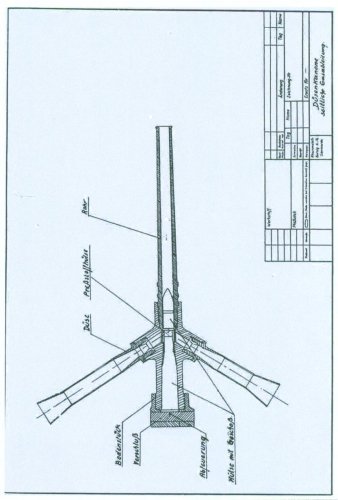

Düka 88 here


Attachments

  • ñ.jpg
    227.7 KB · Views: 622
  • ñ 001.jpg
    ñ 001.jpg
    246.1 KB · Views: 578
  • ñ 002.jpg
    ñ 002.jpg
    106.4 KB · Views: 534
  • ñ 003.jpg
    ñ 003.jpg
    97.3 KB · Views: 121

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Avimimus said:
Exactly - once someone has proposed a 90 ton flying wing dive bomber - all bets are off.

Had another look at the tables, empty weight was just 30.000 kg, but fuel weight was up to 40.0000 kg
and payload 20.000 kg. So, using full combat radius it would have just attacked with a weight of around
70.000 kg ...
About the 88 mm gun, perhaps we should remember, that the Ju 88P and even the much smaller HS 129
were fitted with a 75 mm gun. I would think, that the four guns in the P.08 would have been fixed for forward
firing. Maybe multiple guns were just chosen to increase rate of fire ?
Honestly, this article had still yet escaped my notice and when reading it, I had severe doubts about its credibility.
But the article actually seems to be based on a Messerschmitt design description (the design itself can be found in
several different publications), but to my opinion it was a kind of "public relations effort" for a tailless design.
The structural weight is said to be 30% less, than for a conventional design, and drag is much less, too. The massive
wing would be very rugged, the pusher props would be more efficient and allow the mentioned dive bombing attacks.
The description is full of those advantages and comparisons with conventional designs, often not even related to
the design itself. So I think, the Messerschmitt AG tried in first place to have a foothold for a tailless aircraft.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,948
Reaction score
5,824
You don't understand the real purpose of the 4*88mm guns.
The four guns were to be used as dive brakes. Their recoil should get the bomber out of its dive pretty efficiently. ;D


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
39
We should petition for this design to be implemented in world of warplanes. ;D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Hi!


Attachments

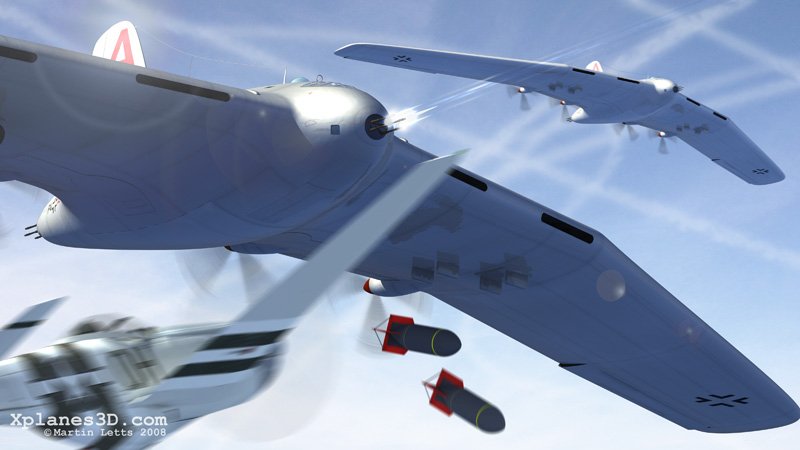

  • messerschmitt_me_p_08_01.jpg
    97 KB · Views: 84
  • P_08_01_Scene_05.jpg
    189.2 KB · Views: 108
  • ml08-5.jpg
    64.4 KB · Views: 115
