McDonnell Model 82 Convertiplane

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

One of my finds over at the Greater St. Louis Aviation Museum was a brochure for the Model 82 Convertiplane which was built and flown and was the basis of a number of other proposals which were not proceeded with. Here are some drawings from the brochure...

Enjoy the Day! Mark


Attachments

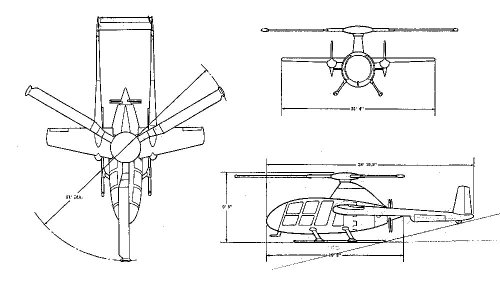

  • xMcDonnell Model 82 General Arrangement.jpg
    xMcDonnell Model 82 General Arrangement.jpg
    67.4 KB · Views: 117

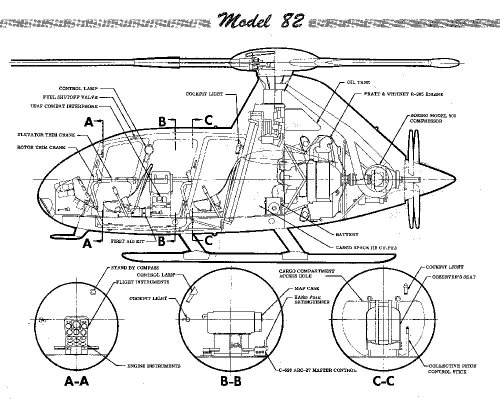

  • xMcDonnell Model 82 - Interior Arrangement-1.jpg
    xMcDonnell Model 82 - Interior Arrangement-1.jpg
    173.4 KB · Views: 107

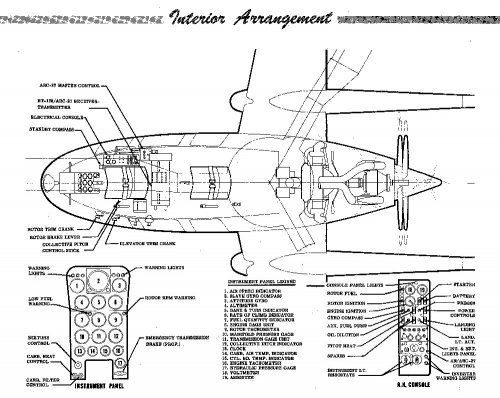

  • xMcDonnell Model 82 - Interior Arrangement-2.jpg
    xMcDonnell Model 82 - Interior Arrangement-2.jpg
    181.2 KB · Views: 104

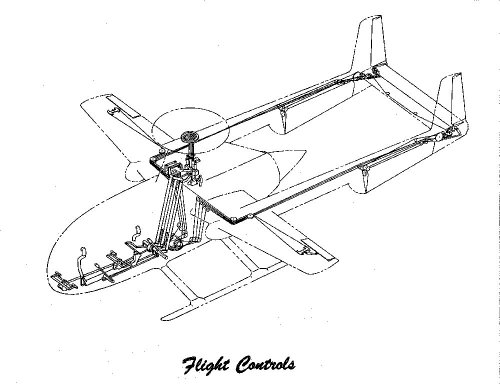

  • xMcDonnell Model 82 - Flight Controls.jpg
    xMcDonnell Model 82 - Flight Controls.jpg
    93.2 KB · Views: 96

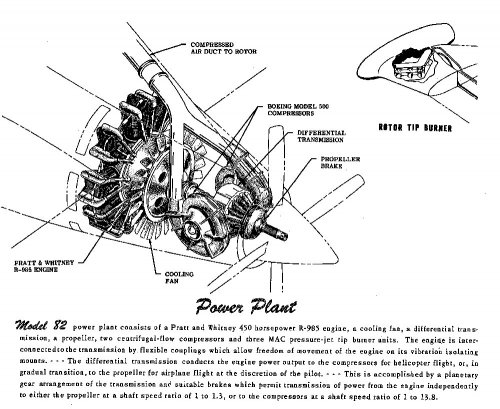

  • xMcDonnell Model 82 - Power Plant.jpg
    xMcDonnell Model 82 - Power Plant.jpg
    183.7 KB · Views: 93

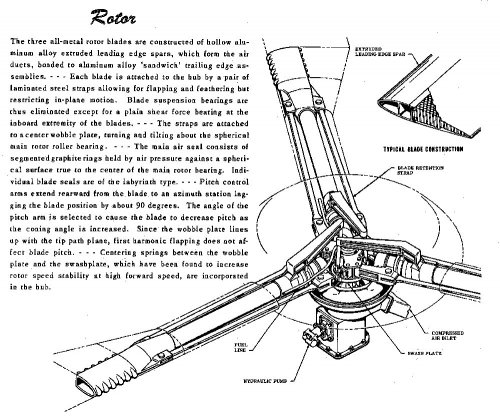

  • xMcDonnell Model 82 - Rotor.jpg
    xMcDonnell Model 82 - Rotor.jpg
    204.8 KB · Views: 60

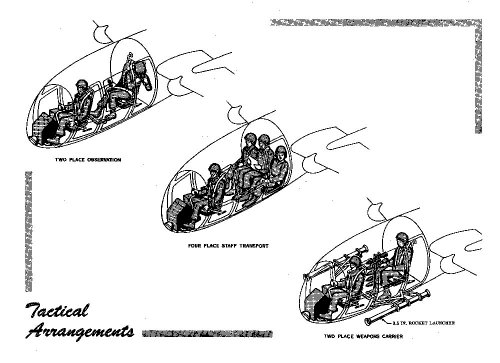

  • xMcDonnell Model 82 - Tactical Arrangements.jpg
    xMcDonnell Model 82 - Tactical Arrangements.jpg
    118.4 KB · Views: 68
