McDonnell Helicopter (1951) wind tunnel model

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
963
From the University of Washington's Aeronautical Laboratory in Seattle.
http://www.uwal.org/multimedia/historical.htm

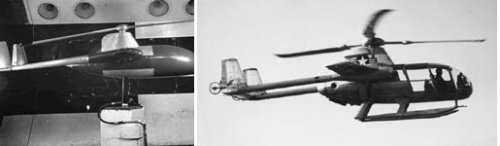

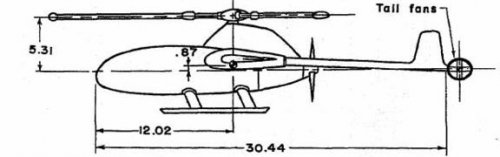

UWAL identifies this machine as the McDonnell "Lil Henry" (1951). But, it's pretty obvious that this was a wind tunnel model of the XV-1 convertiplane (first flight, July 1954).

The open-framed XH-20 'Little Henry' jet-tip helicopter had already flown in 1947.


Attachments

  • UW-McDonnell.jpg
    14.9 KB · Views: 67
  • UW-McDonnell-XV-1-NACA.jpg
    19.6 KB · Views: 59
  • UW-McDonnell-Little-Henry.jpg
    21.3 KB · Views: 51
