McDonnell Douglas Spanloader concept

Boeing was not the only company examining flying wings. The top-mounted engines provided additional lift by taking advantage of the Coanda effect. Source: Bill Gunston, ed., The Illustrated Encyclopedia of Commercial Aircraft (London: Phoebus Publishing, 1980)
http://rides.webshots.com/photo/2429580790048918155duANrQ


Attachments

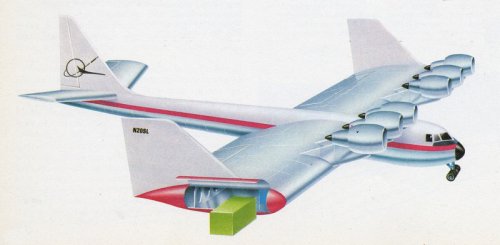

  • MDSpanloader.jpg
    109.5 KB · Views: 818

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,428
Reaction score
6,091

Attachments

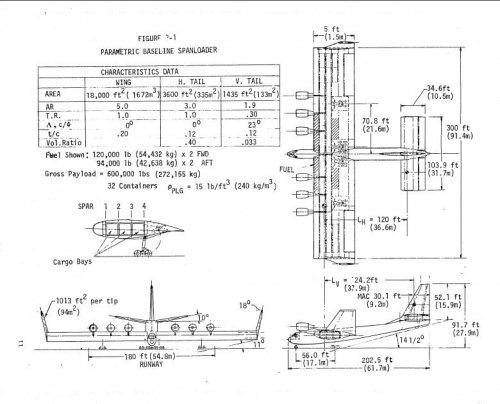

  • Spanloader  1.JPG
    Spanloader 1.JPG
    76.4 KB · Views: 655

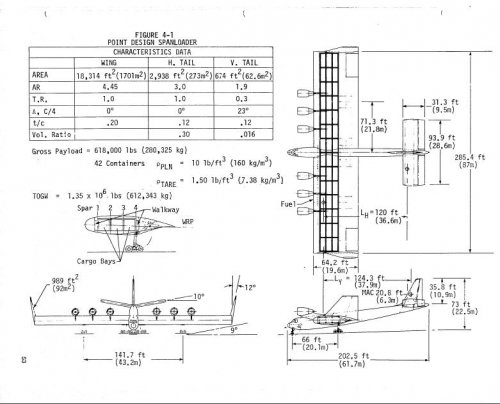

  • Spanloader  2.JPG
    Spanloader 2.JPG
    45.3 KB · Views: 603

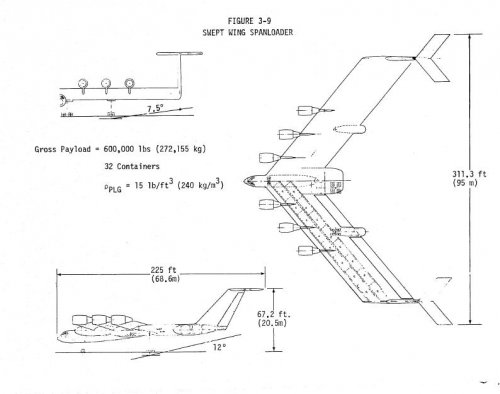

  • Spanloader  3.JPG
    Spanloader 3.JPG
    70.3 KB · Views: 586

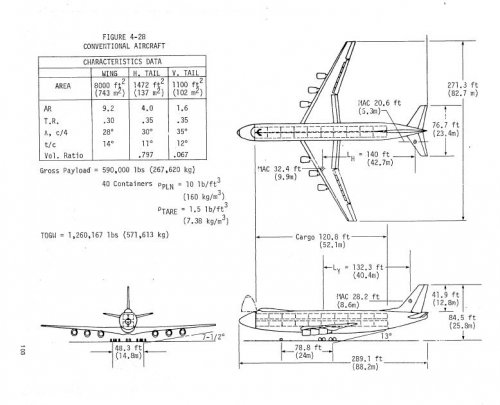

  • Conventional.JPG
    61.1 KB · Views: 551

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
Another view of the McDonnell Douglas Spanloader concept presented by Douglas in the first post:


Attachments

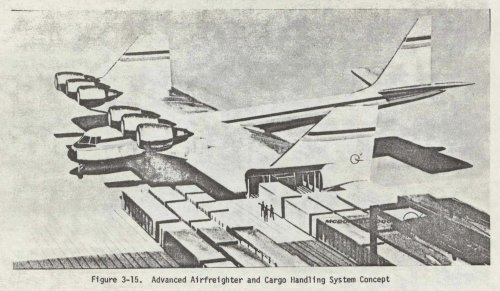

  • Advanced Airfreighter and Cargo Handling System Concept.jpg
    Advanced Airfreighter and Cargo Handling System Concept.jpg
    1.4 MB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,428
Reaction score
6,091
Re: McDonnell Douglas D-3122 Spanloader concept

Hi,

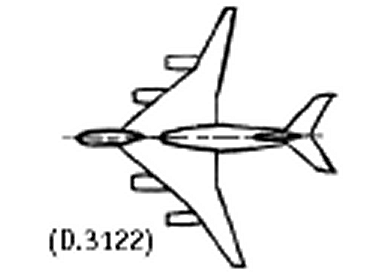

I find in this Russian site,a reference to McDonnell Douglas Spanloader concept as
Model D-3122;


http://www.aviapanorama.narod.ru/journal/2002_4/samolet.htm
http://translate.google.com/translate?sl=ru&tl=en&js=n&prev=_t&hl=ar&ie=UTF-8&layout=2&eotf=1&u=http%3A%2F%2Fwww.aviapanorama.narod.ru%2Fjournal%2F2002_4%2Fsamolet.htm


Attachments

  • samolet.gif
    21.5 KB · Views: 81
  • D-3122.JPG
    12.1 KB · Views: 73

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

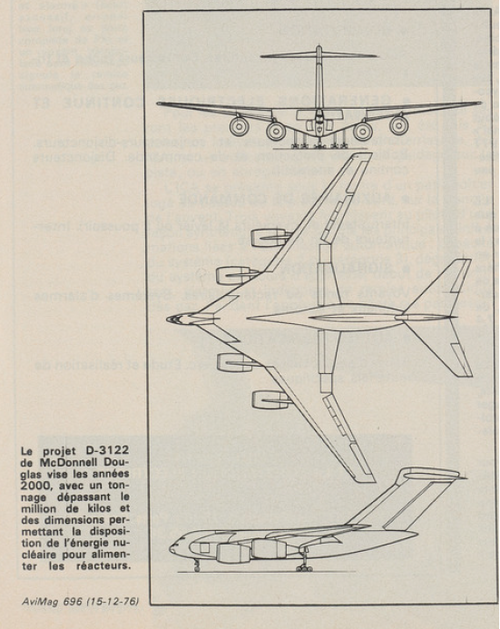

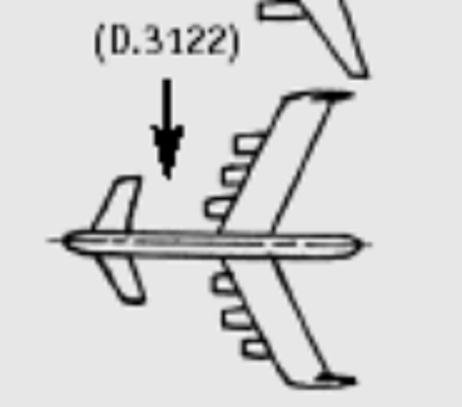

Very interesting document, hesham, but I believe you misread it.

The D-3122 is the one ABOVE. Look at the rest of the image: names of types are always immediately BELOW the drawing, not above.


Attachments

  • D-3122.gif
    20.6 KB · Views: 49

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,428
Reaction score
6,091
Yes stargazer,


but I don't find any similar drawing to this McDonnell Douglas aircraft before,I will
search about it from NASA reports.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,007
Website
deeptowild.blogspot.com

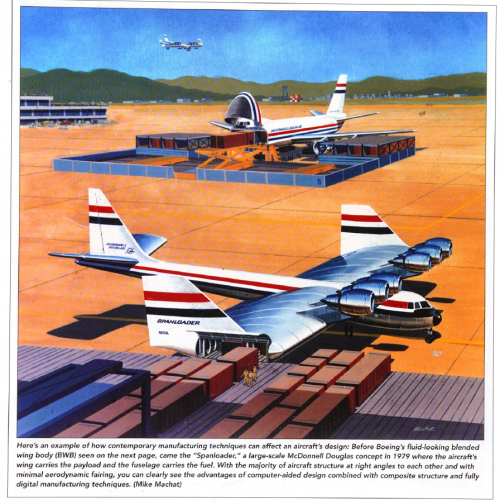

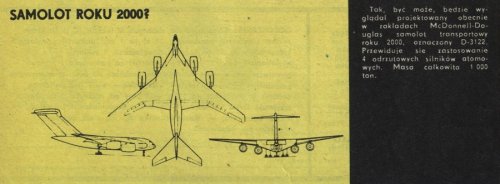

McDonnell Douglas D-3122 from Skrzydlata Polska z 1979 r.

Source:
http://lotnictwo.net.pl/3-tematy_ogolne/13-lotnictwo_cywilne/67925-futurystyczne_projekty_samolotow_pasazerskich-3.html


Attachments

  • 15-79 001.jpg
    15-79 001.jpg
    229.8 KB · Views: 114
