McDonnell-Douglas Model Numbers

The Artist

CLEARANCE: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
531
Reaction score
16
Evidence in the incomplete list posted by Mark in this thread suggests that the Model 220 should not be the later proposal for the Model 119 Transport, but rather the larger commercial transport illustrated in an exhibited wood model as the T-85A.


Stargazer said:
There are a lot of gaps... but any additions are most welcome!

nd DOODLEBUG low-wing tandem-seat sportsplane
1 proposal for XP-55 competition with Allison V-3420-B2 (Specification R-40C) (early 1940)
1 same project with Pratt & Whitney H-3130 engine (June 40)
2 MANTA fighter proposal for USAAF (two different configurations)
2a USAAF XP-67 MOONBAT MX-127 fighter with XIV-1430-17/19 engines (pj-22 May 1941)(Prelim. Spec. S-23A)
? USAAF AT-15 CREWMAKER projected production version of Boeing AT-15, canceled
? USAAF AT-21 GUNNER production batch of Fairchild AT-21
? US Navy KDD-1 KATYDID target drone
? US Navy KSD-1 GARGOYLE target drone
? US Navy XFD-1 PHANTOM experimental jet fighter
? US Navy FH-1 PHANTOM production version of XFD-1 (1945)
? US Navy XF2D-1 BANSHEE
? US Navy F2H-1 BANSHEE
? US Navy F2H-2 BANSHEE
? US Navy F2H-2B BANSHEE
? US Navy F2H-2N BANSHEE
? US Navy F2H-2P BANSHEE
? F2H-3 BANSHEE (US Navy / RCAF)
? F2H-4 BANSHEE (US Navy / RCAF)
27 series of projects leading up to the XF-85 (up to 27D)
27E USAF XF-85 GOBLIN MX-472 parasite fighter
36 USAF XF-88 VOODOO experimental jet fighter
36W USAF F-101A/C VOODOO
36X USAF RF-101A/C VOODOO
36AT USAF F-101B VOODOO
37 US Navy XHJD-1 WHIRLAWAY experimental helicopter with two rotors on beams
J-38 US Army XH-20 LITTLE HENRY experimental helicopter
40/A US Navy Carrier Based Day Fighter, 1945 proposal (1946 requirement, winner was F7U)
58 US Navy XF3D-1 DEMON Carrier-Based Interceptor requirement from 1948

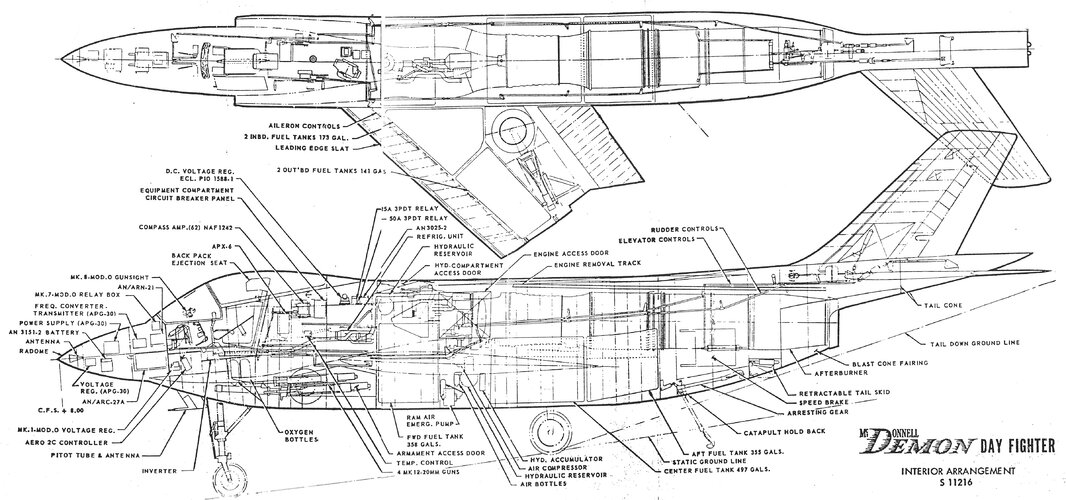

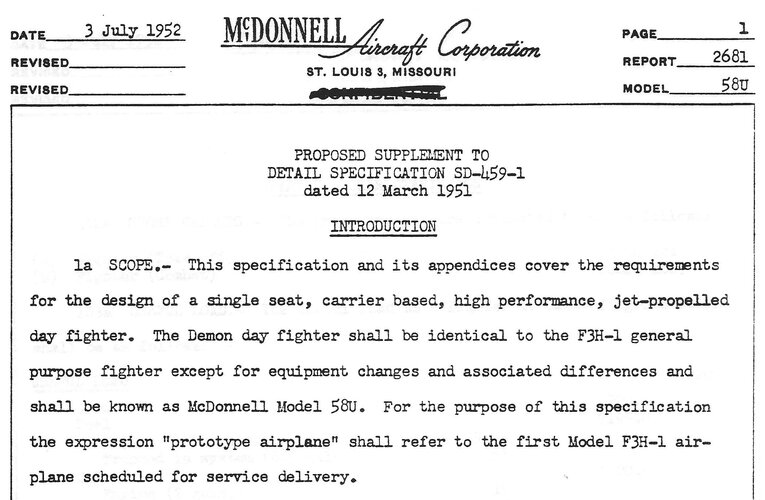

58 US Navy F3H* DEMON *many versions which will be treated in separate listing
XF3H-1 (ff-7 Aug 51)
60 Delta wing alternative to the Model 58, alternate proposal for F3D competition
61 Airliner/transport project
65C WHIRLAWAY projected civil production version of Model 37
67 no details; perhaps related to the DEMON?
68 no details; perhaps related to the DEMON?
78 USMC XHRH-1 assault helicopter, canceled (1951)
79 BIG HENRY prototype
? US Army XH-29 projected two-seater version of Model 38
82 US Army XH-35/XV-1 CONVERTIPLANE experimental tilt-rotor transport, redesignated XL-25
86 US Navy XHCH-1 flying crane helicopter, canceled
90 US Navy OS-130 requirement (F8U) fighter proposal (DEMON fuselage /straight F-104-type wing)
91 US Navy OS-130 requirement (F8U) fighter proposal
93 US Navy OS-130 requirement (F8U) fighter proposal
96 USAF disposable weapons/fuel pod developed for the F-101A Voodoo
98* US Navy XF4H-1/F-4* PHANTOM II heavy fighter (1958); *many versions which will be treated in separate listing
98* USAF F-110 SPECTRE / F-4PHANTOM II *many versions which will be treated in separate listing
99 USAF CONVERTIPLANE Air Force development of Model 78, forerunner of Model 113
113 large military transport convertiplane project, includes Design 113P
119 McDONNELL 220 business plane with four jets
120 "V-1 JEEP" FLYING CRANE with two Solar T-62 Titan engines and XV-1 rotor (evaluated by US Army)
122B USAF two-stage hypersonic vehicle (WS-199D)
133K NASA MERCURY space capsule
156 US Navy TFX competitor of General Dynamics F-111 and Boeing 818
158 US Army LOH submission
176 USAF FDL-7 lifting body study
188 McDONNELL 188 French Breguet 941 as US demonstrator
188E McDONNELL 188 French Breguet 941S as US demonstrator
192 USAF ISINGLASS boost glide reconnaissance vehicle
193 no details
210 evolutionary development of the Breguet 941
210E STOL developed parallel with Breguet's development of their Model 942 proposal
210G variant of the above
220 civil commercial designation of Model 119 (*model number out of sequence)
225 US Navy variable sweep fighter proposal
226 no details


MISSILES

? QUAIL GAM-72 / ADM-20A/-20C decoy drone
? SPARTAN LIM-49A anti-ballistic long-range interceptor missile
? US Army DRAGON M47 / FGM-77A anti-tank missile
? HARPOON UGM-84/A/C/D
? HARPOON RGM-84
? HARPOON AGM-84A/C anti-ship missile / AGM-84E
? HARPOON AQM-84/ RQM-84

? GEMINI space capsule
? ATDA rocket
? ATLAS ATDA rocket


Current McDonnell Douglas designations took up where McDonnell left off:

258-2 US Navy (SCS) ADVANCED HARRIER new thin high-speed wing, slimmer fuselage, new intake, Pegasus 15-03 engine
260 US Navy… series of multimission VTOL designs
262 no details
267 US Navy F/A-18 HORNET naval fighter
268 DARPA low signature fighter designed to a DARPA contract in 1975
276 version of Model 260
279 V/STOL fighter proposal
287 287-1006: pre-ATF project
375 planned production version of X-32


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
The Artist said:
Evidence in the incomplete list posted by Mark in this thread suggests that the Model 220 should not be the later proposal for the Model 119 Transport, but rather the larger commercial transport illustrated in an exhibited wood model as the T-85A.
The list you've just quoted was not by Mark, but by yours truly, and it was a very, very incomplete one!

Since then we've had access to a complete list of Models 1 to 211!
Types that I know of after that are 220-228, 250-270, 276, 278, 279, 287, 293 and 296.
Then there's a huge gap up to Models 375 and 410, which were respectively the planned production X-32 and the Sensorcraft.


Tailspin Turtle

CLEARANCE: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
688
Reaction score
7
Website
www.tommythomason.com
Attached is an excerpt with the model numbers for the XF2H-2 etc. from Mark's list provided earlier in this thread as a pdf file. Note that the XF2H-5 wasn't provided with a model designation. This is consistent with the fact that, on the McDonnell documents I have, the model is identified as "XF2H-5", not the expected two-digit number with a letter suffix. I find it odd that the XF2H-5 was given a prefix in the McDonnell drawing manual; that suggests that engineering drawings were released, or at least expected to be released, that were unique to the swept-wing variant.


Attachments

The Artist

CLEARANCE: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
531
Reaction score
16
I know it was your list in the message that I quoted, but I was pointing out that in the printed copy I worked from at the museum - of the PDF that Mark posted - suggests that that DC-9 like airliner design had the model 220 designation at one time. The date of that designation was 1960 (if I remember it right).

Stargazer said:
The Artist said:
Evidence in the incomplete list posted by Mark in this thread suggests that the Model 220 should not be the later proposal for the Model 119 Transport, but rather the larger commercial transport illustrated in an exhibited wood model as the T-85A.
The list you've just quoted was not by Mark, but by yours truly, and it was a very, very incomplete one!

Since then we've had access to a complete list of Models 1 to 211!
Types that I know of after that are 220-228, 250-270, 276, 278, 279, 287, 293 and 296.
Then there's a huge gap up to Models 375 and 410, which were respectively the planned production X-32 and the Sensorcraft.


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,122
Reaction score
97
The list of McDonnell Aircraft/McDonnell Douglas model/project numbers was posted by Mark in this topic before.
But this copy posted by Ron Downey at his blog looks different. ??? Earlier version, or just printed out in a different way with a matrix printer?

McDonnell Aircraft Project Numbers
A list of all the McDonnell Aircraft/McDonnell Douglas model/project numbers from # 1 to #278 with a brief explanation. A 174 page document dated 1 July 1974. A goldmine of info from the Gerald Balzer collection via the Greater St. Louis Air and Space Museum.



Click here to download list in PDF form


Source: http://aviationarchives.blogspot.de/2014/12/mcdonnell-aircraft-project-numbers.html


AM

CLEARANCE: Secret
Joined
Mar 24, 2008
Messages
206
Reaction score
2
Hi All

Model 98R = F4H-1 Block 2
Model 98AM = F4H-1 Block 3


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
818
Reaction score
25

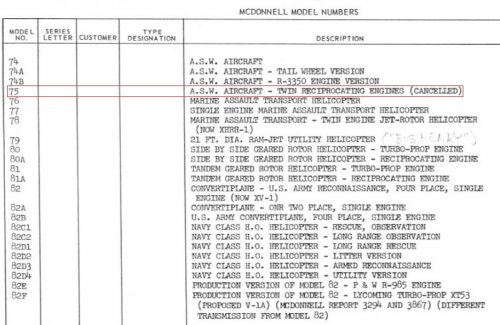

Model 75

Source: http://aviationarchives.blogspot.com/2017/08/mcdonnell-model-8181a-helicopter.html


Attachments
