Martin Model 316: XB-68 Tactical Bomber

KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,023
Reaction score
22
Skybolt

KJ, the differences were less and less. Originally an attack airplane would have used guns and rockets at a rather low altitude, while light bombers would have used bombs from a medium to high altitude. With the rise in weight carrying capabilities of attack planes and fighter-bombers, the difference waned. During the mid-to-late fifties bombers were supposed to attack fixed targets removed from the front (railway nodes, large airports, harbours), while attack planes would have targeted near the front. Nuclear weapons rendered the picture still more murky: a solitary F-105 with a 100 kton tactical bomb on Kronstadt would have made little different from a B-66 in the same mission...
So basically by the 1950's and 1960's, an attack plane's roles now encompassed the old attack-plane designation, and the light-bomber/tactical-bomber designation?


KJ


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
More or less, yes, but using the F- designation (fighter-bomber). Remember that the first USAF A- designation plane was the A-7, and the first newly designed USAF attack planes were the A-9/A-10 couple.... The Navy history is different, the attack role included the bomber role.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
Thanks for the disambiguation ;)


KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,023
Reaction score
22
Skybolt,

More or less, yes, but using the F- designation (fighter-bomber). Remember that the first USAF A- designation plane was the A-7, and the first newly designed USAF attack planes were the A-9/A-10 couple.... The Navy history is different, the attack role included the bomber role.
Actually the USN did at one time (1930's I think) use the Bomber designation (dive bombers), though they stopped using it though later on and instead went to using the Attack to cover both bomber and attack.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
And TB (Torpedo Bomber) too.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
I can now knowingly add that (one of) the Douglas contenders to WS-302A was Model 1364. But don't ask me more (really).


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,768
Reaction score
874
Website
www.aerospaceprojectsreview.com
A scale drawing of the B-68 (top), the Model 316 Tac Bomber (middle) and 302 Long Range Interceptor (bottom). The B-68 drawing was redrawn from Standard Aircraft Characteristics drawings, which are kinda small, so precision is not possible (source grade: 3). However, the 316 was redrawn from diagrams scanned at the Martin archive, and the 302 was redrawn from large-format drawings which I eventually got scans of (source grade for both: 5).

The Model 316 had two afterburning J-67's. The 302 had four afterburning J-67s, eight Falcon missiles and 48 rockets. Fuselage length of the 302 was 1200 inches, fuselage length of the 316, 1131 inches.

Source grading primer: http://www.secretprojects.co.uk/forum/index.php/topic,2849.0/highlight,source+grading.html

Higher-rez version of this drawing will be posted at my blog in a while, when I'm no longer tuckered: http://up-ship.com/blog/


Attachments

OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
8
Website
www.io.com
...Finally. The middle and bottom ones I've been curious about since we had that discussion on the B-68 a couple of years back on ssh. Good to see you found something on their layout.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,169
Reaction score
2,228
I like Model 316.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,768
Reaction score
874
Website
www.aerospaceprojectsreview.com
Sheesh. Woulda thought this'd generate more chatter. Oh, well. In any event, I've uploaded a much-higher-rez version of the drawing to my blog.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,859
Reaction score
195
They're in awe, Scott.
I'm confused, ???
the top drawing, that you term 'B-68', in your image, you also call 'Model 316' in APR v0n0.
Am i right to assume then , that both the 'B-68', and 'Model 316' images are separate iterations of the same design, the 'Model 316' being the earlier of the two, seeing as there was a SAC for the 'B-68' prepared?
Was there any change in the specification/requirement, that led to the differences in the two designs?

cheers,
Robin.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,768
Reaction score
874
Website
www.aerospaceprojectsreview.com
robunos said:
Am i right to assume then , that both the 'B-68', and 'Model 316' images are separate iterations of the same design,
Very likely, yes. While the available documentation does not spell it out, they are probably Models 316-X and -Y, with X and Y being the different variations. Further variants were wind tunnel tested by NASA, but there's less data for those.


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
The "B-68" competition, AKA as WS-302A or TBX has been long in being. The basic configuration changed in development more than once. The final straight wing config, for example, was tested at Langley with a different wingplan, as documentd here in the appropriate topic. So that a configuration of Model 316 was different form the "final" Model 316 is nothing to be surprised. In the Martin Museum there is a drawing of the early Model 316 with corrections done in green and purple pencils describing a straight trailing edge swept wingplan and horizontal tailplanes mounted on the side of the exhausts (if I understand the drawing well). Probably a transitional configuration.


LowObservable

CLEARANCE: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,189
Reaction score
93
I have often doodled something that looks a lot like the lower pic, except with podded engines on the aft fuselage... when I get tired of drawing the peroxide-ATR-powered Crusader IV.


Kevin Renner

CLEARANCE: Confidential
Joined
Nov 6, 2007
Messages
94
Reaction score
4
Is it just me or do they look more "Russian" than what you would normally see coming out of a US airframe manufacturer?


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
A lot of US bombers and heavy fighter designed in the same timeframe had that "look". The high all movable horizontal tail is a trademark of mid-50s Martin design practice. The podded engine was a classic for the timeframe. Apart Martin, Douglas, Boeing, Convair (naturally) and you-name-one used it (even Dassault, for its 4-Atars Mirage-IVB).


ysi_maniac

CLEARANCE: Confidential
Joined
Jan 26, 2007
Messages
82
Reaction score
2

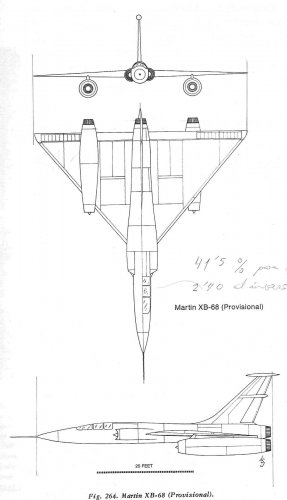

This is XB-68 as depicted in Lloyd S Jones' book.

I have been assessing this project in order to make a model. It is confusing because:
It is shorter than a F-105.
Having 3 J79s burning fuel, its range cannot be outstanding. On the other hand, this extra power would allow a bigger fuselage, full of fuel.
Could it carry tanks and weapons externally mounted? a combo pack a la Hustler?
Another possibility would be small canard surfaces a la XB-70.

Please, discuss about the issue.


Attachments

Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
The answer is simple: it is not the XB-68. No submissions to the TBX competition were like that (Douglas, NAA, Martin and Boeing). What is it ? Who knowns ?


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Orionblamblam said:

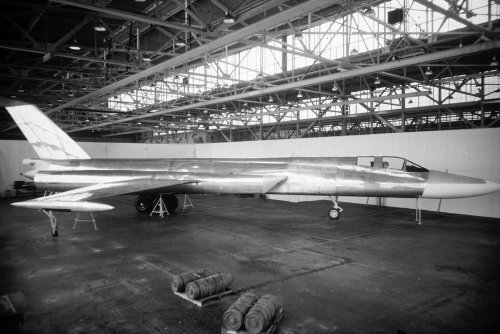

Hey, neat. Martin built a full-scale metal mockup of the B-68/Model 316.
Did I miss something? Where did you read about this in the topic? Or did you get that piece of info from elsewhere? I'd love to know more about it!

As for the trijet delta aircraft designs that were long thought to be the XB-68 — and provided they are Martin designd indeed (which remains to be seen) — I would think more of some kind of interceptor than a bomber, really. Perhaps something to do with the LRI-X competition?

Possible candidates from the Martin list of models (I restricted the list to bombers and fighters):

- Model 276 fighter bomber
- Model 281 short-range bombing recon aircraft
- Model 286 Strategic Air Command (SAC) bomber, WS-110A competitor
- Model 288 fighter bomber
- Model 319 TAC interceptor/bomber
- Model 327 fighter bomber
- Model 328 fighter bomber
- Model 350 Strategic Air Command (SAC) bomber
- Model 351 Tactical Air Command (TAC) bomber


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
Unfortunately, documentation on none of those designs has survived in the shreds of the Martin archive that are stored in the GMAM. Possibly the only exception is the Model 286 WS-110 tentative submitall, of which I published some time ago an art (in the WS-110 thread), but actually it is only a guess (there is no caption on the two slightly different copies of the art I have). I know that another type of search is very imminent, but it is very difficult to anticipate the results, if any.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
That is, until someone comes up with a factory model like the Comanche, which surfaced recently against all odds... Let's keep hope! You never know what some people keep in their vaults...


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,949
Reaction score
648
yep, this is harvester day
thank you, Mr.Pace!


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,790
Reaction score
171
Nice find with the XB-68 mock-up XB-70 Guy!

I never knew the program had got this far


Regards
Pioneer


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,169
Reaction score
2,228
Wow!! Air intake shape is unique.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,509
Reaction score
491

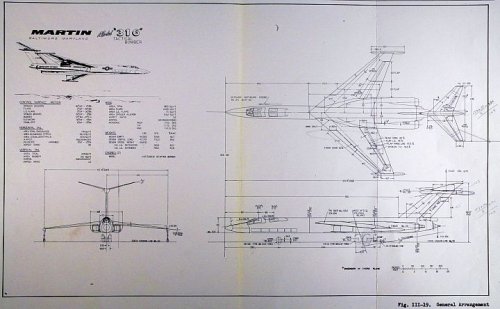

Here's two interesting images re Martin's proposed XB-68 Tactical Bomber; Model 316.

Credit Glenn L. Martin Air Museum
Wat, is chrismass allready now ???

O

Overkiller

Guest
Oh boy, it's Christmas, New Year, Easter and my birthday rolled into one!

Fantastic stuff!


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,119
Reaction score
1,181
SWEET! I love original artwork! :)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
The XB-68 program is definitely no mystery anymore, and it's thanks to all of you guys. Thank you so much for the treat!


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
The XB-68 program is definitely no mystery anymore, and it's thanks to all of you guys. Thank you so much for the treat!
oh, really ? So, show me the other competitors, say the NAA one, a bautiful design, with a Vigilante flavouir but sleeker and even more elegant, in my opinion. Or the three different Douglas submissions.... or the too-late Boeing one (no, not the patent of the early configuration, the definitive one...). I've seen them, so it is all really relative. And what about the three-engined delta Lloyd Jones published a lot of time ago ? Mysteries are not finished until they are finished....
The above mentioned, will be clarified somewhat by next book from Tony, BTW. Except the last one.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398
Skybolt said:
The XB-68 program is definitely no mystery anymore, and it's thanks to all of you guys. Thank you so much for the treat!
oh, really ? So, show me the other competitors, say the NAA one, a bautiful design, with a Vigilante flavouir but sleeker and even more elegant, in my opinion. Or the three different Douglas submissions.... or the too-late Boeing one (no, not the patent of the early configuration, the definitive one...). I've seen them, so it is all really relative. And what about the three-engined delta Lloyd Jones published a lot of time ago ? Mysteries are not finished until they are finished....
Okay, don't overreact. I was talking about Martin's entry, the winning one and the only one elected to be designated XB-68. Of course if you're talking about the whole WS-302A program, sure there is plenty we don't know about. Also I make a distinction between saying that something is "no longer a mystery" and that it "holds no mysteries anymore"! So bear with me, Skybolt, of course there will always be people more knowledgeable than us, and secrets to be dug out, but for an aircraft that we knew virtually nothing about months ago, I think we have definitely got some place!


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,296
Reaction score
108
Not overreacting, only having fun... :D
And, seriously, that piece of story is really in the dark. Talking about the Martin WS-302A, I have reason to believe that the Model 316 wasn't the end of the line, that there were further evolution, both inside and outside the TBX and WS-302A frame, before the entire Supersonic Tactical Bomber concept was shelved in favour of low altitude souped up Fighter Bombers or Strike Aircrafts, which happened only in 1959, when General Lauris Norstad, SHAPE, decided that the long range theater nuclear strike mission would have been left to missiles, and this was the origin of MMRBM, and the rest taken up by strike aircrafts (SDR-17 and later TFX). BTW, the Super Hustler concept, in the ZEL mode, was intended as a highly supersonic tactical bomber for theater operation. In a certain Convair document a Super Hustler is even shown with Luftwaffe markings....


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,774
Reaction score
232
Skybolt said:
Not overreacting, only having fun... :D
And, seriously, that piece of story is really in the dark. Talking about the Martin WS-302A, I have reason to believe that the Model 316 wasn't the end of the line, that there were further evolution, both inside and outside the TBX and WS-302A frame, before the entire Supersonic Tactical Bomber concept was shelved in favour of low altitude souped up Fighter Bombers or Strike Aircrafts, which happened only in 1959, when General Lauris Norstad, SHAPE, decided that the long range theater nuclear strike mission would have been left to missiles, and this was the origin of MMRBM, and the rest taken up by strike aircrafts (SDR-17 and later TFX). BTW, the Super Hustler concept, in the ZEL mode, was intended as a highly supersonic tactical bomber for theater operation. In a certain Convair document a Super Hustler is even shown with Luftwaffe markings....
You're such a tease! ;)

I can't wait to see the books with all of this new info. I only wish Tony's books had larger images of the designs when using actual blueprints, instead of the small, barely legible pictures that end up in the books.
