Martin early space station - 1960

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130

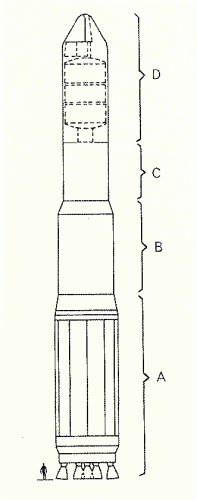

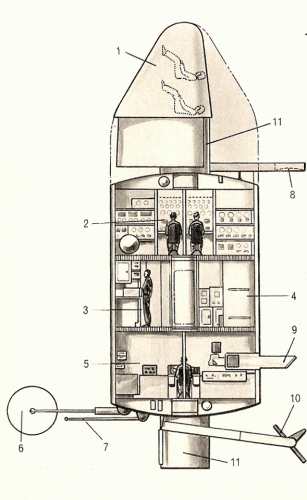

From April 20th to 22nd, 1960 in Los Angeles the IAS (Institute of Arospace Sciences, one of the constituents of AIAA), RAND Corporation and NASA held a National Symposium on Manned Space Stations. Number of presentation brought there by companies and institutions was massive and I'm still trying to track them down (ehi, that's would be an enthusiast past-time work !!! ). Today I'll publish one of two proposal from Martin Company. It's a 16 ton, four-to-six crew station made by three compartments. Orbit average 400 miles (apo 450 miles, peri 350 miles) inclination 80 degrees. Launch would have by a Saturn I vehicle in 1965. Crew would travel every 15-20 days between Earth and orbit onboard an M-1-shaped capsule (don't know if this is related to slightly later Apollo work). Key to numerb in the illustration is: 1 Escape and re-entry vehicle; 2 Control center; 3 bio and chem lab; 4 medical lab; 5 astro and geophysical lab; 6 antenna; 7 magnetic sensor; 8 parabolic mirror; 9 telescope; 10 telescope reflector; 11 air locks. Any additional info welcome.


Attachments

  • Martin_manned_station_rigid_1960_3.gif
    198.4 KB · Views: 100
  • Martin_manned_station_rigid_1960_2.gif
    57.2 KB · Views: 72
  • Martin_manned_station_rigid_1960_1.gif
    62.9 KB · Views: 85

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Forgot to mention, the second Martin proposal was for a semi-rigid, extensible space station. Will post that, too.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
478
The shape of the version seen above has something about it... well... rigid... ::)


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
718
Reaction score
185
Honi soit qui mal y pense ;). Coming from America, this is a 100% puritan design ;D...

Martin


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Well everything elongated could be seen as...


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,924
Reaction score
272
Gentlemen, please, this is a family forum....... ;)


cheers,
Robin.
