Hi,

some aircraft:

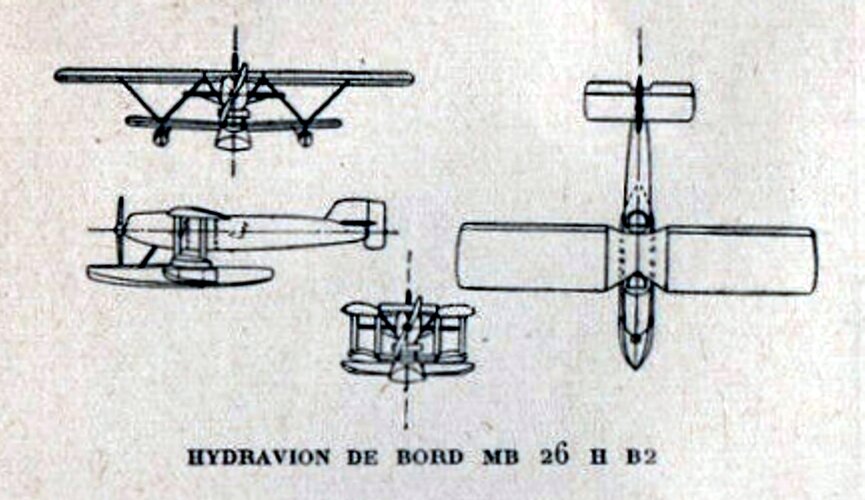

Besson MB-26 C2 : a modified version of MB-26 HB2 aircraft as two seat fighter
seaplane.

Besson MB-10 :a civil version of H-5 triplane flying boat.

Besson-Levy prototype of 1917: single seat triplane fighter with I-type interplane struts.

if you please tell me about Besson MB-21,was it a fighter,recce
or bomber,that is I am very grateful to you.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Re: Besson projects

SORRY,

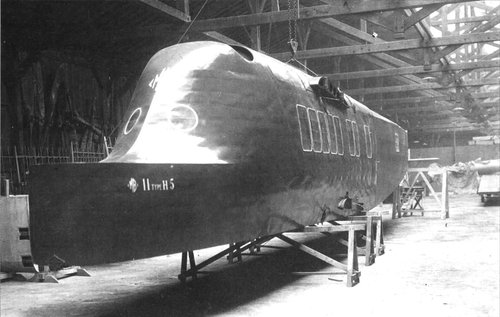

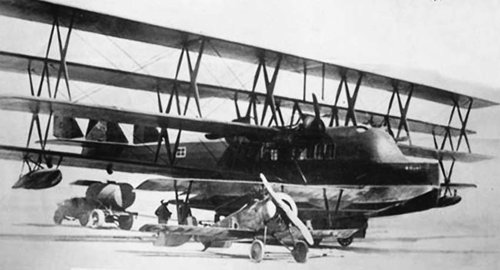

the Besson MB-10 was open-sea bombing reconnaissance triplane flying boat,
and it was the first aircrfat built from H-5, and the MB-11 was the civil version.

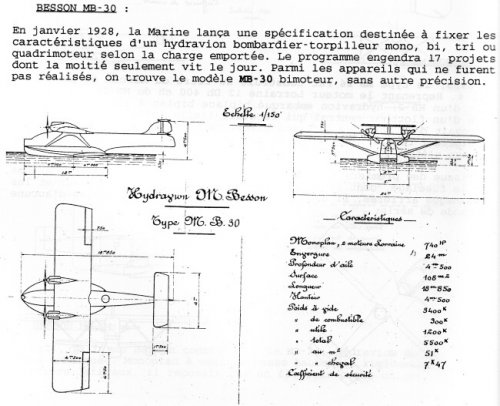

Also the Besson MB-30 was a project for 1928 competition,the
tenders were;


Latecoere L-290,SPCA-20,LeO H-257,NiD-50,CAMS-52,MB-30
Latecoere L-440 and Villiers-26.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
56
Website
cmeunier.chez-alice.fr
Re: Besson projects

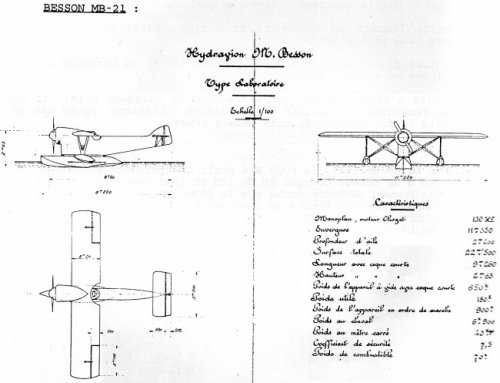

As requested by Hesham, here is the Besson MB.21 project, from Le Trait d'Union #146 (November-December 1992). Probably 1922.


Attachments

  • r_BessonMB21.JPG
    61.2 KB · Views: 1,063

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
56
Website
cmeunier.chez-alice.fr
Re: Besson projects

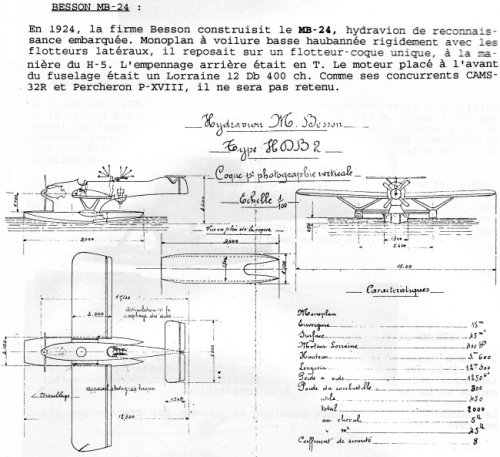

And the Besson MB.24, same source. It seems to have been built, and rejected, but no photograph seems available.


Attachments

  • r_BessonMB24.JPG
    119.1 KB · Views: 1,037

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Re: Besson projects


Excellent my dear Tophe,

thank you very much,now we know the Besson MB-24 was a
project against 1923 competition,main tenders were;

Levasseur PL-3,Nieuport NiD-35,CAMS-32R and Percheron P-XVIII.

The Besson H-4 was a little known flying boat of 1921,
has anyone a more info about it ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
hesham said:
Also the Besson MB-30 was a project for 1928 competition,the
tenders were;


Latecoere L-290,SPCA-20,LeO H-257,NiD-50,CAMS-52,MB-30
Latecoere L-440 and Villiers-26.


My dear Tophe suggesting, the LeO H-16 project was involved in this
competition for Torpedo Bomber;


LeO H-16 was twin-engined torpedo bomber of 1928.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Re: Besson projects

hesham said:
The Besson H-4 was a little known flying boat of 1921, has anyone a more info about it ?

No info about the H-4 except that it was a school trainer powered by a 130 hp Clerget engine.

There was also an H-6, which was a tandem-seater "sports type"/mail-carrying seaplane that could be powered with either the 130 hp Clerget, a 120 hp Rhône or a 140 hp Hispano-Suiza. The passenger's seat could be fitted to receive a 100-kg mail load.

(all the above info from an issue of Le Trait d'Union)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Stargazer,


do you mean issue 130 ?,by the way the H-6 was not a project,but actually

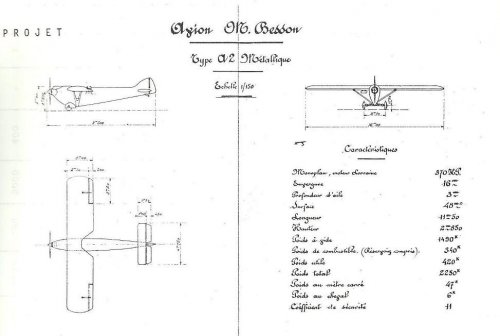

built,and there is also an unknown project for Besson,may be a light aircraft,
no more details about it.


Attachments

  • Besson.JPG
    54.6 KB · Views: 443
Last edited:

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
hesham said:
do you mean issue 230 ?

I'm not sure. I have a scan of the info but no precise reference attached.

hesham said:
by the way the H-6 was not a project,but actually built

Yes, I admit my post wasn't very clear about that, but you're right.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
By the way,

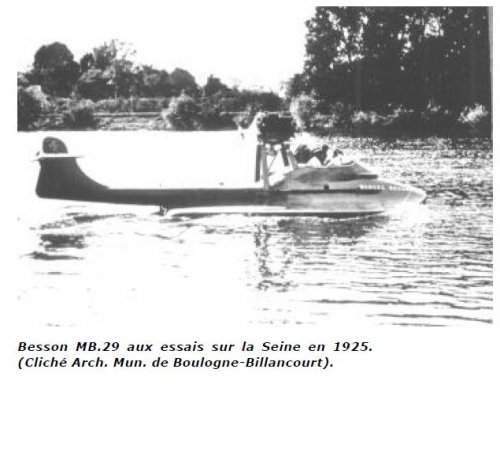

not all the Besson MB series aircraft,the MB.29 was a boat.


Attachments

  • MB.29.jpg
    46.1 KB · Views: 366

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Thanks hesham for providing the designation of this type, of which I had this other photo:


Attachments

  • Besson aquaglider.jpg
    Besson aquaglider.jpg
    50.1 KB · Views: 93

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
A series of Besson prototypes and rare types:

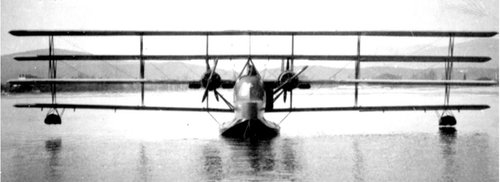

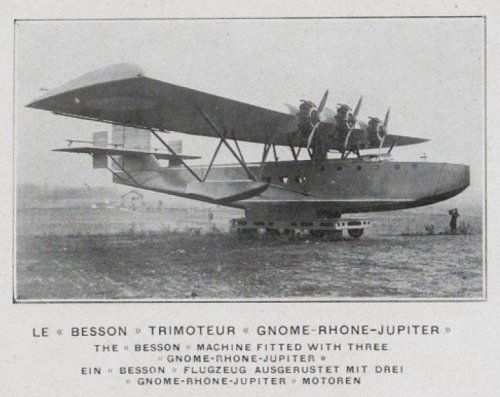

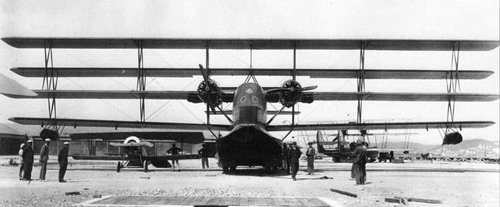

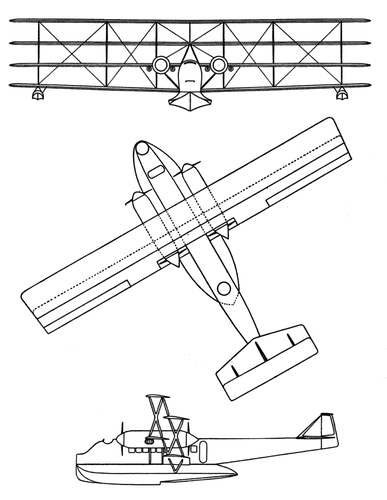

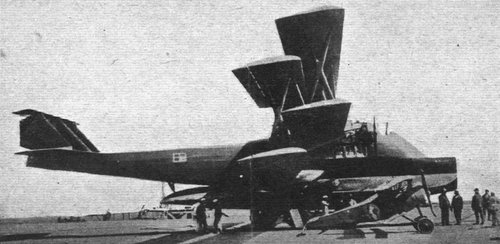

  • The sole MB.36 three-engined transport with three 420 hp Gnôme 9Ad Jupiter engines.

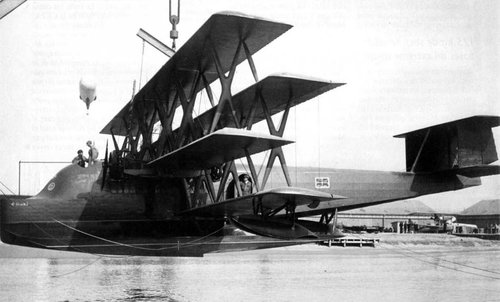

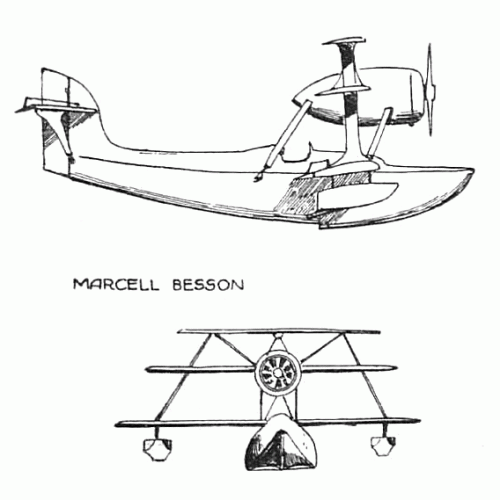

  • The 1919 Hydravion école triplane flying boat that may not have had a designation at all.

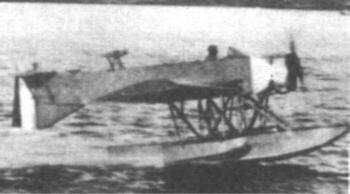

  • One of the two MB.411 Pétrel observation seaplanes that were to be carried atop a submarine.

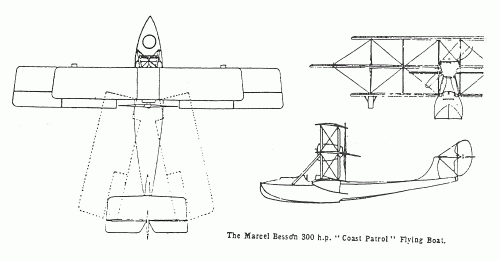

  • The 300 hp Coast Patrol flying boat as it appeared in the 1920 edition of Jane's All The World Aircraft.
  • The 450 hp Deep Sea Patrol flying boat as it appeared in the 1920 edition of Jane's All The World Aircraft.
The latter two types seem to have been built but probably produced in small numbers. According to Le Trait d'Union, The Coast Patrol and Deep Sea Patrol are different from the 1919 Hydravion de reconnaissance that was powered by a 450 hp Renault 12 Ja engine.


Attachments

  • MB.36 trimotor with Jupiter engine.jpg
    MB.36 trimotor with Jupiter engine.jpg
    236.1 KB · Views: 92
  • Besson triplane.jpg
    Besson triplane.jpg
    280.5 KB · Views: 94
  • Besson MB-411 Pétrel.jpg
    Besson MB-411 Pétrel.jpg
    10.2 KB · Views: 83
  • Coast Patrol.gif
    Coast Patrol.gif
    44.5 KB · Views: 86
  • Deep Sea Patrol.gif
    Deep Sea Patrol.gif
    34.7 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Great work Stargazer,



but in your pictures,the Triplane was itself the Coastal Patrol,in 1916,Marcel Besson
employed in Levy (Hydravions Georges Levallois et Levy),as LB series,began with
a single seat fighter triplane with I-type interplane struts,and powered by one
180 hp Hispano-Suiza pusher engine,then followed by a deep-sea patrol and
coastal patrol triplanes.


In 1919 he formed his own company,and may be he started with H-1 and H-2,
of course the last two aircraft is only my suggesting,after that he created the
MB series,which used it from his early aircraft of 1912.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
hesham said:
but in your pictures,the Triplane was itself the Coastal Patrol,in 1916,Marcel Besson
employed in Levy (Hydravions Georges Levallois et Levy),as LB series,began with
a single seat fighter triplane with I-type interplane struts,and powered by one
180 hp Hispano-Suiza pusher engine,then followed by a deep-sea patrol and
coastal patrol triplanes.

I certainly wouldn't think of questioning what Le Trait d'Union said here. If they said that the triplane in the photo it the Hydravion école (school flying boat) of 1919 and give a detailed description of it, then it's good enough for me. You keep guessing and supposing too much!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Stargazer,


I suggested one thing,the H-1 and H-2 designs,but for the triplane picture,which you displayed it,
I repeat again,it was the coastal patrol aircraft,which you also displayed a 3-view to it,they are
the same.


From A-Z magazine.


Attachments

  • Picture.jpg
    68.9 KB · Views: 599

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Oh, I understand now. I couldn't understand what you wrote very well I'm afraid.

Mistakes, even in books, are always possible and so every piece of information must be taken cautiously. You have no idea how many mistakes I found concerning early Curtiss flying boats in many books for instance...

Still, I cannot assert right now that the Hydravion école text and this photo were associated, although I think they were. I'll have to dig up that issue of Le Trait d'Union and verify if it was so or if I made a confusion at some point or other.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Hi,


I ask my dears Toura and C460,if they have a more projects to Besson,please send
it.


The MB.27 was a seaplane transport aircraft,powered by one 400 hp Lorraine engine,
intended for used in saint Raphael during 1925,but it was not successful.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
Okaaaaay... did my share of homework on Besson types over the past few days and came up with a few things. A separate topic will be created in the "Designation Systems" section. Let's keep this here topic for images.

First of all, Besson's Canard.

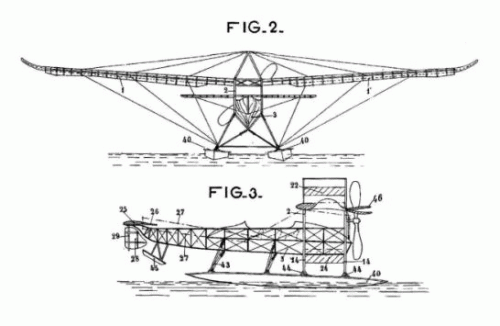

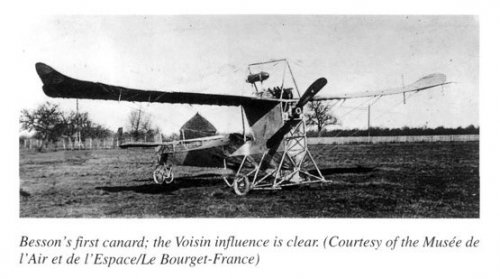

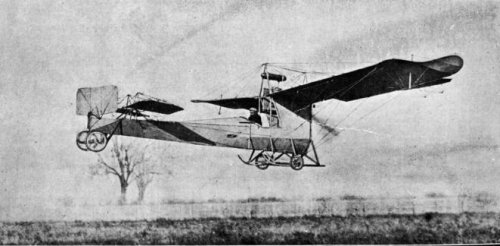

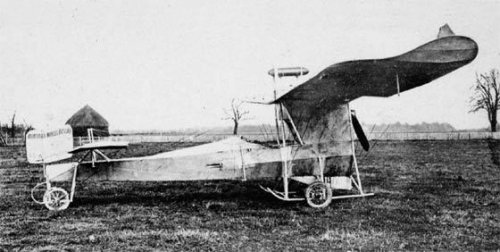

The type was introduced in 1911. 4th attachment shows an early presentation with the fuselage not entirely covered. An Aérhydroplane (float) version of it was illustrated in 1912 (see 5th attachment below) but no photos seem to exist. Finally, a two-seater version was exhibited in 1913 but I couldn't find any photos either. Perhaps someone here knows of any?


Attachments

  • first canard (Schiffer).jpg
    first canard (Schiffer).jpg
    39.3 KB · Views: 482
  • Canard (1911).jpg
    Canard (1911).jpg
    71.5 KB · Views: 467
  • type canard 1911.jpg
    type canard 1911.jpg
    32.7 KB · Views: 453

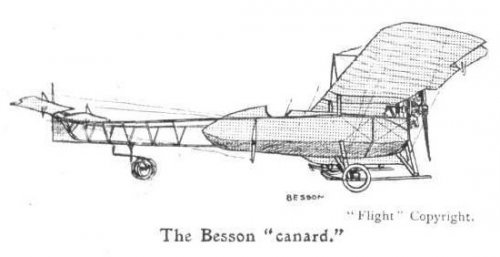

  • Canard drawing (Flight, 16 Nov. 1912).jpg
    Canard drawing (Flight, 16 Nov. 1912).jpg
    23.1 KB · Views: 432

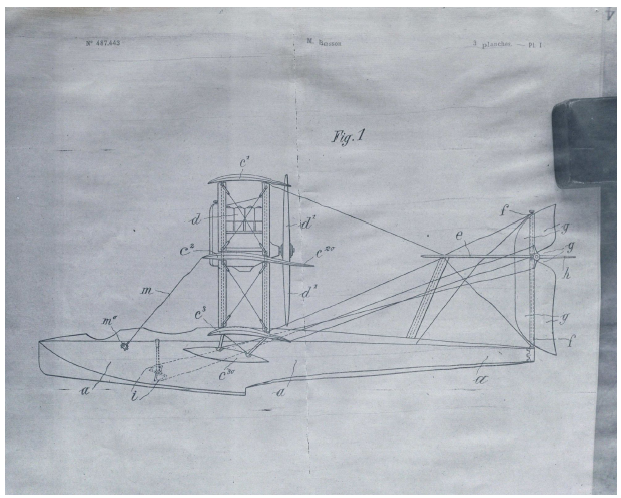

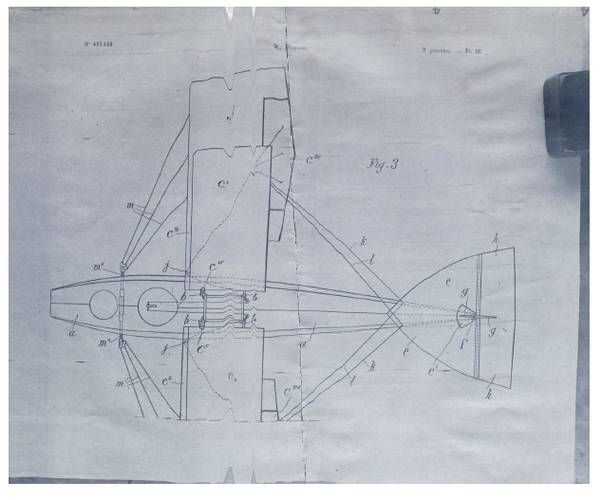

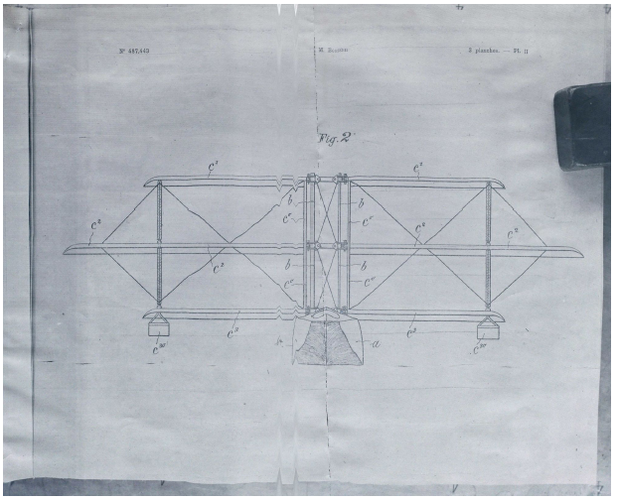

  • Canard version hydro ((Dessin du brevet, daté 1912, INPI).gif
    Canard version hydro ((Dessin du brevet, daté 1912, INPI).gif
    63.9 KB · Views: 58

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

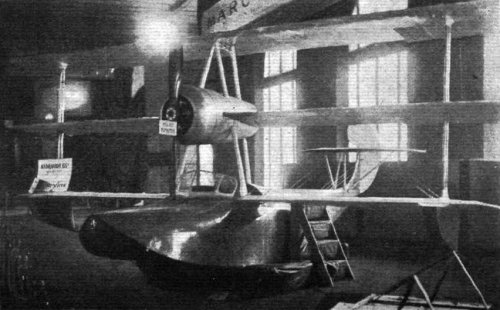

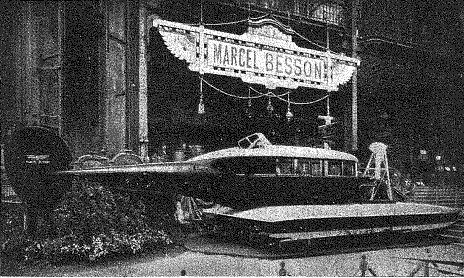

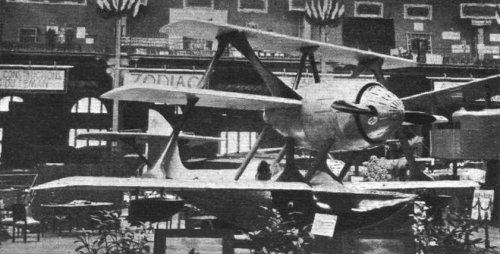

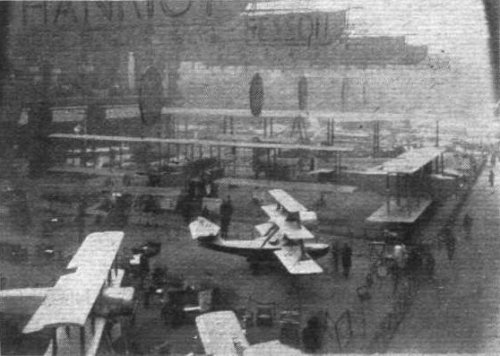

The Besson H-6 was exhibited at the 1921 Paris Show in the Grand Palais. It was a nicely-built small single-seater flying boat of very unusual design: it was a triplane flying boat two-seater with the lower wing being the largest and the top wing the smallest. The flaw in such a design was that the centre of thrust would be quite far above the centre of resistance. The strutting featured a system of triangulation which apparently made bracing wires superfluous.

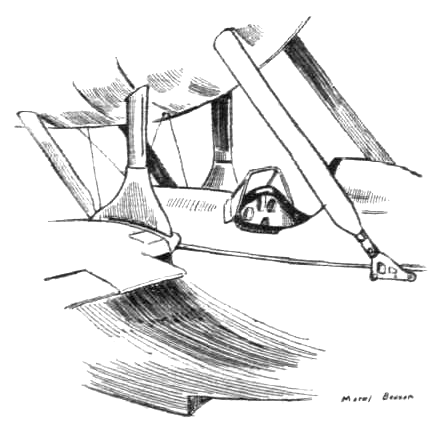

The 130 h.p. Clerget engine was mounted in a streamline power "egg" which also contained the fuel tank. It drove a tractor screw, having a spinner over the boss. The pilot
sat just aft of the trailing edge of the wings, and therefore could not get such a good view as in a pusher flying boat.

Although presented as a "sport type" mail-carrying aircraft, there did not seem to be much room anywhere for mail, and the diminutive machine could probably carry no more than a relatively small payload.

The fate of this sole prototype is not known.


Attachments

  • H-6 general arrangement.gif
    H-6 general arrangement.gif
    51.7 KB · Views: 69
  • H-6 engine struts and cockpit.gif
    H-6 engine struts and cockpit.gif
    60.6 KB · Views: 60
  • H-6 as part of the Paris Aero Show, 1921.jpg
    H-6 as part of the Paris Aero Show, 1921.jpg
    47.6 KB · Views: 87
  • H-6 at the Grand Palais in November 1921.jpg
    H-6 at the Grand Palais in November 1921.jpg
    96.1 KB · Views: 91

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

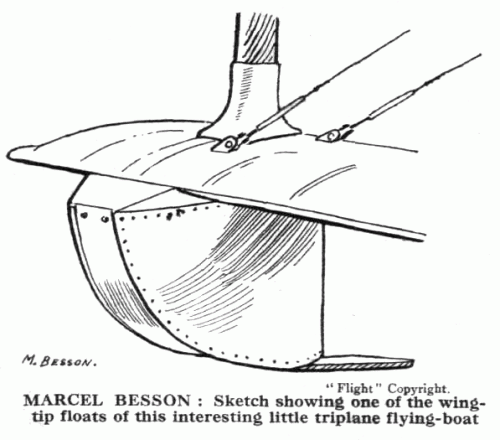

At the 1919 Paris Aero Show, Besson, who had now separated his activity from that of Georges Lévy, exhibited his Hydravion-école, a small triplane flying boat two-seater, powered by one of the then-new 60 hp Le Rhône engines.

The two seats were placed side by side in the boat, and dual controls were provided. Only the middle and upper wings had ailerons. Initially, all three wings had a 6-meter span, but the middle one was later extended. The aircraft measured 9 meters in length.

Although appearing as a handy little machine, it was unlikely that with so little power the machine could ever take off. In fact when it finally flew it was with a more powerful engine, and was able to reach 90 knots with a 3-hour range. This leads me to wonder if the quoted H-4, a school type powered by a 130 hp Clerget engine, may not be that same machine.

There doesn't seem to have been any production of that prototype.


Attachments

  • hydravion-école - détail (Flight, 1 Jan 1920).gif
    hydravion-école - détail (Flight, 1 Jan 1920).gif
    67.3 KB · Views: 66
  • hydravion-école (1919).jpg
    hydravion-école (1919).jpg
    97.9 KB · Views: 74

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971

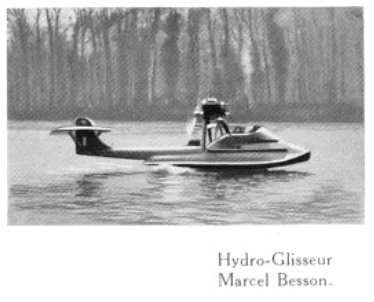

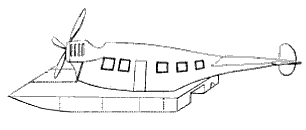

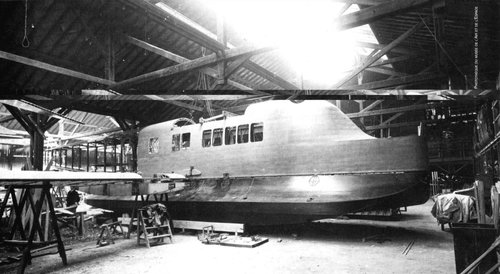

With the Levy-Besson triplane flying boat's bad reputation, and the lack of customer for his post-war prototypes, Marcel Besson sought to diversify his activity. Between 1920 and 1925, he built powered boats and water-planes (now called hydrofoils) in Boulogne-Billancourt. The first of these, which made quite a sensation in 1920 when it was exhibited, was the G-1, a transport water-plane for 10 passengers.


Attachments

  • G-1 (1920).jpg
    G-1 (1920).jpg
    63.5 KB · Views: 84
  • hydroglisseur 1920.gif
    hydroglisseur 1920.gif
    3 KB · Views: 84

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Hi,


also the Besson built a biplane and triplane trainer aircraft of 1914,them followed
by the LB series as I mentioned,and may be those two aircraft called H-1 and H-2.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
971
hesham said:
Hi,


also the Besson built a biplane and triplane trainer aircraft of 1914,them followed
by the LB series as I mentioned,and may be those two aircraft called H-1 and H-2.

Why do you repeat what you just said two days ago?

I'm going to provide more info and pics for the 1915 and LB planes, just be patient.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Stargazer,


I don't repeat my words,but when I know those two aircraft from 1914,today
I suggest they are what I meant.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
hesham said:
The MB.27 was a seaplane transport aircraft,powered by one 400 hp Lorraine engine,
intended for used in saint Raphael during 1925,but it was not successful.

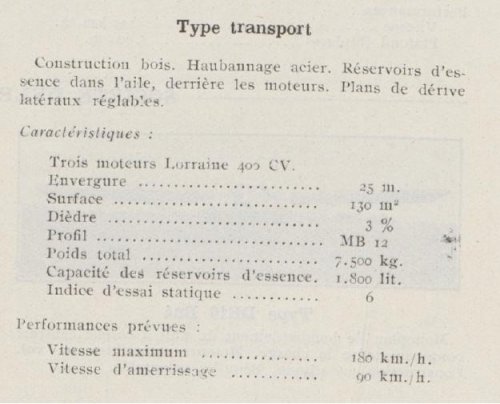

Also from L'Aerophile 1926,a more data about MB.27 seaplane transport aircraft.


Attachments

  • MB.27 data.JPG
    MB.27 data.JPG
    39 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Re: Besson projects

Tophe said:
As requested by Hesham, here is the Besson MB.21 project, from Le Trait d'Union #146 (November-December 1992). Probably 1922.


Hi,


I suggest that,the Besson MB.21 was a single seat marine fighter project,intended for 1922
competition,which Bleriot-101 and CAMS-31 were involved.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,991
Reaction score
6,874
Hi,

the Levy-Besson developed a single seat triplane fighter seaplane in 1918,and in Le Fana 26,
they called it H-9,I think they meant MB.9 ?.


Attachments

  • 1.png
    151.1 KB · Views: 41

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,522
Hi! NACA technical memorandum No.180 MARCEL BESSON WING SECTIONS.


Attachments

  • naca-tm-180.pdf
    489.1 KB · Views: 9

Similar threads

Top
