hesham said:
hesham said:
although I am still amateur in aviation,but I am ready to write two books;

- French Civil Aircraft & Projects : 1910-1945
- French Military Aircraft & Projects : 1910-1945
I will change the two titles to be from 1919-1945.
I'll buy the two ;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Deltafan said:
hesham said:
hesham said:
although I am still amateur in aviation,but I am ready to write two books;

- French Civil Aircraft & Projects : 1910-1945
- French Military Aircraft & Projects : 1910-1945
I will change the two titles to be from 1919-1945.

I'll buy the two ;)
Thanks.


CNH

CLEARANCE: Secret
Senior Member
Joined
Dec 5, 2010
Messages
232
Reaction score
0
My experiences with Jay Slater at Fonthill media cannot be described as fruitful.


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,439
Reaction score
73
Next books
-Enemy at the Gates: Panic Fighters of the Second World War
-Fighters of the Dying Sun: The most Advanced Japanese Fighters of the Second World war

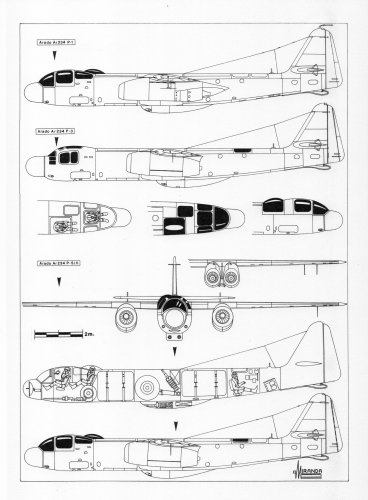

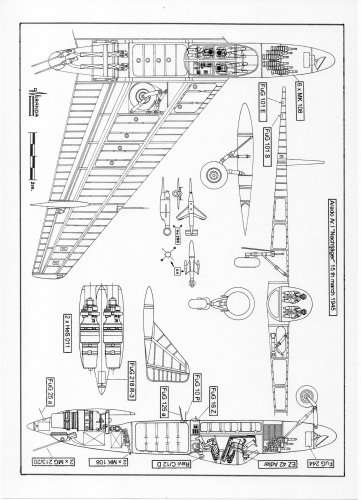

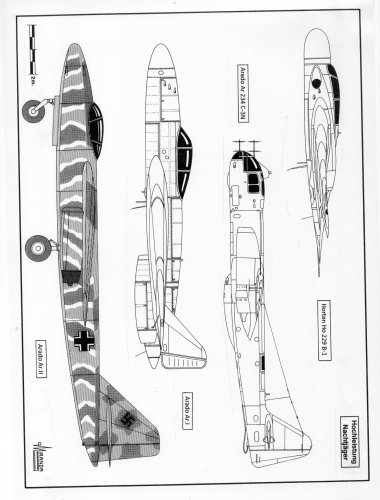

-The Ultimate Night Fighters of the Luftwaffe


gatoraptor

CLEARANCE: Secret
Senior Member
Joined
Aug 29, 2010
Messages
389
Reaction score
11
Justo Miranda said:
Next books
-Enemy at the Gates: Panic Fighters of the Second World War
-Fighters of the Dying Sun: The most Advanced Japanese Fighters of the Second World war
-The Ultimate Night Fighters of the Luftwaffe
Muchas gracias, Justo!


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7
Eagerly awaited !
Any publishing dates Justo?


Deltafan

CLEARANCE: Top Secret
Joined
May 8, 2006
Messages
814
Reaction score
63
Justo Miranda said:
Mine has been very satisfying, though ;D

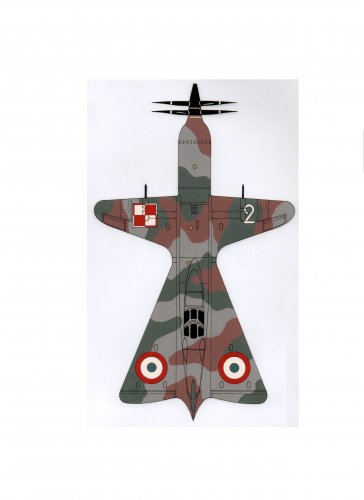

Yes, the Pa.112 C1 of the polish pilots fighting in France (What if at the beginning of WW2 ?) is a good one ;D ;)

Justo Miranda said:
Next books
-Fighters of the Dying Sun: The most Advanced Japanese Fighters of the Second World war
Tempting.


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,439
Reaction score
73
Payen Fighters (first deltas)
Between 1932 and 1942, Nicolas Payen designed a series of wooden canard-delta airplanes with a radical tandem-wing configuration.
In 1933 he built the Pa 100 Flèche Volante with small wings called machutes and a 67 degree swept delta tailplane, to compete in the 3rd Coupe Deutsch. The machutes had mobile wingtips which acted as ailerons and electrically-operated metallic flaps. The landing gear consisted of one centreline main leg, retracting backwards, and two outrigger auxiliary wheels retracting into the tailplane.
The engine should have been one 180 hp Regnier R6, six-cylinder straight air-cooled, driving a fixed pitch wooden airscrew. But it was not possible to get one in time to participate in the competition and Payen had to adapt his project to the only engine available: one 380 hp Gnôme-Rhône 7Kd Titan Major seven-cylinder radial air-cooled, weighting 270 Kg, totally unsuited for a racing aircraft. It was necessary to install a fixed undercarriage in more advanced position, to compensate the extra weight, and a tail skid. The wingtips ailerons were also changed by others, safer and of conventional type.
The refurbished plane was named Pa 101 Avion-Flèche, had 4.26 m wingspan, 5.75 m length, 2.2 m height, 6.86 sq.m wing surface, 750 kg maximum weight and one estimated maximum speed of 400 kph. It flew for the first time on 17 April 1935, being damaged in an accident just eight days later.
The Pa 101 airframe served as the basis for a new racer project, called Pa 110 CD (Coupe Deutsch). Designed in 1935, it differed from the previous model by its conventional landing gear, retracting backwards into the fuselage sides. It was hoped that it might be able to fly at 490 kph powered by one 200-240 hp Hirth 508D, eight-cylinder inverted-Vee, air-cooled engine, but the project was cancelled due to lack of funding.
When the Spanish Civil War began, the Republican Government had great difficulties in acquiring combat airplanes abroad, due to the international blockade. In the summer of 1936 Nicolas Payen offered the Spanish communists to build the Pa 110 C.1, the military version of the racer, through the Luxembourgian banker Rosenthal.
The power system designed for the fighter was made up of two 220 hp Renault 6Q-01, six-cylinder straight air-cooled engines installed in tandem face-to-face. Both engines were connected to the contra-rotating propellers power shaft by means of a Cotal-Baudot gearbox that allowed to electrically disconnect any of the engines by means of a clutch.
It was going to have an armament of two 7.5 mm Darne machine guns installed under the machutes and one 20 mm H.S. 9 cannon, firing through the propellers hub, but the French Government had banned its export to Spain and had to be replaced by one 23 mm Danish Madsen cannon. The Pa 110 C.1 would have an estimated maximum speed of 460 kph, flying with one engine, and 550 kph with both engines. The estimated range was of 850 km.

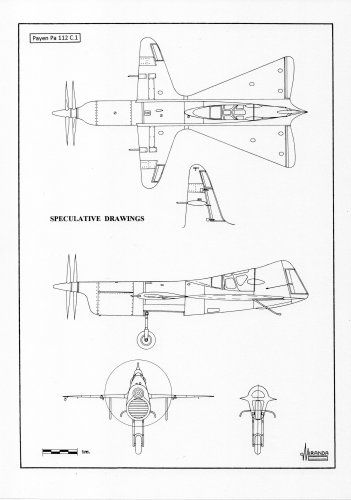

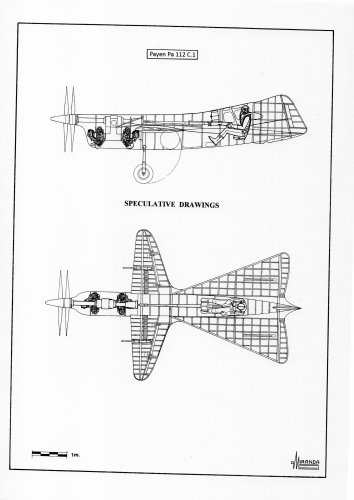

The arrival of the Soviet fighters Polikarpov to Spain in October meant the cancellation of the project, which was redesigned as Pa 112 C.1 to adapt it
to the Chasseur Monoplace C.1 specification published by the Ministère de l'Air on 3 June 1937.
The Renault 6Q were replaced by two 200-205 hp Salmson 9ND nine-cylinder radial air-cooled (surplus) engines commonly used by the Bloch M.B.81 of the l’Armée de l’Air and by the Besson B. 411 of the l’Aéronavale. Proposed armament was either a 20 mm H.S. 9 or an Oerlikon FFS cannon and two 7.5 mm MAC 34 M39 belt-feed machine guns installed in the interior of the machutes, or two MAC 34A drum-feed installed under the machutes.
A mock-up using the airframe of the Pa 101 was built in 1938. After being examined by technicians of the l’Armée de l’Air, the project was rejected at the beginning of 1939, because of the great complexity of the power system. Payen offered to build the Pa 300 instead, a fighter capable to surpass the 520 kph of the Programme Technique A23 if they provided him with an H.S.12 Y-45 engine. But the military, who had done most of his career flying in biplanes, found the flèche aerodynamic solution to be too radical and preferred to build the Arsenal VG 33.
To fight these prejudices, Payen built the technological demonstrator Pa 22/2 Fléchair, which was captured by the Germans in 1940 while performing aerodynamic tests in the O.N.E.R.A. wind-tunnel of Chalais-Meudon. Under the new administration, the prototype was modified with the installation of a 180 hp Regnier R6B-01 engine and a new open cockpit with the windscreen of one Arsenal VG 33. It made his first flight on 18 October 1941 and was destroyed during an Allied bombing in April 1944.


Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,439
Reaction score
73
"Fighters of the Dying Sun"

CONTENTS

The Japanese Aggressor (January 28, 1932 to August 15, 1945)

Imperial Japanese Army Aircraft and Projects
Nakajima Ki.44 Shoki
Kawasaki Ki.45 Toryu
Mitsubishi Ki.46 Shin Shitei (Dinah)
Kawasaki Ki.60/Ki.61/Ki.100 Hien
Nakajima Ki.62, Ki.63, Ki.84, Ki.106, Ki.113, Ki.116 and Ki.117 Hayate
Kawasaki Ki.64 (Rob), Ki.78 (Ken-3) and Ki.88
The combat at high-altitude

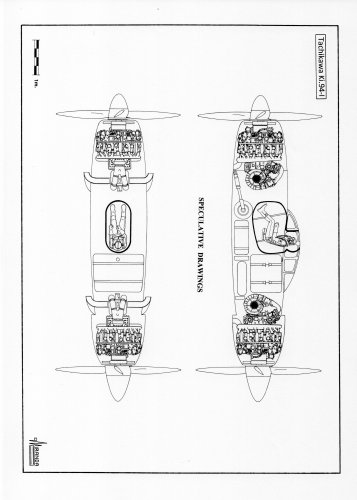

High-altitude interceptors Nakajima Ki.87 and Tachikawa Ki.94
Manshu Ki.65 and Ki.98

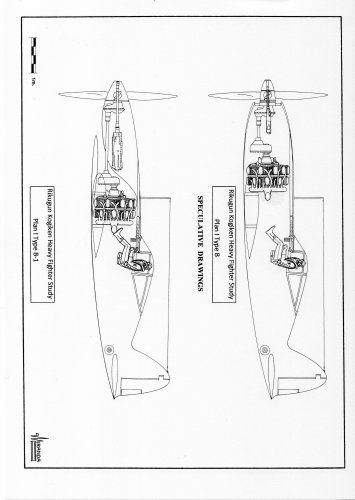

Rikugun Kogiken Heavy Fighter
Nakajima Ki.201 Karyu



Imperial Japanese Navy Aircraft and Projects
Mitsubishi A6M Zero
Mitsubishi J2M Raiden
Kawanishi N1K1-J Shiden
The IJN “20-shi-Ko” specification
Mitsubishi J4M Senden
Kyushu J7W1 Shinden
Nakajima Kikka
Yokosuka R2Y2 Keiun
Mizuno Shinryu II
Kakukyoku Rammer
Kayaba Katsuodori

Rocket Fighters



Night Fighters
Nakajima J1N1 Gekko
Kawasaki Ki.45 Toryu
Mitsubishi Ki.46 Shin Shitei (Dinah)
Nakajima Ki.84 Hayate
Yokosuka D4Y Suisei
Nakajima C6N Saiun
Yokosuka Ginga, Kawanishi Kyokko, Nakajima Byakko and Kugisho Tenga
Aichi S1A Denko
Kawasaki Ki.102
Mitsubishi Ki.109
Mitsubishi A6M2, A6M3, A6M5 and A6M5-S Zero Sen
Mitsubishi J2M3 and J2M4 Raiden
Schräge Musik

Radar Warfare

Operation Downfall

Bibliography


Attachments

Zizi6785

CLEARANCE: Secret
Joined
Dec 20, 2006
Messages
263
Reaction score
12
Justo Miranda said:
Next books
-The Ultimate Night Fighters of the Luftwaffe
Great subject!
Is publishing date september too, Justo?
Have you got contents?


Deltafan

CLEARANCE: Top Secret
Joined
May 8, 2006
Messages
814
Reaction score
63
Justo Miranda said:
Payen Fighters (first deltas)
Thanks Justo, in particular for the two drawings.

Justo Miranda said:
"Fighters of the Dying Sun"
CONTENTS
The Japanese Aggressor (January 28, 1932 to August 15, 1945)
Thanks too for these contents
