Lockheed P-80A(F-80) armament testbed

C

CostasTT

Guest

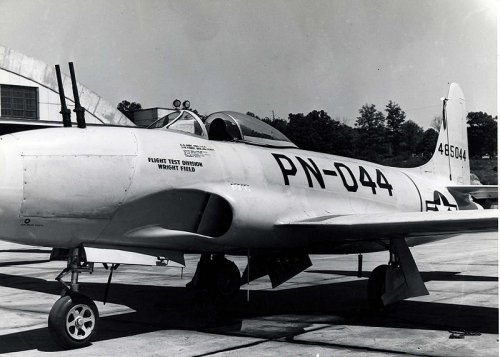

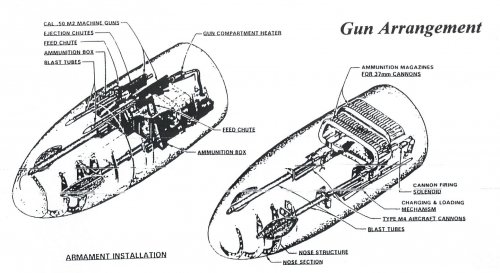

P-80A-1-LO test aircraft (s/n 44-85044) with twin 0.5 in (12,7 mm) machine guns in oblique mount, similar to the World War II German Schräge Musik arrangement, to study the ability to attack bombers from below.


Photo credits: USAF via Wikimedia Commons.


According to www.airwar.ru, tests indicated that the system needed a second crew member for more efficient control, but on the whole it proved too complicated.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,536

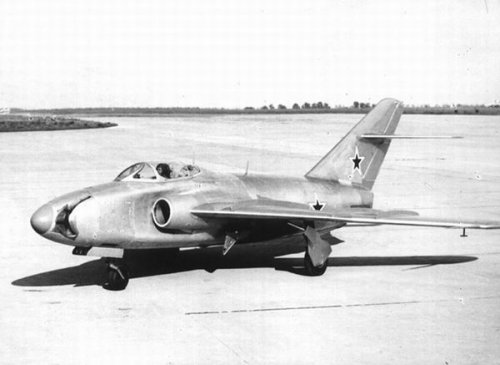

Seems, that the guns could be rotated vertically, similar to the MiG-17SN/
Projekt SN (the typical "schräge Musik was fixed, I think), although in the
upper hemisphere only, whereas the MiG could depress their guns. But the
soviets made the same experience, as Lockheed:practice and theory often
are completely different and aiming such guns is difficult !
(Photo from Squadron/Signal N°125)


Attachments

  • MiG-17SN.jpg
    30.2 KB · Views: 131

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com

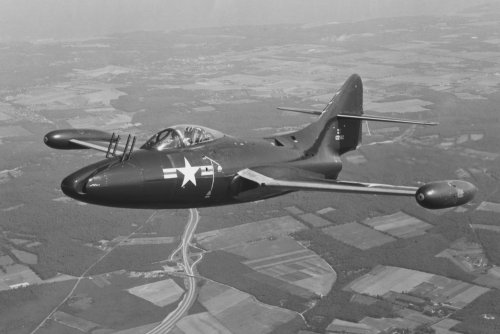

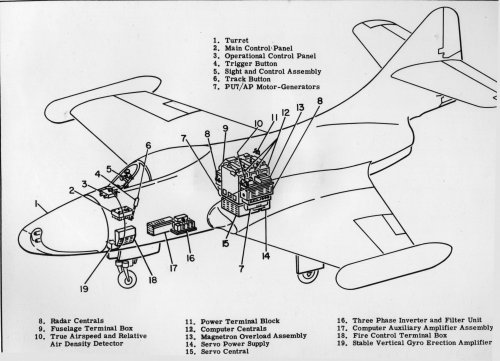

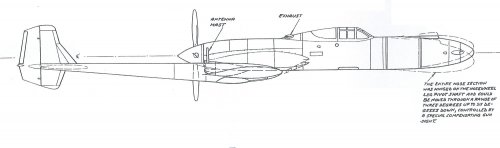

The Navy embarked on a more ambitious approach which wasn't practical given the weight and volume of electronics required at the time to implement the fire control solution:


Attachments

  • X17A Installation.jpg
    X17A Installation.jpg
    689.1 KB · Views: 131
  • 5-41Aero17 2.JPG
    5-41Aero17 2.JPG
    585.1 KB · Views: 145

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,158
Reaction score
4,325
Website
www.amazon.com

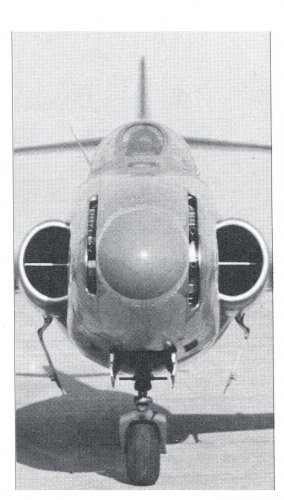

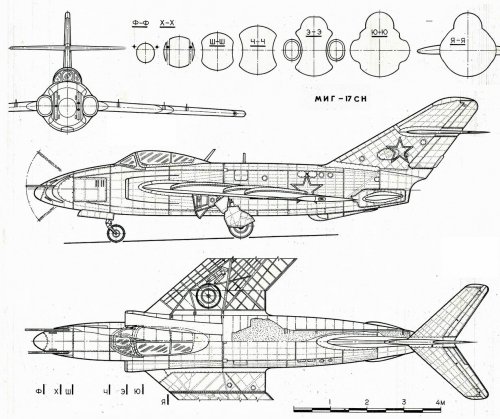

MiG 17 SN additional info


Attachments

  • Escanear0004.jpg
    229.4 KB · Views: 63
  • Escanear0006.jpg
    247.3 KB · Views: 68
  • Escanear0007.jpg
    42.5 KB · Views: 67

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
Hi gents

I had a quick search and could not find this in any forums - so here we go

It a Lockheed F-80 Shooting Star used to test an oblique-mount of 2 x 12.7mm MG's arrangement - Very similar to German WWII Schräge Musik mount of WWII

Does anyone have anything more on this experiment?
And what was the results of the test?
Personally I think the 12.7mm MG a bit light for taking down Soviet Tu-4 'Bulls'

Regards
Pioneer


Attachments

  • test Lockheed F-80 with 2 x 12.jpg
    test Lockheed F-80 with 2 x 12.jpg
    237.1 KB · Views: 49

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,932
Reaction score
1,014
Justo Miranda said:
MiG 17 SN additional info

I've never seen such odd MiG 17. The aircraft had two side air intakes, a long nose and different canopy (it seems sleeker than usual MiG 17's one).
It was only one prototype or there were a small series of this MiG 17 variant?
Where is possible to find out further informations?


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,158
Reaction score
4,325
Website
www.amazon.com

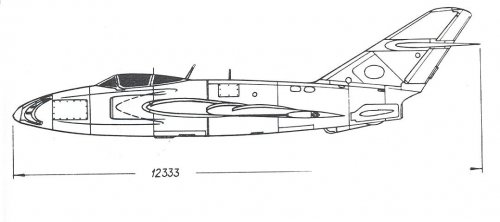

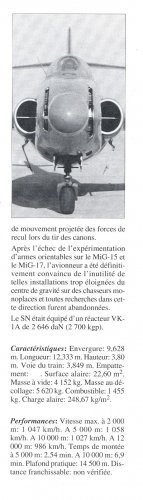

Prototype only...from DOCAVIA Nº33 ...in french :)


Attachments

  • Escanear0001.jpg
    152.2 KB · Views: 32
  • Escanear0002.jpg
    192.8 KB · Views: 48

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,075
Reaction score
240
archipeppe said:
Justo Miranda said:
MiG 17 SN additional info

I've never seen such odd MiG 17. The aircraft had two side air intakes, a long nose and different canopy (it seems sleeker than usual MiG 17's one).
It was only one prototype or there were a small series of this MiG 17 variant?
Where is possible to find out further informations?

If I recall it never made it past the prototype stage. There were problems with the engine inlet design (there was a lot of trouble during this period with anything other than "gaping mouth" designs). Another major problem was the fact that the guns were well forward of the centre of gravity of the aircraft: When they were fired obliquely the aircraft turned in the opposite direction. :)


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
167

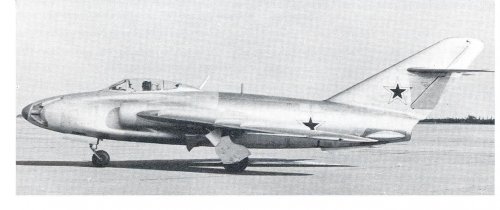

MiG 17 SN additional info


Attachments

  • MiG-17SN.jpg
    515.4 KB · Views: 74

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,059
Reaction score
594
The Navy embarked on a more ambitious approach...

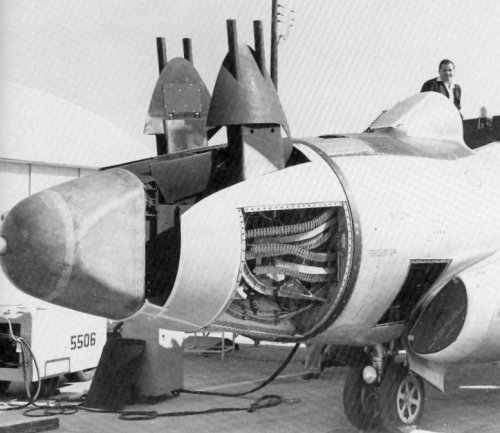

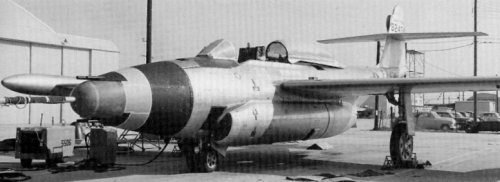

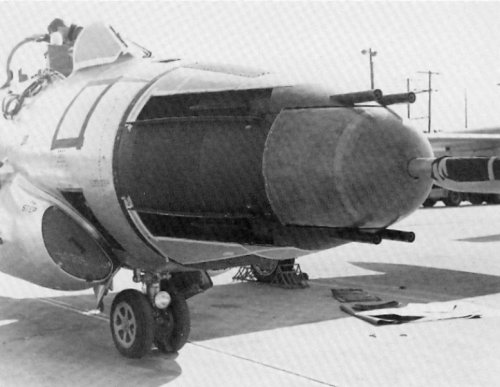

Don't forget the USAF version! Martin D-1 system mounted on an F-89A.

From 'Aerofax datagraph 8: Northrop F-89 Scorpion', page 61.


cheers,
Robin.


Attachments

  • F-89 with Martin D-1 turret.jpg
    F-89 with Martin D-1 turret.jpg
    199.4 KB · Views: 65
  • F-89 with Martin D-1 turret#1.jpg
    F-89 with Martin D-1 turret#1.jpg
    108.2 KB · Views: 69
  • F-89 with Martin D-1 turret#2.jpg
    F-89 with Martin D-1 turret#2.jpg
    238.7 KB · Views: 70

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,932
Reaction score
1,014
robunos said:
The Navy embarked on a more ambitious approach...

Don't forget the USAF version! Martin D-1 system mounted on an F-89A.

From 'Aerofax datagraph 8: Northrop F-89 Scorpion', page 61.


cheers,
Robin.


Really interesting!!!!!

Is that turret the same one used on B-52s?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,059
Reaction score
594
Is that turret the same one used on B-52s?

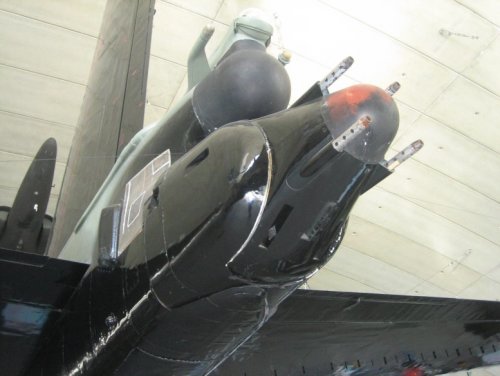

No, the Martin D-1 carries 4x 20mm cannon, the B-52 tail turret fits 4x .50cal machine guns,
see below.


cheers,
Robin.


Attachments

  • B52_tail_turret.jpg
    214.6 KB · Views: 47

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,932
Reaction score
1,014
robunos said:
No, the Martin D-1 carries 4x 20mm cannon, the B-52 tail turret fits 4x .50cal machine guns,

Oh I see, many thanks robunos!
