Lockheed Model 27 canard airliner

[overscan (PaulMM)]

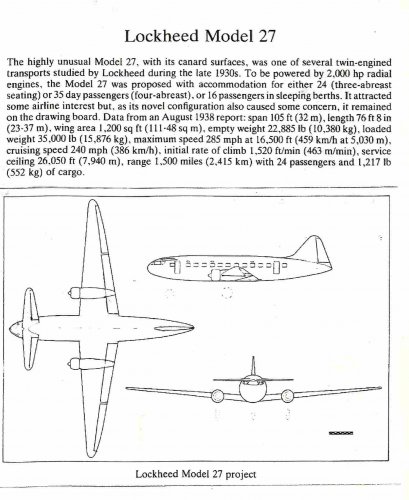

Source: Bill Slayton article in Dirty Plastic newsletter Issue140, IPMS Phoenix



[hesham]

Hi,

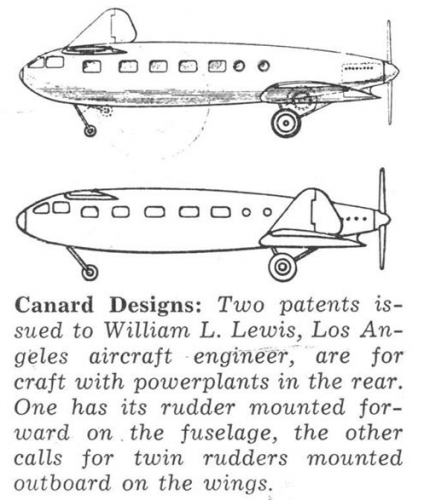

here is a Lockheed patent for canard airliner aircraft.

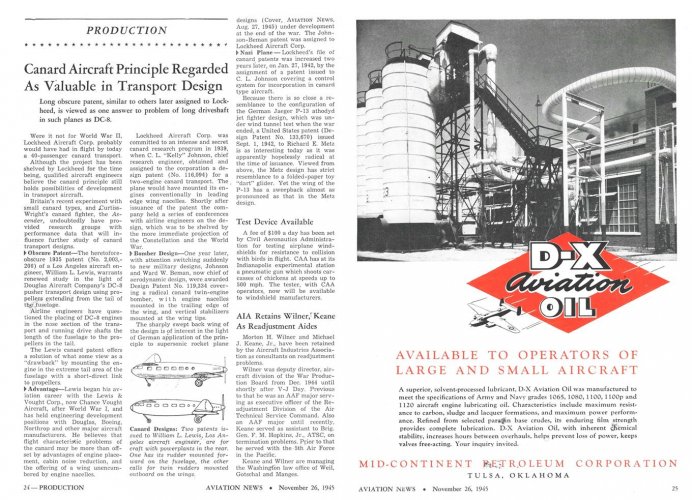

http://archive.aviationweek.com/image/spread/19451126/14/2/zoom



[toura]

hi

I don't remember where I've found this, but
it's a third model of this plane, look at the find



[Schneiderman]

Hi,

here is a Lockheed patent for canard airliner aircraft.

No, that is not a Lockheed patent, Lewis was a freelance aeronautical engineer who had worked for several aircraft companies but not Lockheed. Its all in the article you quote



[Schneiderman]

hi

I don't remember where I've found this, but
it's a third model of this plane, look at the find

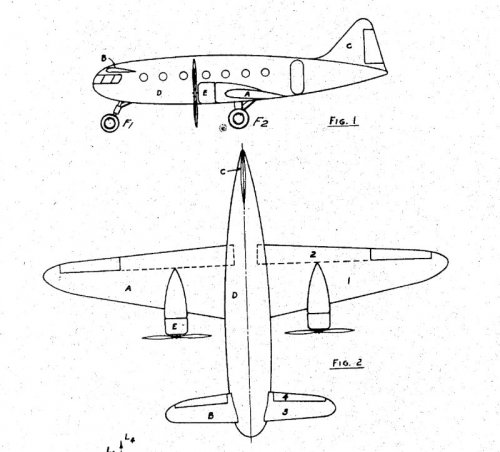

Yes, that is based on Lockheed/Johnson patent US2271226 submitted in 1938 and granted in 1942



[Schneiderman]

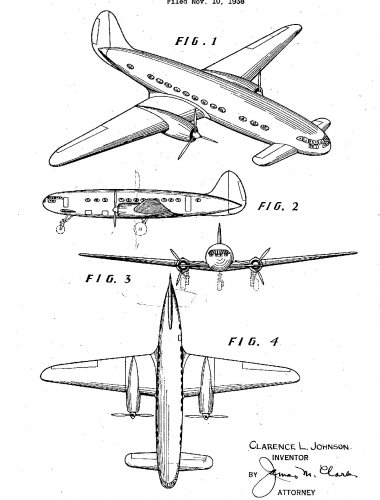

Here are the two Lockheed patent designs, both from 1938



[Norse]

I wonder if there was a jet engine version because of the l-133 development?



[overscan (PaulMM)]

hi

I don't remember where I've found this, but
it's a third model of this plane, look at the find

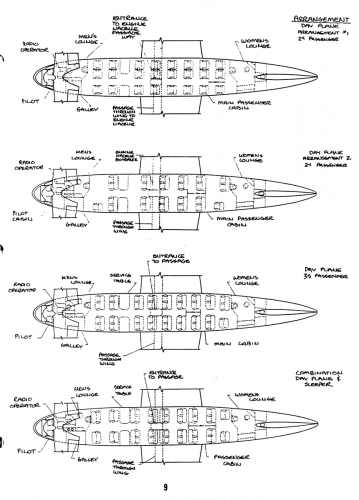

Its from the Putnam on Lockheed.



[sienar]

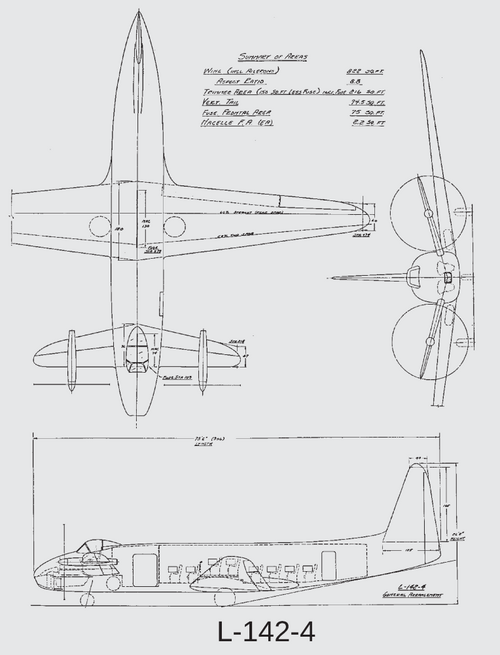

There was this later, and even more unusual, canard transport from early 1943.

AAHS summer 1999



[hesham]

There was this later, and even more unusual, canard transport from early 1943.
View attachment 750872
AAHS summer 1999

https://www.secretprojects.co.uk/threads/lockheed-l-142-medium-transport-aircraft-project.24137/
