Lockheed Minion

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55

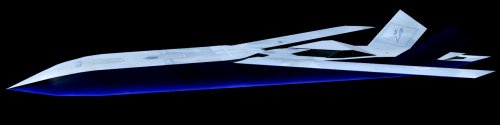

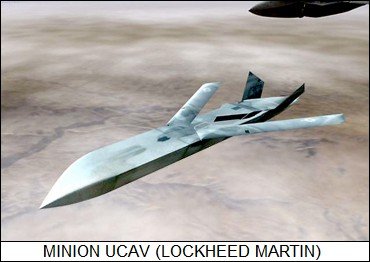

Whatever happened to the Lockheed Minion? Likely it was just a design study. Or it went black. Either or, because I haven't heard a peep about it.


Attachments

  • AW_09_22_2003_1257_L.jpg
    12.6 KB · Views: 573
  • twuav_16_05.jpg
    26.1 KB · Views: 566

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,403
Reaction score
1,443
There was an article in AvWeek several years ago about it. Basically, it would weigh 7500lbs, carry four or eight (I don't remember which) SDBs, have something like a thousand mile range, have landing gear- and be carried by the F-22. Given that it would have weighed 7500lbs and the pylons are only rated at 5000lbs I'd speculate that a pylon that attached to two hardpoints would be used. As I recall they said each F-22 would direct two minions. So it takes off with two Minions, flies them within a couple hundered miles of a high value target(s), tells them what to hit, and then launches them. They hit the target (with the F-22 providing updates if needed on the way), fly back to base, and then land with their own landing gear. The idea was that Minion would have the smallest possible RCS with the given technology, good range, and a decent payload. Also it would obviously extend the attack range of the F-22 as well.

Here ya go:

http://www.vectorsite.net/twuav_16.html#m5


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
Anyway this is exactly what I was talking about when I was babbling on about UAVs in all those other threads :)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
876
The proposed system is a cruise missilelike, air-launched unmanned aircraft, which is able to carry a payload of four precision-guided small diameter bombs or, as an alternative, an electronic attack payload. Engagements would be controlled from the launch aircraft, before the Minion returns to a forward operating base, landing using its own retractable landing gear. The aircraft is estimated to cost substantially less than a Joint Air-to-Surface Standoff Missile (JASSM).

Fulghum, D. A., ‘New Stealth: Lockheed Martin Has Revealed a New Stealthy UAV’,
Aviation Week & Space Technology, Volume 159, No. 12, 22 September 2003, page 32


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
676
Reaction score
10
GTX said:
Just call me Ray said:
Anyway this is exactly what I was talking about when I was babbling on about UAVs in all those other threads :)

???

In previous threads when I talked about my ideas about the future of unmanned and manned aircraft.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
Hmm...

Lockheed Martin developed a new class of unmanned aerial vehicles (UAVs) that it calls 'minions', according to senior officials within the Skunk Works: the Advanced Development Programs division of Lockheed Martin Aeronautics.

http://www.strategypage.com/militaryforums/512-17683.aspx

Also the Trevor Paglin in his book about the military patches suggests, that there was the predcessor of the Minion called project Minotaur. Hmm... http://www.secretprojects.co.uk/forum/index.php/topic,10031.msg93684.html#msg93684


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
Lockheed Martin je nedavno s uspjehom završio s razvojem nove klase bespilotnih letjelica koje je nazvao Minions. Riječ je o svojevrsnom konceptu mini borbene, odnosno naoružane bespilotne letjelice. Jedna od temeljnih nakana u razvoju Minionsa je želja da se postojećim zrakoplovnim platformama s ljudskom posada poveća "stand-off" mogućnost borbe, odnosno taktičkih udara po protivničkim ciljevima.

http://www.hrvatski-vojnik.hr/hrvatski-vojnik/0722006/tehnika.asp

"Finished the development?" It seems I am going to write another e-mail.


Attachments

  • minion UAV.jpg
    minion UAV.jpg
    14.4 KB · Views: 909

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,403
Reaction score
1,443
The AvWeek article also mentioned that F-22s were suppose to carry one of the 7500lb vehicles under each wing and then launch them when close enough to the target area. They didn't mention how the F-22s were suppose to do that with hardpoints only rated for 5000lbs. Maybe limit the G's when carrying them or using a "shoe" to pick up both hardpoints on each wing? ???


TAGBOARD

ACCESS: Restricted
Joined
Dec 11, 2010
Messages
37
Reaction score
0
I'd imagine they work a blend of what you mentioned. Addionally, the F-22 is "placarded" to fly different flight envelope limits, depending on the mass, CG location and aerodynamics of external stores.

It'll be difficult to maintain an all aspect low observable signature with them hanging out in the breeze. Perhaps they drop the racks after deploying the stores, similar to external fuel tanks.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
Lockheed Martin Minotaur

http://www.worthpoint.com/worthopedia/minotaur-lockheed-advanced-developmnt-skunk-works


Attachments

  • 1_3a531e49cb2652680e38ffdbf0756d17.jpg
    22.1 KB · Views: 375

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
117
Website
www.hitechweb.genezis.eu
Reading that Croatian article once again, there is also the information, that they are going to develop VTOL (!) version of the Minion.

Planira se razvoj VTOL inačice, koja bi bila sposobna samostalno polijetati i slijetati.


TAGBOARD

ACCESS: Restricted
Joined
Dec 11, 2010
Messages
37
Reaction score
0
I Could Tell You...

I was recently reviewing an image of a patch Trevor Paglen displayed in his book, where he states:

Minotaur is a still-classified program undertaken by Lockheed Martin's Advanced Development Programs division, the Skunk Works. Although Minotaur remains obscure, rumor holds that the airframe shares a "family resemblance" with another Skunk Works program called Minion and may have served as a technology demonstrator for that program.

Lockheed MINOTAUR Program Patch - Image

Above is a hyperlink to an image of the program patch Paglen is discussing.

Minotaur - Wikipedia

Minotaur - Image

Longhorn Skull - Image

I then reviewed what a minotaur is in Wikipedia:

- A minotaur is "part man and part bull". Does this imply there's two parts to the system - both a manned and unmanned element? Is the skull of a bull clue us to the offensive part such as an unmanned conventional weapons carrier with an F-22 or undisclosed manned platform with advanced sensors?

- What does the bull mean? The horns are not shaped like the typical hooked upward fashion, but rather look like a longhorn bull, which seems indicative of a Texas (Fort Worth ADP) element. Perhaps the funding source? Would this make it an IRAD effort to capture customer funding, similar to the P-175?

Other items of note:
- Wings may imply an airborne element?
- Black background implies a black program or night operations?
- Green eyes and bulbous forehead create an "alien" nature. Does this imply a program relation to the AFFTC DET 3 operating location?


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,152
Reaction score
165
Minotaur may be more closely related to this:
http://www.secretprojects.co.uk/forum/index.php/topic,6843.msg68101.html#msg68101


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com

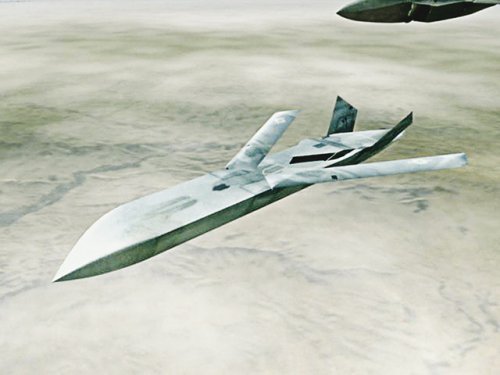

Larger image of previously posted artist's impression of Lockheed Martin Minion.

Source:
http://vnfawing.com/forum/viewtopic.php?p=20621&sid=4c08a94146c1ac2e2e6d60335bce8a2f


Attachments

  • p1116671.jpg
    61.1 KB · Views: 301
